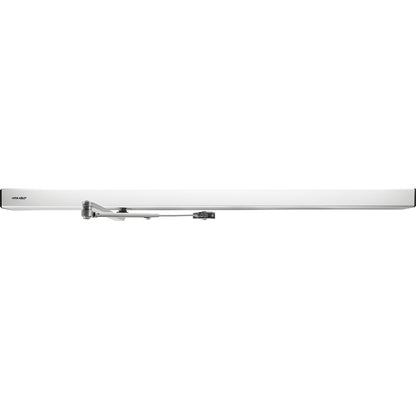

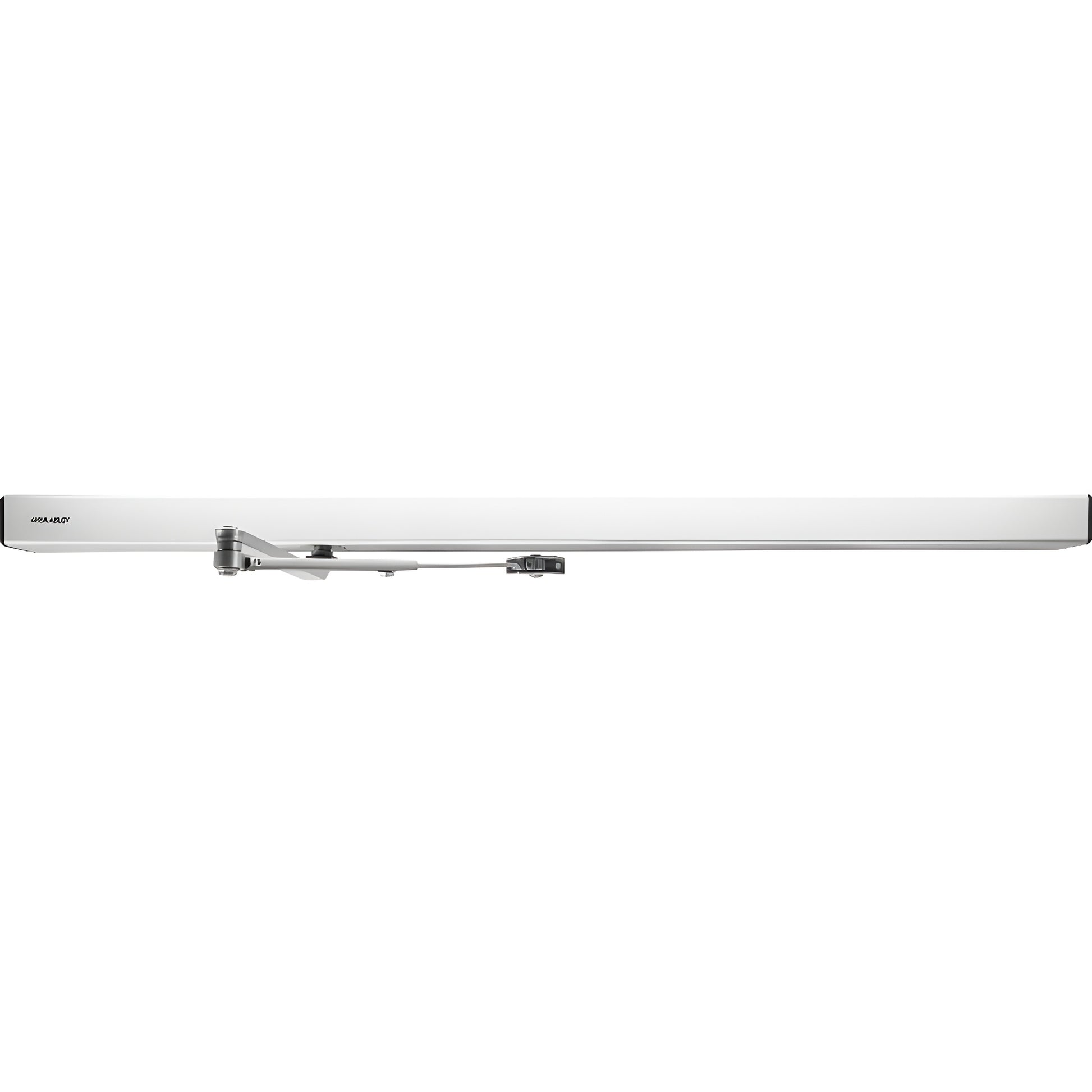

Assa Abloy Clear Anodized Automatic Swing Door Operator - Commercial
Item# SW60A
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
Brand
ASSA ABLOY
Certification
ANSI A156.19
Depth
2-3/8 in. (60.3 mm)
Door Weight
80 To 200 lbs. (36 To 90 kg)
Door Width
30 To 48 in. (762 To 1219 mm)
Finish/Color
Clear Anodized
Height
1-7/8 in. (48 mm)
Length
39-1/2 in. (1003 mm)
Mounting Type
Surface Mount
Series
SW60
UL Listed
Yes
- Sleek design for limited overhead space
- Easy retrofit installation on existing doors

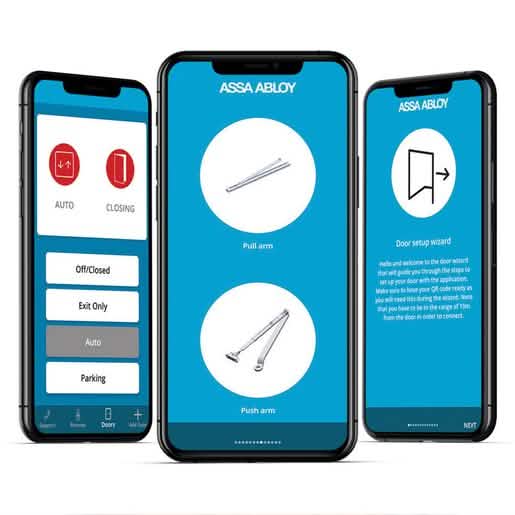

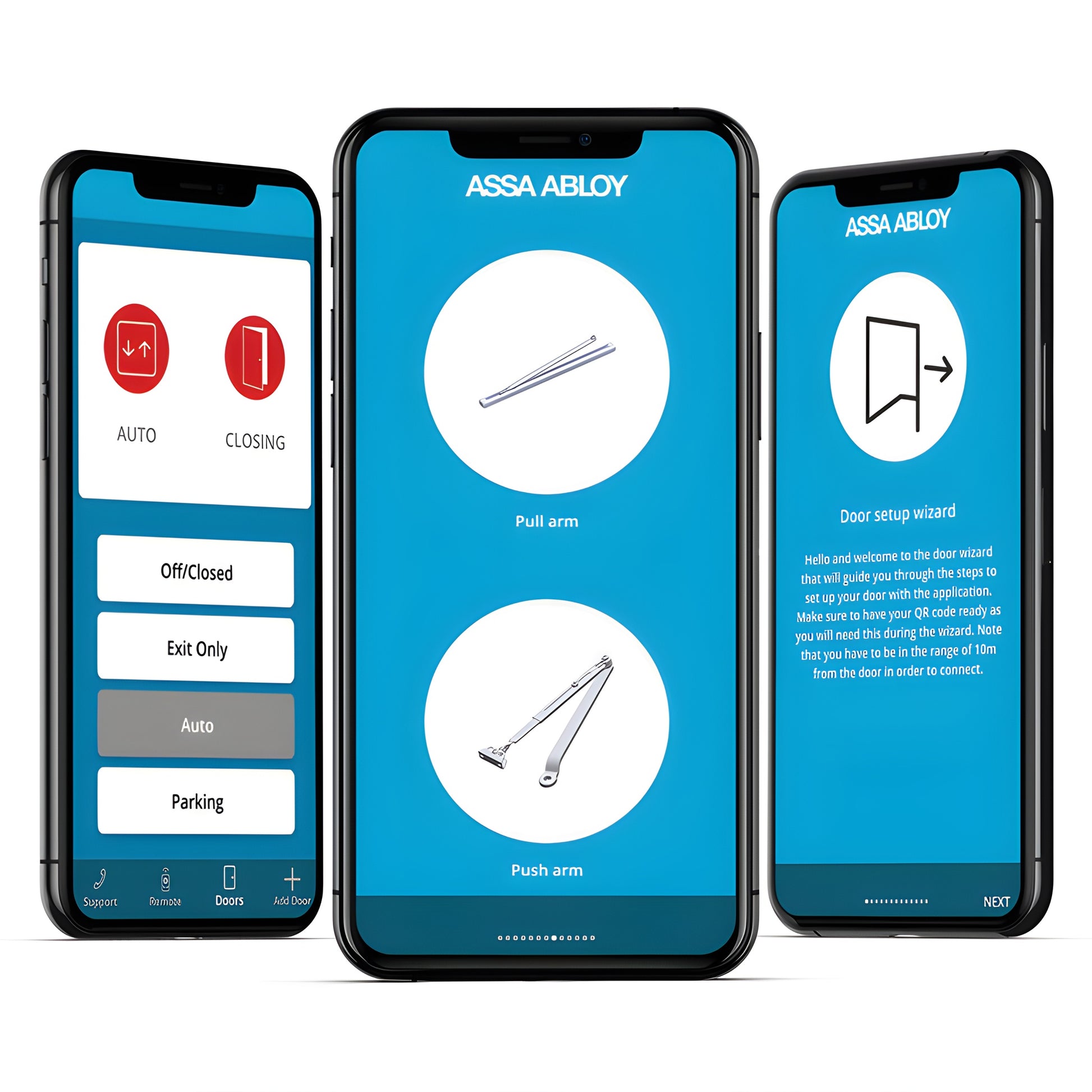

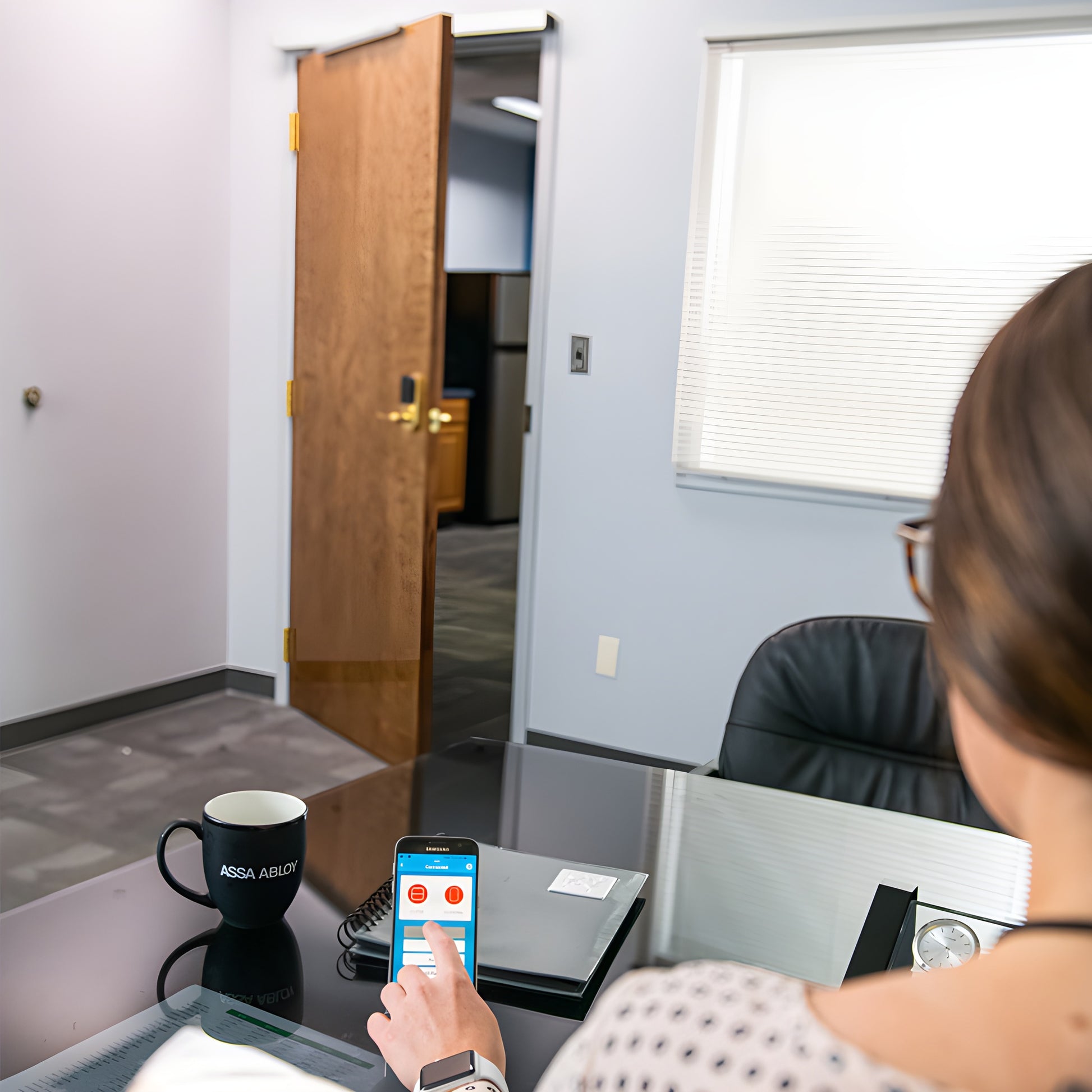

- App-controlled door functions and touchless activation

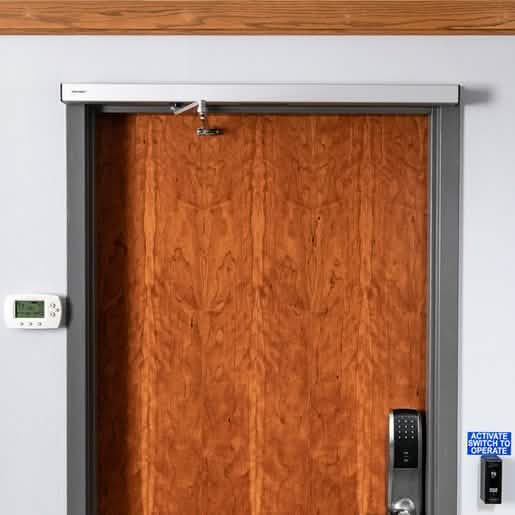

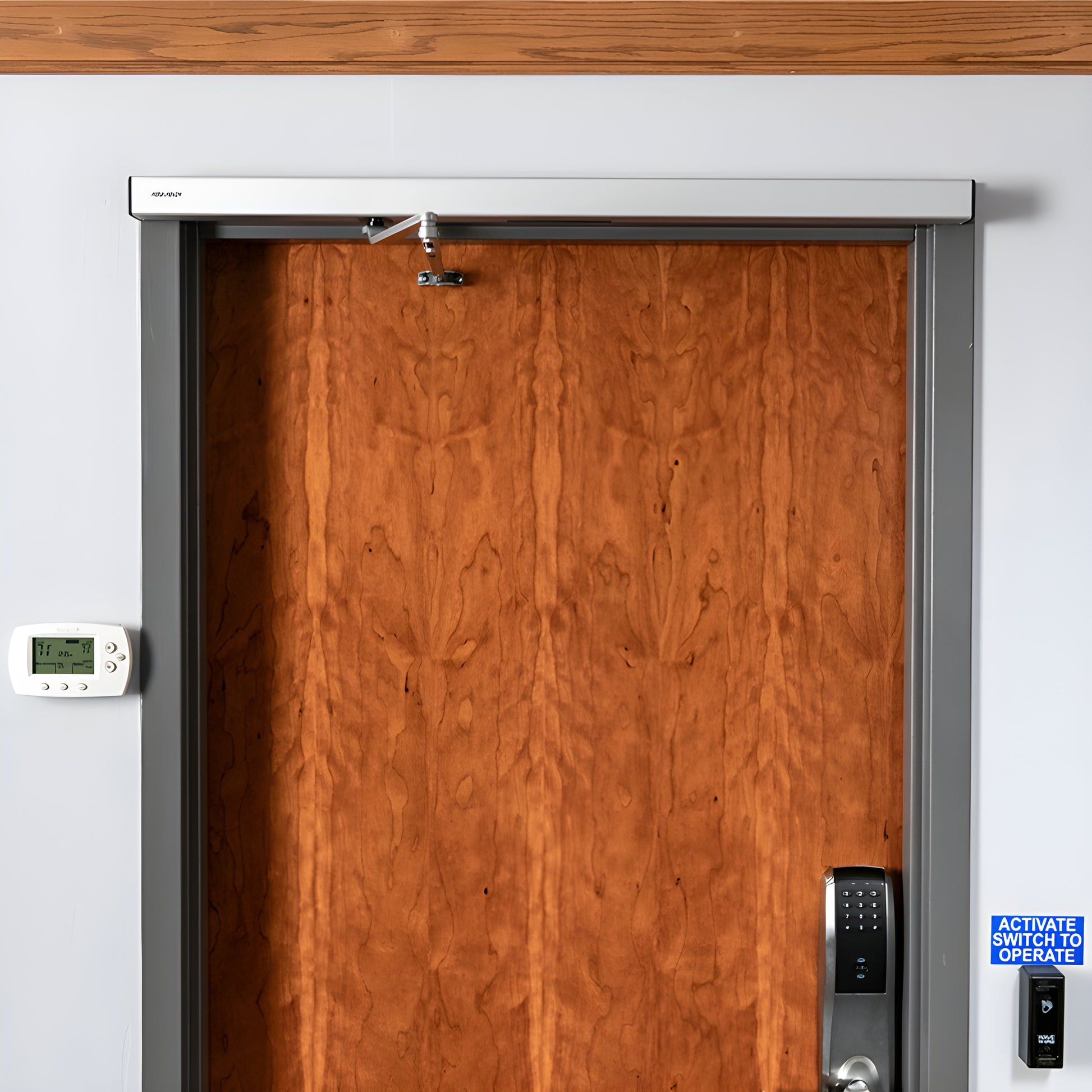

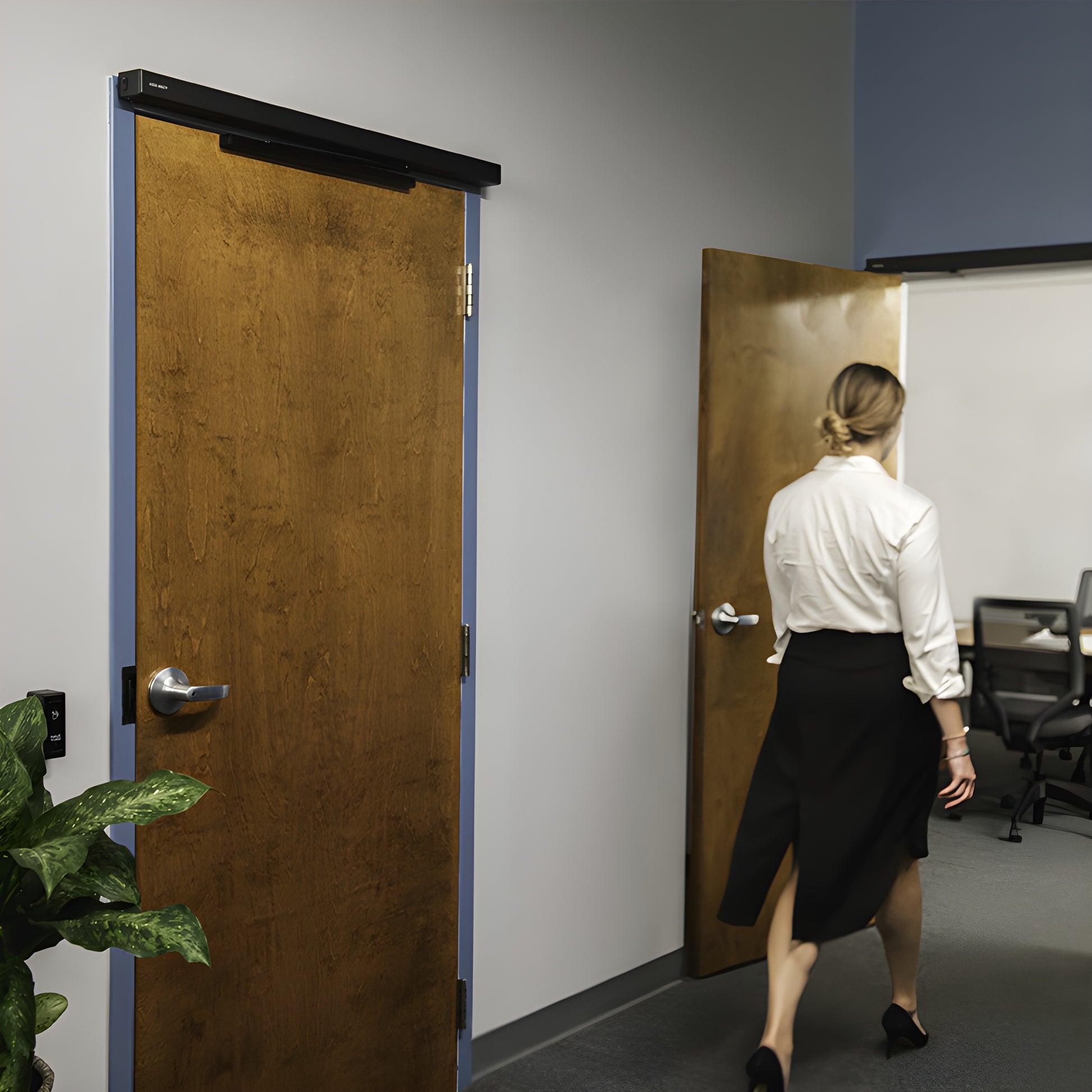

Meet the ASSA ABLOY SW60 (SKU: SW60A), a low-profile automatic door operator that converts virtually any interior door into a germ-free, touch-free entrance. Combining electro-mechanical reliability with smart access control, the SW60 is ideal for interior low-energy automatic door solutions in restrooms, offices, senior care, and public buildings.
The SW60 supports free swing, push & go and ratchet functions, and integrates with electric strikes, door-mounted presence sensors (approach side only), or touchless activation units.
Operator Features and Performance:
- Operator: electro-mechanical, non-handed
- ANSI compliance: Low energy (ANSI A156.19)
- UL approved — UL325, UL/CUL & UL Listed Fire Door Operator (UL10C)
- Door weight capacity: up to 200 lbs per operator
- Door width: up to 48”
- Manual push force: adjustable from 5 lbf – 15 lbf
- Hold-open time: adjustable from 2 seconds to 6 hours
- Ratchet function for secure manual operation
- Electric strike integration (no external relay required)
- Low-voltage operation powered by external 24 VDC supply
Aesthetics & Dimensions:
- Low-profile appearance: 1-7/8” high x 2-3/8” deep
- 39-1/2” header unit
- Available finishes: Clear Anodized or Dark Bronze
- Designed to blend with door frames and fit where overhead space is limited
Most shipping weights are approximate. If you need exact shipping weight or costs to complete your order, contact CRL Customer Service before ordering. Product images are actual product or close representations; colors may vary depending on monitor settings.
Ready to upgrade interior doors to low-profile automatic operation? Contact us to order the ASSA ABLOY SW60 (SW60A) or request a quote.
