Product Details
- Sleek Design for Limited Overhead Space
- Easy to Install on Existing Doors

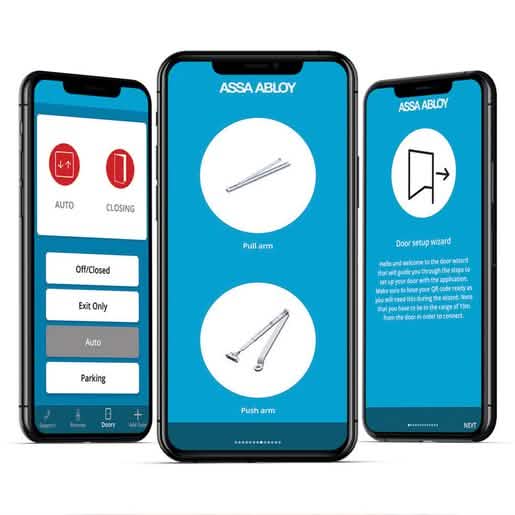

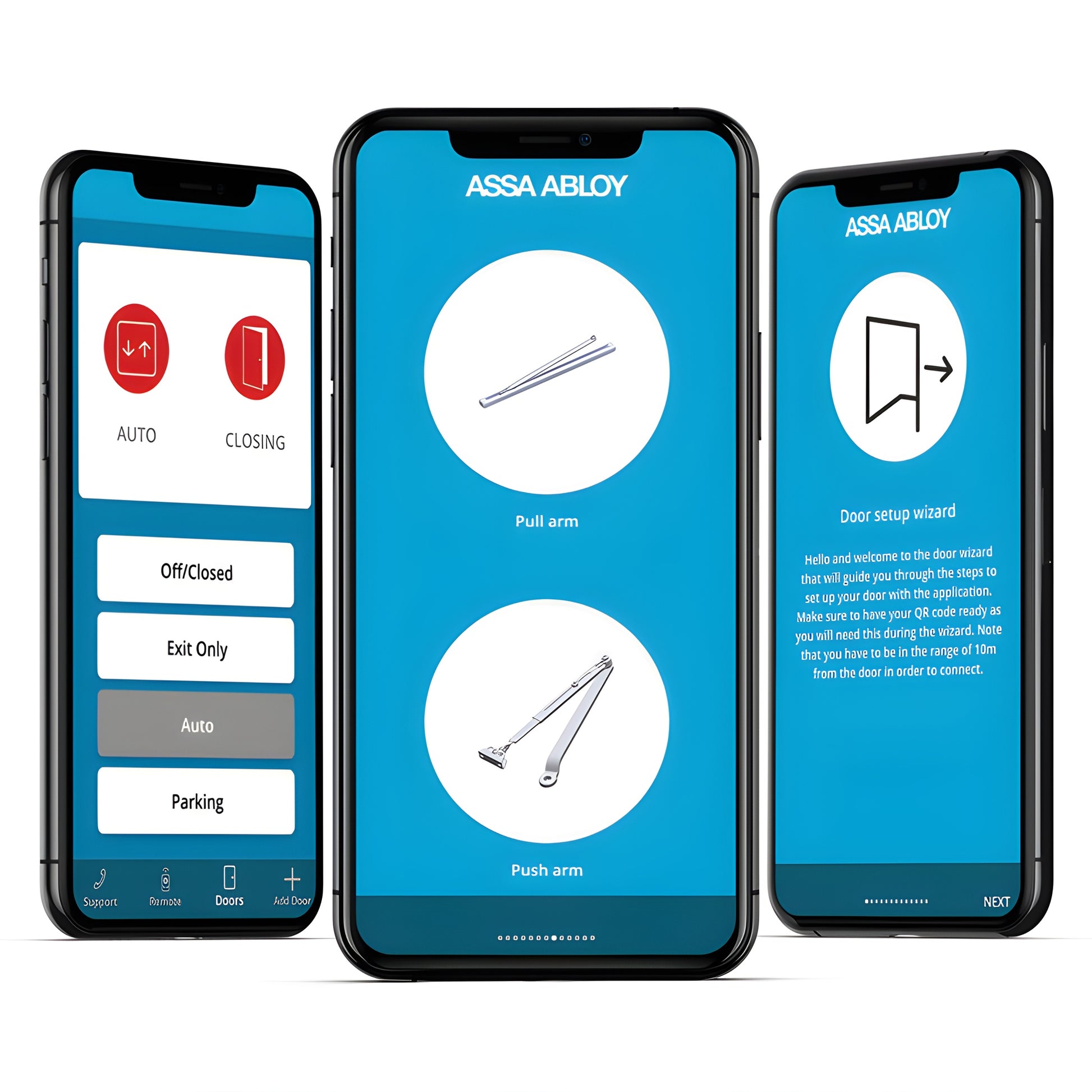

- Door Functions Can be Controlled by App
- Operator: electro-mechanical, non-handed operator
- ANSI Compliance: Low energy (ANSI A156.19)
- UL approved - UL325 UL/CUL & UL Listed Fire Door Operator - UL10C
- Door Weight: up to 200 pounds per operator
- Door Size: up to 48”
- Manual Push Force: adjustable from 5 lbf – 15 lbf
- Hold Open Time: adjustable from 2 seconds to 6 hours
- Ratchet Function
- Electric strike integration (no external relays required)
- Low voltage operator that is powered via the following options: - Internal Power Supply: 24 VDC power supply mounted within the operator housing - Plug-in Power Supply: 24 VDC plug-in transformer (white) for external connection Aesthetics:
- Aesthetically pleasing, low profile appearance: 1-7/8” high by 3-1/2” deep
- 39-1/2” header
- Finishes: Clear Anodized or Dark Bronze
- Blends in with door frames
- Can fit in spaces where overhead space is limited

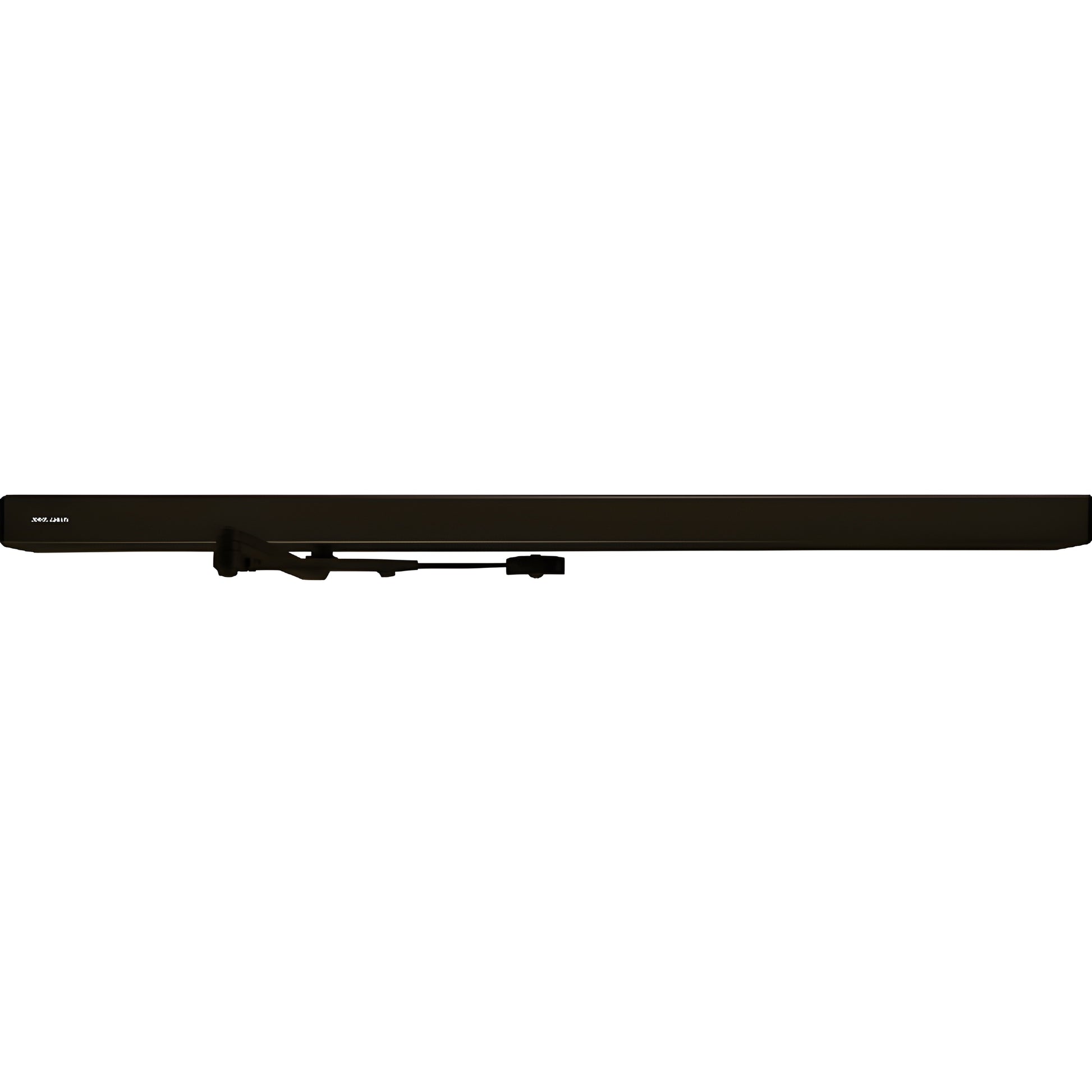

Meet the newest innovation in door operator technology, bridging the gap between manual an automatic doors. The ASSA ABLOY SW60 combines touchfree solutions, smart access controls and command responsiveness with sleek, appeal, slim design and the ability to convert virtually any interior door into a germ-free entrance.
The SW60 features a low profile automatic door operator with impressive features such as free swing, push & go and ratchet function. The operator can be integrated with electric strikes, door mounted presence sensors (approach side only) or touchless activation units.

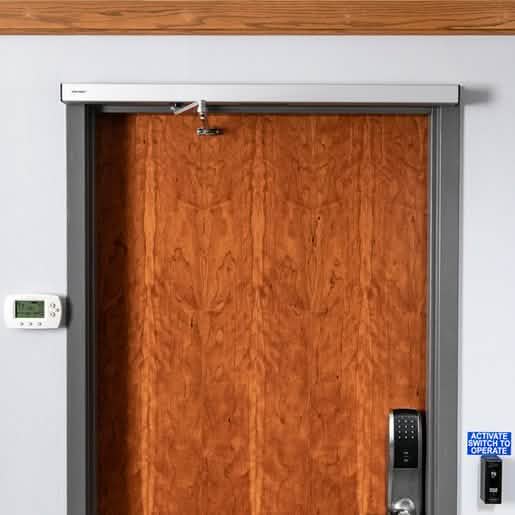

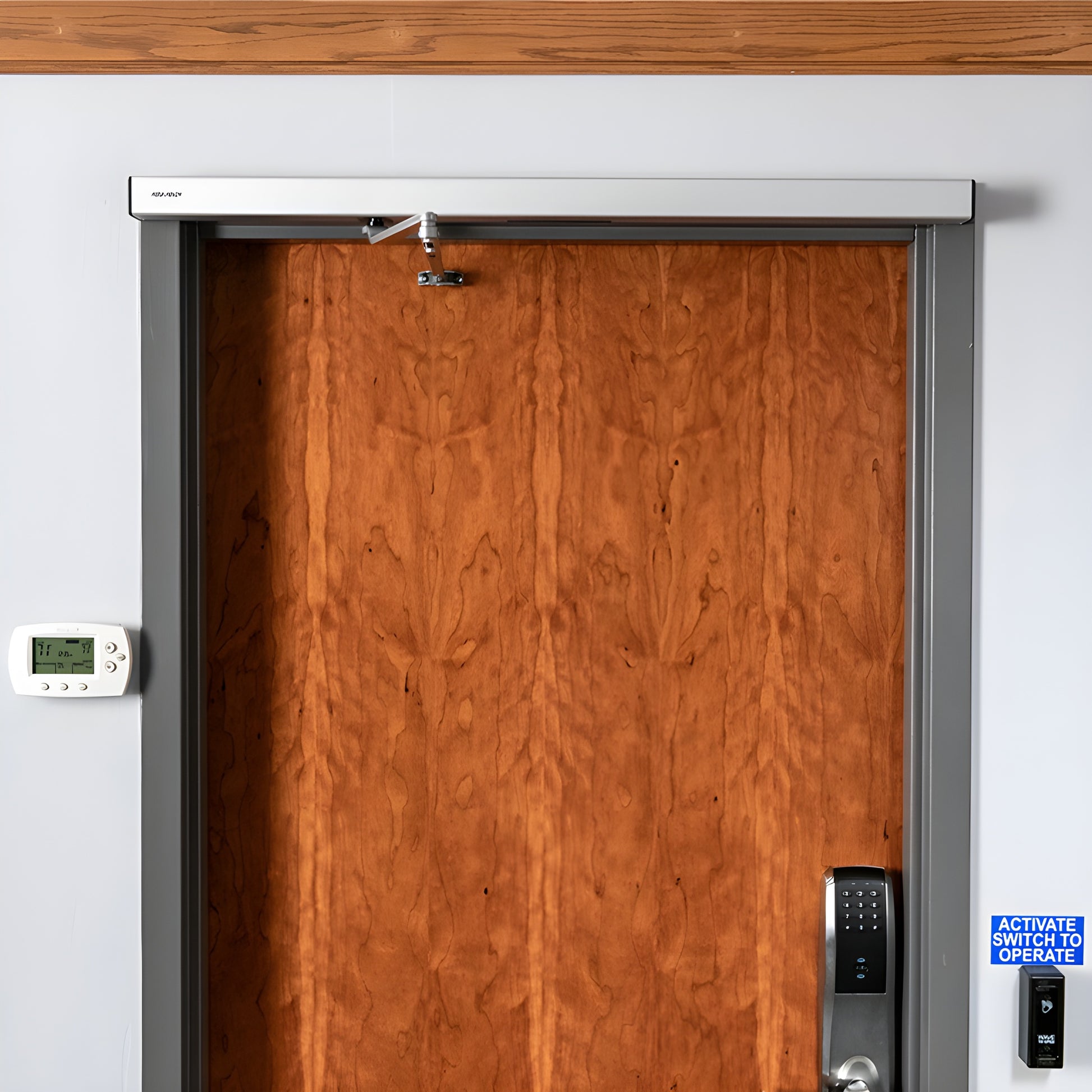

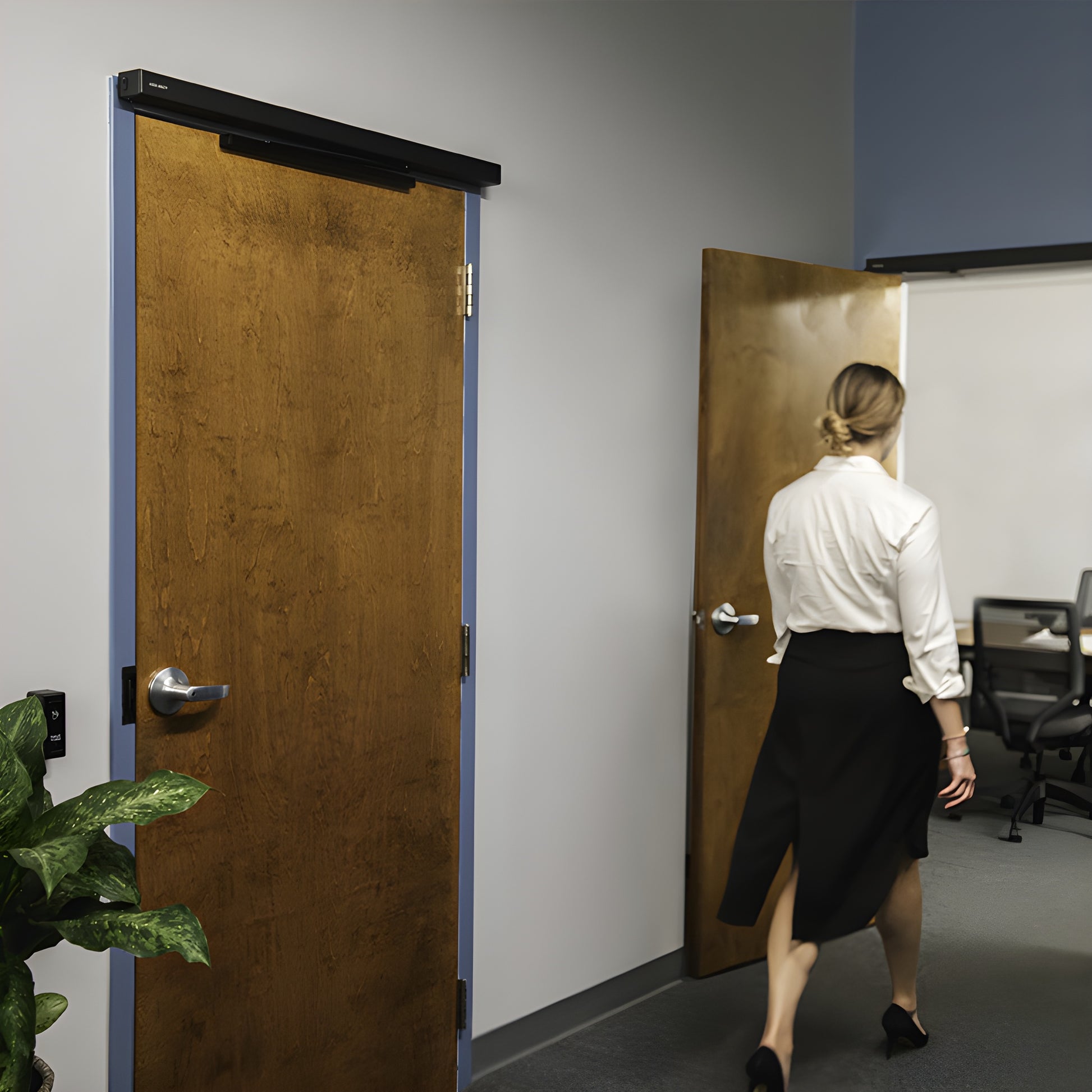

The ASSA ABLOY SW60’s sleek design is perfect for applications where there is little overhead space or where aesthetics is of utmost importance. Recommended for indoor applications for single doors such as restrooms, offices, senior care or public buildings.
Operator Features and Performance:Operator: electro-mechanical, non-handed operatorANSI Compliance: Low energy (ANSI A156.19)UL approved - UL325 UL/CUL & UL Listed Fire Door Operator - UL10C Door Weight: up to 200 pounds per operatorDoor Size: up to 48”Manual Push Force: adjustable from 5 lbf – 15 lbfHold Open Time: adjustable from 2 seconds to 6 hoursRatchet FunctionElectric strike integration (no external relays required)Low voltage operator that is powered via the following options:
- Internal Power Supply: 24 VDC power supply mounted within the operator housing
- Plug-in Power Supply: 24 VDC plug-in transformer (white) for external connection
Aesthetics:Aesthetically pleasing, low profile appearance: 1-7/8” high by 3-1/2” deep39-1/2” headerFinishes: Clear Anodized or Dark BronzeBlends in with door framesCan fit in spaces where overhead space is limited
