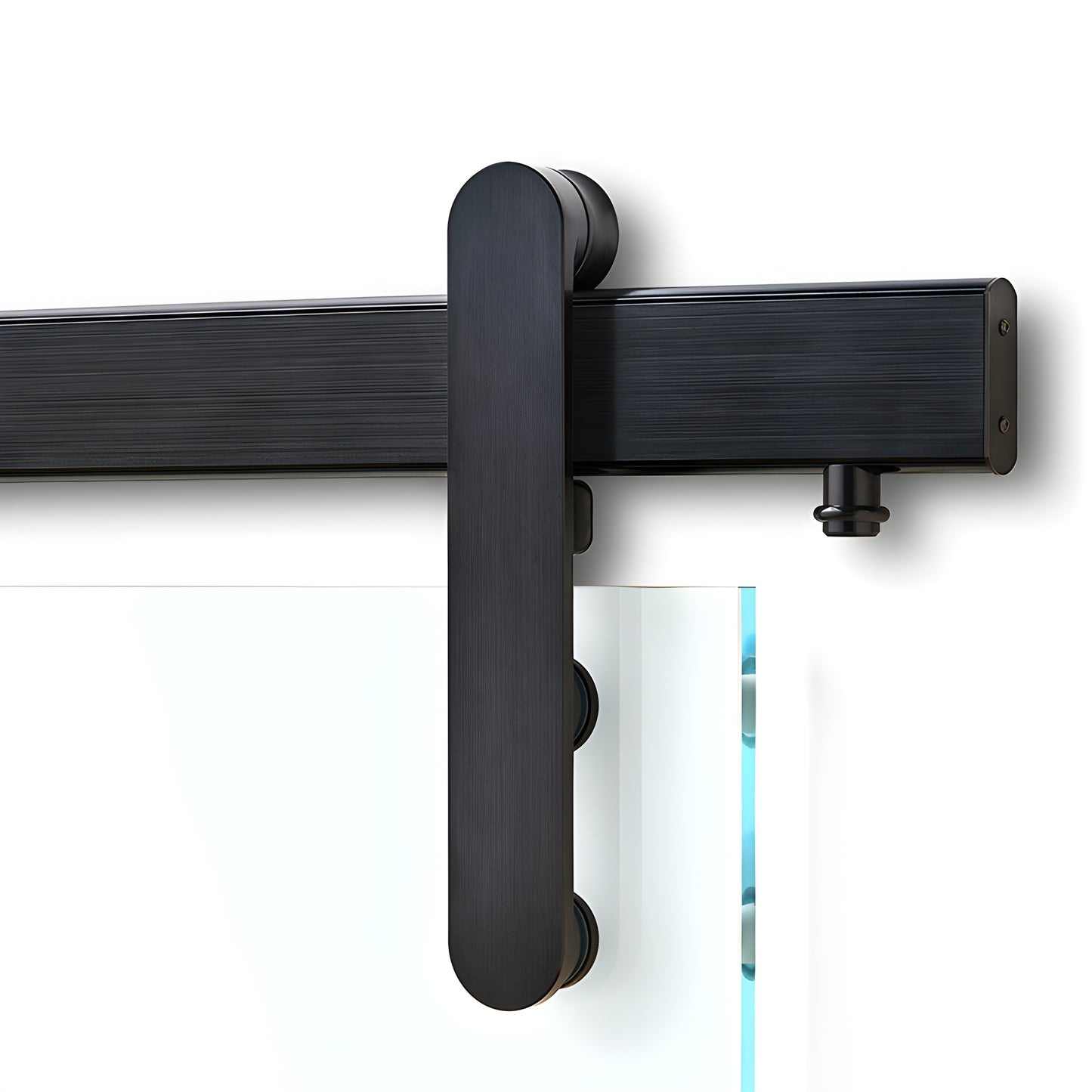

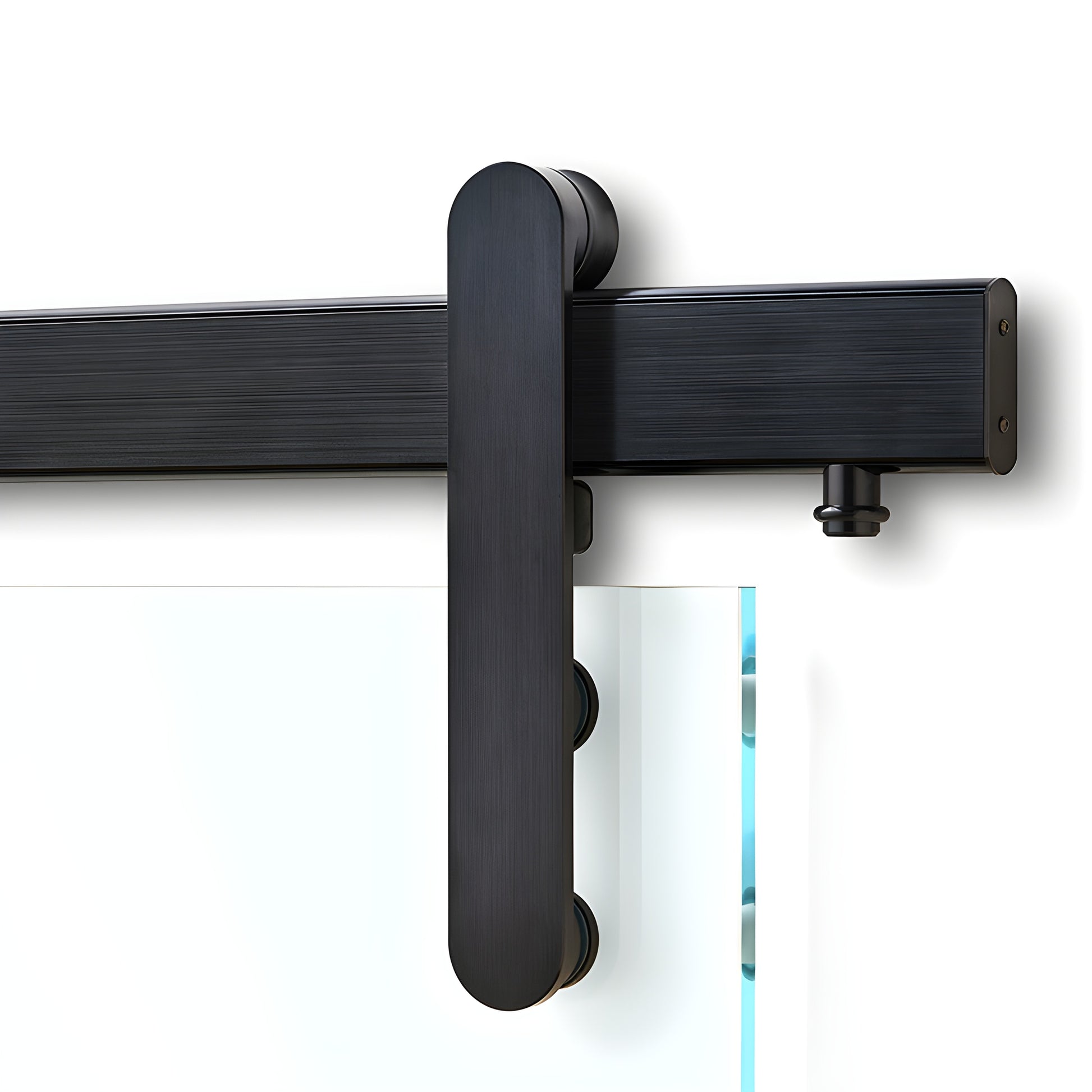

Latitude 34 Hemisphere Sliding Door Hardware Kit, Black Stainless
Item# LAT34HEMBLS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
Finish/Color
Brushed Stainless
Glazing Thickness
3/8 in. To 1/2 in. (10 mm To 12 mm)
Track Length
96 in. (2438.4 mm)
- 200 lb maximum weight capacity
- Tested to 1,000,000 cycles
- Adjustable sliding resistance for lighter glass doors
- Fits 3/8" (10 mm) to 1/2" (12 mm) monolithic tempered glass
- 96" (2.4 m) standard track — can be cut to size
- High-grade 6005A-T61 and 6061-T6 aluminum construction
- Single or bi-parting sliding door options
- Wall mount or glass mount using glass mount kit (item# LAT34MKGLS)
Sleek and compact, the Hemisphere Sliding Door (SKU: LAT34HEMBLS) offers subtle sophistication with concealed fasteners and trolley for a clean, modern look. With a 200 lb capacity and durable aluminum construction, it’s engineered for commercial and residential glass sliding door applications.

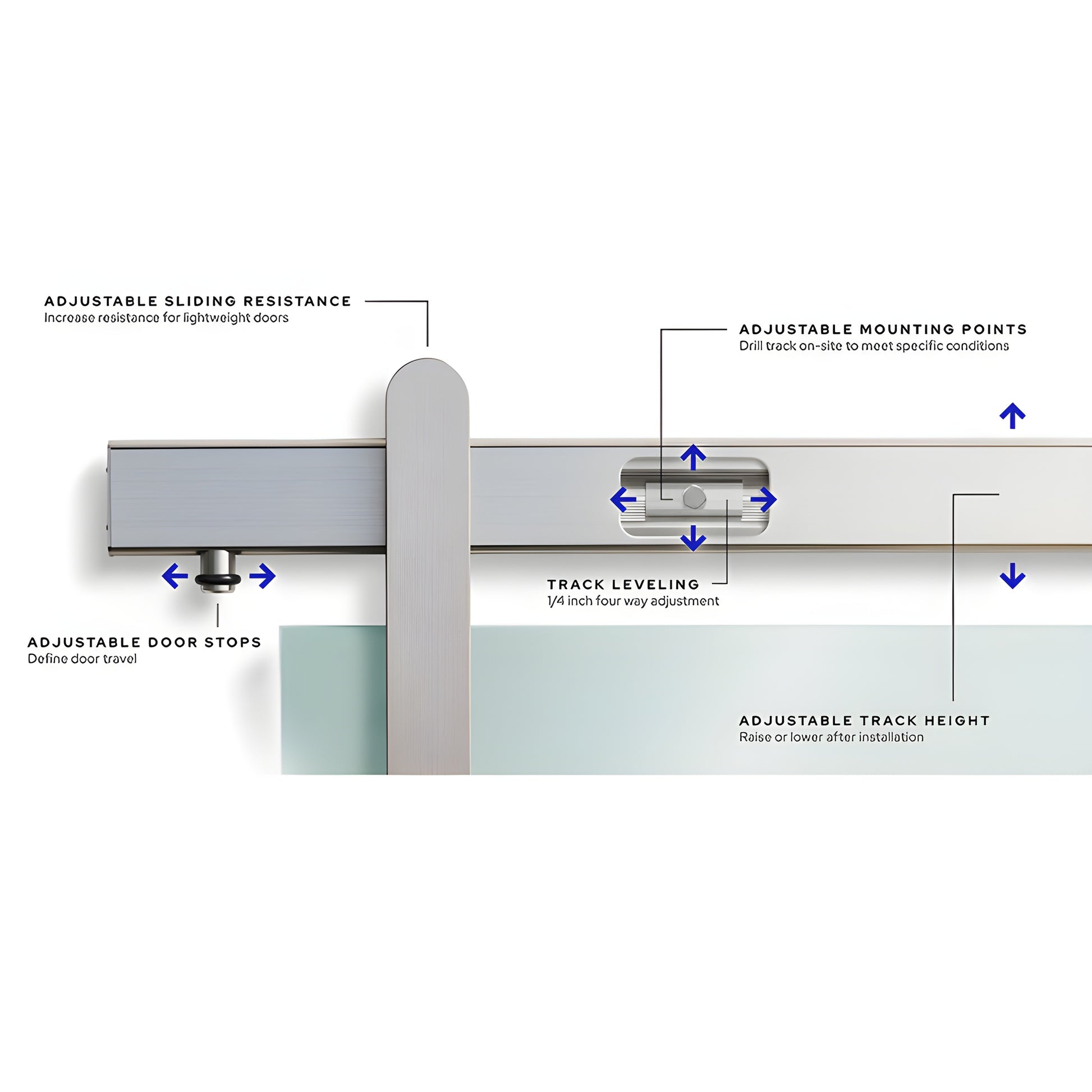

Hemisphere provides extensive field adjustability—adjust sliding resistance, track height, door stops, and track mounting points. Fast track leveling is available with 1/4" (6 mm) bi-directional adjustment after installation, simplifying on-site fit and finish.
Available in single and bi-parting configurations; for bi-parting doors, order two kits.
Each Kit Contains:
- (2) Roller units with glass fasteners
- (1) 96" (2.4 m) track, undrilled
- (2) Track end caps
- (1) Track wall mount kit
- (1) Track connector
- (2) Door stops
- (1) Bottom guide (adjustable for glass thicknesses)
Kits do not include tempered glass or door pull hardware. When mounting track onto glass, order a glass mount kit separately (item# LAT34MKGLS).
Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors may vary depending on monitor settings.
Order the Hemisphere Sliding Door kit (LAT34HEMBLS) today to upgrade your glass sliding door project with durable, adjustable hardware.
