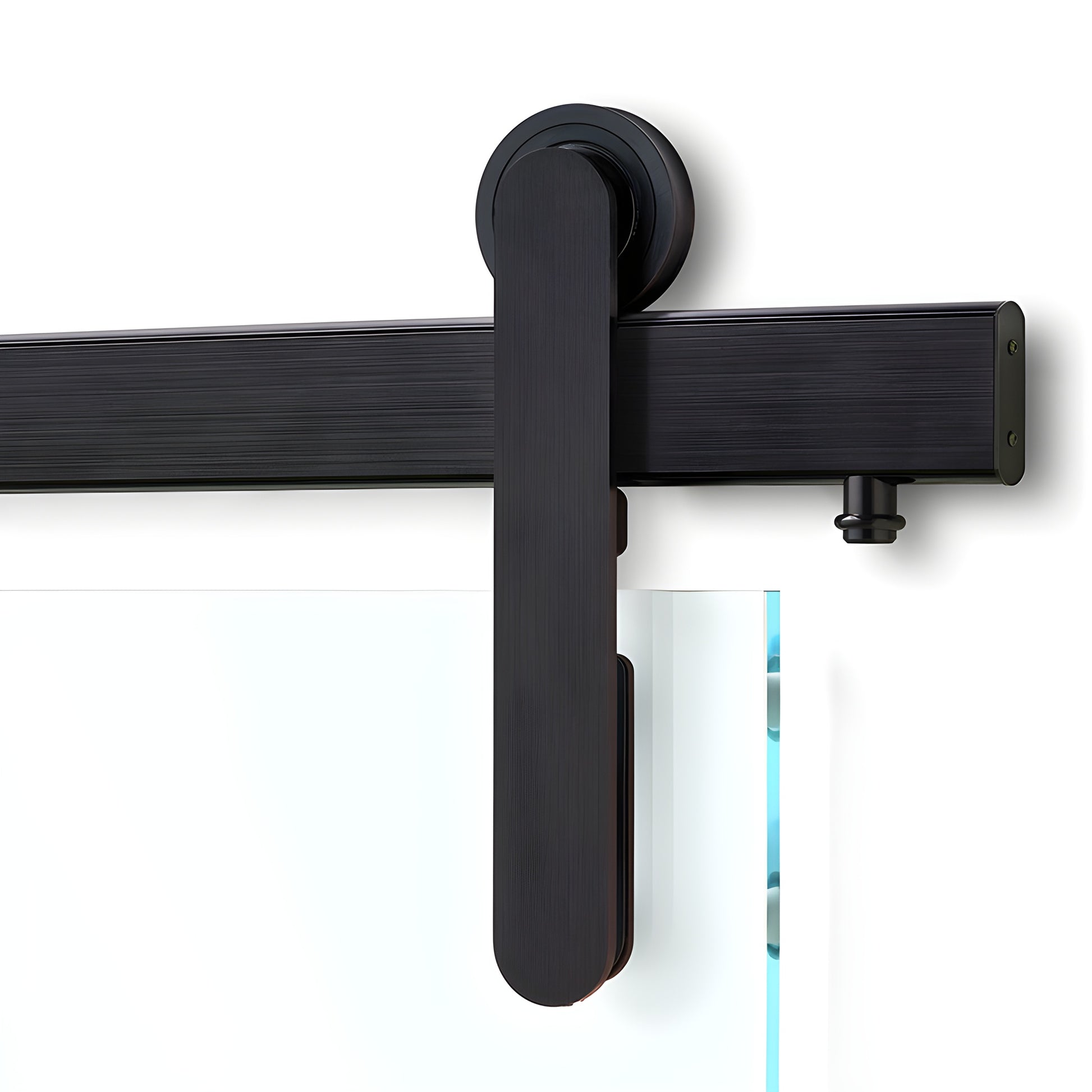

Latitude 34 Meridian Black Stainless Steel Sliding Door Hardware Kit

• 400 lb maximum weight capacity
• Tested to 1,000,000 cycles
• Concealed fasteners and precision ball bearings
• For 3/8" (10 mm) to 1/2" (12 mm) monolithic tempered glass
• 96” (2.4 m) standard track length — can be cut to size
• High-grade 6005A-T61 and 6061-T6 aluminum construction
• Single or bi-parting sliding door options
• Wall mount or glass mount using glass mount kit (item# LAT34MKGLS)

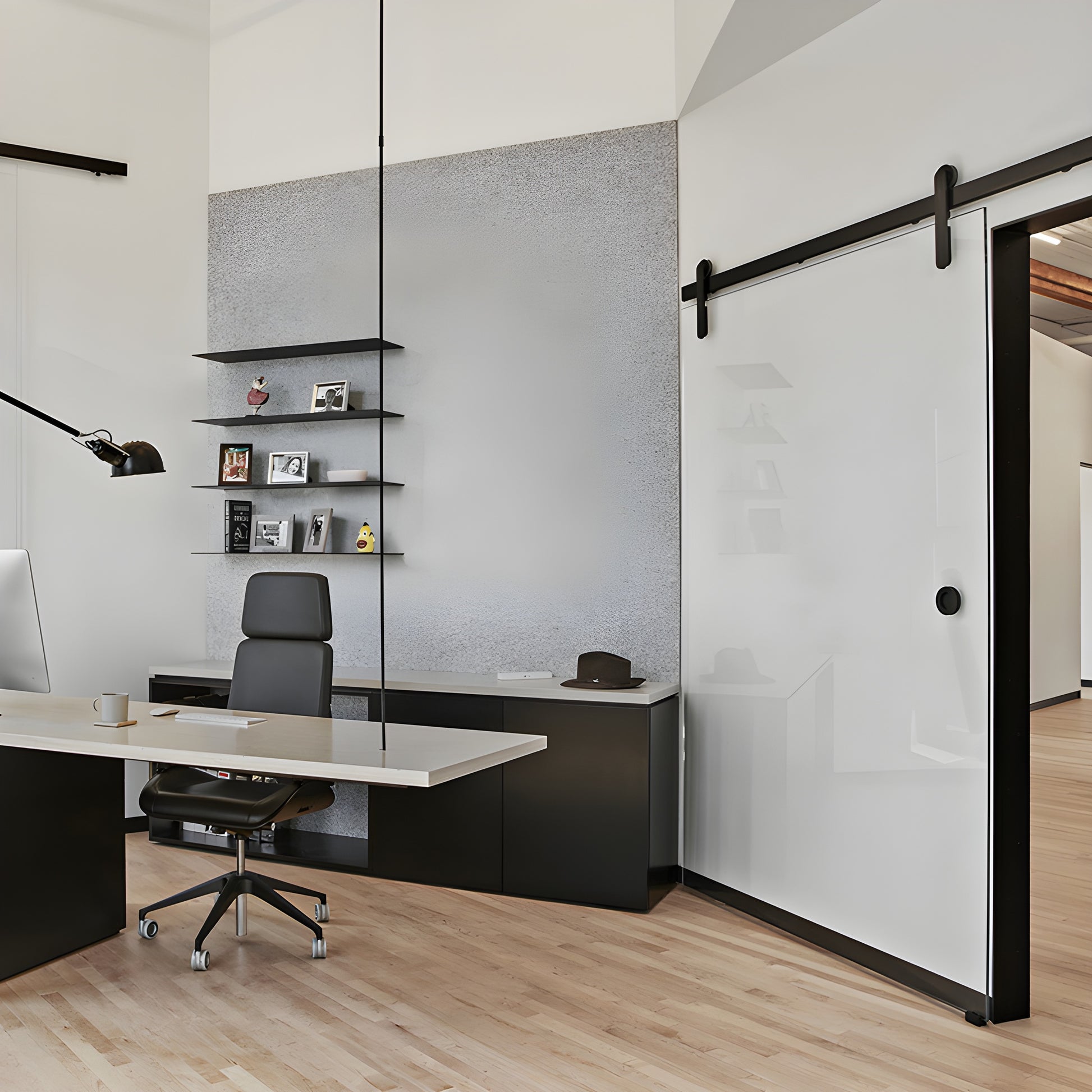

The Meridian Sliding Door (SKU: LAT34MERBLS) combines an iconic contemporary aesthetic with heavy-duty performance. Designed as a heavy-duty glass sliding door kit, Meridian supports up to 400 lb and is ideal for residential and commercial sliding glass door installations using 3/8"–1/2" tempered glass.

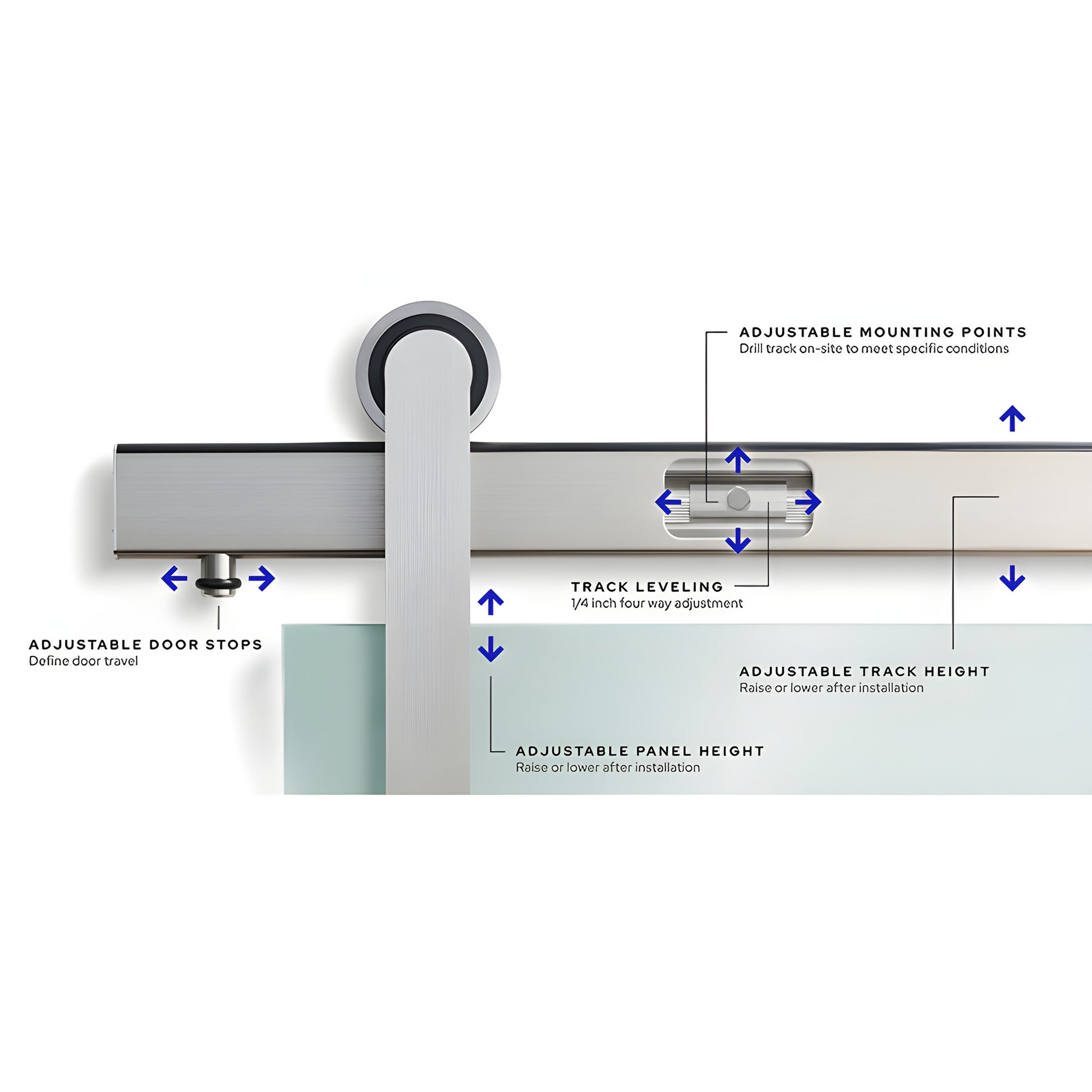

Meridian delivers industry-leading field adjustability: adjustable track height, door stops, and mounting points. Fast track leveling is possible after installation with 1/4" (6 mm) bi-directional adjustment for precise alignment.

Available in single or bi-parting configurations. For bi-parting installations, order two kits.

• (2) Roller units with glass fasteners
• (1) 96” (2.4 m) track, undrilled
• (2) Track end caps
• (1) Track wall mount kit
• (1) Track connector
• (2) Door stops
• (1) Bottom guide (adjustable for glass thicknesses)

Kits do not include tempered glass or door pull hardware. When mounting track onto glass, order the glass mount kit separately (item# LAT34MKGLS).

Ready to upgrade your sliding glass door with a durable, adjustable Meridian sliding door kit? Add SKU LAT34MERBLS to your cart or contact our team for project assistance.
