Latitude 34 Hemisphere Brushed Stainless Sliding Door Hardware Kit

Latitude 34 Hemisphere Brushed Stainless Sliding Door Hardware Kit

$2,888.38 CAD
$2,888.38 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# LAT34HEMBS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Brushed Stainless
Glazing Thickness
3/8 in. To 1/2 in. (10 mm To 12 mm)
Track Length
96 in. (2438.4 mm)

Overview

  • 200 lb maximum weight capacity
  • Tested to 1,000,000 cycles
  • Adjustable sliding resistance
  • Fits 3/8" (10 mm) to 1/2" (12 mm) monolithic tempered glass
  • 96” (2.4 m) standard track — can be cut to size
  • High-grade 6005A-T61 and 6061-T6 aluminum construction
  • Single or bi-parting sliding door options
  • Wall mount or glass mount (glass mount kit item# LAT34MKGLS)

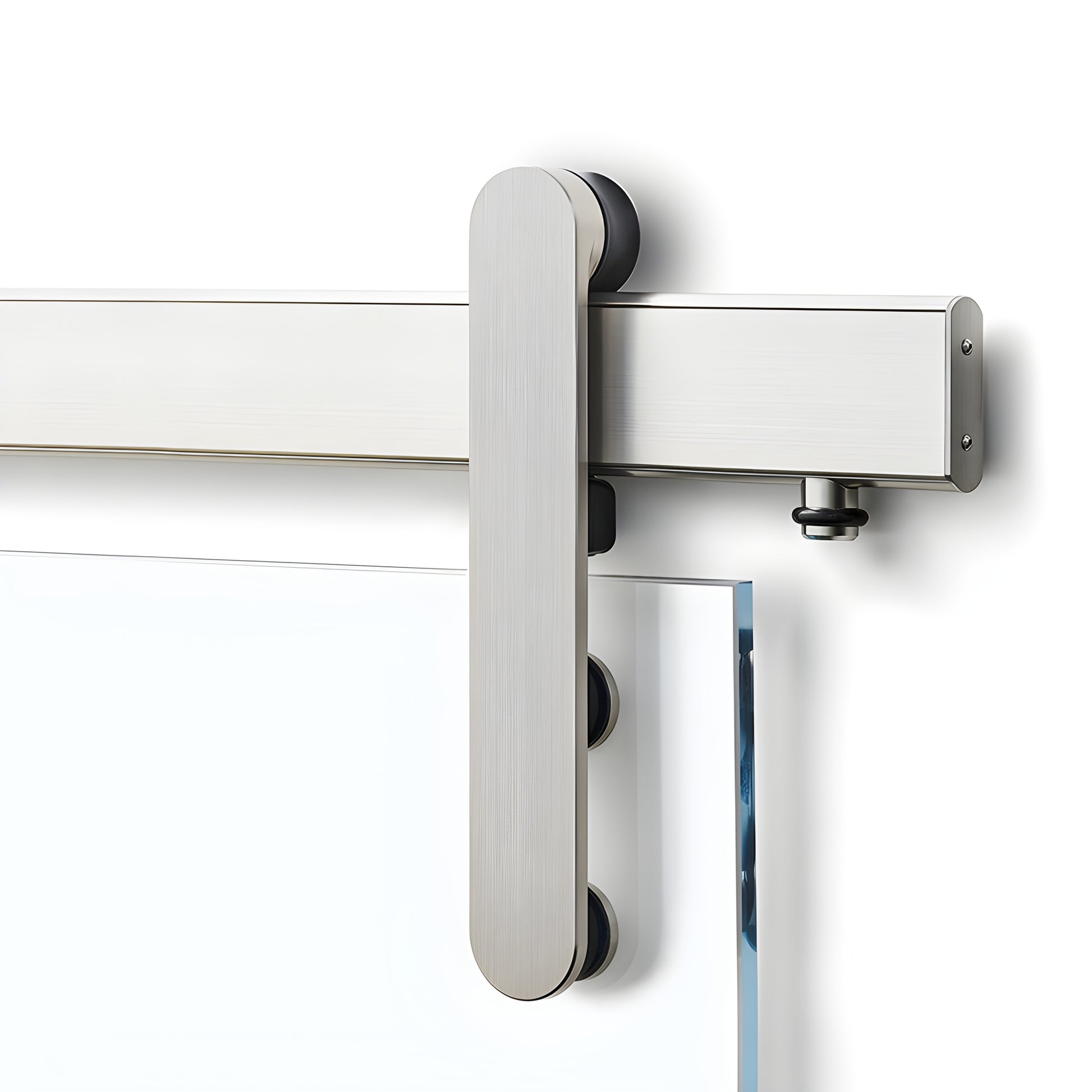

Sleek and compact, the Hemisphere Sliding Door (SKU: LAT34HEMBS) combines concealed fasteners and a hidden trolley for a minimalist appearance. With a 200 lb capacity and durability tested to one million cycles, it’s ideal for frameless and monolithic tempered glass sliding door installations in residential and commercial spaces.

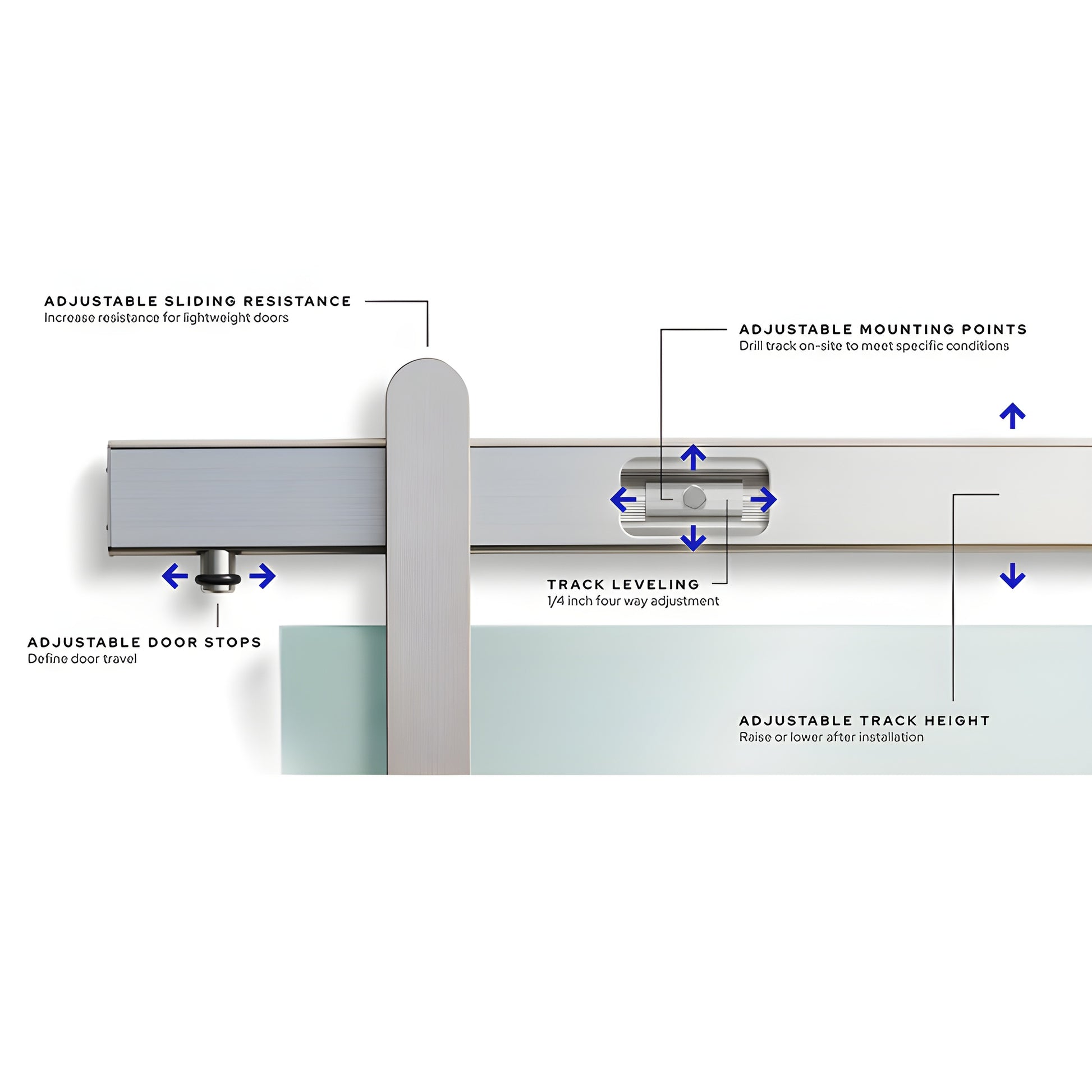

Hemisphere offers field adjustability for precise installation and long-term performance: adjustable sliding resistance for lighter doors, adjustable track height, door stops, and mounting points. Post-install leveling is simple with 1/4" (6 mm) bi-directional adjustment.

Choose single or bi-parting configurations; order two kits for bi-parting doors.


Each Kit Contains:
  • (2) Roller units with glass fasteners
  • (1) 96” (2.4 m) track, undrilled
  • (2) Track end caps
  • (1) Track wall mount kit
  • (1) Track connector
  • (2) Door stops
  • (1) Bottom guide (adjustable for glass thicknesses)

Kits do not include tempered glass or door pull hardware. For glass-mounted installations, order the glass mount kit (item# LAT34MKGLS) separately.

Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs before ordering, please contact CRL Customer Service. Product images are of the actual product or a close representation; colors may vary by monitor.

Stainless Steel Advisory:
Stainless steel is corrosion resistant but not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.

Designed for frameless glass sliding

Specifications

BIM Objects - rvt
Hemisphere BIM.rvt
