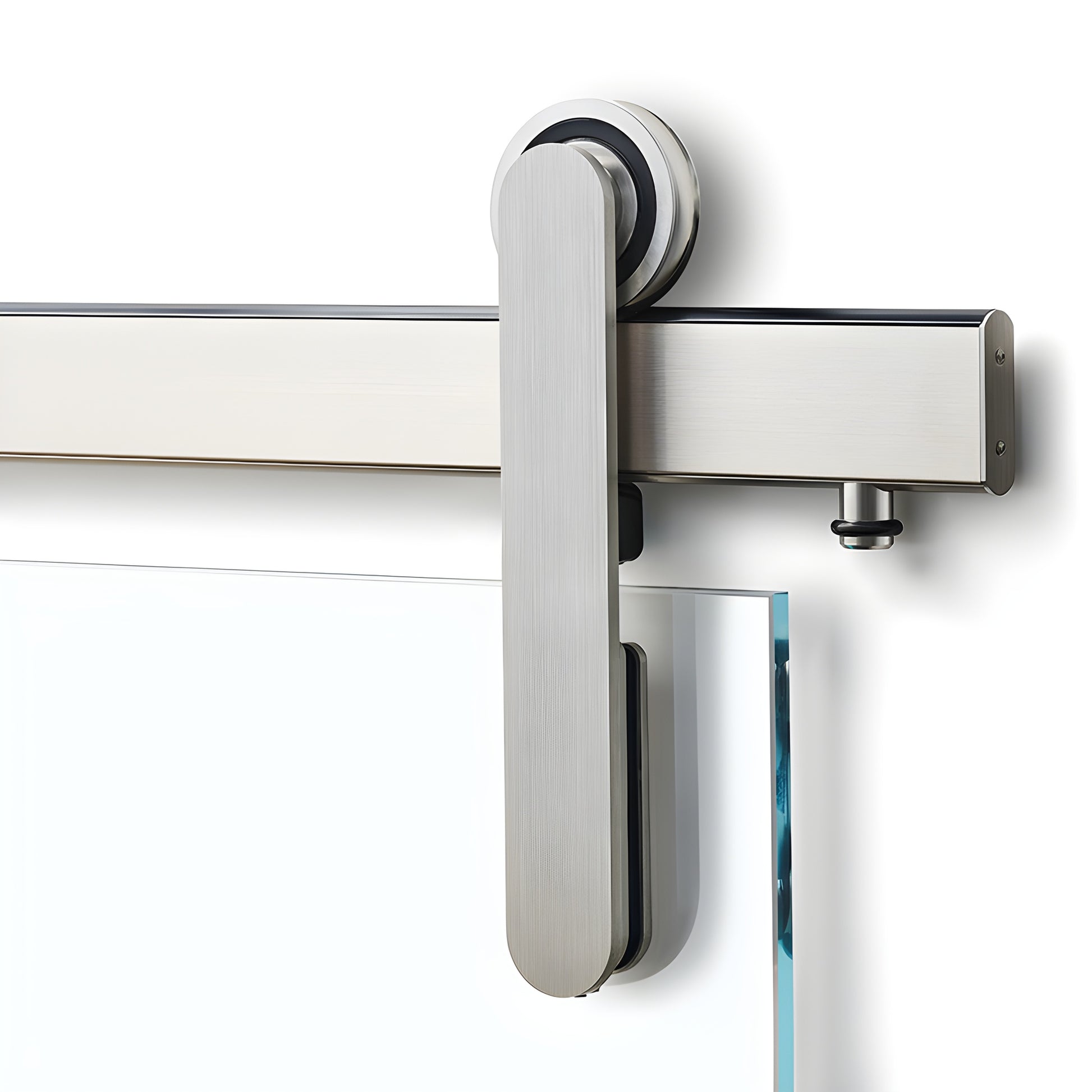

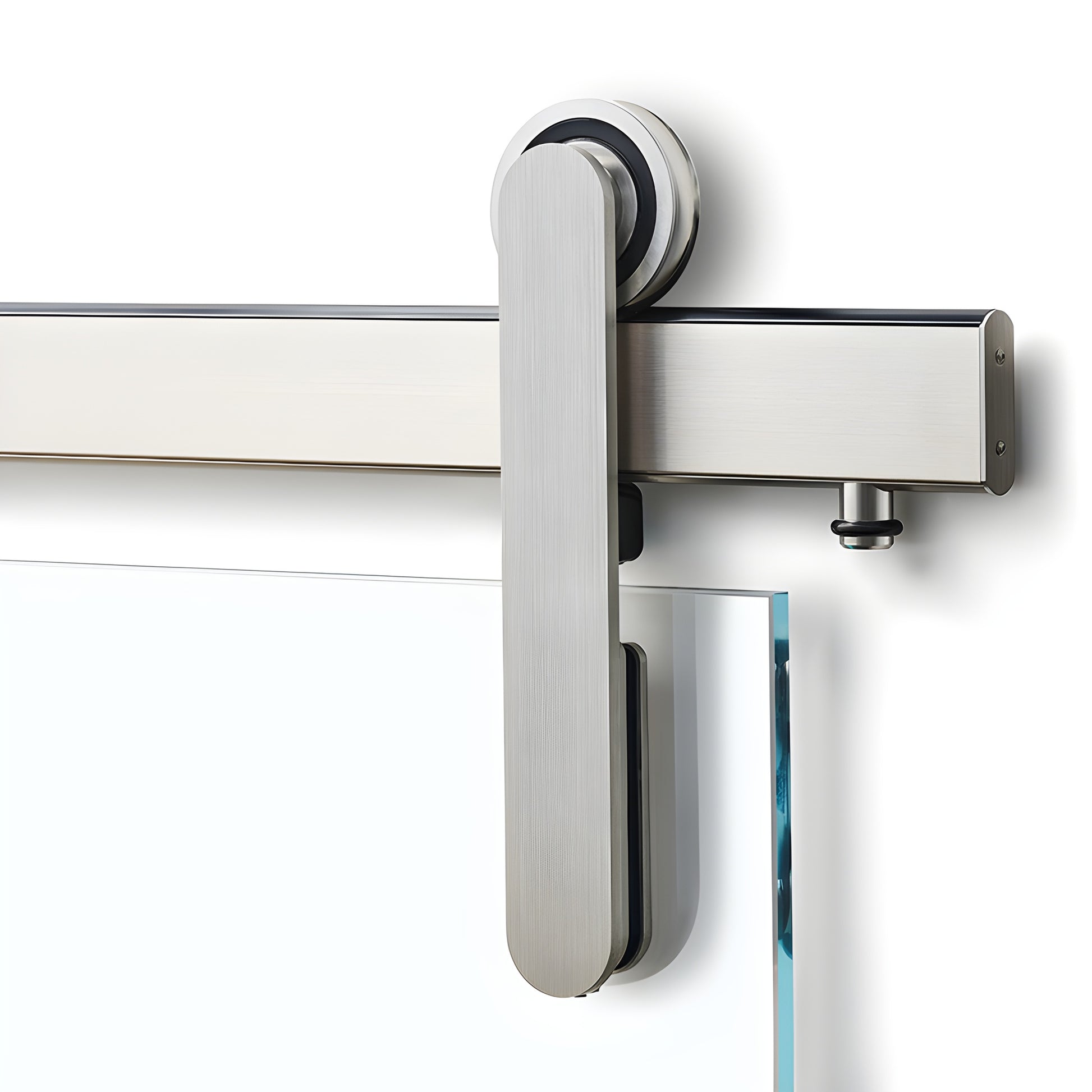

Brushed Stainless Steel Latitude 34 Meridian Sliding Door Kit
Brushed Stainless Steel Latitude 34 Meridian Sliding Door Kit
Regular price
$3,338.69 CAD
Regular price
Sale price
$3,338.69 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# LAT34MERBS
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1





Description
Finish/Color | Brushed Stainless |
Glazing Thickness | 3/8 in. To 1/2 in. (10 mm To 12 mm) |
Track Length 96 in. | (2438.4 mm) |
Overview
The Meridian Sliding Door sets the standard for contemporary barn door design, boasting a robust 400 lb maximum weight capacity, making it ideal for both residential and commercial applications.
Engineered with high-grade 6005A-T61 and 6061-T6 aluminum, this sliding door system is built to last, having been tested to 1,000,000 cycles.

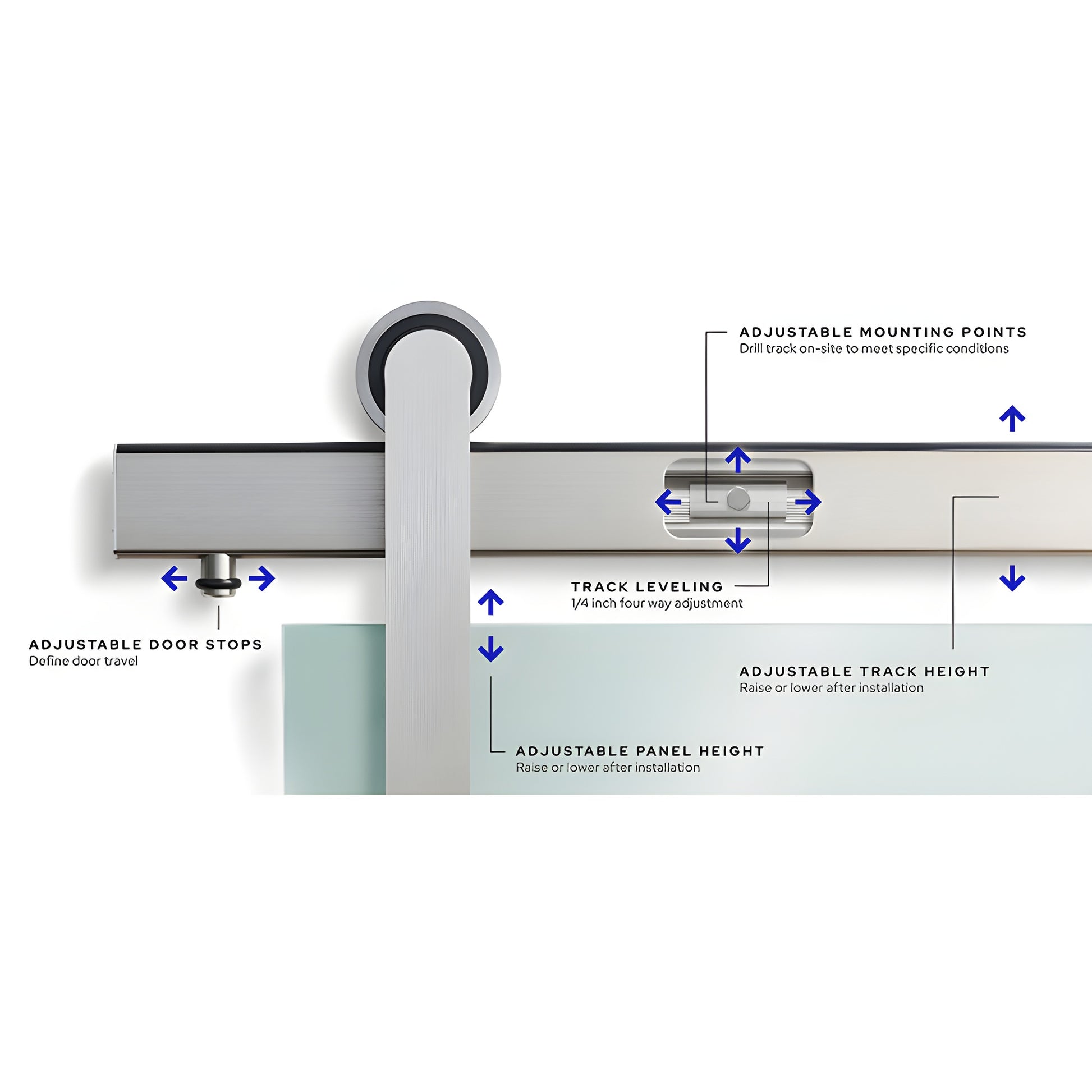

It offers unmatched field adjustability, allowing for easy track leveling with 1/4" bi-directional adjustment post-installation.
Available in single or bi-parting sliding door options, the system accommodates 3/8" to 1/2" monolithic tempered glass and includes a 96” standard track that can be cut to size.
For installation versatility, choose between wall or glass mount using the optional glass mount kit (item# LAT34MKGLS).
Please note, tempered glass and door pull hardware are not included.
For more details, contact CRL Customer Service.
Engineered with high-grade 6005A-T61 and 6061-T6 aluminum, this sliding door system is built to last, having been tested to 1,000,000 cycles.
It offers unmatched field adjustability, allowing for easy track leveling with 1/4" bi-directional adjustment post-installation.
Available in single or bi-parting sliding door options, the system accommodates 3/8" to 1/2" monolithic tempered glass and includes a 96” standard track that can be cut to size.
For installation versatility, choose between wall or glass mount using the optional glass mount kit (item# LAT34MKGLS).
Please note, tempered glass and door pull hardware are not included.
For more details, contact CRL Customer Service.
Specifications
Brochures & Literature
Installation Instructions
BIM Objects - rvt
BIM Objects - pdf
Specifications
CAD Drawings - pdf
CAD Drawings - dwg
Cleaning & Maintenance
