CRL 105º Hold Open Overhead Concealed Closer Package for Side-Load Installation A.D.A. "S" Package

Item # CRL8970S

$178.54 CAD

Spring Size (2)

Overview

SKUCRL8970S
Sold As1 Each
Body Height42675
Body Length39579
Body Width42677
Bottom Door Rail Depth1
Bottom Pivot TypeDual Purpose Pivot
Closer TypeOverhead Concealed
Hold Open105°
IncludesMedium Size Closer, Mounting Clips,Type "S" Side Load Arm,"DP" Adjustable Dual-Purpose Bottom Pivot Set or "GE" Bottom Pivot Set
MaterialAluminum
Maximum Door Weight200
Package TypeSide Load ADA S
Product DetailsDoor Closer Bodies Fit Into Standard 1-3/4" x 4" Or Larger,Extrusions
Recommended Door TypeAluminum, Hollow Metal
Replacement PartsCRL8010CPAL, CRL8010CPDU, HMC035, DCH4SAS, DCH4DUS, CRL8010SCP, SLB3, SLS1
Spindle1/2 in. (12.7 mm)
Spring Size8.5
Top Rail Depth1/2
Type105º Hold Open
UL ListedYes
WarningCloser Not To Be Used For Doors Weighing In Excess Of 200 Lbs Or Wider Than 36"

Description

  • For Doors with 1/2" (13 mm) Top Rail Depth
  • Adjustable Dual-Purpose Bottom Pivot Set for Floor or Threshold Mounting
  • Includes All Necessary Parts
  • 5 Year Limited Warranty
  • UL Listed

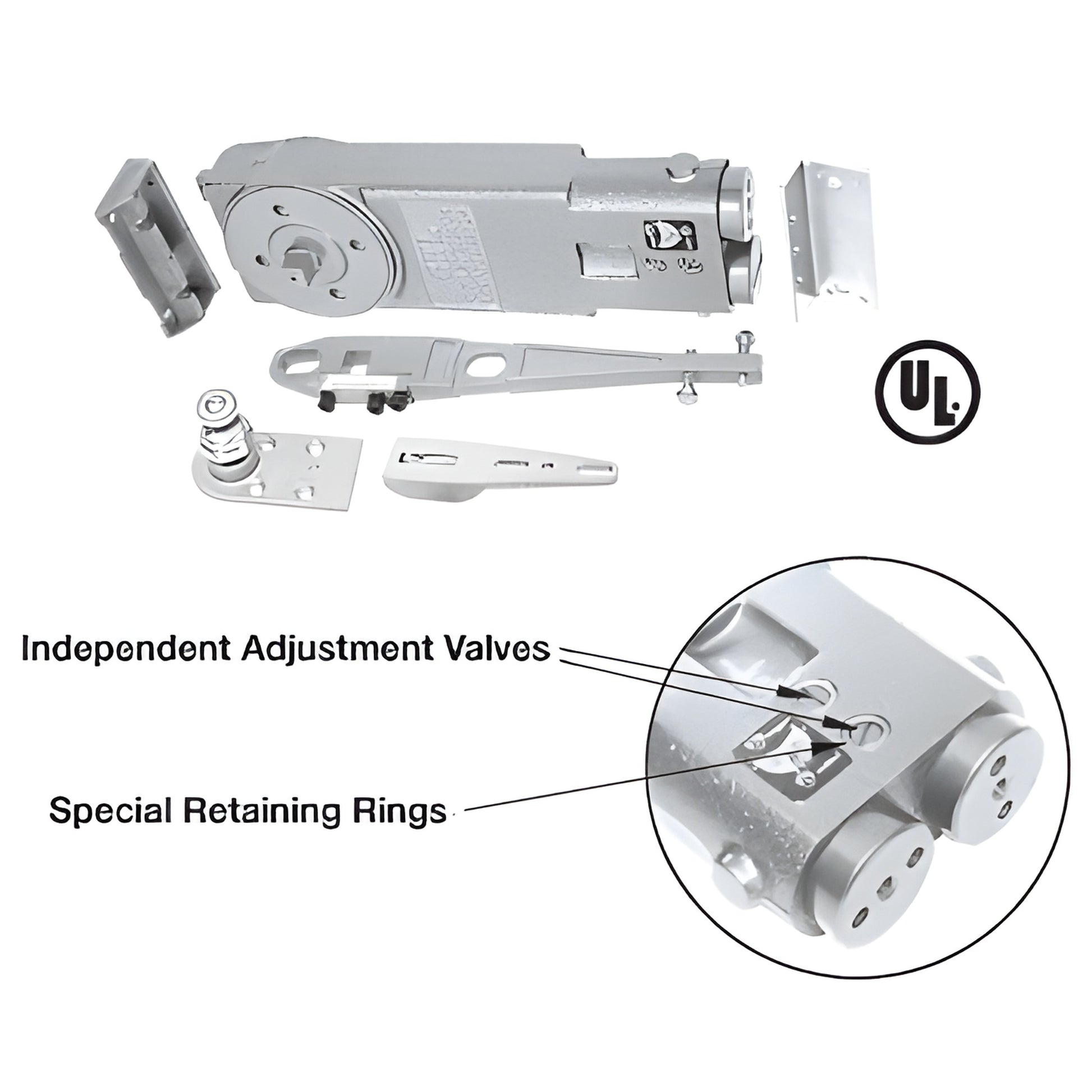

These CRL Overhead Door Closer Kits consist of a Medium Spring Size Door Closer, Mounting Clips, Type "S" Side-Load Arm, and a "DP" Adjustable Dual-Purpose Bottom Pivot Set or "GE" Bottom Pivot Set. The Door Closer has independent, dual-action valves to control closing and latching speeds. Both 90º and 105º Hold Open and No Hold Open models are available. Door Closer Bodies fit into standard 1-3/4" x 4" (44 x 102 mm), or larger, extrusions. Door Closers with different spring sizes or hardware options and Door Closer Bodies with Mounting Clips and Overhead Concealed Door Closer Accessories are available.


Independent Adjustment Valves
Non-Critical valve control adjusts both Closing Speed and Latching Speed independent of each other.

Special Retaining Rings
Prevent the Adjustment Valve Screws from being backed all the way out of the Door Closer Body.

NOTE: An auxiliary floor or overhead door stop is recommended to prevent possible damage to both the door closer and entry way due to over-extension of maximum allowable door swing.

NOTE: Although A.D.A. Series Door Closers comply with A.D.A. specified opening forces, they might not provide adequate spring power to control and close the door due to varying site conditions and door size.


Product Warning:

Closers set to comply with A.D.A. specified opening forces might not provide adequate spring power to control and close the door due to varying site conditions and door size. This Closer is not to be used for doors weighing in excess of 200 Lbs. (91 Kg) or wider than 36" (914 mm).
