CRL Brushed Nickel 3/8 in Replacement Shower Door U-Channel 95 in
Item# SDCD38BN
Shipping Weight: 1.33 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.33 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 3% Off |
| Buy 5 | 6% Off |
| Buy 8 | 9% Off |
| Buy 11 | 12% Off |
| Buy 16 | 16% Off |

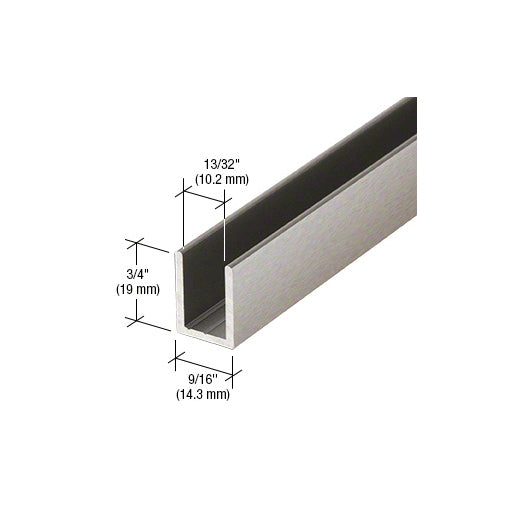

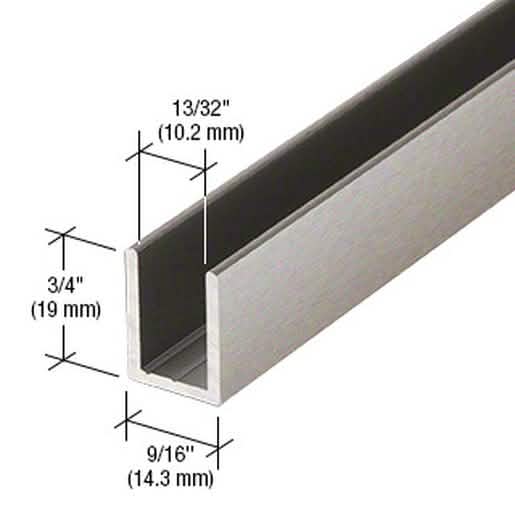

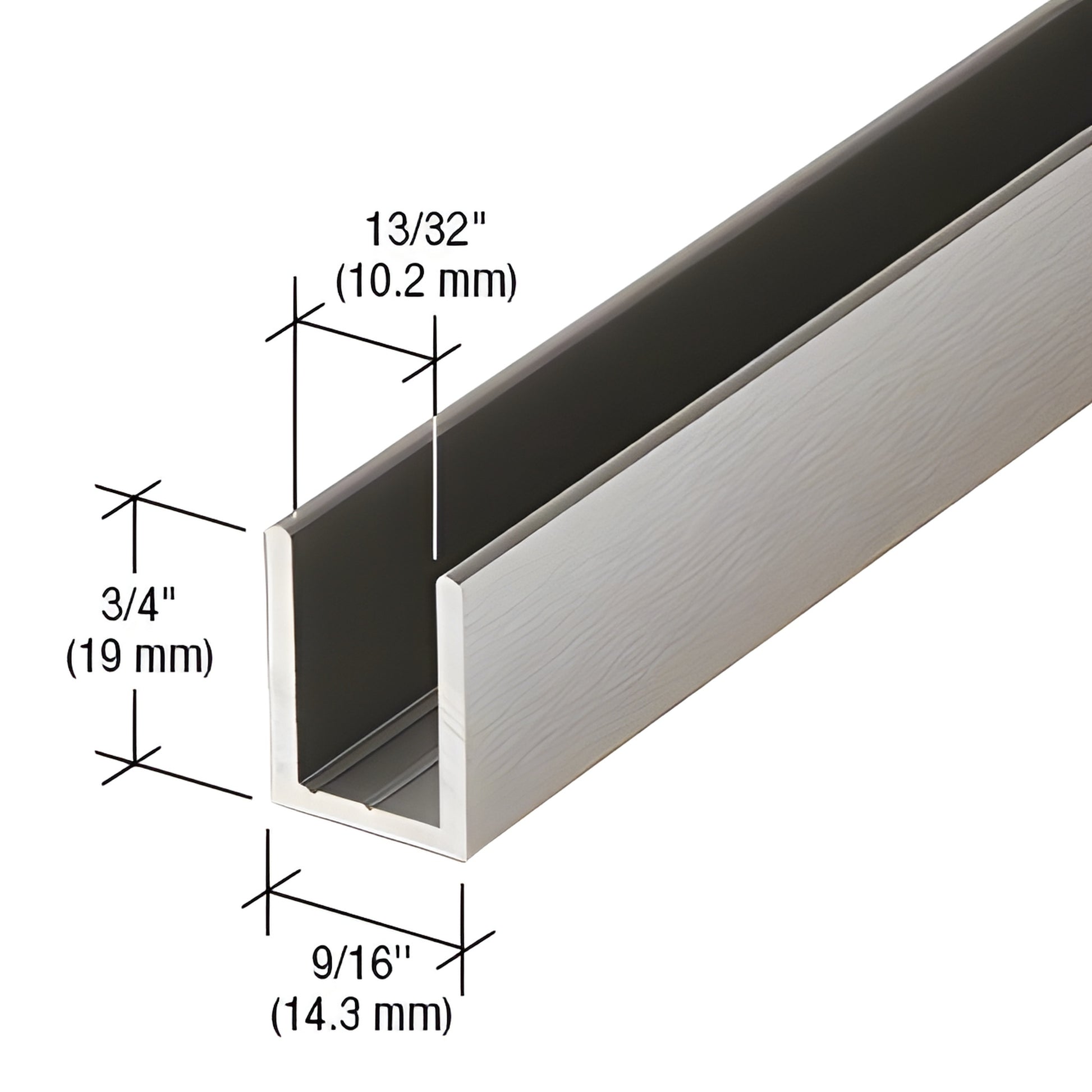

Finish/Color
Brushed Nickel
Glazing Pocket Width
13/32
Glazing Thickness
3/8 in. (10 mm)
Height
3/4 in. (19 mm)
Length
95 in. (2413 mm)
Material
Aluminum
Profile
Deep
Width
9/16 in. (14 mm)
- For 3/8" (10 mm) thick glass
- Deep pocket secures fixed glass panels to wall, ceiling or floor
- Use with monolithic tempered glass
- May be used alone or with regular depth U-channel
- Choice of deep or regular styles
- Wet-glazed with clear silicone to secure glass
- Available in popular 95" (2.41 m) lengths; some profiles also in economical 144" (3.66 m)
- End caps available to conceal channel ends
- Available in up to seventeen finishes

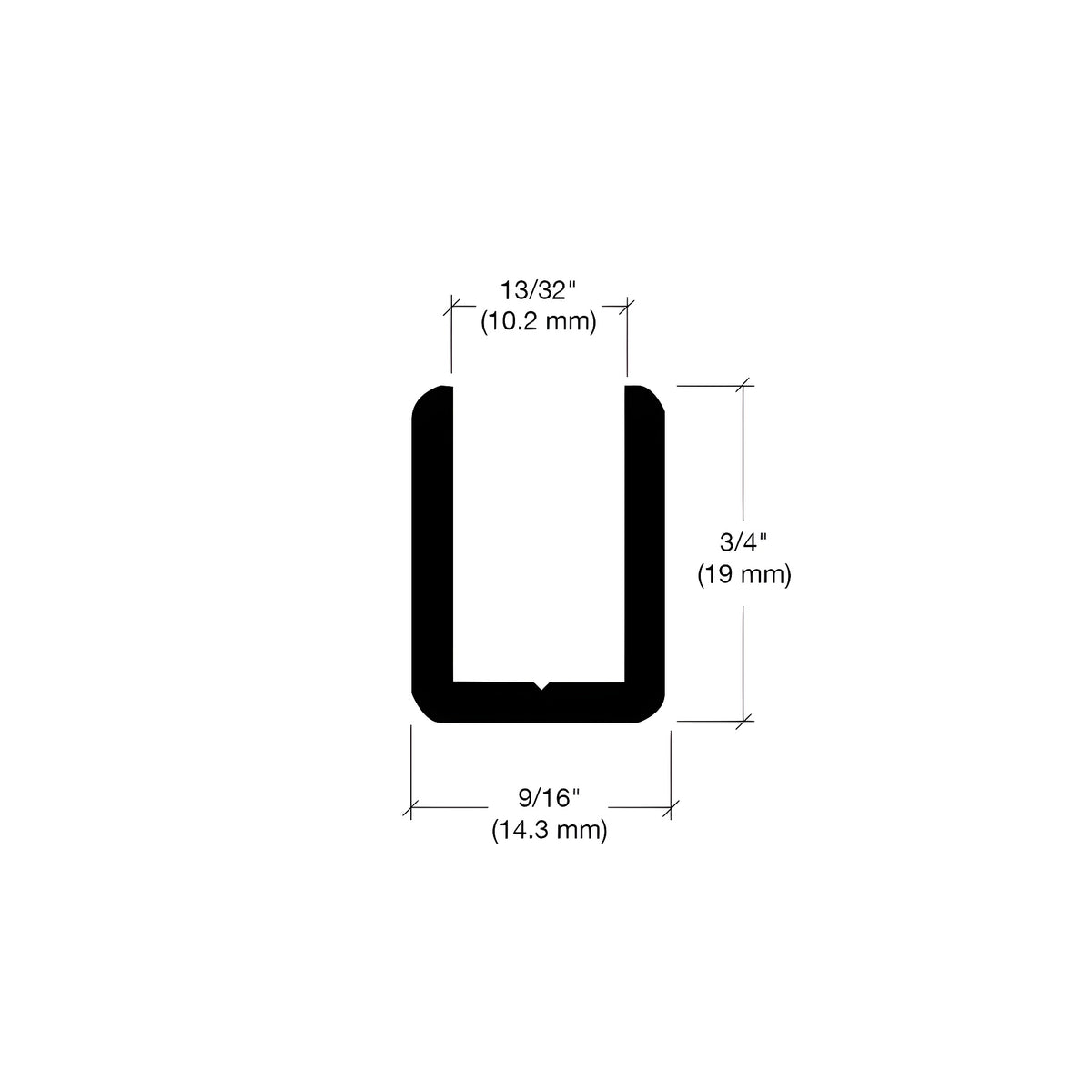

Deep U-Channel (SKU: SDCD38BN) is an aluminum channel designed for securing fixed panels of glass—ideal for frameless shower installations and other fixed-panel applications. This 3/4" (19 mm) high profile accepts 3/8" (10 mm) glass and works as a top channel where glass is inserted from above and lowered into a 3/8" (10 mm) tall regular U-channel at the base. Channels are individually wrapped to protect finishes.
We offer two U-channel profiles—Fixed Panel Regular and Deep—each available for 3/8" or 1/2" (10 or 12 mm) glass. Use with monolithic tempered glass and wet-glaze with clear silicone for a secure, durable installation.
SPECIFICATIONS:
Typical Uses: Most commonly used in frameless shower installations for securing fixed panels of glass to the wall, ceiling or floor.
Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors can vary depending on your monitor settings.
Order SKU SDCD38BN or contact CRL Customer Service for finish availability, exact lengths, or installation guidance.
