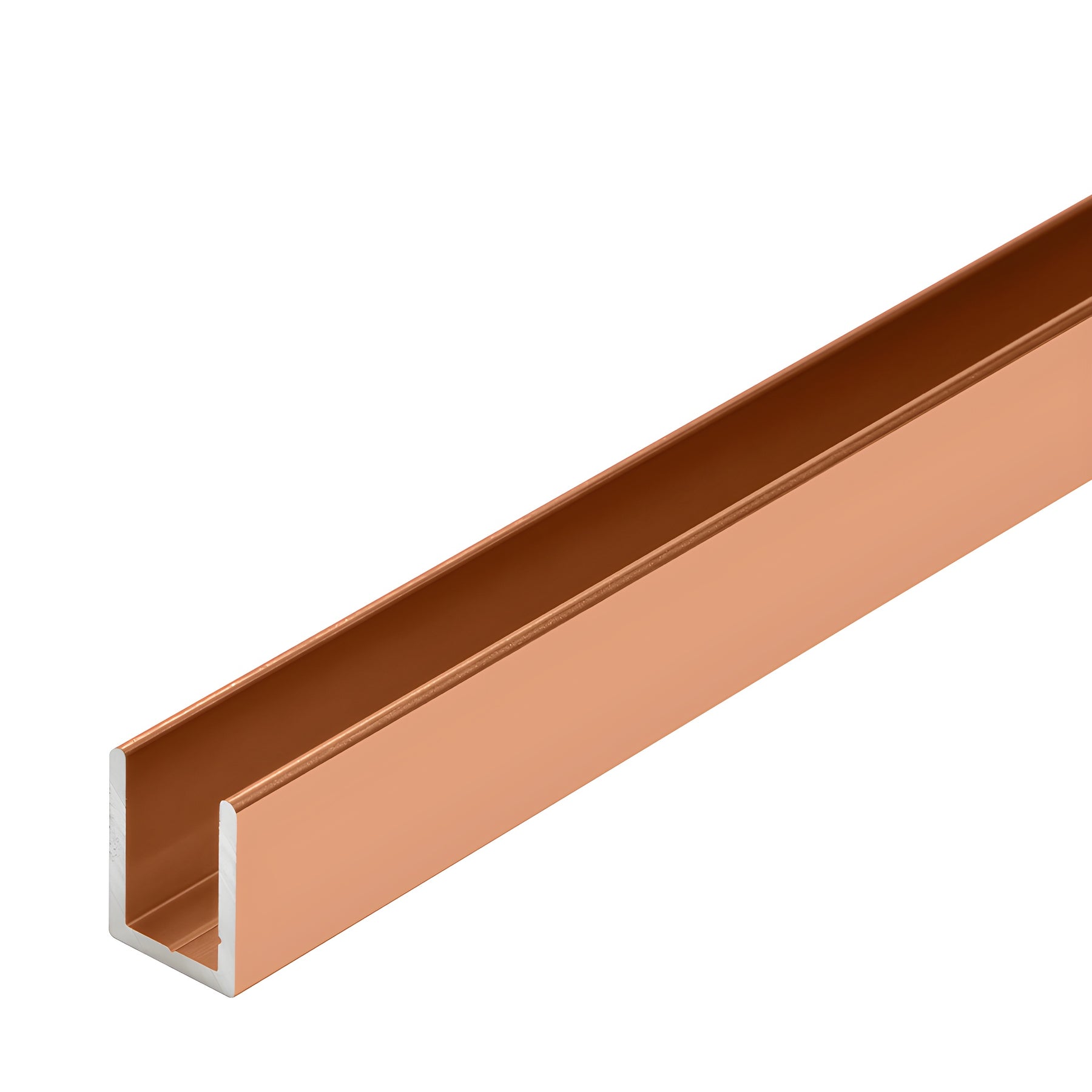

CRL Polished Copper 3/8" Fixed Panel Shower Door Deep U-Channel - 95"
Item # SDCD38PC0
$103.71
CAD
Finish (22)
-
Oil Rubbed Bronze -
Satin Anodized -
Brushed Anodized -
Antique Brass -
Brite Anodized -
Brushed Bronze -
Brushed Chrome -
Brite Gold Anodized -
Brushed Nickel -
Brushed Stainless Steel -
Dark Brushed Bronze -
French Gold -
Gun Metal -
Matte Black -
Modern Gold -
Matte Gun Metal -
Polished Copper -
Polished Nickel -
Polished Stainless Steel -
Satin Brass -
Satin Nickel -
Gloss White
Overview
| SKU | SDCD38PC0 |
|---|---|
| Sold As | 1 Each |
| Finish/Color | Polished Copper |
| Glazing Pocket Width | 13/32 |
| Glazing Thickness | 3/8 in. (10 mm) |
| Height | 3/4 in. (19 mm) |
| Leg Height | 3/4 in. (19 mm) |
| Length | 95 in. (2413 mm) |
| Material | Aluminum |
| Profile | Deep |
| Width | 9/16 in. (14 mm) |
Description
- For 3/8" (10 mm) Thick Glass
- Deep Pocket Does Excellent Job of Securing Fixed Panels of Glass
- Use Monolithic Tempered Glass
- May Be Used Alone or with Regular Depth U-Channel
- Choice of Deep or Regular Styles
- Wet Glazed with Clear Silicone to Secure Glass
- All Available in Popular 95" (2.41 m) Lengths, Some Available in Economical 144" (3.66 m) Stock Lengths
- End Caps Offered to Conceal Ends of Channel
- Available in Up to Seventeen Finishes
Deep U-Channel is for securing fixed panels of glass to the wall, ceiling or floor. Widths suitable for 3/8" (10 mm) thick glass are available, and are individually wrapped to protect the finish. This 3/4" (19 mm) high profile Deep U-Channel can be used as the top channel in installations where the glass must be inserted into the top, then lowered into the 3/8" (10 mm) tall Regular U-Channel used at the bottom of the enclosure.
We offer two profiles of Aluminum U-Channels for shower door installations. Fixed Panel Regular and Deep U-Channels are for securing fixed panels of glass to the wall, ceiling or floor. Widths suitable for 3/8" or 1/2" (10 or 12 mm) glass are available in each style, and are individually wrapped to protect the finish.
SPECIFICATIONS:
Typical Uses: Most commonly used in frameless shower installations for securing fixed panels of glass to the wall, ceiling or floor.
