CRL Matte Black 3/8" Fixed Panel Shower Door Deep U-Channel - 95"

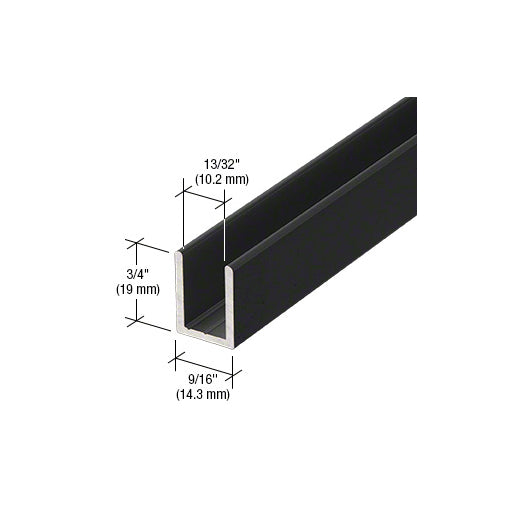

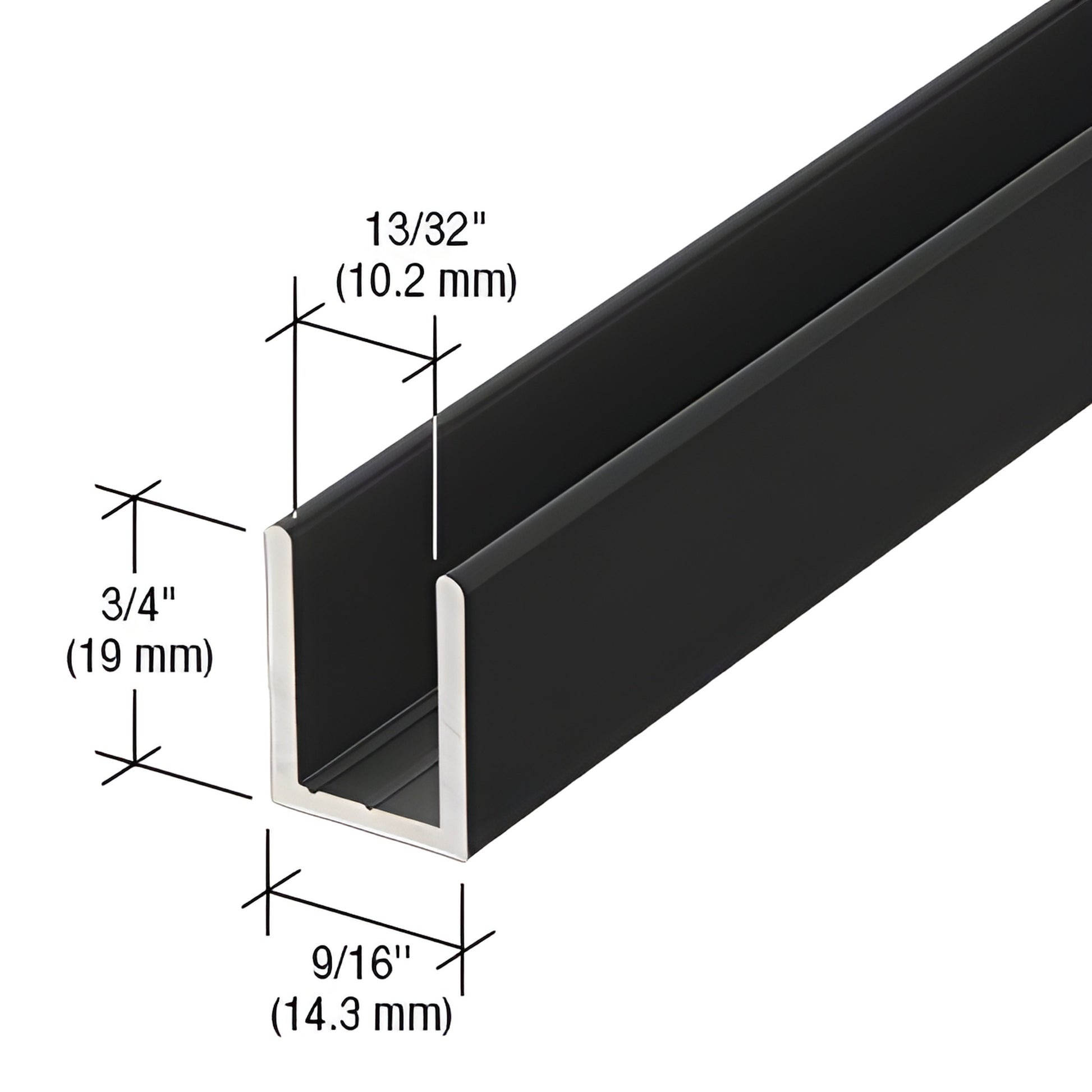

Finish/Color

Matte Black

Glazing Pocket Width

13/32

Glazing Thickness

3/8 in. (10 mm)

Height

3/4 in. (19 mm)

Length

95 in. (2413 mm)

Material

Aluminum

Profile

Deep

Width

9/16 in. (14 mm)

Durable Deep U-Channel for 3/8" (10mm) Glass Shower Panels

Secure Fixed Glass Panels with Confidence

Our deep U-channel is expertly engineered for 3/8" (10mm) thick tempered glass, offering a sleek and dependable solution for securing fixed panels in frameless shower enclosures. Whether installed on the wall, ceiling, or floor, this channel provides robust support while maintaining a modern, minimalist look.

Key Features:

• Designed for 3/8" (10mm) Monolithic Tempered Glass
• Deep Pocket Design: Provides extra holding depth for increased panel security
• Dual-Use Flexibility: Use alone or in combination with standard U-channels
• Reliable Wet Glazing: Clear silicone application ensures a tight, water-resistant seal
• Versatile Lengths: Available in 95" (2.41 m) standard and 144" (3.66 m) economical stock lengths
• Finish Variety: Choose from up to 17 premium finishes including durable matte black
• Protective Packaging: Each piece individually wrapped to prevent scratches during transit
• Optional End Caps: Conceal channel ends for a polished, professional appearance

Installation Versatility:

This 3/4" (19mm) high profile deep U-channel is ideal for applications where the top glass panel is lowered into place. It pairs perfectly with a regular depth channel at the bottom of the glass panel.

Common Uses:

• Frameless Shower Enclosures
• Interior Glass Partitions
• Floor-to-Ceiling Glass Panel Installations

Finish Spotlight:

The matte black finish offers a contemporary, bold aesthetic that complements modern bathroom decor. Ideal for designers seeking both function and style.

Note: Images are for reference only. Actual colors may vary based on screen settings. Contact us for exact color samples or additional product details.

Upgrade your shower enclosure with our premium deep U-channel — engineered for durability, style, and ease of installation.

Shop Now and experience CRL quality with every detail.
