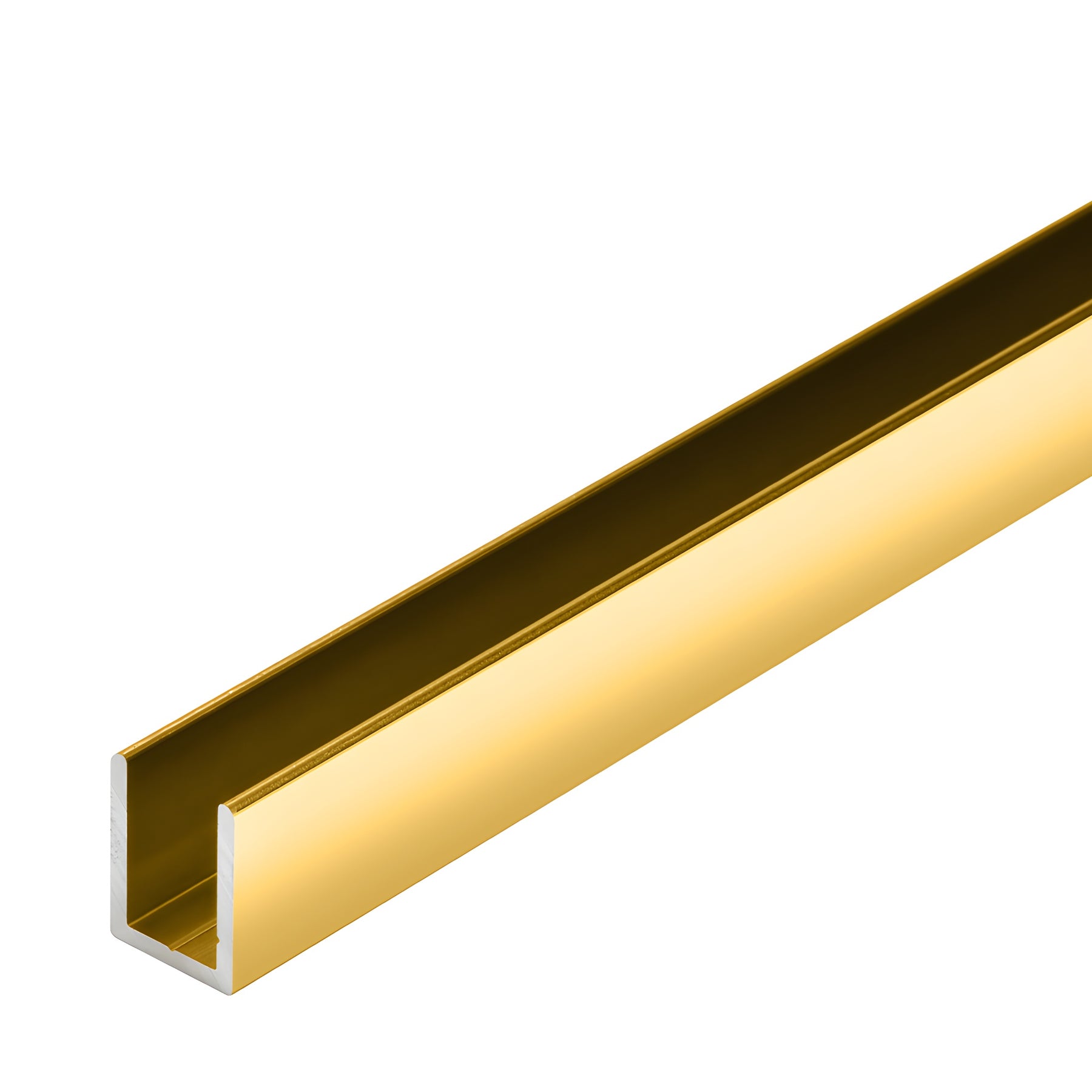

CRL Brite Gold Anodized 3/8 in Glass Shower Door Deep U-Channel 95 in

• For 3/8" (10 mm) thick glass
• Deep pocket secures fixed glass panels
• Use with monolithic tempered glass
• May be used alone or with regular-depth U-channel
• Choice of deep or regular profiles
• Wet-glazed with clear silicone to secure glass
• Available in popular 95" (2.41 m) lengths; some sizes in economical 144" (3.66 m) stock lengths
• End caps offered to conceal channel ends
• Available in up to 17 finishes

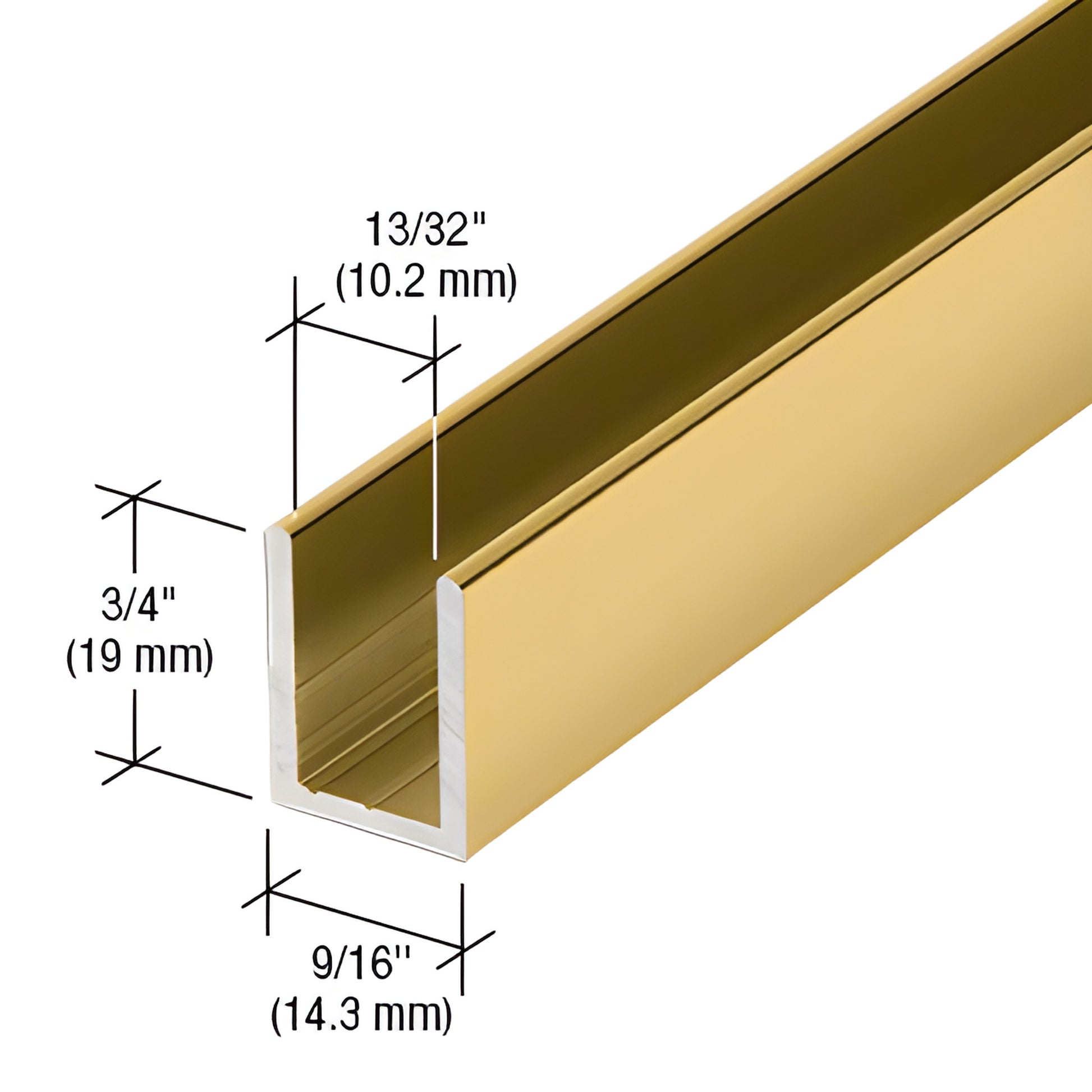

Deep U-Channel (SKU: SDCD38BGA) is an aluminum U-channel designed to secure fixed panels of glass to walls, ceilings, or floors—ideal for frameless shower enclosures. This 3/4" (19 mm) high profile deep U-channel accepts 3/8" (10 mm) glass and can serve as the top channel where glass is inserted from above and lowered into a 3/8" (10 mm) tall regular U-channel at the bottom.

We offer two aluminum U-channel profiles (Deep and Regular) for shower door installations. Both profiles are available in widths for 3/8" or 1/2" (10 or 12 mm) glass and are individually wrapped to protect the finish—making these 3/8 inch deep U-channels and regular U-channels reliable choices for secure, long-lasting frameless shower glass installations.

SPECIFICATIONS:

Typical Uses: Most commonly used in frameless shower installations for securing fixed panels of glass to the wall, ceiling, or floor.

Choose SDCD38BGA for a durable, protective deep U-channel that simplifies frameless shower glass installation. Order now or contact us for finish and length availability.
