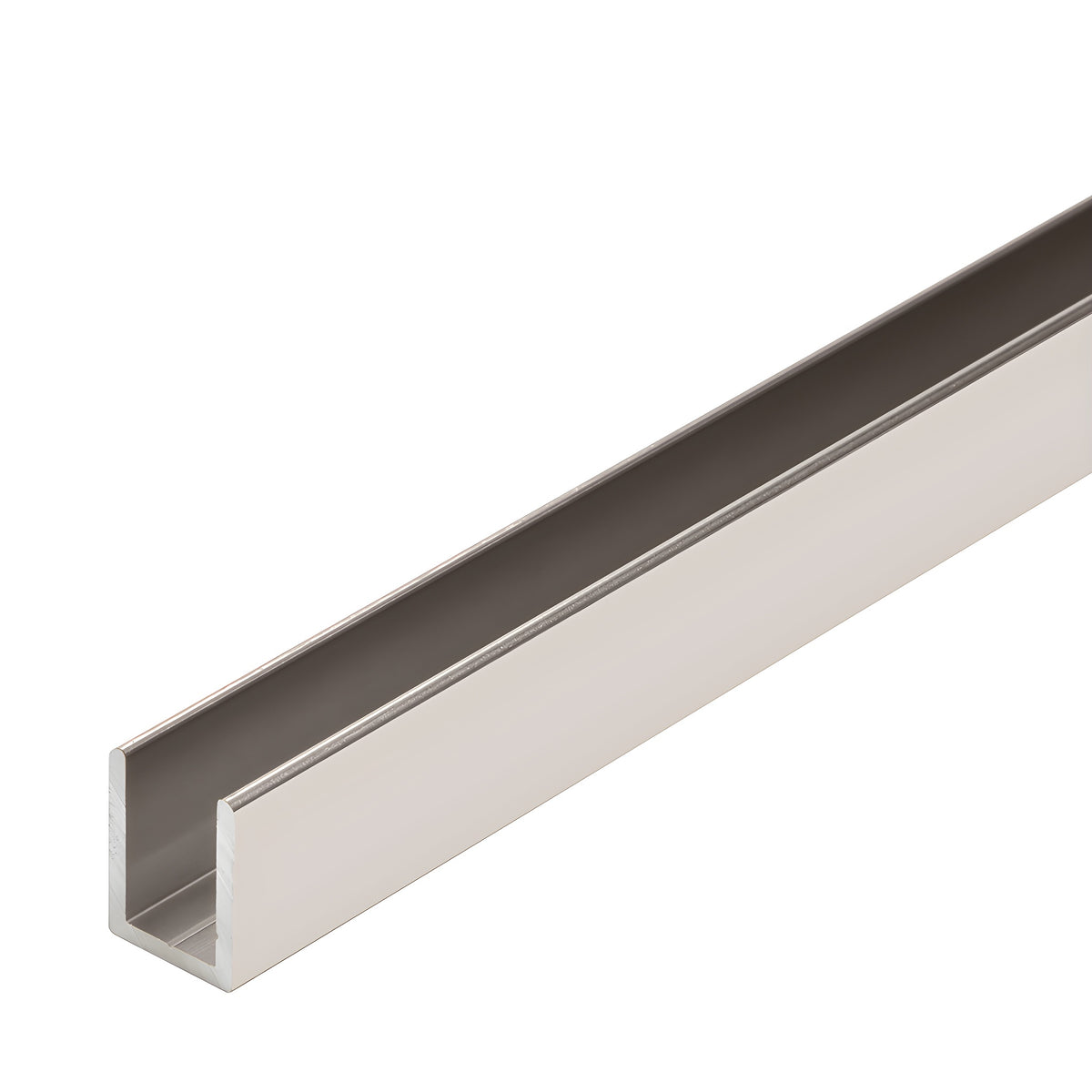

CRL Polished Nickel 3/8" Deep U-Channel for Shower Door 95"

• For 3/8" (10 mm) thick glass
• Deep pocket secures fixed panels of glass to wall, ceiling or floor
• Designed for monolithic tempered glass
• Can be used alone or paired with regular-depth U-channel
• Available in deep and regular profiles
• Wet-glazed with clear silicone for secure installation
• Common lengths: 95" (2.41 m); select profiles in 144" (3.66 m) stock lengths
• End caps available to conceal channel ends
• Offered in up to seventeen finishes

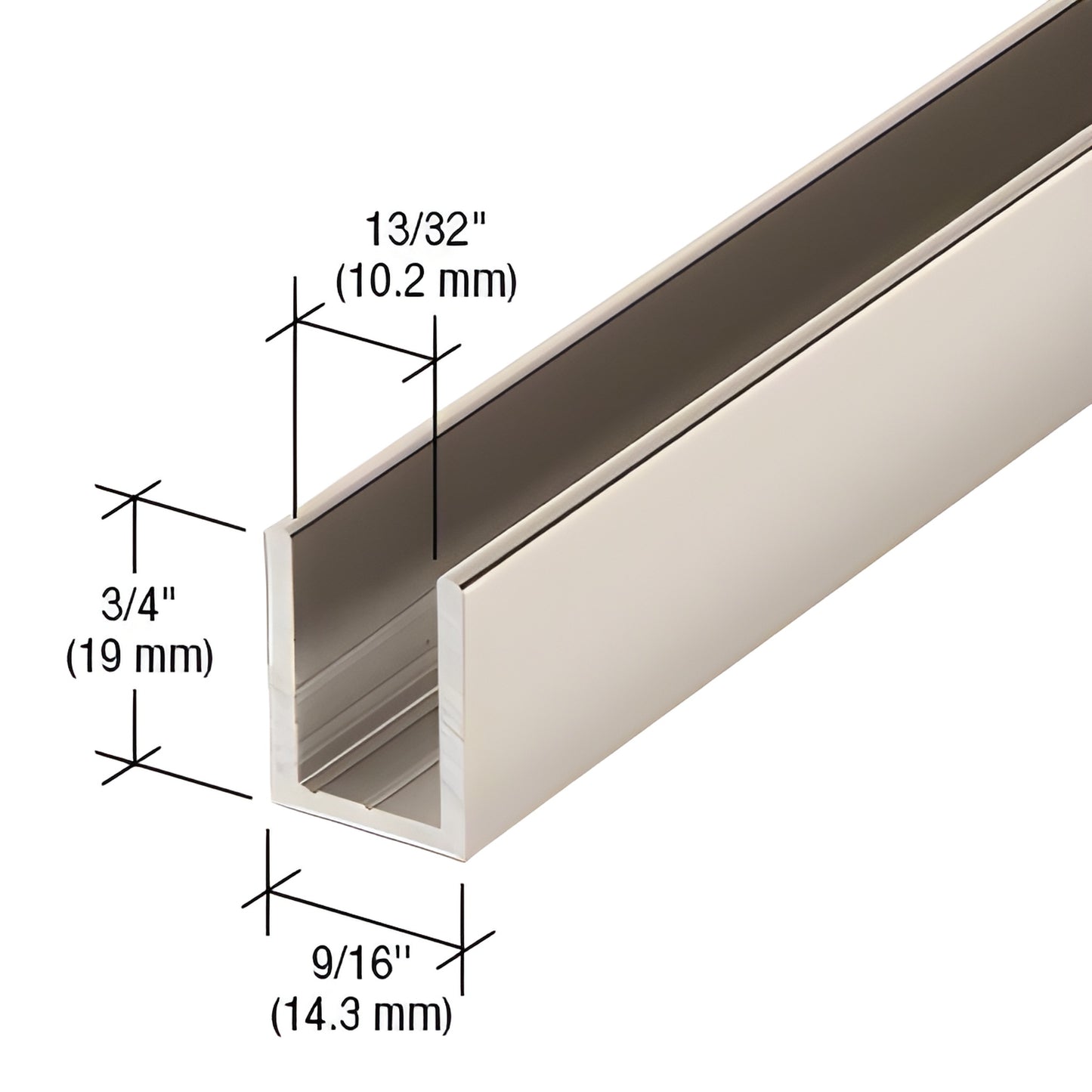

This Deep U-Channel (SKU: SDCD38PN) is a 3/4" (19 mm) high profile engineered for securing fixed 3/8" (10 mm) frameless shower glass panels. Use as a top channel where glass is inserted from above and then lowered into a regular 3/8" (10 mm) tall U-channel at the bottom. Each aluminum channel is individually wrapped to protect the finish and is suitable for wet-glazed, frameless shower installations.

We offer two aluminum U-channel profiles—Deep and Regular—each available for 3/8" or 1/2" (10 or 12 mm) glass. Choose the deep pocket U-channel for extra holding strength in fixed panel shower systems and other architectural glass applications.

SPECIFICATIONS:
Typical Uses: Frameless shower installations and other fixed glass panel applications where a secure, concealed channel is required.

Need help selecting the right U-channel for your frameless shower glass project? Contact us or add SKU SDCD38PN to your cart to get started.
