CRL Black 3/8 in Glass Shower Door Deep U-Channel 95 in
Item# SDCD38BL
Shipping Weight: 1.44 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.44 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 3% Off |
| Buy 5 | 6% Off |
| Buy 8 | 9% Off |
| Buy 11 | 12% Off |
| Buy 16 | 16% Off |

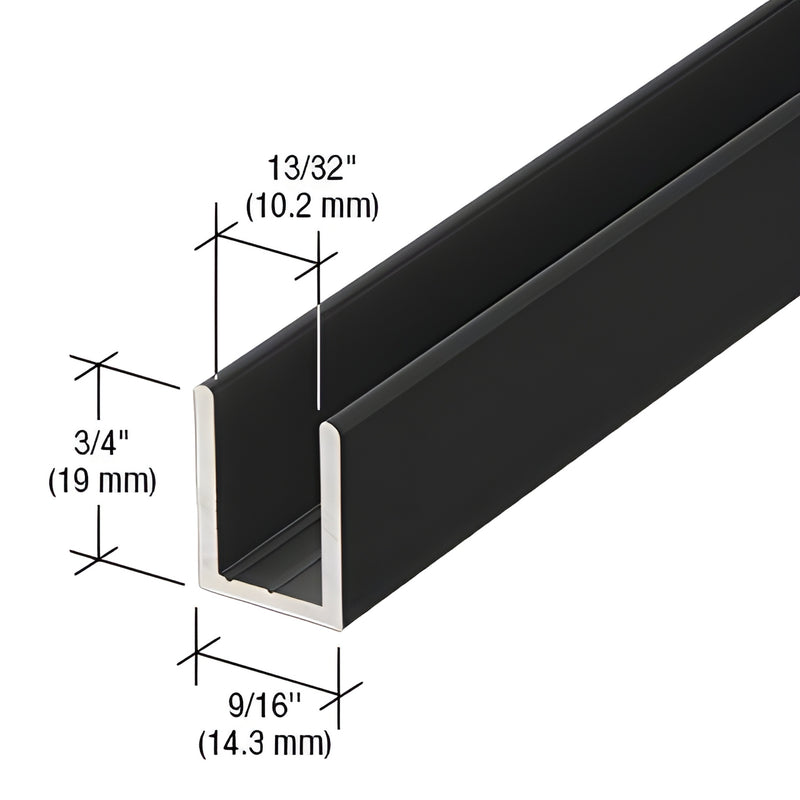

Finish/Color
Gloss Black
Glazing Pocket Width
13/32
Glazing Thickness
3/8 in. (10 mm)
Height
3/4 in. (19 mm)
Length
95 in. (2413 mm)
Material
Aluminum
Profile
Deep
Width
9/16 in. (14 mm)
- For 3/8" (10 mm) thick glass
- Deep pocket secures fixed glass panels—ideal for frameless shower installations
- Use with monolithic tempered glass
- May be used alone or paired with regular-depth U-channel
- Choice of Deep or Regular styles; widths available for 3/8" (10 mm) glass
- Wet-glazed with clear silicone to secure glass
- Individually wrapped to protect finish
- Available in popular 95" (2.41 m) lengths; some in economical 144" (3.66 m) stock lengths
- End caps available to conceal channel ends
- Offered in up to seventeen finishes

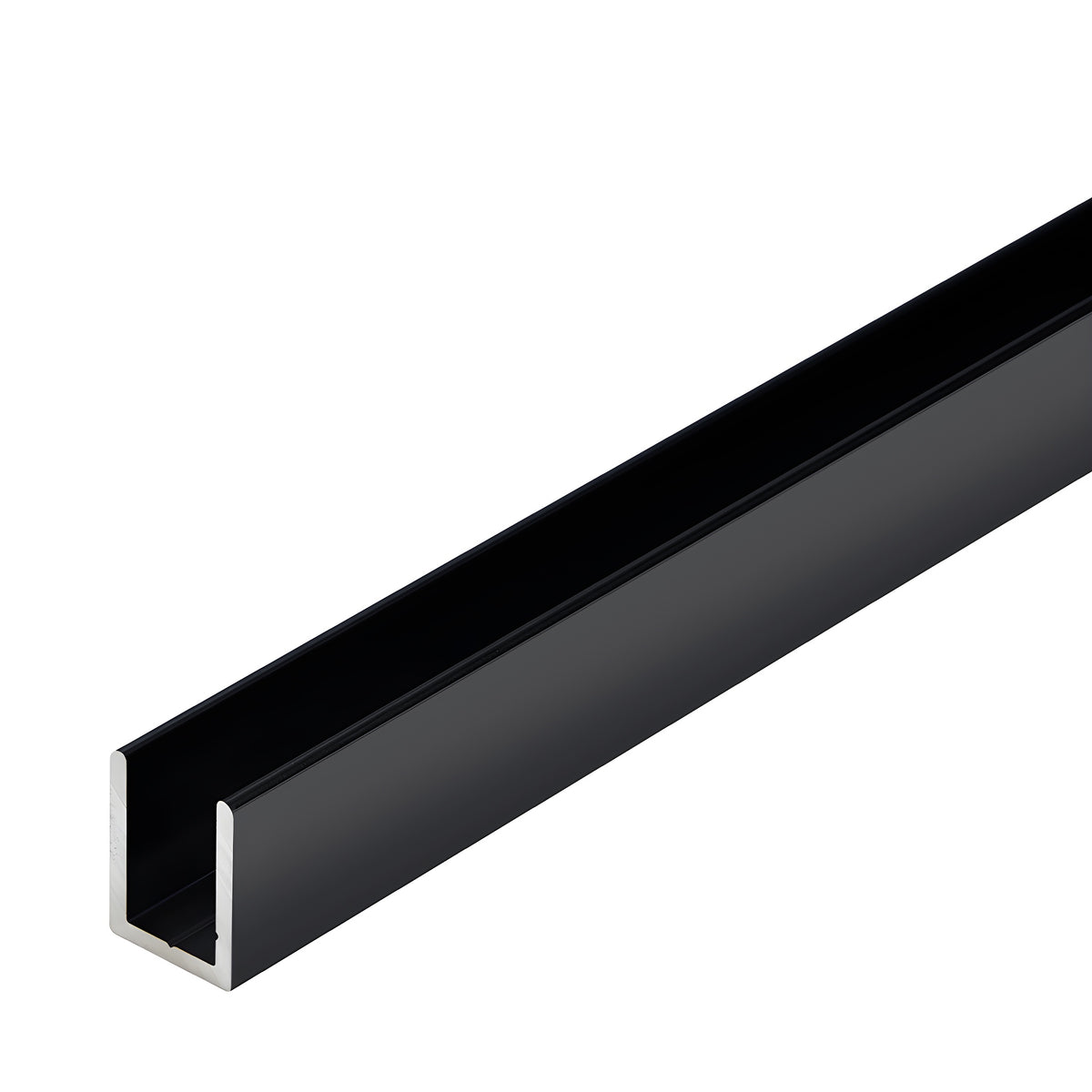

Deep U-Channel (SKU SDCD38BL) secures fixed glass panels to wall, ceiling or floor. This 3/4" (19 mm) high-profile deep channel is designed for 3/8" (10 mm) thick glass and works as a top channel when panels must be inserted from above, then lowered into a 3/8" tall regular U-channel at the base. Use in frameless shower fixed-panel applications requiring a secure, low-profile aluminum channel.
We offer two aluminum U-channel profiles—Fixed Panel Regular and Deep—both suitable for securing fixed glass panels in frameless shower installations. Each profile is individually wrapped to protect the finish and is compatible with monolithic tempered glass.
SPECIFICATIONS:
Typical Uses: Frameless shower installations for securing fixed panels of glass to wall, ceiling or floor.
Most shipping weights are approximate and have not been verified. If exact weight or shipping costs are required to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors may vary depending on your monitor.
Order SKU SDCD38BL for an aluminum deep U-channel designed for 3/8" glass, or contact CRL Customer Service to confirm finish, length availability, or shipping details.
