CRL Antique Brass 3/8 in Deep U-Channel for Glass Shower Panel 95 in

• For 3/8" (10 mm) Thick Glass
• Deep pocket secures fixed panels of glass
• Use monolithic tempered glass
• May be used alone or with regular depth U-channel
• Choice of deep or regular styles
• Wet glazed with clear silicone to secure glass
• Available in popular 95" (2.41 m) lengths; some in economical 144" (3.66 m) stock lengths
• End caps offered to conceal ends of channel
• Available in up to seventeen finishes

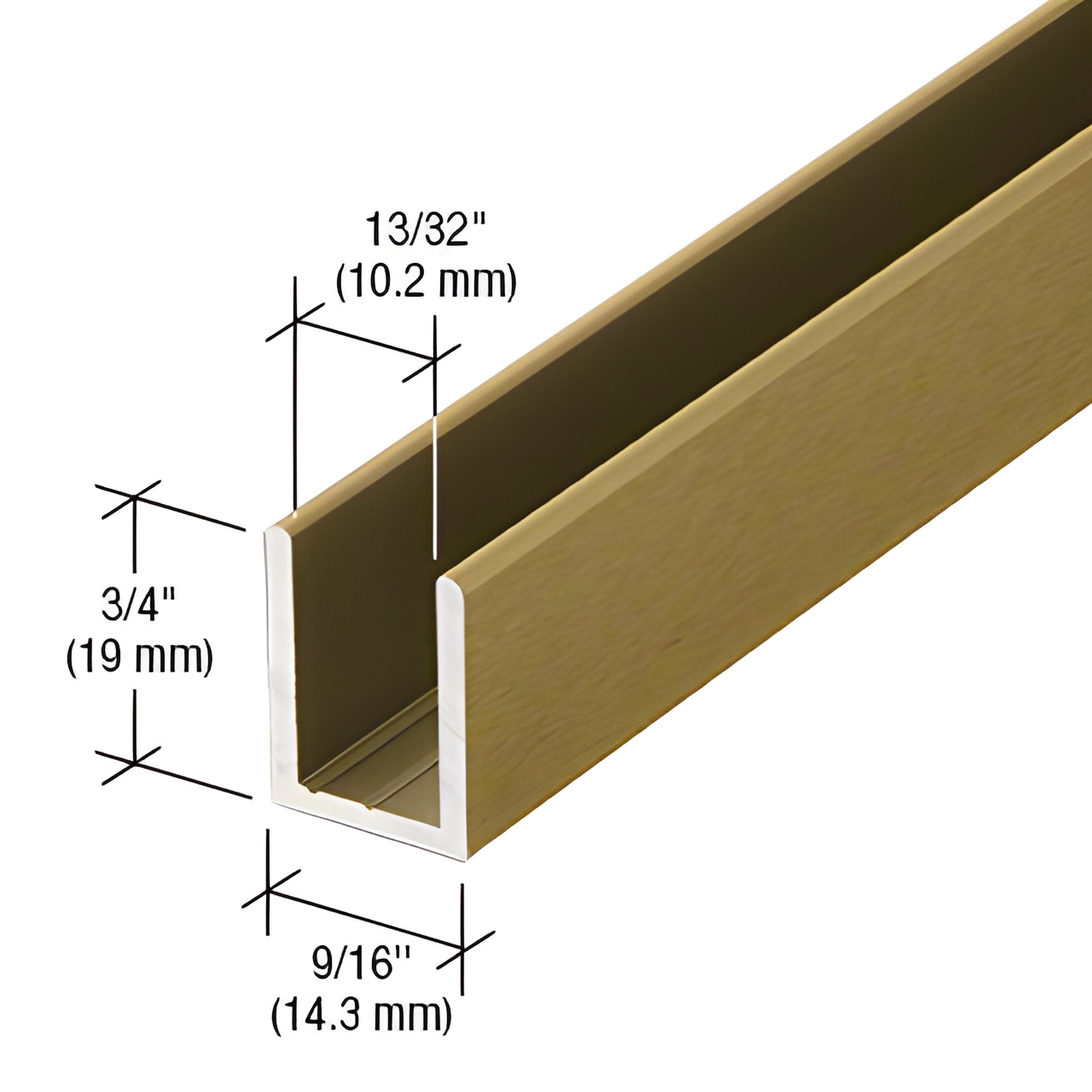

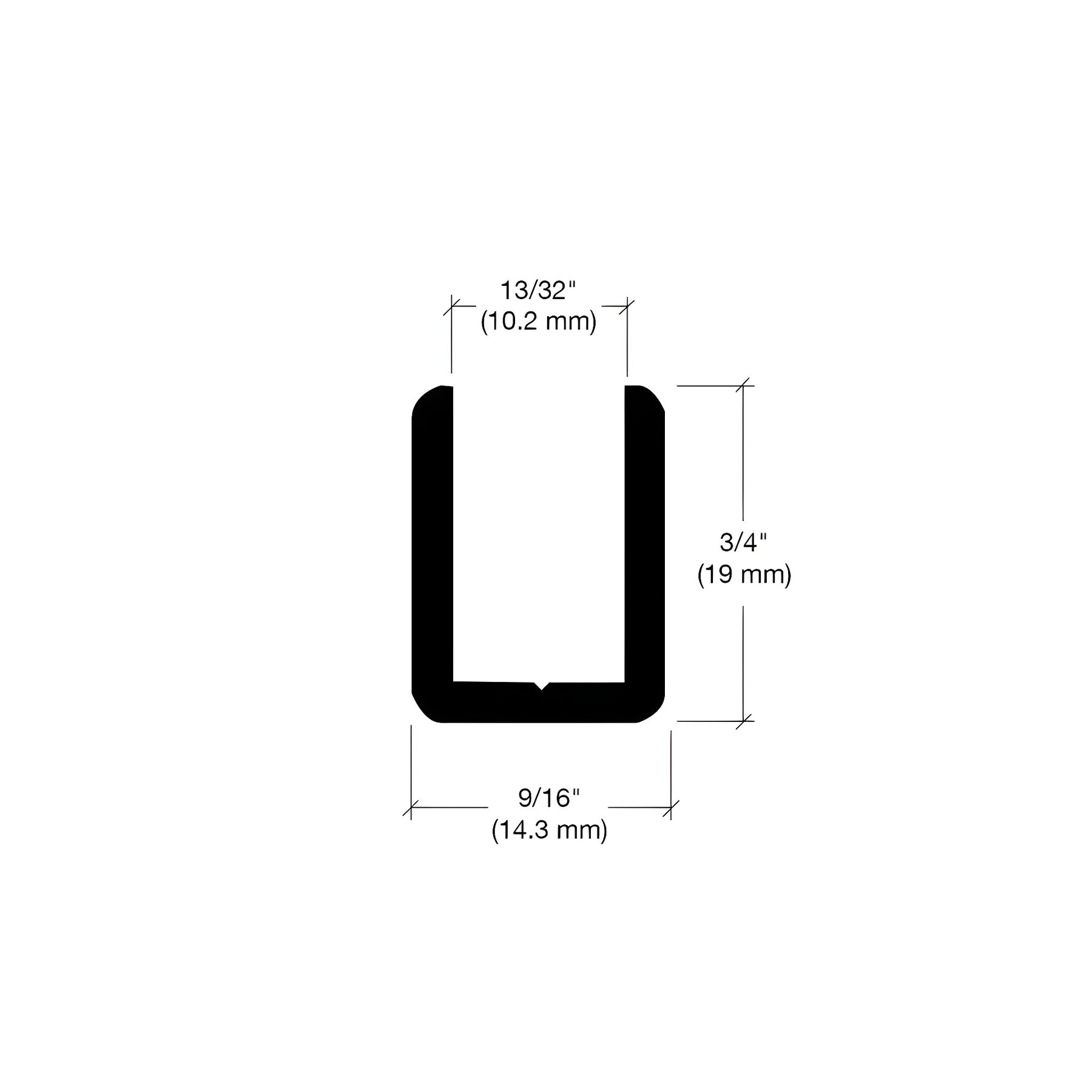

Deep U-Channel secures fixed panels of glass to the wall, ceiling, or floor. This 3/4" (19 mm) high profile deep U-channel accepts 3/8" (10 mm) thick glass and is individually wrapped to protect the finish. It performs well as a top channel in frameless shower installations where the glass is inserted from above and lowered into a 3/8" (10 mm) tall regular U-channel at the bottom of the enclosure.

We offer two aluminum U-channel profiles—Deep and Regular—designed for frameless shower fixed panels. Both styles accommodate 3/8" (10 mm) (and in other listings 1/2" (12 mm)) glass where specified, and are packaged to preserve the finish.

SPECIFICATIONS:
Typical Uses: Most commonly used in frameless shower installations for securing fixed panels of glass to the wall, ceiling, or floor.

Brass Finish Advisory:

Optimize your frameless shower project with this aluminum deep U-channel designed for 3/8" glass—order now or contact us for finish availability and cut-to-length options.
