CRL Brite Anodized Aluminum 3/8" Deep U-Channel 95" Shower Panel

• For 3/8" (10 mm) thick glass
• Deep pocket secures fixed panels of glass
• Use monolithic tempered glass
• May be used alone or with regular depth U-channel
• Choice of deep or regular styles
• Wet glazed with clear silicone to secure glass
• Available in popular 95" (2.41 m) lengths; some profiles in 144" (3.66 m) stock lengths
• End caps offered to conceal ends of channel
• Available in up to seventeen finishes

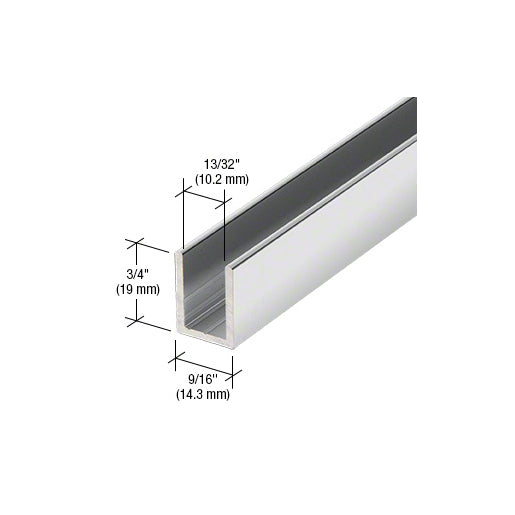

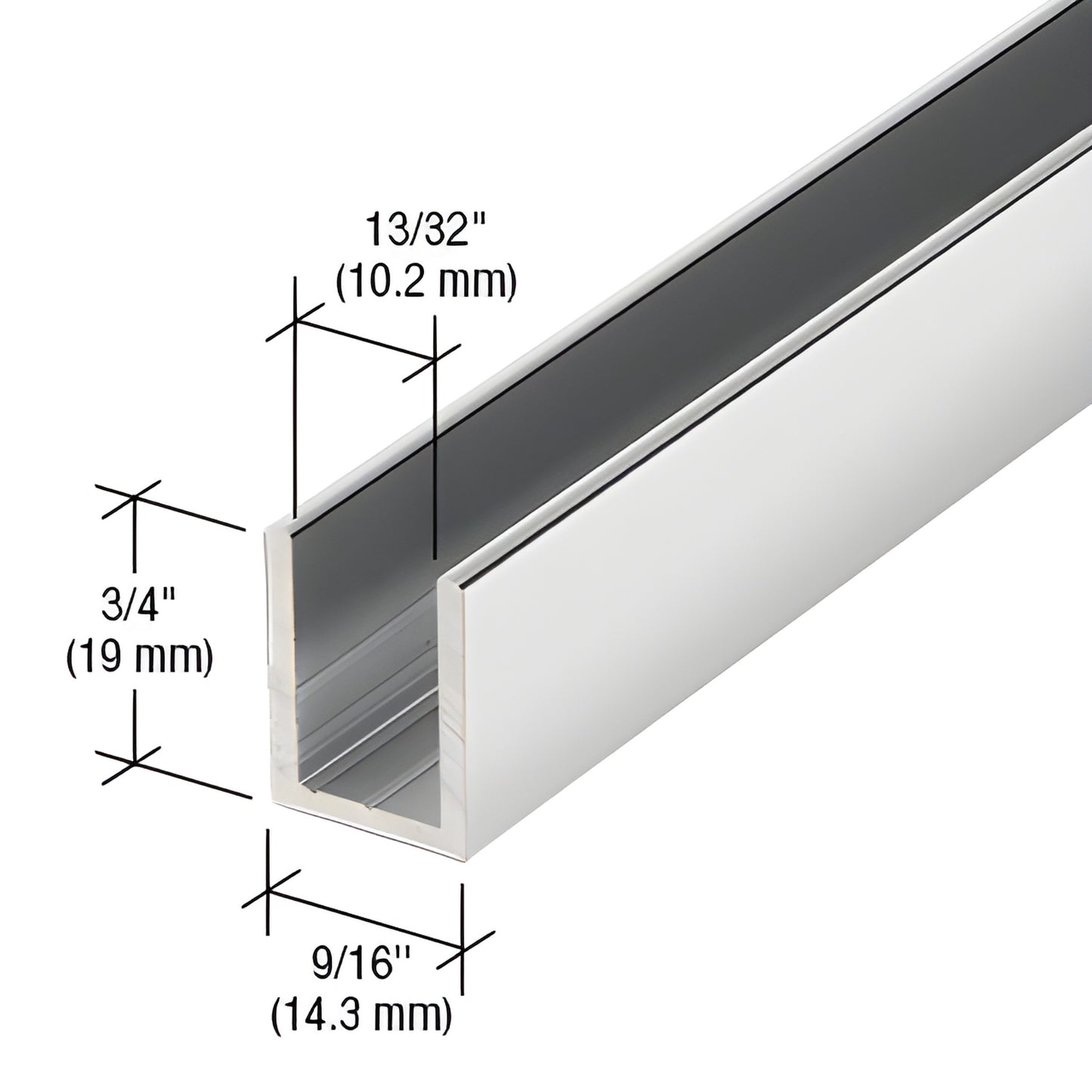

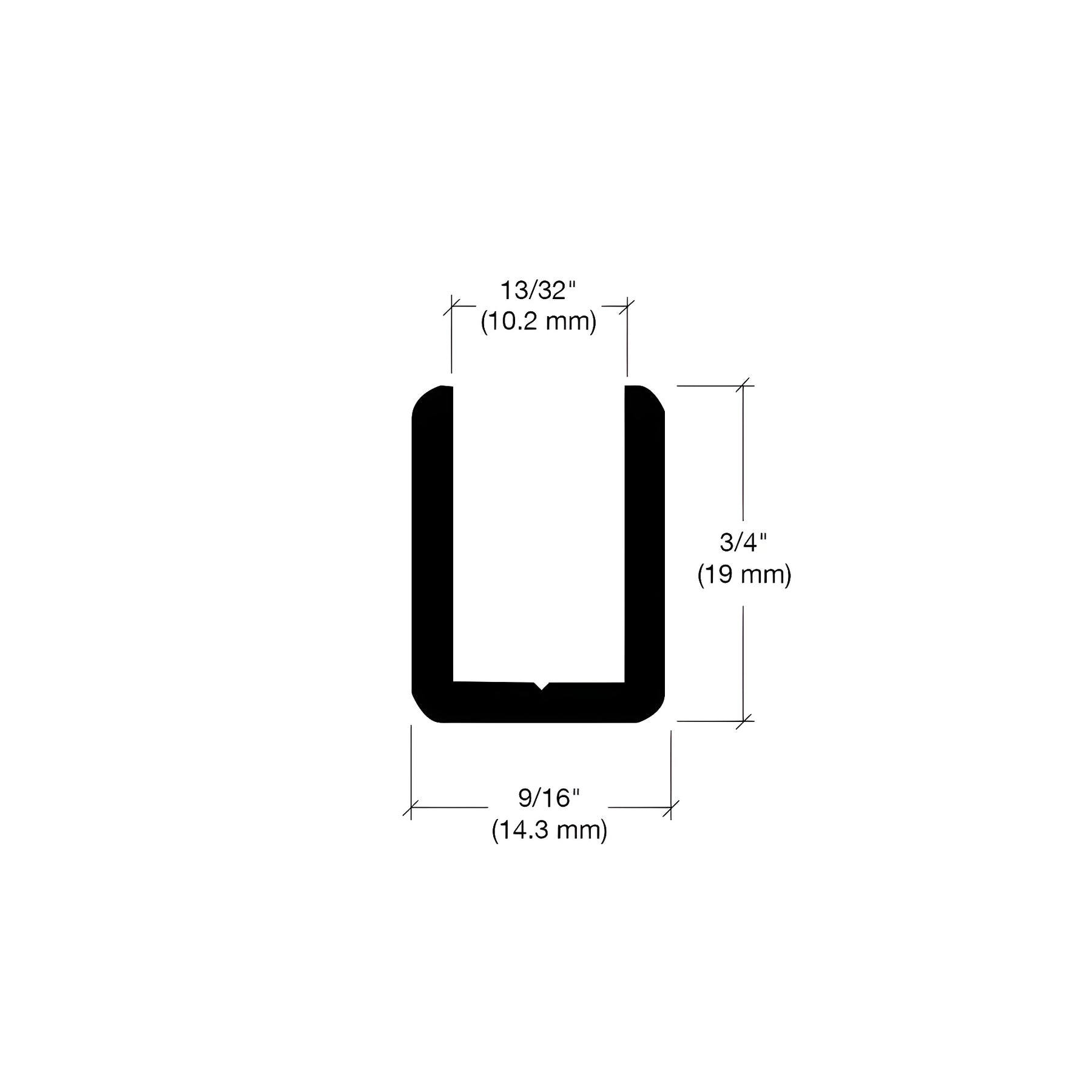

Deep U-Channel (SKU SDCD38BA) is an aluminum U-channel designed for securing fixed panels of glass to walls, ceilings, or floors—ideal for frameless shower installations and other architectural glass applications. This 3/4" (19 mm) high profile accepts 3/8" (10 mm) glass and is individually wrapped to protect the finish. Use the deep channel as the top channel where glass must be inserted from above and lowered into a 3/8" (10 mm) tall regular U-channel at the base.

We offer two U-channel profiles—Deep and Regular—each available for 3/8" or 1/2" (10 or 12 mm) glass. Channels are wet glazed with clear silicone for a secure hold and are available in multiple lengths and a variety of finishes to match frameless shower hardware and architectural glass systems.

SPECIFICATIONS:
Typical Uses: Most commonly used in frameless shower installations for securing fixed panels of glass to the wall, ceiling, or floor.

Need this deep aluminum U-channel for frameless shower fixed panels? Order SKU SDCD38BA or contact CRL Customer Service to check finish and length availability.
