CRL Brushed Nickel Shower Door U-Channel 1/2 in Fixed Panel 144 in
Item# SDCD1212BN
Shipping Weight: 3.0 Pounds
Shipping Limitations: Requires Cutting Instructions for UPS
Unit of Measure: Stock Length
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 3.0 Pounds
Shipping Limitations: Requires Cutting Instructions for UPS
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: Stock Length
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Finish/Color
Brushed Nickel
Glazing Pocket Width
.518
Glazing Thickness
1/2 in. (12 mm)
Height
3/4 in. (19 mm)
Length
144 in. (3658 mm)
Material
Aluminum
Profile
Deep
Width
11/16 in. (17.1 mm)
- Deep pocket secures fixed glass panels — ideal for frameless shower and architectural glass installations
- Wet glazed with clear silicone for a durable, discreet seal
- Popular 144" (3.66 m) stock length for long runs — SKU: SDCD1212BN
- End caps available to conceal and finish channel ends
- Can be used alone or paired with regular depth U-channel; suitable as top channel when glass is lowered into bottom channel
- For monolithic tempered glass; compatible widths for 3/8" and 1/2" (10 and 12 mm) glass

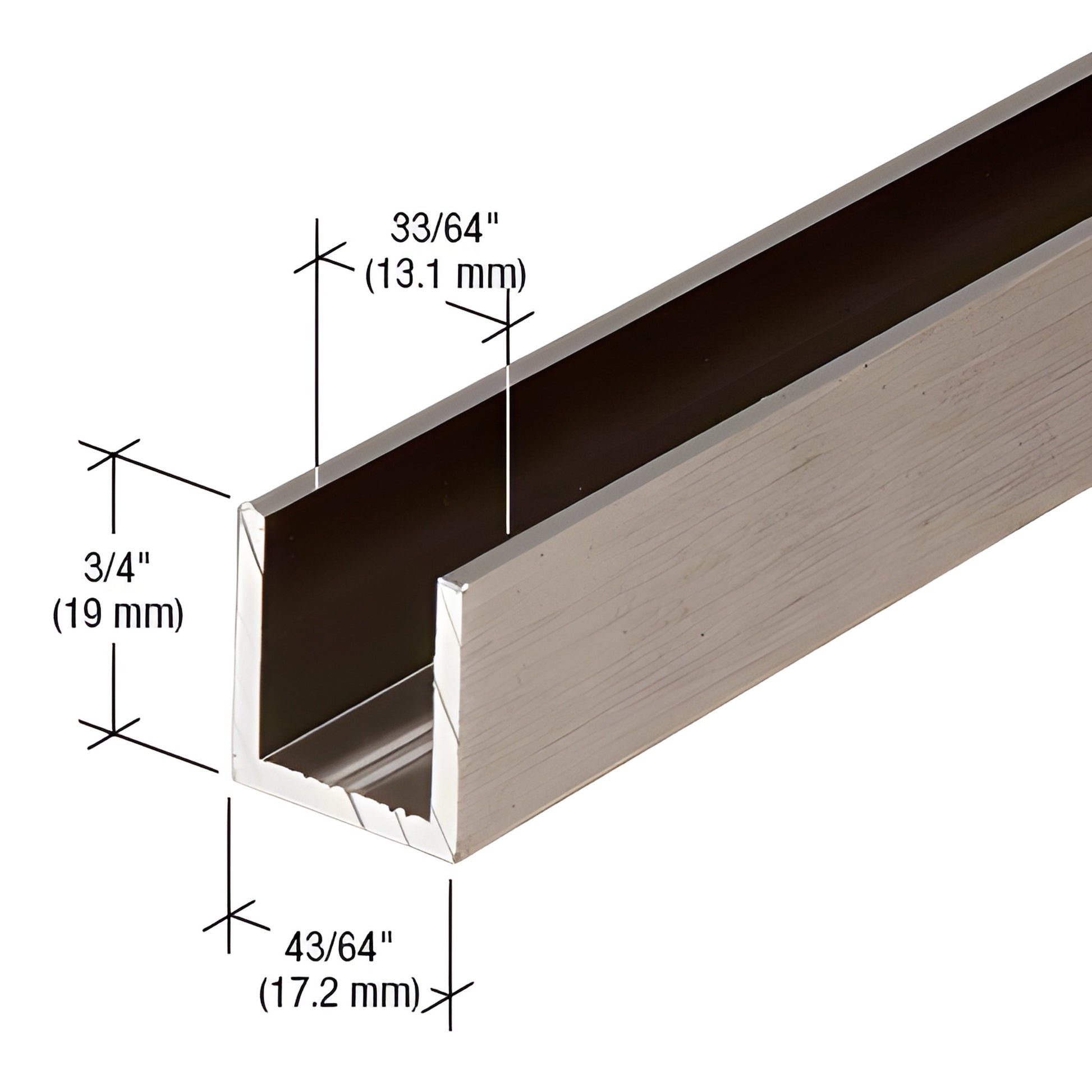

This 3/4" (19 mm) tall profile CRL Deep U-Channel provides a secure mounting solution for fixed glass panels to walls, ceilings, or floors. Available in widths to fit 3/8" and 1/2" (10 and 12 mm) monolithic tempered glass; each channel is individually wrapped to protect the finish. The deep pocket design and wet-glazed silicone installation offer reliable holding strength and a clean aesthetic for frameless shower doors, glass partitions, and architectural glazing. 144" (3.66 m) stock length.
Product Warning:
Stock lengths must ship common carrier unless specifically cut for UPS shipment.
Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, and shipping costs are required to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and how your monitor's color is adjusted.
Order the SDCD1212BN Deep U-Channel today for secure, professional glass installations.
