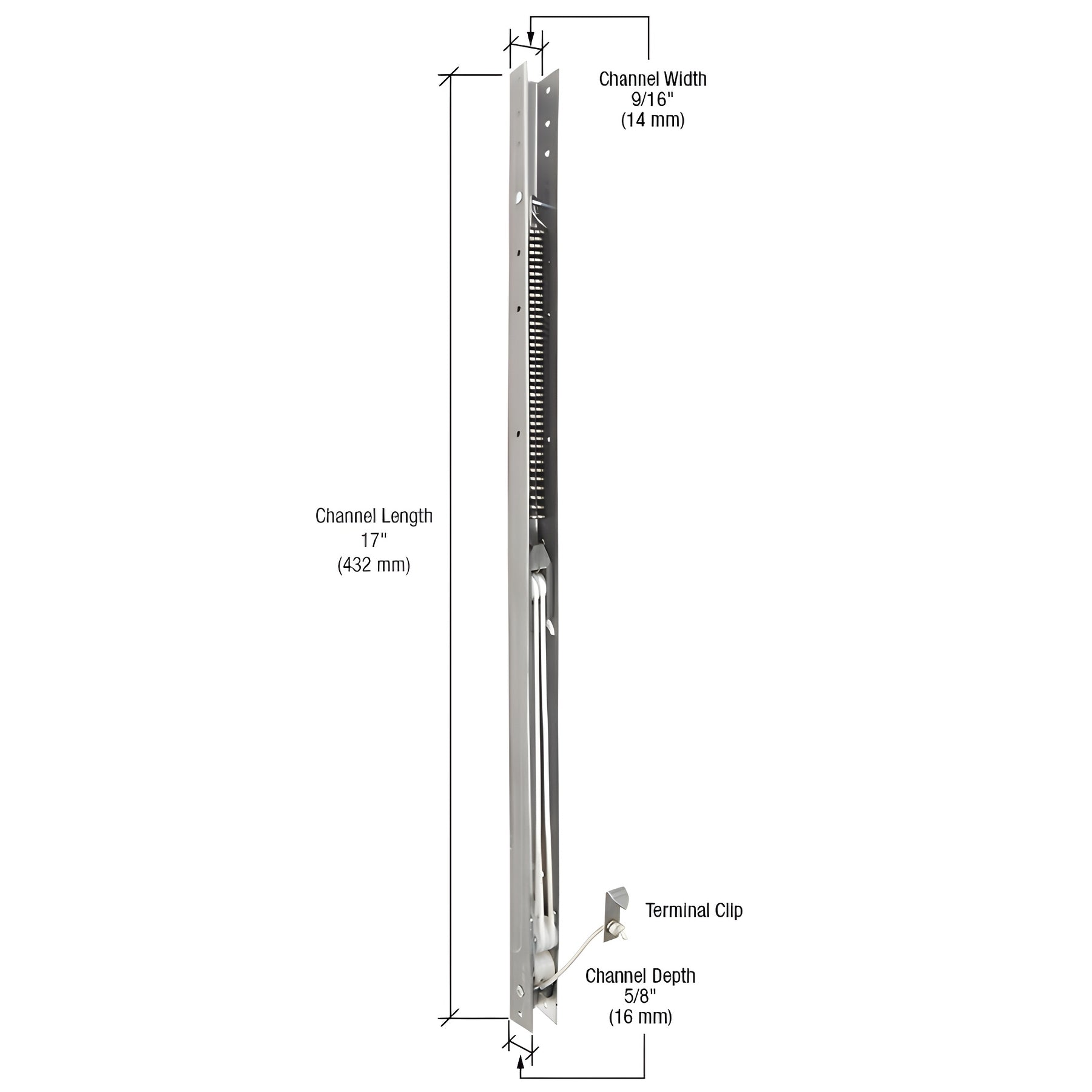

CRL 17" Window Channel Balance - 1610 or 16-1

The CRL FA Series 1/10 Weight Range Sash Balances are designed with a 5/8" (16 mm) depth, commonly referred to as 1/2" (13 mm) in the trade.
These balances are available in various lengths from 13" to 42" (330 to 1067 mm) and support weight ranges from 10 to 50.
For optimal performance, each balance requires nylon guides to be riveted onto the channel, which can be pre-attached or manually installed using guide kits and the CRL Cat.
No.
H3740 Rivet Set Tool.
When ordering, measure the metal channel's full length and refer to the stamped or etched number on the back to find the corresponding CRL Cat.
No.
Special orders are available for unique weight ranges, and customers should note that the first two numbers of the catalog number do not indicate the channel length.
For accurate shipping costs, contact CRL Customer Service.
