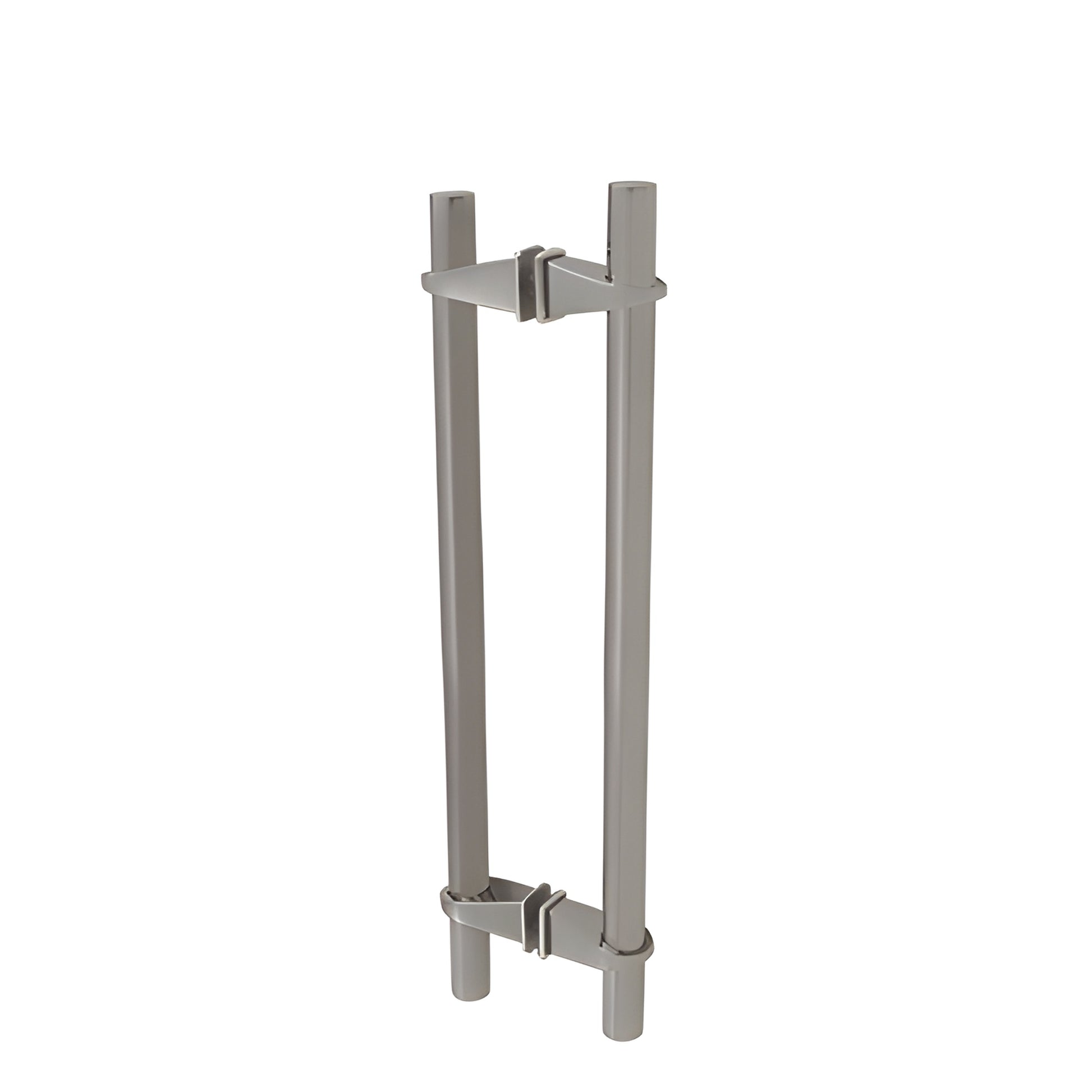

CRL 22 in Brushed Stainless Adjustable Door Pull Handle with VP1 Post
CRL 22 in Brushed Stainless Adjustable Door Pull Handle with VP1 Post
Regular price
$292.03 CAD
Regular price
Sale price
$292.03 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# VPS122BS
Shipping Weight: 4.493 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 4.493 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in. To 3/4 in. (10 mm To 19 mm)
Material
Stainless Steel
Mounting Center To Center
18 in. Adjustable (457 mm)
Mounting Hole Diameter
5/8 in. (16 mm)
Mounting Type
Back-To-Back
Overall Length
22 in. (559 mm)
Overview
- Adjustable mounting posts fit 6" to 26-3/4" (152 to 679 mm) centers
- Designed for 3/8" to 3/4" (10 to 19 mm) tempered glass
- Constructed of 1" (25 mm) diameter stainless steel tubing
- Use with monolithic tempered glass
CRL Variant Series Adjustable Mounting Post Style Pulls (SKU: VPS122BS) provide versatile, long-reach mounting for glass door and shower door applications. Engineered for standard 12", 18" and 24" (305, 457 and 610 mm) hole patterns, the adjustable posts extend to accommodate custom hole centers from 6" up to 26-3/4" (152 to 679 mm). Ideal for tempered glass door pulls and commercial glass door hardware, additional mounting posts are available separately.
SPECIFICATIONS:
For Use With: 3/8" to 3/4" (10 to 19 mm) glass (monolithic tempered)
Construction:
1" (25 mm) diameter stainless steel tubing
Glass Fabrication Required:
Two 5/8" (16 mm) diameter holes
VPS x 16: 12" (305 mm) center-to-center
VPS x 22: 18" (457 mm) center-to-center
VPS x 28: 24" (610 mm) center-to-center
NOTE: Hole centers shown are standard mounting locations; actual hole centers may be varied for custom installations.
INCLUDES:
2 Each: through-bolts for glass mounting
4 Each: adjustable mounting posts (VP1 or VP2 depending on handle style)
Stainless Steel Advisory:
Stainless steel is corrosion-resistant but not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for care guidelines.
For pricing, lead times, or to order SKU VPS122BS, contact CRL or add this adjustable glass door pull to your cart today.
