CRL

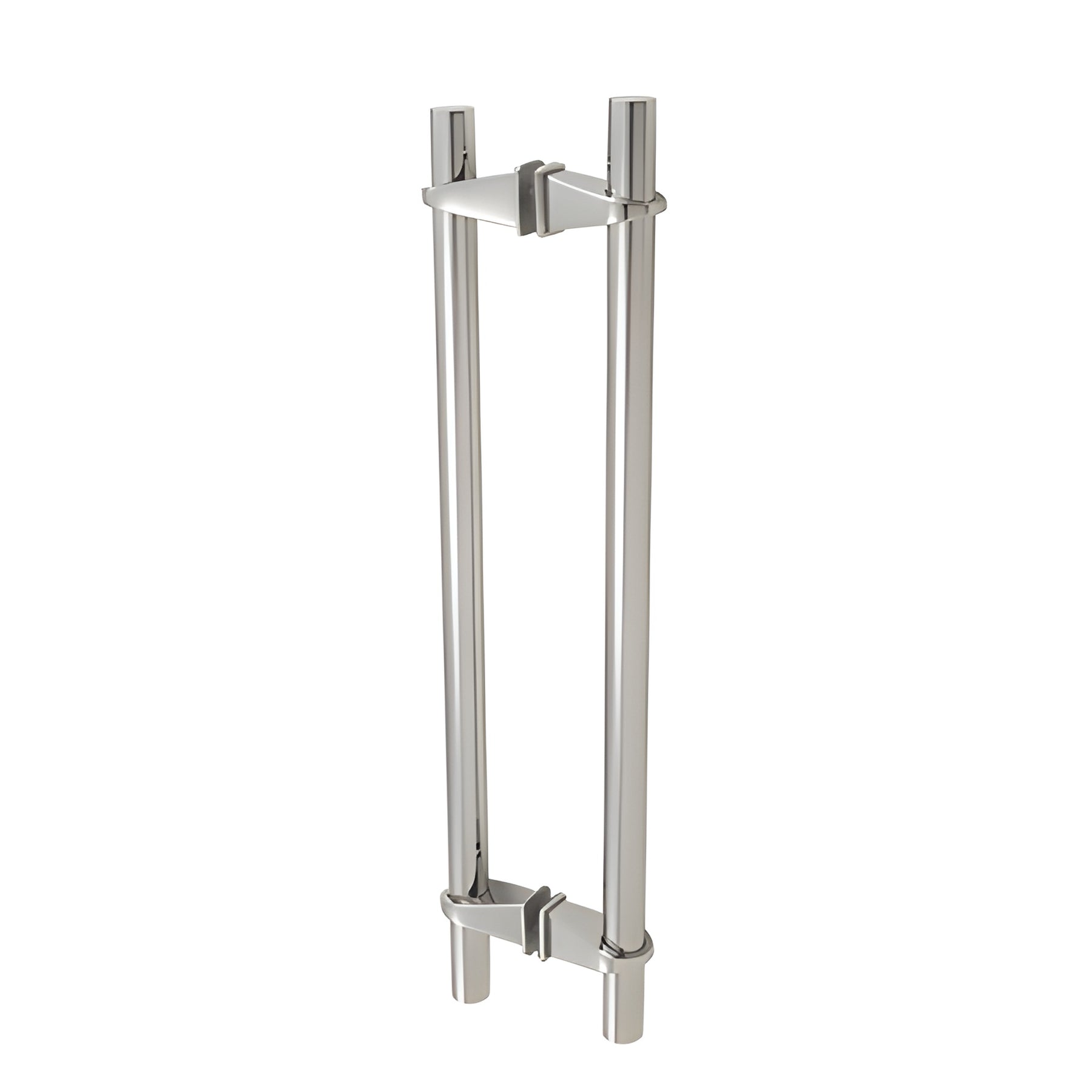

CRL 28 in Polished Stainless Adjustable Glass Door Pull with VP1 Post
CRL 28 in Polished Stainless Adjustable Glass Door Pull with VP1 Post
Regular price
$345.25 CAD
Regular price
Sale price
$345.25 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# VPS128PS
Shipping Weight: 2.3 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 2.3 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Polished Stainless Steel
Glazing Thickness
3/8 in. To 3/4 in. (10 mm To 19 mm)
Material
Stainless Steel
Mounting Center To Center
24 in. Adjustable (610 mm)
Mounting Hole Diameter
5/8 in. (16 mm)
Mounting Type
Back-To-Back
Overall Length
28 in. (711 mm)
Overview
- Adjustable mounting posts — fits 6" to 26-3/4" (152 to 679 mm) centers
- For 3/8" to 3/4" (10 to 19 mm) monolithic tempered glass
- Constructed of 1" (25 mm) diameter stainless steel tubing
- Designed for glass door pull applications and commercial glass hardware
The CRL Variant Series Adjustable Mounting Post Style Pulls (SKU: VPS128PS) are premium stainless steel glass pull handles designed for adjustable hole patterns. They mount on common 12", 18" and 24" (305, 457 and 610 mm) centers and, with the included adjustable posts, accommodate any hole pattern from 6" up to 26-3/4" (152 to 679 mm) on center. Additional mounting posts sold separately.
SPECIFICATIONS:
For Use With: 3/8" to 3/4" (10 to 19 mm) glass (monolithic tempered)
Construction: 1" (25 mm) diameter stainless steel tubing — suitable for interior and commercial glass door pulls
Glass Fabrication Required:
Two 5/8" (16 mm) diameter holes
VPS x 16: 12" (305 mm) center-to-center
VPS x 22: 18" (457 mm) center-to-center
VPS x 28: 24" (610 mm) center-to-center
NOTE: Hole centers shown are standard mounting locations; actual hole centers may be varied.
INCLUDES:
2 Each: through-bolts for glass mounting
4 Each: adjustable mounting posts (VP1 or VP2 depending on handle style)
Stainless Steel Advisory:
Stainless steel is corrosion resistant but not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Order the VPS128PS adjustable stainless steel glass pull today — contact CRL or add to cart to confirm fit for your glass door project.
