CRL 28" Spiral Balance Tilt Window Replacement with Red Bushing

• Red bushing indicates sash load up to 25 pounds (11.3 kg)
• Tilt window spiral balance — industry standard 3/8" (10 mm) tube diameter
• Direct replacement for metal or plastic tube balances and same-size spiral balances with white bushing

This CRL Tubular Spiral Window Balance (SKU: FL2820) is a tilt-window spiral balance engineered to replace existing metal or plastic tube balances. Rated for sash loads up to 25 lb (11.3 kg), it fits a 3/8" (10 mm) tube diameter and replaces same-size spiral balances with a white bushing. Sold individually; for balanced performance we recommend replacing both balances in the window at the same time.


How to Order Tubular Spiral Window Balances

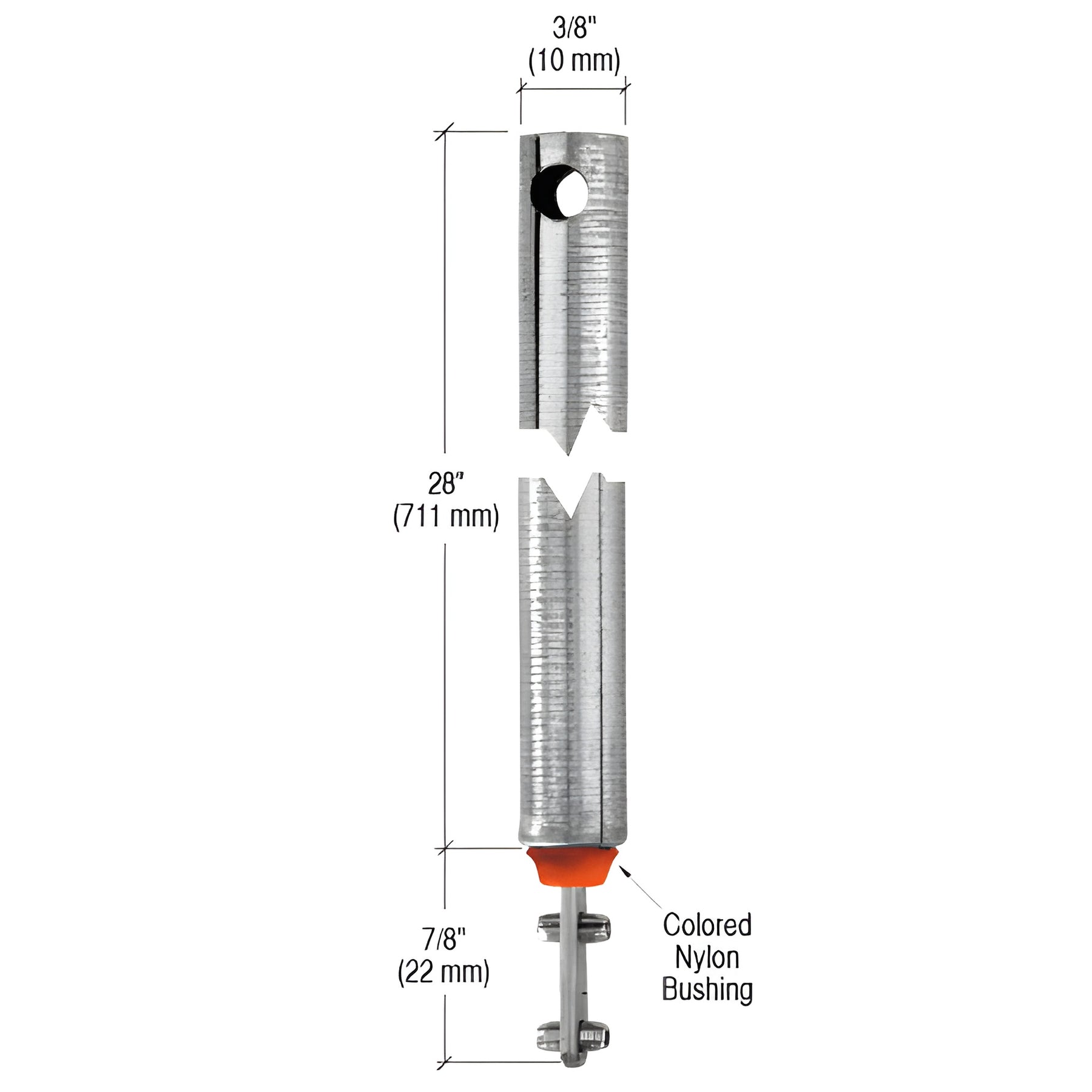

1. Check the tube diameter of the old metal or plastic balance (3/8" / 10 mm for this SKU).
2. Measure the tube length from the end of the balance to the bottom of the colored nylon bushing only — do not include the rod extension.
3. Confirm the color of the nylon bushing (red for this part’s sash rating; white indicates a different variant).
4. Verify the rod extension style and length protruding from the nylon bushing matches the photo/spec.
5. Match tube diameter, tube length, and bushing color against the catalog information. If all match and the rod extension aligns, FL2820 is the correct tilt-window spiral balance replacement.

Why choose FL2820? Durable CRL construction, industry-standard 3/8" tube fit, and clear bushing color coding make installation and selection simple for tilt window repair and spiral balance replacement projects.

Order FL2820 or contact us to confirm measurements and complete your tilt window balance replacement.
