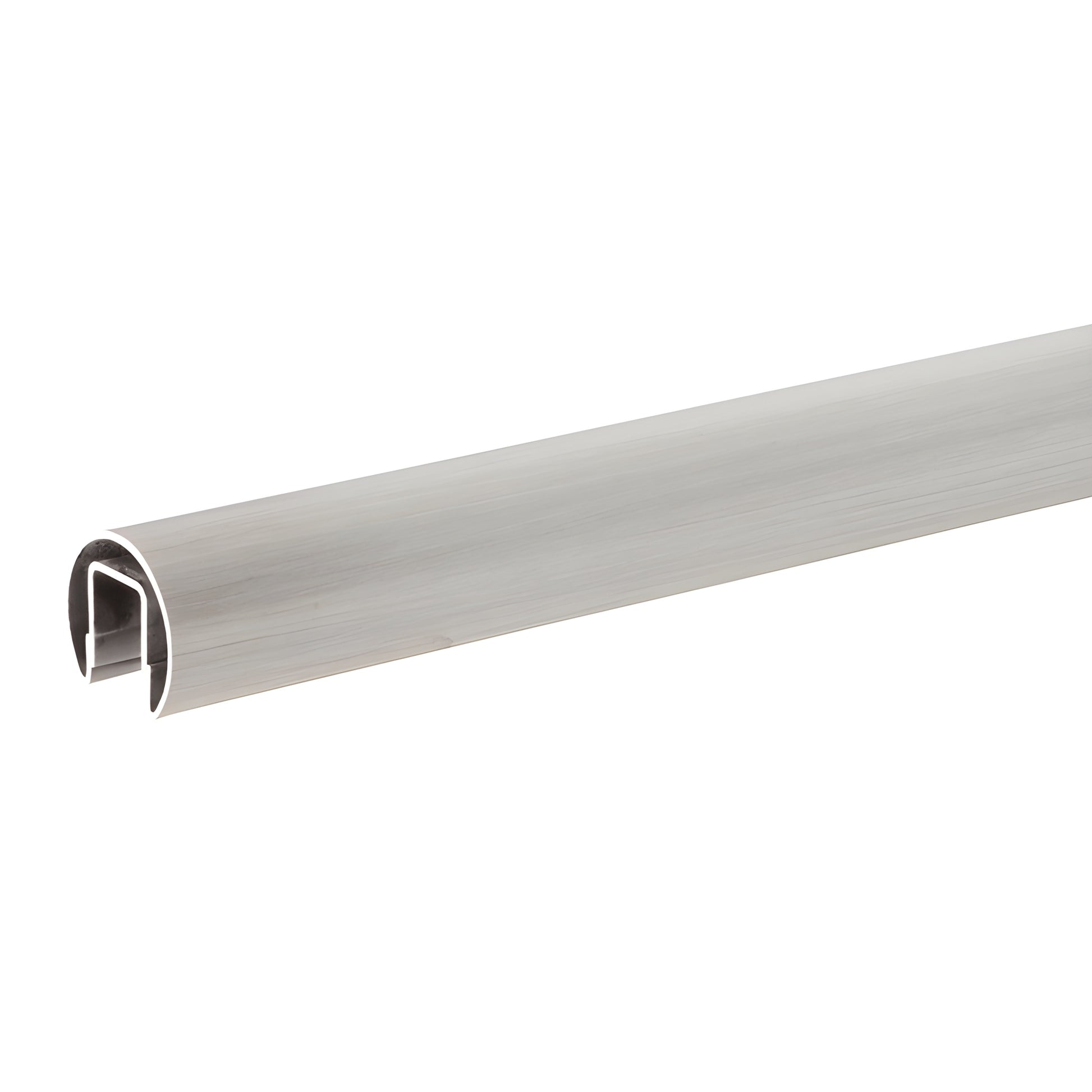

CRL 304 Grade Brushed Stainless 1-1/2" Premium Cap Rail for 1/2" Glass - 168"
CRL 304 Grade Brushed Stainless 1-1/2" Premium Cap Rail for 1/2" Glass - 168"
Regular price
$821.03 CAD
Regular price
Sale price
$821.03 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# GR15BS14
Shipping Weight: 14.4 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 14.4 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1



Description

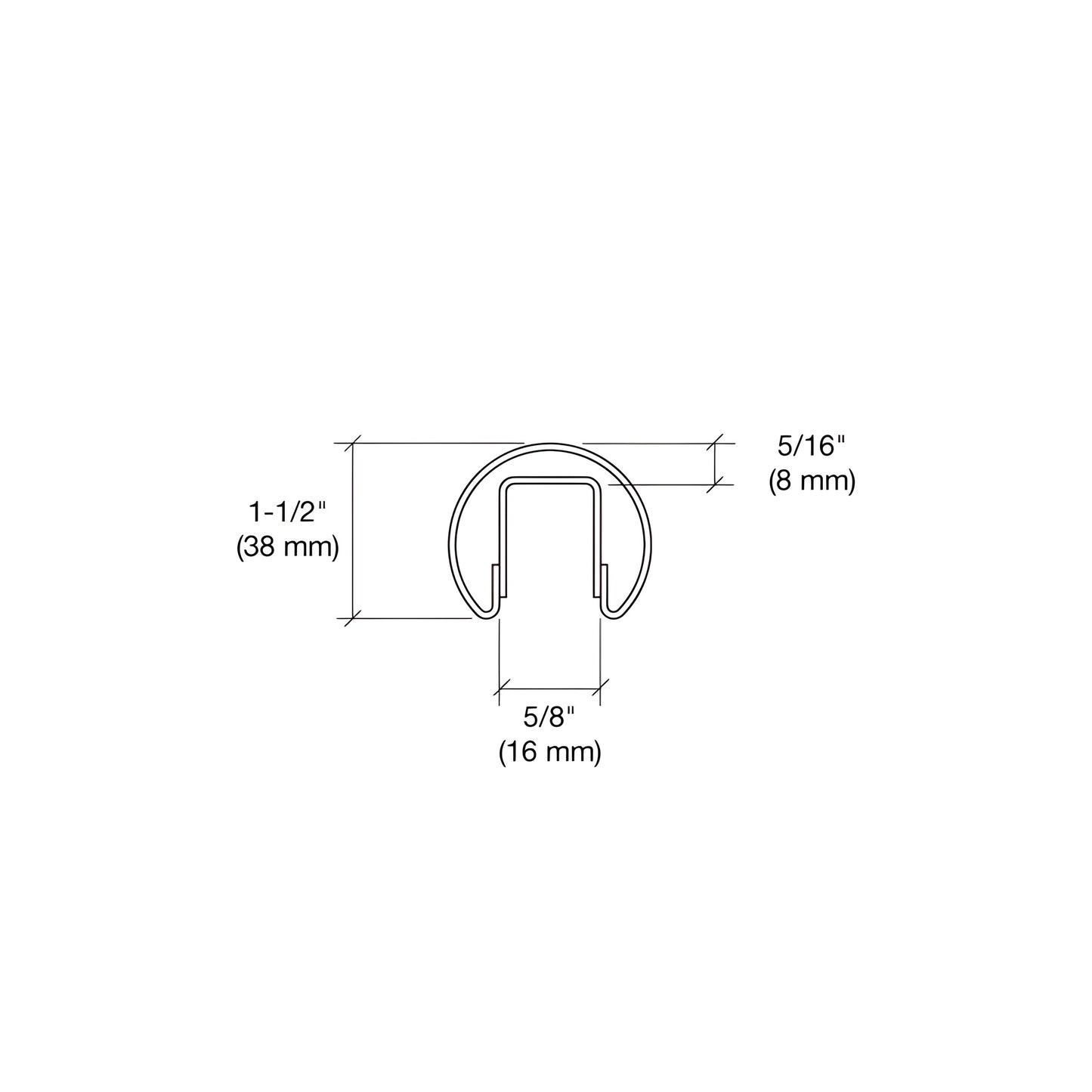

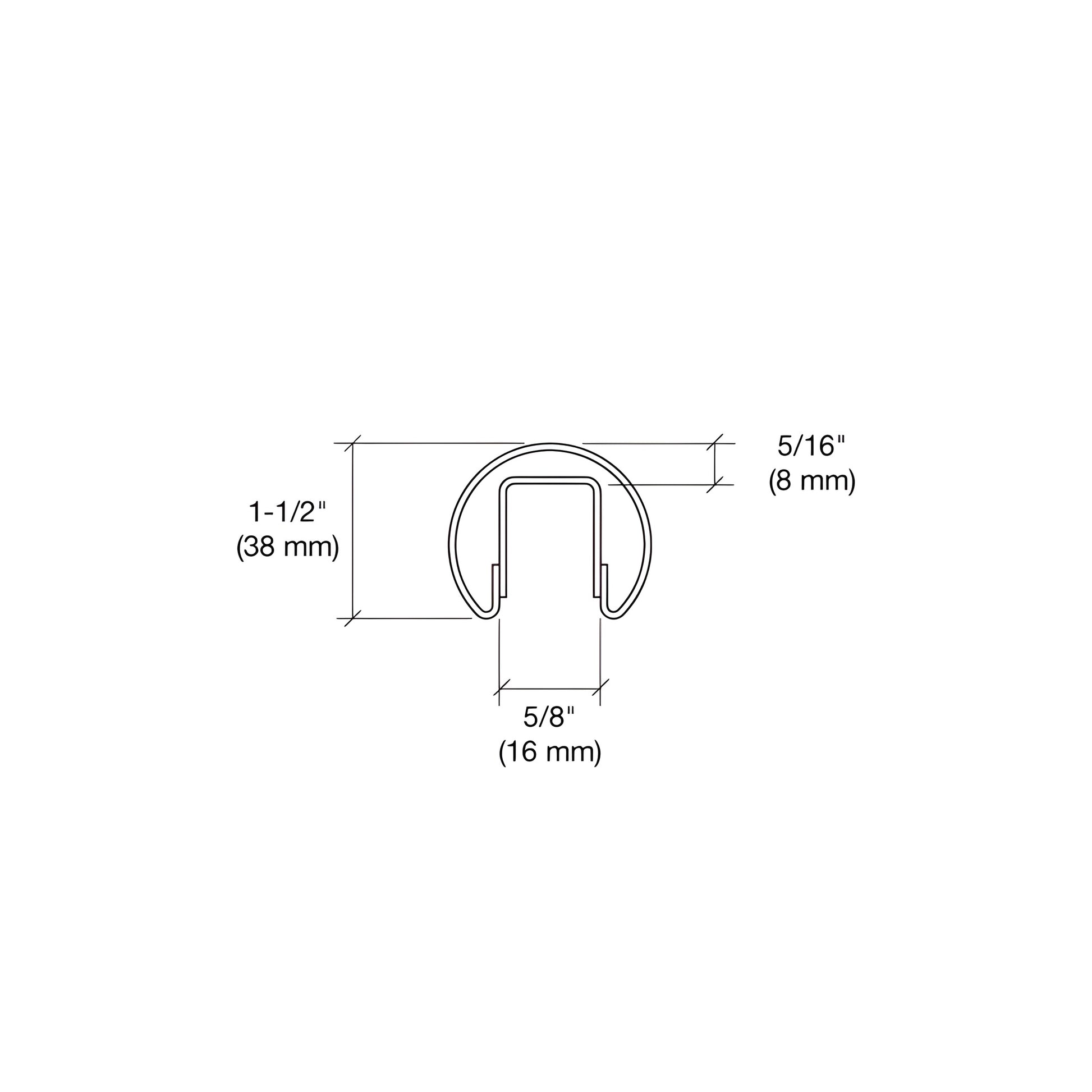

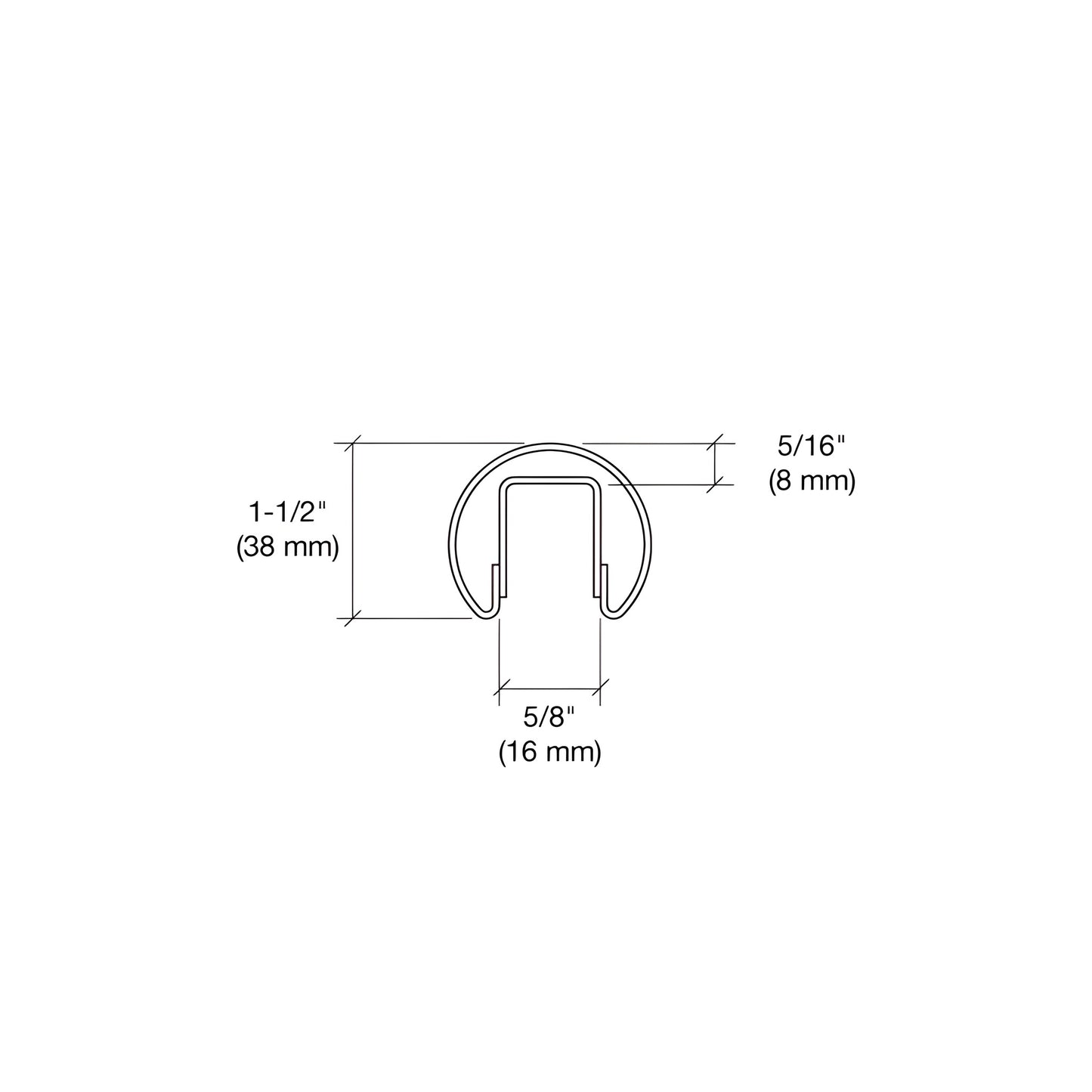

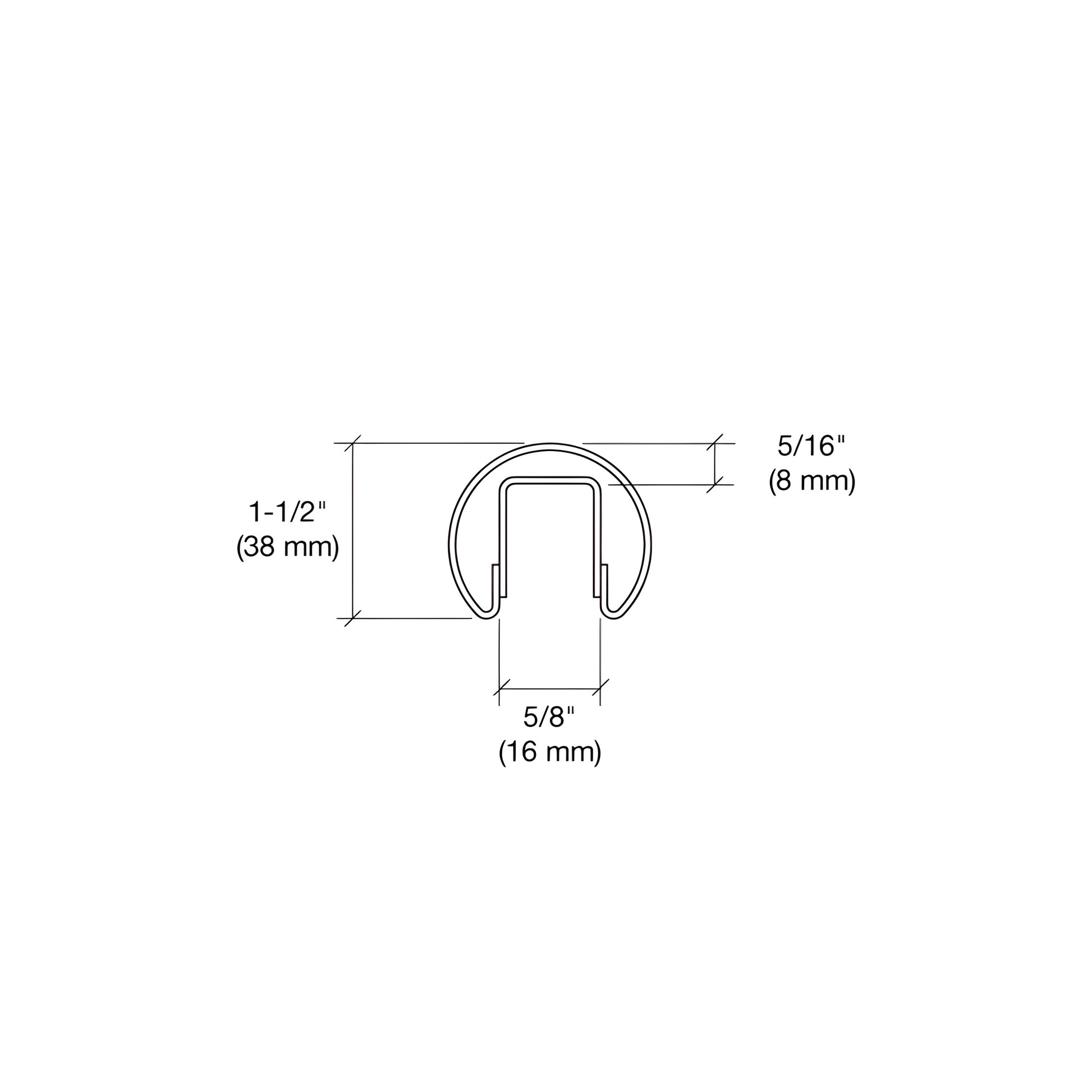

Depth 5/16 in. | (8 mm) |
Diameter | 1-1/2 in. (38 mm) |
Finish/Color | Brushed Stainless Steel |
Glazing Thickness | 1/2 in. (13 mm) |
Length 168 in. | (4267 mm) |
Material | Stainless Steel |
Profile | Round |
Thickness .05 in. | (1.27 mm) |
Overview
CRL's Premium Cap Rails stand out in the market due to their unique Bump-Forming manufacturing process, ensuring precision, consistency, and exceptional quality.
Available in 120" (3.05 m) and 168" (4.27 m) lengths with diameters ranging from 1-1/2" (38.1 mm) to 4" (101.6 mm), these cap rails come in four architectural finishes and can be cut to custom lengths.
Designed to connect seamlessly with various fabricated corners and end caps, they offer unmatched strength and stability thanks to welds on both sides of the channel.
For optimal results, using our Cat.
No.
32629 Metal Contact Cement is crucial, ensuring a secure bond at all connections.
Remember, GR5PV Cap Rail Vinyl is not compatible with GR15 Cap Rails.
Available in 120" (3.05 m) and 168" (4.27 m) lengths with diameters ranging from 1-1/2" (38.1 mm) to 4" (101.6 mm), these cap rails come in four architectural finishes and can be cut to custom lengths.
Designed to connect seamlessly with various fabricated corners and end caps, they offer unmatched strength and stability thanks to welds on both sides of the channel.
For optimal results, using our Cat.
No.
32629 Metal Contact Cement is crucial, ensuring a secure bond at all connections.
Remember, GR5PV Cap Rail Vinyl is not compatible with GR15 Cap Rails.
Specifications
CAD Drawings - pdf
CAD Drawings - dwg
Cleaning & Maintenance
Engineering & Test Reports
