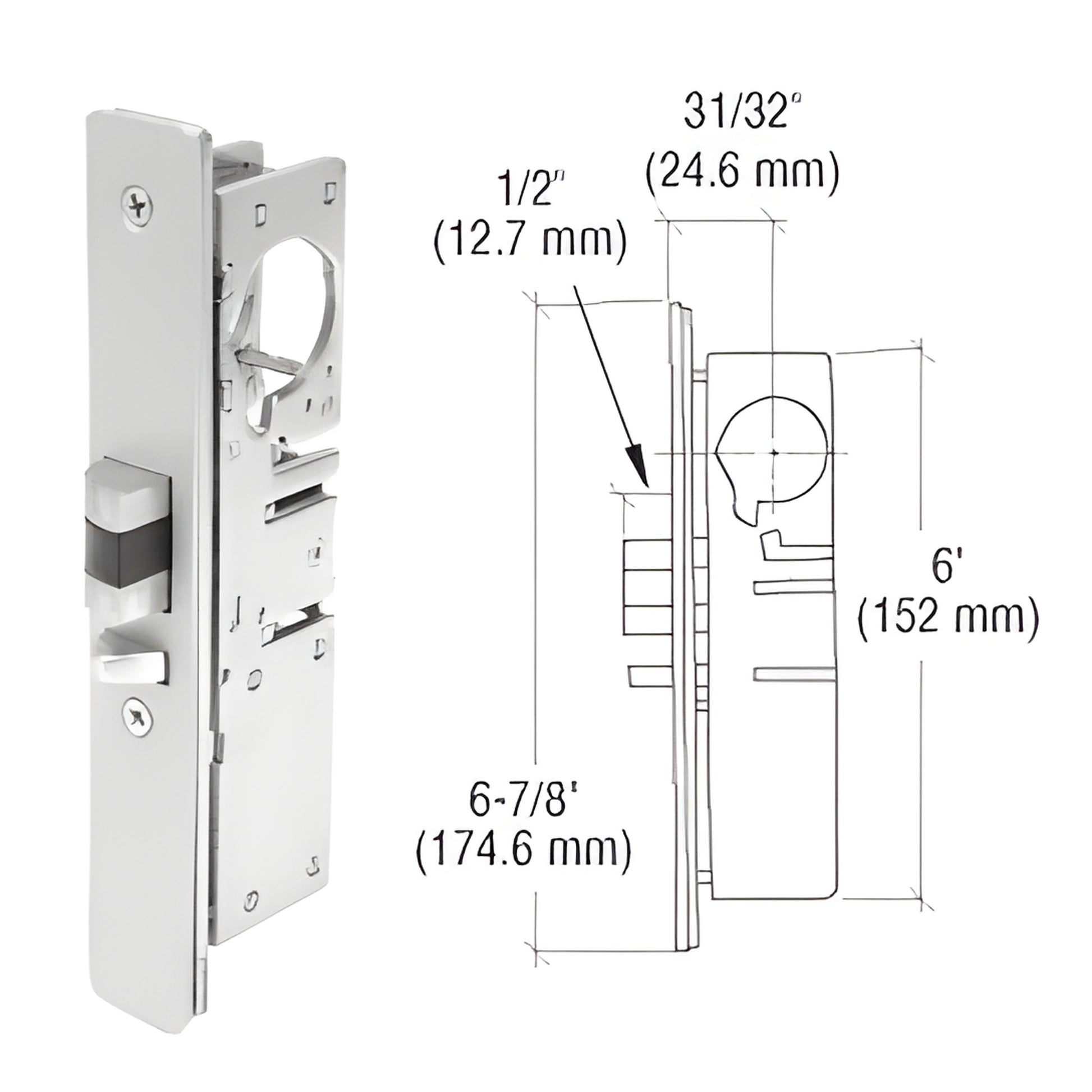

• DL2140ALH narrow-stile aluminum deadlock, steel internals, 1/2" throw, selectable 31/32" or 1-1/8" backset, photo+diagram.
1 1

CRL

CRL Left-Hand Narrow Stile Deadlatch Door Lock 31/32" Backset

CRL Left-Hand Narrow Stile Deadlatch Door Lock 31/32" Backset

$18.74 CAD
$18.74 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# DL2140ALH
Shipping Weight: 7.68 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Cylinder Backset
31/32 in. (25 mm)
Finish/Color
Aluminum
Handing
Left Hand
Material
Steel
Throw Latch
1/2 in. (13 mm)

Overview

  • 1/2" (13 mm) throw dead latch
  • Cylinder backsets: 31/32" or 1-1/8" (25 or 29 mm)
  • Field reversible for opposite hand
  • Key-controlled dogging
  • Accepts standard 1-5/32" (29 mm) diameter mortise key or thumbturn cylinders with AR MS-type cam
  • Faceplate and strike optional (sold separately)

CRL Narrow Stile Aluminum Door Deadlock (SKU DL2140ALH) — compact deadlock engineered for narrow-backset aluminum doors. Features a hardened-steel 1/2" (13 mm) throw dead latch, selectable 31/32" or 1-1/8" backsets, field-reversible handing, and key-controlled dogging for secure, flexible operation. Ideal for storefronts, glass doors, and narrow stile aluminum frames where a low-profile, heavy-duty deadlock is required.


NOTE: Faceplates and strikes are sold separately. Compatible strikes: Cat. Nos. DL4515, DL4540, or DL4545.

Most shipping weights are approximate and have not been verified. If exact weight or shipping costs are required to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and monitor settings.


Order DL2140ALH now for a narrow-stile deadlock solution—contact CRL Customer Service to confirm compatibility and shipping details.
