CRL
CRL 316 Brushed Stainless 1-1/2 in Roll Form Cap Rail 19 ft 8 in
CRL 316 Brushed Stainless 1-1/2 in Roll Form Cap Rail 19 ft 8 in
Regular price
$639.74 CAD
Regular price
Sale price
$639.74 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# GRRF15BS
Shipping Weight: 24.69 Pounds
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 24.69 Pounds
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov

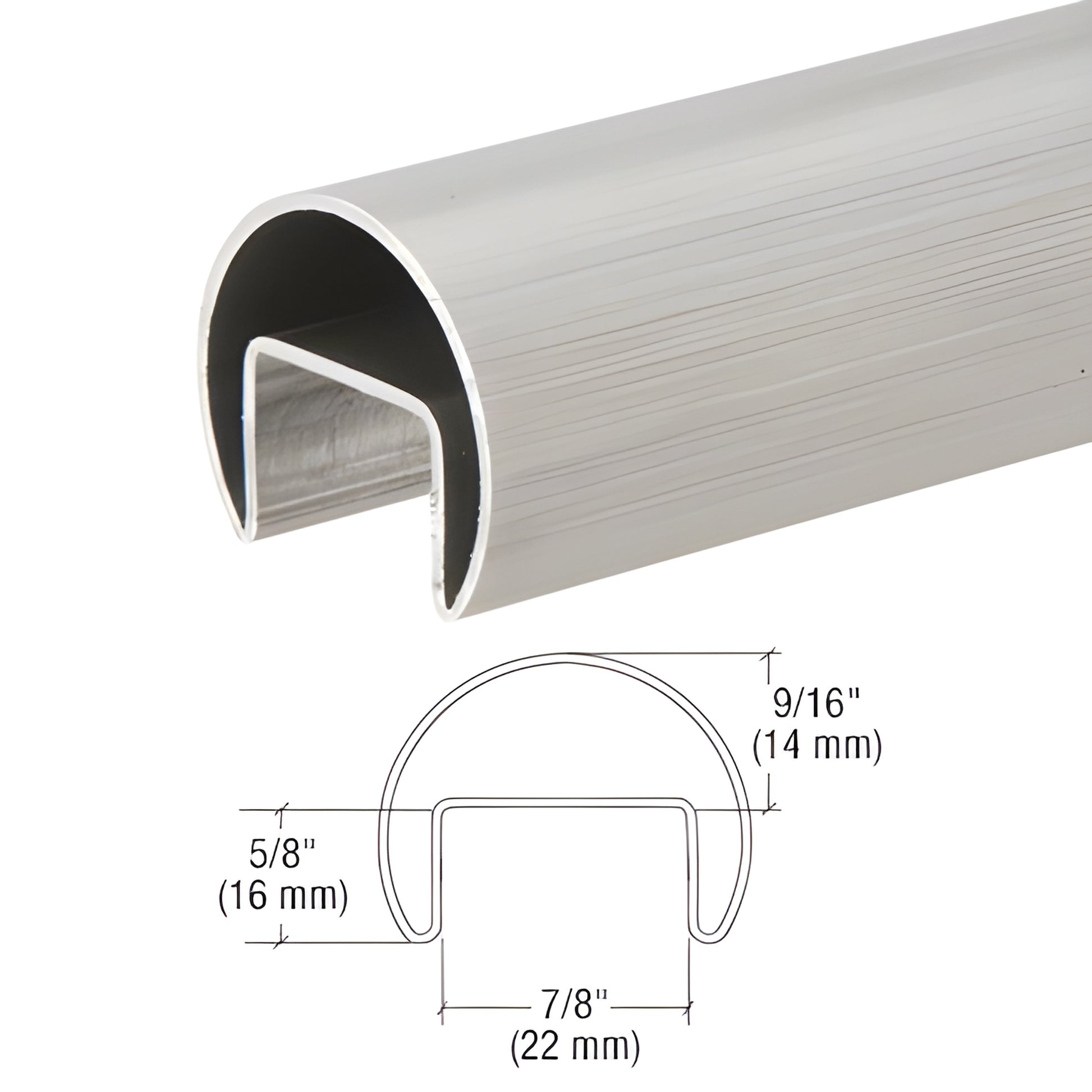

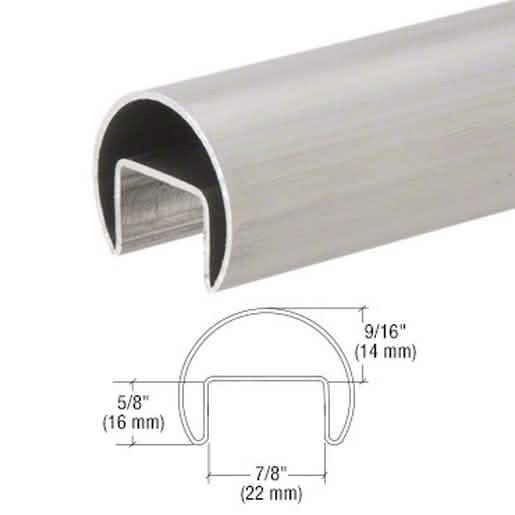

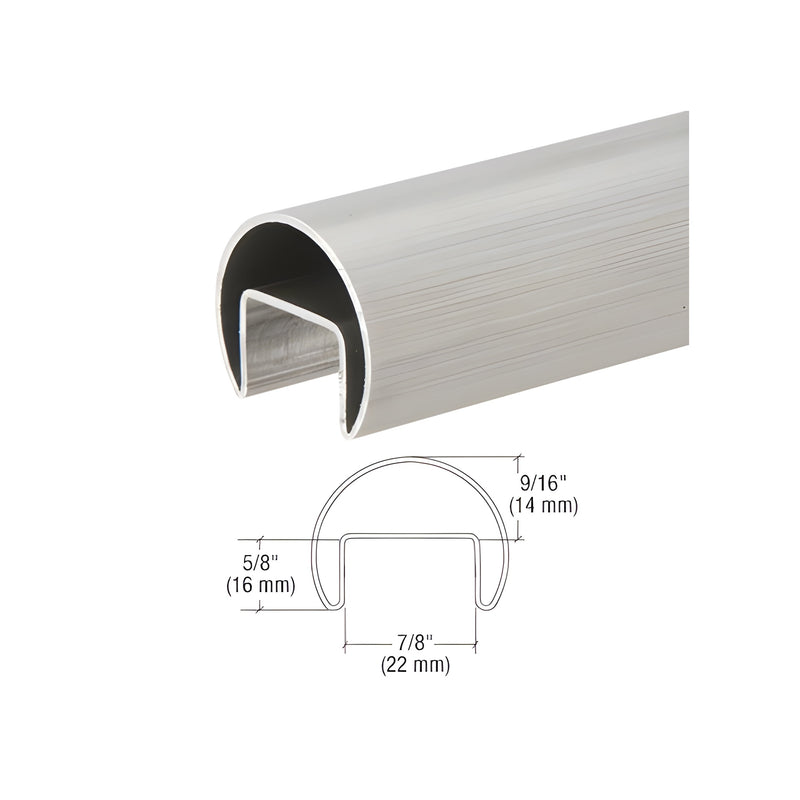

Description
Depth
9/16 in. (14 mm)
Diameter
1-1/2 in. (38 mm)
Finish/Color
Brushed Stainless Steel
Glazing Thickness
1/2 in. To 11/16 in. (12 mm To 17.52 mm)
Length
236 in. (5994 mm)
Material
316 Stainless Steel
Thickness
.05 in. (1.27 mm)
Overview
- Fits 1/2" to 27/32" (12 to 21.52 mm) glass
- Available in two architectural finishes
- Cut-to-size and custom fabricated lengths available
- Connects to fabricated corners and end caps; roll form corners and connector sleeves available
- High-grade 316 stainless steel alloy standard; custom finishes available on special order
CRL Roll Formed Cap Rails (SKU: GRRF15BS) provide a cost-effective roll-formed 1-1/2" (38 mm) diameter cap rail solution for glass railing systems — retaining a streamlined look and reliable performance while reducing cost compared with premium cap rails. Engineered for glass railing installations, these cap rails are compatible with 1/2" (12 mm) and 5/8" (16 mm) tempered monolithic glass and 13.52 mm laminated tempered glass.
Product Warning:
For use with roll form cap rails components and accessories only.
Stainless Steel Advisory:
Although stainless steel is corrosion resistant, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. For more information, view the Stainless Steel Disclaimer in the Technical References section below.
Ideal for contractors and architects specifying glass railing cap rails, GRRF15BS offers durable 316 stainless construction, two architectural finishes, and custom sizing — contact CRL to order or request a quote.
Specifications
CAD Drawings - pdf
