CRL 316 Polished Stainless Steel 1-1/2" Roll-Form Cap Rail 19'8"
CRL 316 Polished Stainless Steel 1-1/2" Roll-Form Cap Rail 19'8"
Regular price
$733.75 CAD
Regular price
Sale price
$733.75 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# GRRF15PS
Shipping Weight: 24.69 Pounds
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 24.69 Pounds
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description

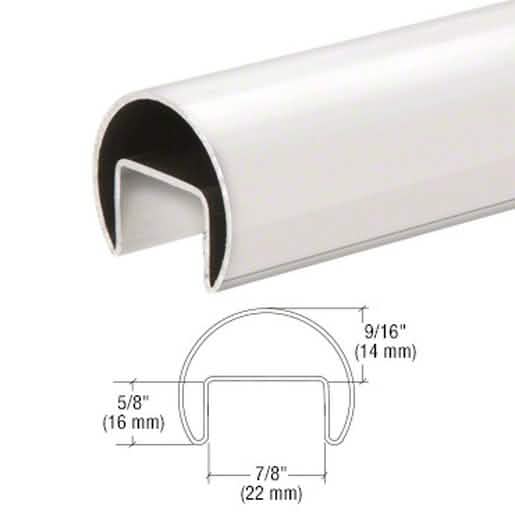

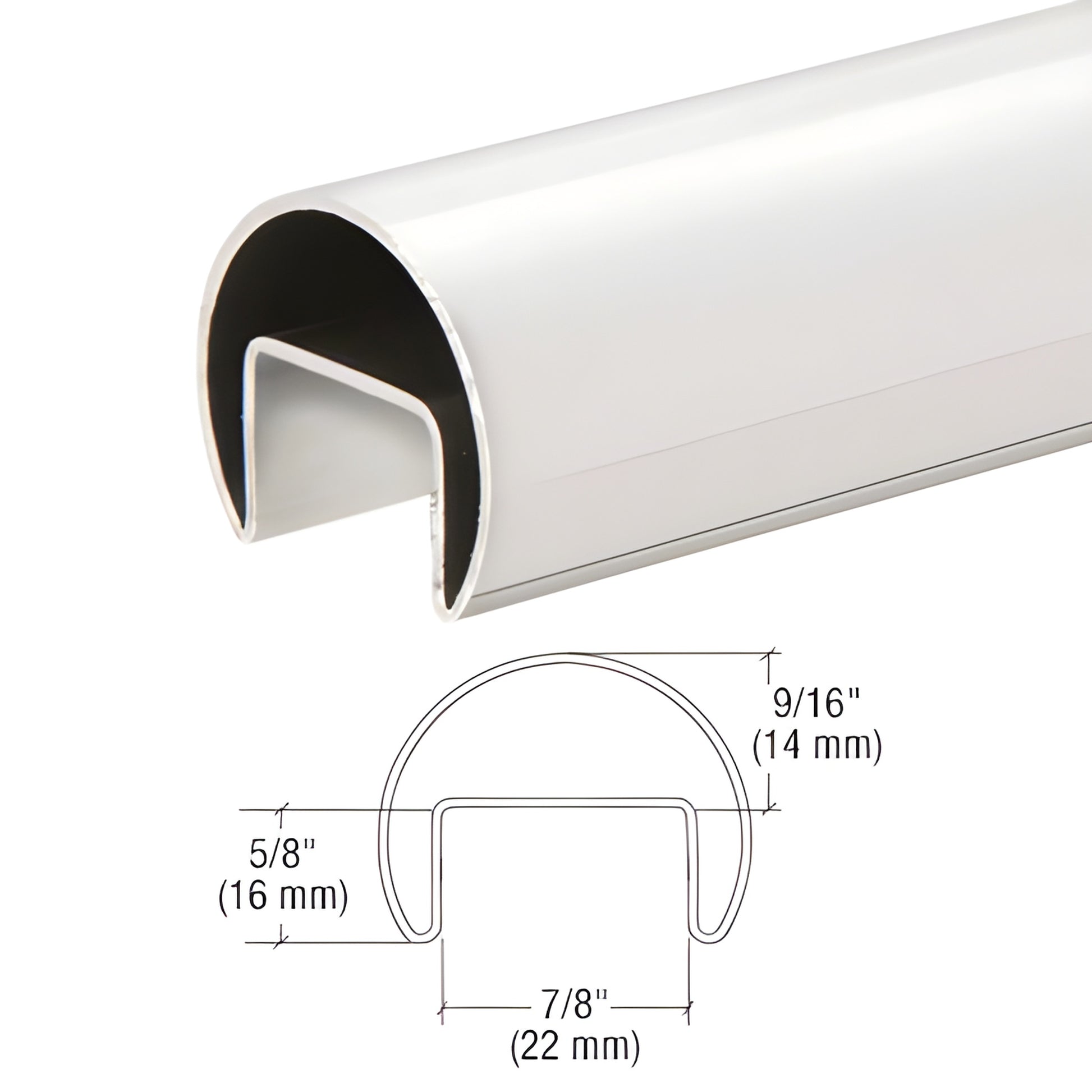

Depth
9/16 in. (14 mm)
Diameter
1-1/2 in. (38 mm)
Finish/Color
Polished Stainless Steel
Glazing Thickness
1/2 in. To 11/16 in. (12 mm To 17.52 mm)
Length
236 in. (5994 mm)
Material
316 Stainless Steel
Thickness
.05 in. (1.27 mm)
Overview
- For 1/2" to 27/32" (12 to 21.52 mm) glass
- Available in two architectural finishes
- Cut-to-size and custom fabricated lengths available
- Connects to fabricated corners and end caps; roll form corners, connector sleeves, and end caps available
- High-grade 316 stainless steel alloy standard; custom finishes available on special order
CRL Roll Formed Cap Rails (SKU: GRRF15PS) provide a cost-effective alternative to our premium cap rails while retaining the aesthetic and structural performance required for glass railing systems. These roll formed cap rails are optimized for glass railing installations and are available in a 1-1/2" (38 mm) diameter for use with 1/2" (12 mm) and 5/8" (16 mm) tempered monolithic glass and 13.52 mm laminated tempered glass. Constructed from high-grade 316 stainless steel, they resist corrosion in demanding architectural and coastal environments.
Product Warning:
For use with Roll Form Cap Rail components and accessories only.
Stainless Steel Advisory:
Although stainless steel is corrosion resistant, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References section for full guidance.
Highlight: durable 316 stainless steel roll formed cap rail for glass railing applications—customizable, cost-effective, and available cut-to-size. Contact CRL Customer Service to order SKU GRRF15PS or to request exact shipping weight and custom finishes.
Specifications
CAD Drawings - pdf
