36 in CRL P1 316 Brushed Stainless Steel End Post Railing Kit
36 in CRL P1 316 Brushed Stainless Steel End Post Railing Kit
Regular price
$991.64 CAD
Regular price
Sale price
$991.64 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# P136EBS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Base Plate Cover Included
Yes
Base Plate Length
5 in. (127 mm)
Base Plate Mounting Holes
4
Base Plate Thickness
3/8 in. (10 mm)
Finish/Color
Brushed Stainless Steel
Material
316 Stainless Steel
Mounting Hole Diameter
9/16 in. (14 mm)
Overview
- For use with 1/2" (12 mm) to 1" (25 mm) thick panels
- Glass attachment fittings sold separately
- Meets or exceeds guardrail and handrail code standards
- Top saddle supports 1-1/4" (31.8 mm) or 1-1/2" (38.1 mm) diameter Schedule 40 handrail tubing
- Standard post heights: 36" (914 mm) and 42" (1.07 m); custom heights available
- Two standard stainless finishes; custom powder coat finishes also available

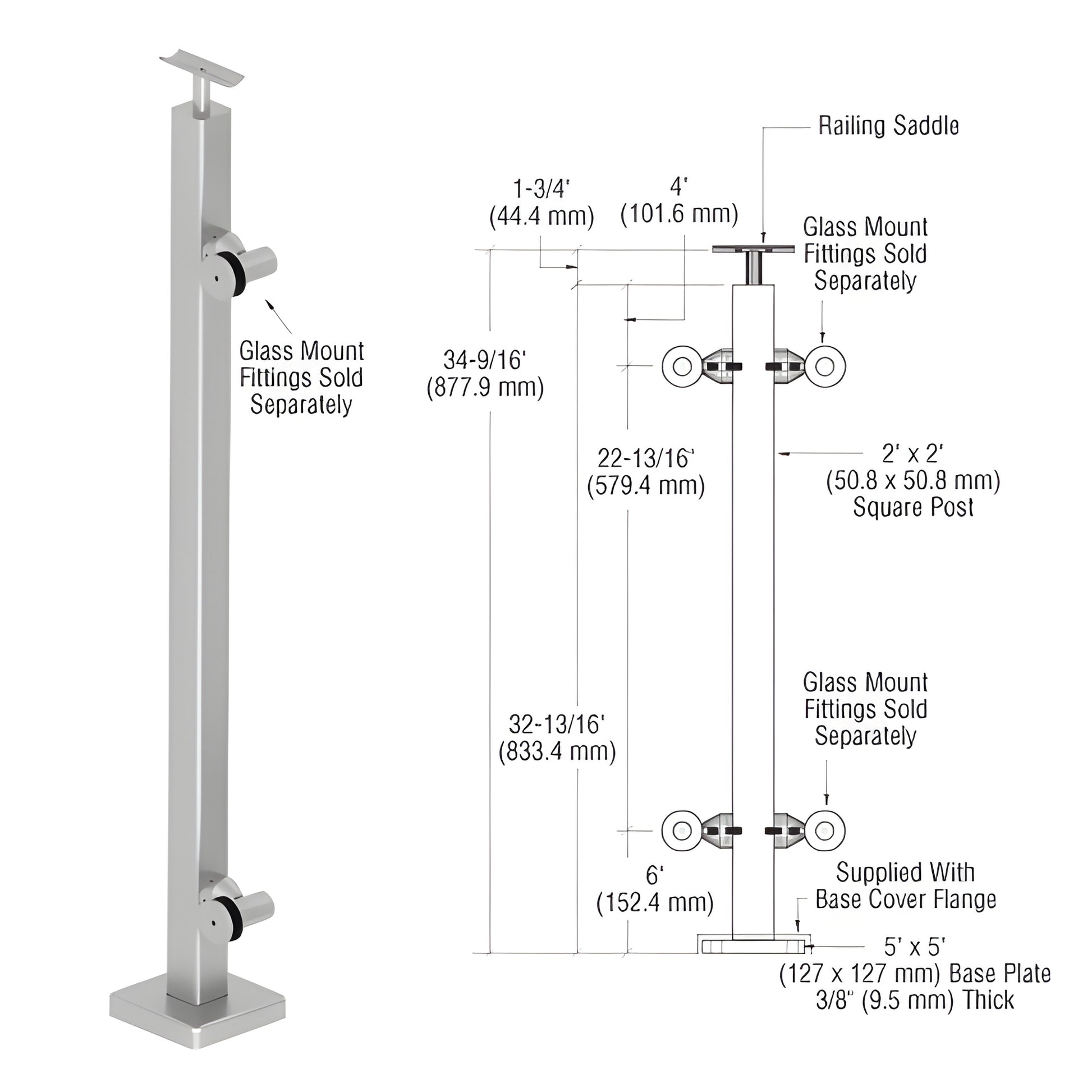

CRL P1 Post Railing Kits (SKU P136EBS) are engineered for commercial and residential surface-mounted railing installations. These P1 Surface Mounted Post Railing Kits are manufactured from 2" (51 mm) square 316 alloy stainless steel tubing with 3/16" (4.8 mm) wall thickness for long-lasting corrosion resistance in architectural glass railing systems. Kits include a 5" x 5" (127 x 127 mm) base plate, base cover flange, and welded top saddle. For top rail attachment specify Cat. No. PRS1032 (10-32 x 5/8" stainless steel screws, 50 per pack). These kits are ideal for glass panel railing, stainless steel post glass rail, and code-compliant guardrail applications.
Product Warning:
All P-Series post kits are sold without glass attachment fittings; glass fittings must be purchased separately.
Stainless Steel Advisory:
Although stainless steel is highly corrosion resistant, it is not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References section for maintenance guidance.
Need assistance or a custom configuration for your glass railing project? Contact CRL Customer Service to discuss SKU P136EBS and place your order.
