CRL 316 Polished Stainless 36" P1 Series End Post Railing Kit
CRL 316 Polished Stainless 36" P1 Series End Post Railing Kit
Regular price
$1,245.98 CAD
Regular price
Sale price
$1,245.98 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# P136EPS
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1

Description
Base | Plate Cover Included Yes |
Base Plate Length 5 in. | (127 mm) |
Base Plate Mounting Holes | 4 |
Base Plate Thickness 3/8 in. | (10 mm) |
Finish/Color | Polished Stainless Steel |
Material | 316 Stainless Steel |
Mounting Hole Diameter 9/16 in. | (14 mm) |
Overview

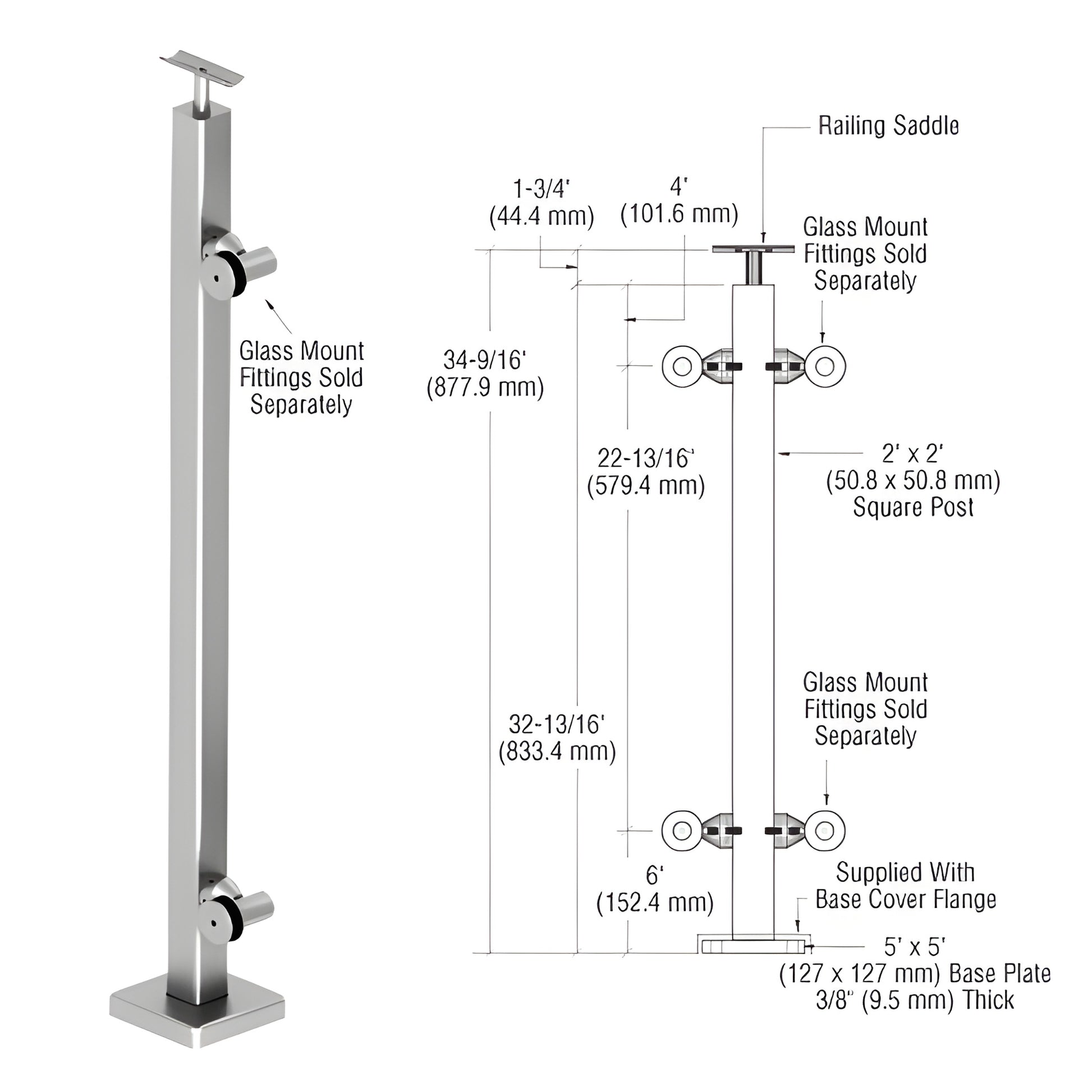

CRL P1 Post Railing Kits are ideal for commercial and residential installations, designed to accommodate panels from 1/2" (12 mm) to 1" (25 mm) thick.
These kits meet or exceed guard rail and handrail code standards, featuring 2" (51 mm) square 316 Alloy Stainless Steel Tubing with a 3/16" (4.8 mm) wall thickness.
The standard post heights are 36" (914 mm) and 42" (1.07 m), with custom heights available, and they come with a 5" x 5" (127 x 127 mm) Base Plate, Base Cover Flange, and Welded Top Saddle.
Please note that glass attachment fittings are sold separately, and for attaching the Top Rail to the Saddle, use Cat.
No.
PRS1032 stainless steel screws, which are available in packs of 50.
These kits meet or exceed guard rail and handrail code standards, featuring 2" (51 mm) square 316 Alloy Stainless Steel Tubing with a 3/16" (4.8 mm) wall thickness.
The standard post heights are 36" (914 mm) and 42" (1.07 m), with custom heights available, and they come with a 5" x 5" (127 x 127 mm) Base Plate, Base Cover Flange, and Welded Top Saddle.
Please note that glass attachment fittings are sold separately, and for attaching the Top Rail to the Saddle, use Cat.
No.
PRS1032 stainless steel screws, which are available in packs of 50.
Specifications
Installation Instructions
Quote Request Forms
Specifications
CAD Drawings - pdf
CAD Drawings - dwg
Cleaning & Maintenance
Engineering & Test Reports
