CRL 316 Brushed Stainless 42" P1 Series 90 Degree Corner Post Railing Kit
CRL 316 Brushed Stainless 42" P1 Series 90 Degree Corner Post Railing Kit
Regular price
$570.17 CAD
Regular price
Sale price
$570.17 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# P142LBS
Shipping Weight: 16.5 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 16.5 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1

Description
Base | Plate Cover Included Yes |
Base Plate Length 5 in. | (127 mm) |
Base Plate Mounting Holes | 4 |
Base Plate Thickness 3/8 in. | (10 mm) |
Finish/Color | Brushed Stainless Steel |
Material | 316 Stainless Steel |
Mounting Hole Diameter 9/16 in. | (14 mm) |
Overview
The CRL P1 Post Railing Kits provide a robust solution for both commercial and residential settings, supporting 1/2" (12 mm) to 1" (25 mm) thick panels and exceeding guard rail and hand rail code standards.

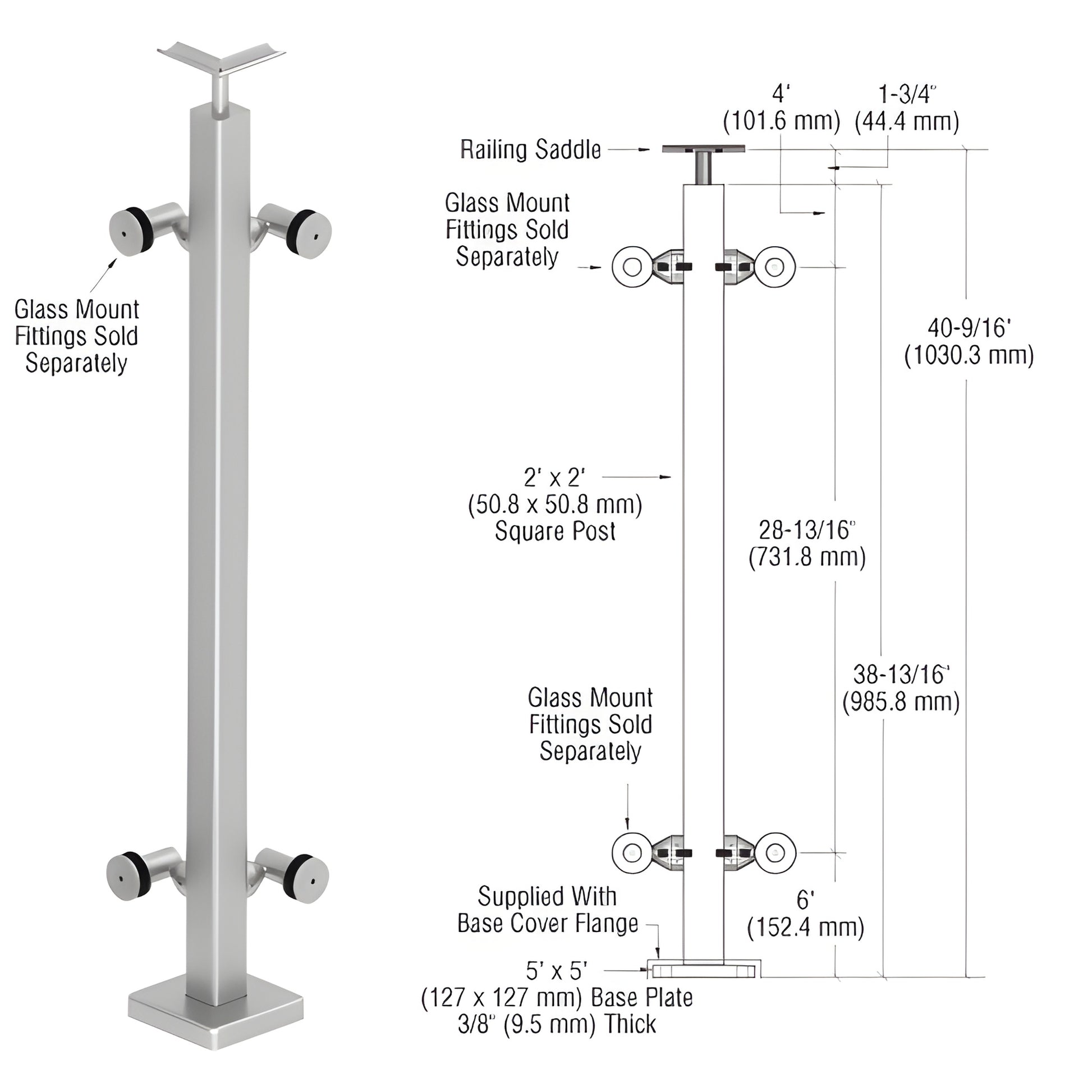

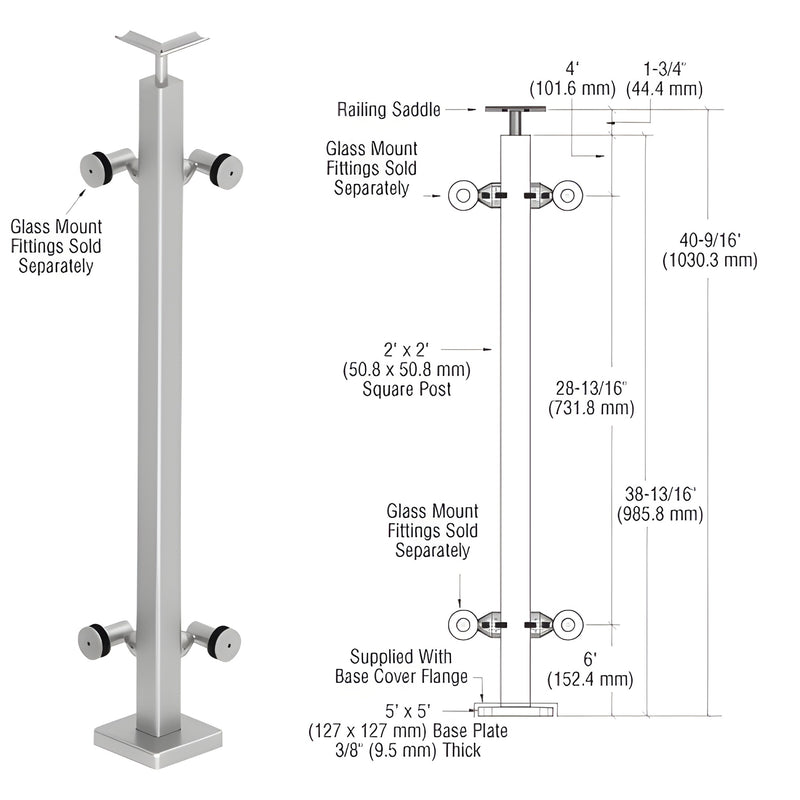

Made from durable 2" (51 mm) square 316 Alloy Stainless Steel Tubing with a 3/16" (4.8 mm) wall thickness, these kits include a 5" x 5" (127 x 127 mm) Base Plate, Base Flange Cover, and Welded Top Saddle, making installation seamless.
Available in two standard stainless finishes and customizable powder paint finishes, the kits offer versatility with standard post heights of 36" (914 mm) and 42" (1.07 m), plus custom heights upon request.
Please note that glass attachment fittings are sold separately, and it's important to regularly maintain the stainless steel to preserve its finish.
For more details, consult the Stainless Steel Disclaimer in the Technical References section.
Made from durable 2" (51 mm) square 316 Alloy Stainless Steel Tubing with a 3/16" (4.8 mm) wall thickness, these kits include a 5" x 5" (127 x 127 mm) Base Plate, Base Flange Cover, and Welded Top Saddle, making installation seamless.
Available in two standard stainless finishes and customizable powder paint finishes, the kits offer versatility with standard post heights of 36" (914 mm) and 42" (1.07 m), plus custom heights upon request.
Please note that glass attachment fittings are sold separately, and it's important to regularly maintain the stainless steel to preserve its finish.
For more details, consult the Stainless Steel Disclaimer in the Technical References section.
Specifications
Installation Instructions
Quote Request Forms
Specifications
CAD Drawings - pdf
CAD Drawings - dwg
Cleaning & Maintenance
Engineering & Test Reports
