CRL 316 Polished Stainless 42" P1 Series 90 Degree Corner Post Railing Kit
CRL 316 Polished Stainless 42" P1 Series 90 Degree Corner Post Railing Kit
Regular price
$768.56 CAD
Regular price
Sale price
$768.56 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# P142LPS
Shipping Weight: 16.975 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 16.975 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1

Description
Base | Plate Cover Included Yes |
Base Plate Length 5 in. | (127 mm) |
Base Plate Mounting Holes | 4 |
Base Plate Thickness 3/8 in. | (10 mm) |
Finish/Color | Polished Stainless Steel |
Material | 316 Stainless Steel |
Mounting Hole Diameter 9/16 in. | (14 mm) |
Overview

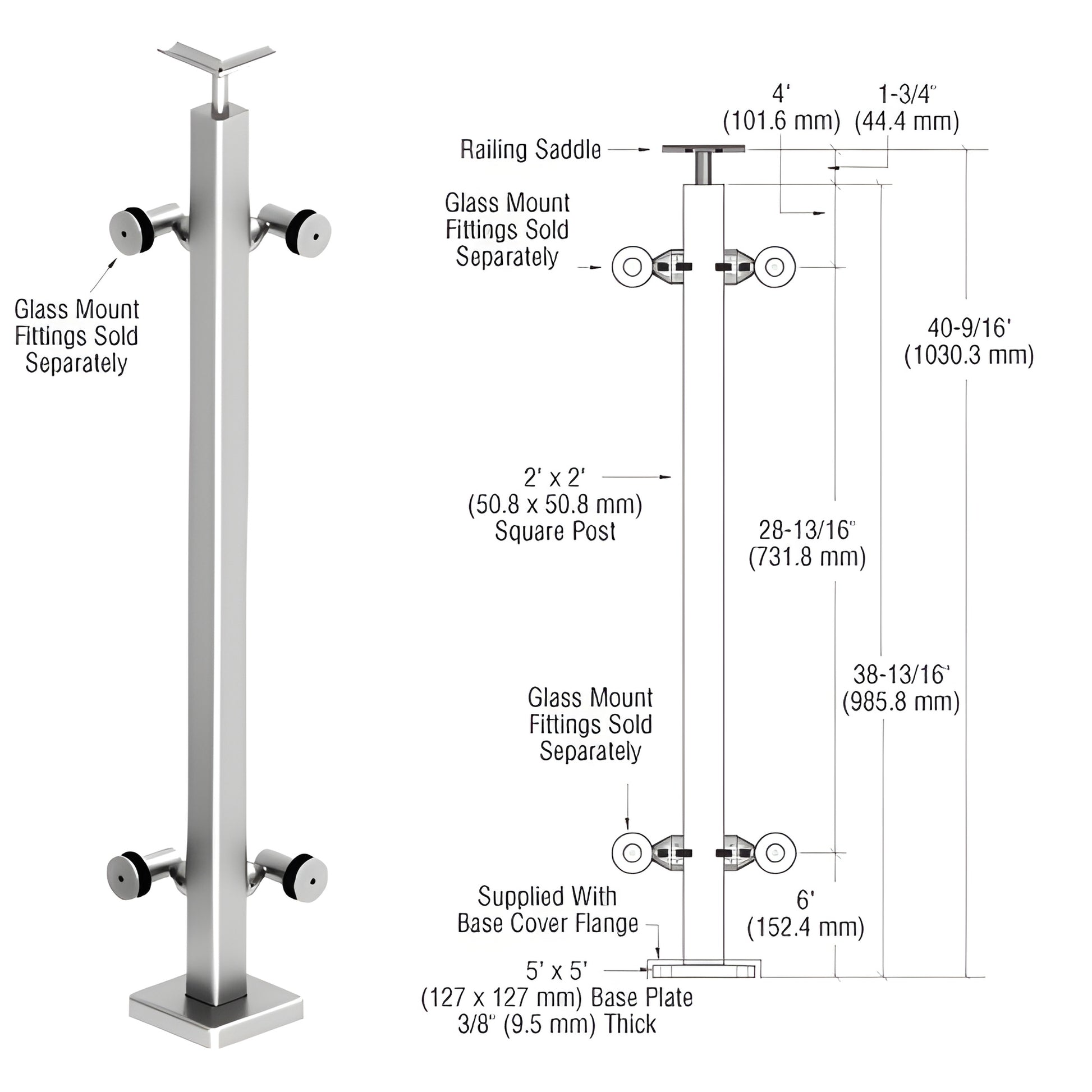

The CRL P1 Post Railing Kits are ideal for both commercial and residential installations, accommodating panel thicknesses from 1/2" (12 mm) to 1" (25 mm).
These kits meet or exceed guardrail and handrail code standards and are crafted from 2" (51 mm) square 316 Alloy Stainless Steel Tubing with 3/16" (4.8 mm) wall thickness.
With standard post heights of 36" (914 mm) and 42" (1.07 m), customizable options are available to fit any project needs.
Note that glass attachment fittings are sold separately, and two standard stainless finishes are offered along with custom powder paint finishes.
For more details on stainless steel maintenance, please refer to the Technical References section.
These kits meet or exceed guardrail and handrail code standards and are crafted from 2" (51 mm) square 316 Alloy Stainless Steel Tubing with 3/16" (4.8 mm) wall thickness.
With standard post heights of 36" (914 mm) and 42" (1.07 m), customizable options are available to fit any project needs.
Note that glass attachment fittings are sold separately, and two standard stainless finishes are offered along with custom powder paint finishes.
For more details on stainless steel maintenance, please refer to the Technical References section.
Specifications
Installation Instructions
Quote Request Forms
Specifications
CAD Drawings - pdf
CAD Drawings - dwg
Cleaning & Maintenance
Engineering & Test Reports
