CRL
CRL P1 Series 316 Stainless Steel 42 in Brushed End Post Railing Kit
CRL P1 Series 316 Stainless Steel 42 in Brushed End Post Railing Kit
Regular price
$539.95 CAD
Regular price
Sale price
$539.95 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# P142EBS
Shipping Weight: 16.5 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 16.5 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Base Plate Cover Included
Yes
Base Plate Length
5 in. (127 mm)
Base Plate Mounting Holes
4
Base Plate Thickness
3/8 in. (10 mm)
Finish/Color
Brushed Stainless Steel
Material
316 Stainless Steel
Mounting Hole Diameter
9/16 in. (14 mm)
Overview
- For use with 1/2" (12 mm) to 1" (25 mm) thick panels
- Glass attachment fittings sold separately
- Meets or exceeds guardrail and handrail code standards
- Top saddle supports 1-1/4" (31.8 mm) or 1-1/2" (38.1 mm) diameter Schedule 40 handrail tubing
- Standard post heights: 36" (914 mm) and 42" (1.07 m); custom heights available
- Two standard stainless finishes; custom powder coat finishes available

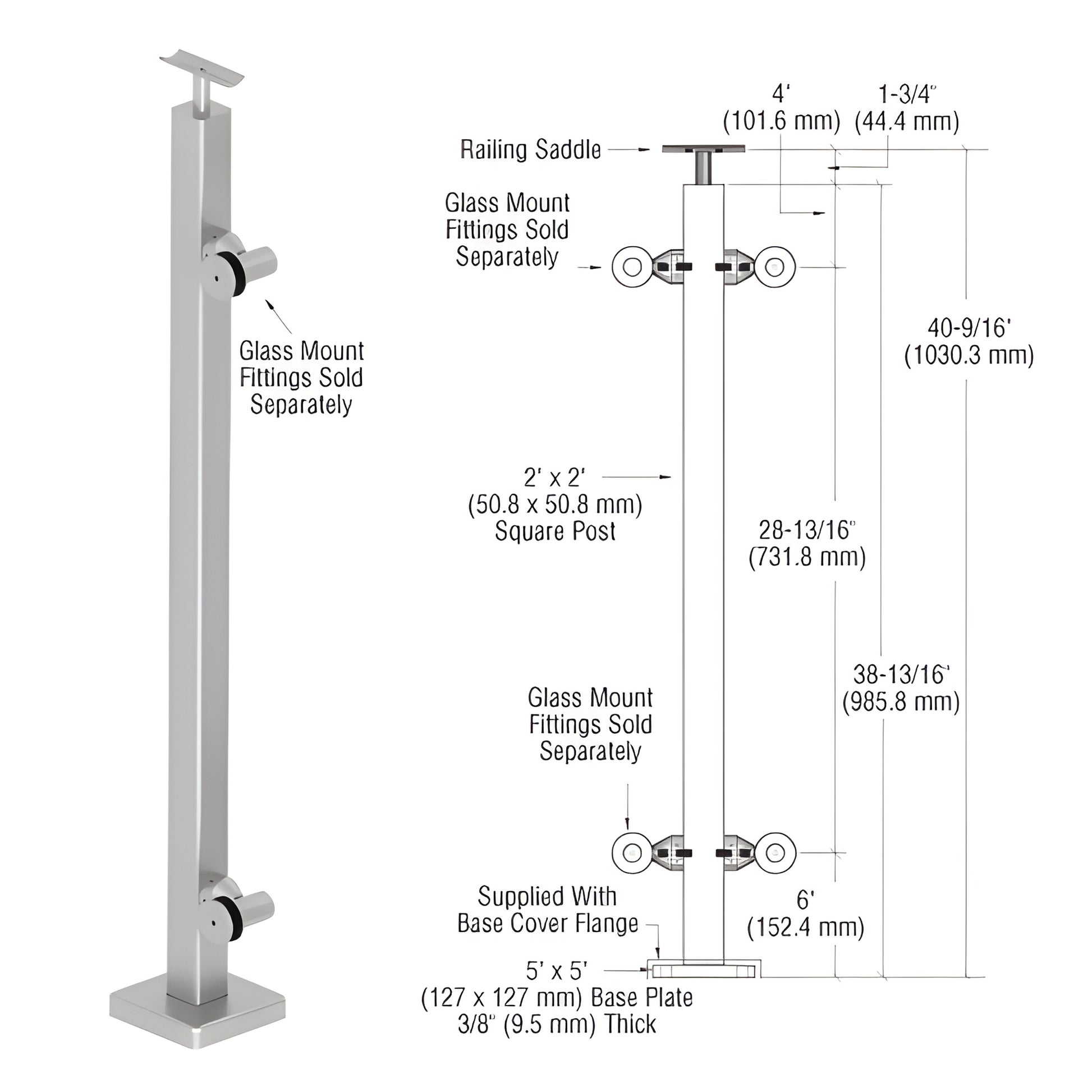

CRL P1 Post Railing Kits (SKU P142EBS) are surface mounted post railing kits designed for commercial and residential guard rail and hand rail applications. Constructed from 2" (51 mm) square 316 alloy stainless steel tubing with a 3/16" (4.8 mm) wall thickness, these durable stainless steel posts resist corrosion while providing structural strength for glass and panel balustrades. Each kit includes a 5" x 5" (127 x 127 mm) base plate, base flange cover, and welded top saddle — ideal for frameless glass railing systems and panel-mounted balustrades. For top rail attachment, specify Cat. No. PRS1032 (10-32" x 5/8" stainless steel screws, 50 per pack).
Product Warning:
All P-Series post kits are sold without glass attachment fittings; glass fittings must be purchased separately.
Stainless Steel Advisory:
Although stainless steel is corrosion resistant, it is not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
For pricing, customization, or to order SKU P142EBS, contact CRL Customer Service or place your order online today.
