CRL 316 Stainless Steel 42" Polished End Post Railing Kit
CRL 316 Stainless Steel 42" Polished End Post Railing Kit
Regular price
$594.46 CAD
Regular price
Sale price
$594.46 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# P142EPS
Shipping Weight: 17.16 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 17.16 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Base Plate Cover Included
Yes
Base Plate Length
5 in. (127 mm)
Base Plate Mounting Holes
4
Base Plate Thickness
3/8 in. (10 mm)
Finish/Color
Polished Stainless Steel
Material
316 Stainless Steel
Mounting Hole Diameter
9/16 in. (14 mm)
Overview
- For use with 1/2" (12 mm) to 1" (25 mm) thick panels
- Glass attachment fittings sold separately
- Meets or exceeds guard rail and hand rail code standards
- Top saddle supports 1-1/4" (31.8 mm) or 1-1/2" (38.1 mm) diameter Schedule 40 hand rail tubing
- Standard post heights: 36" (914 mm) and 42" (1.07 m); custom heights available
- Two standard stainless finishes; custom powder paint finishes also available

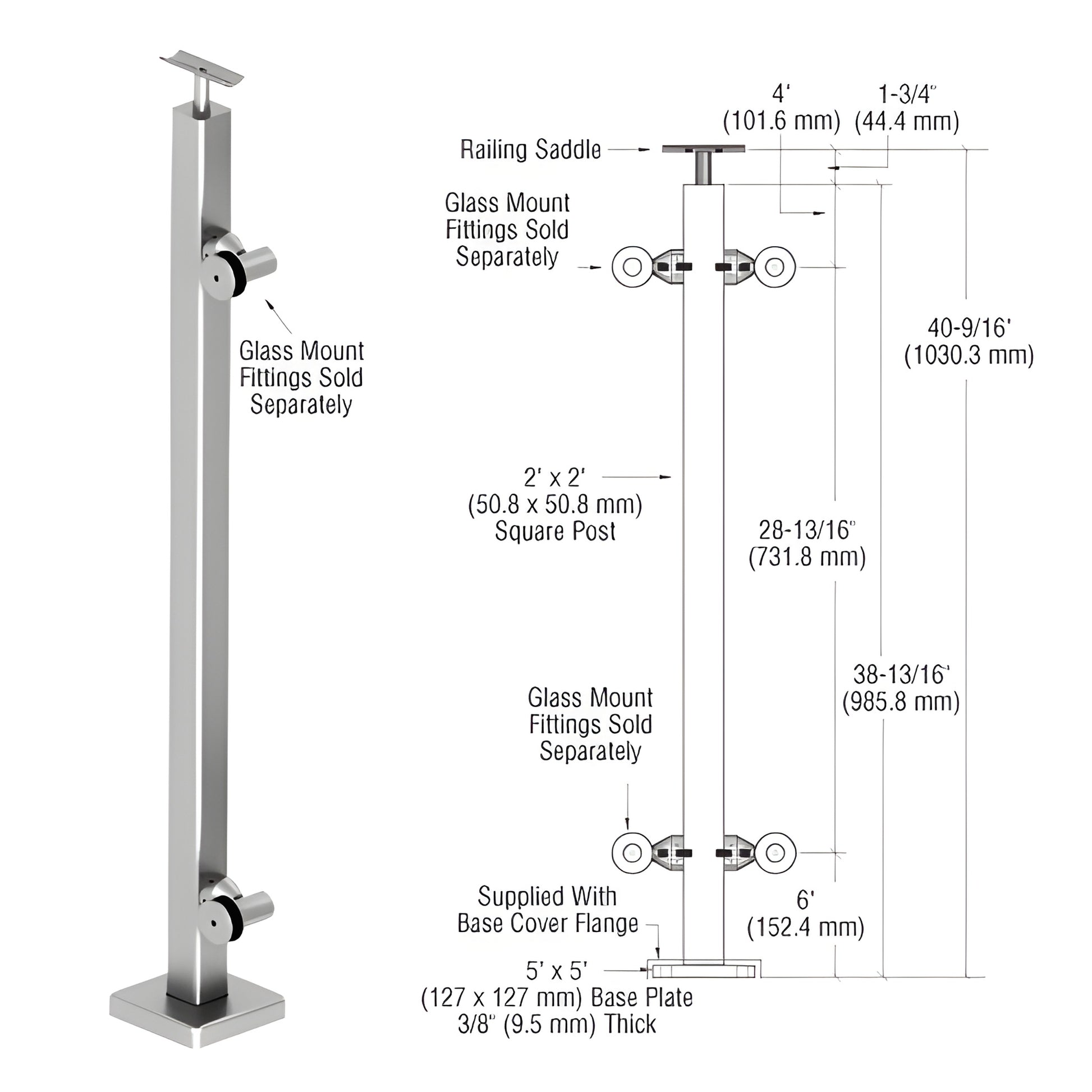

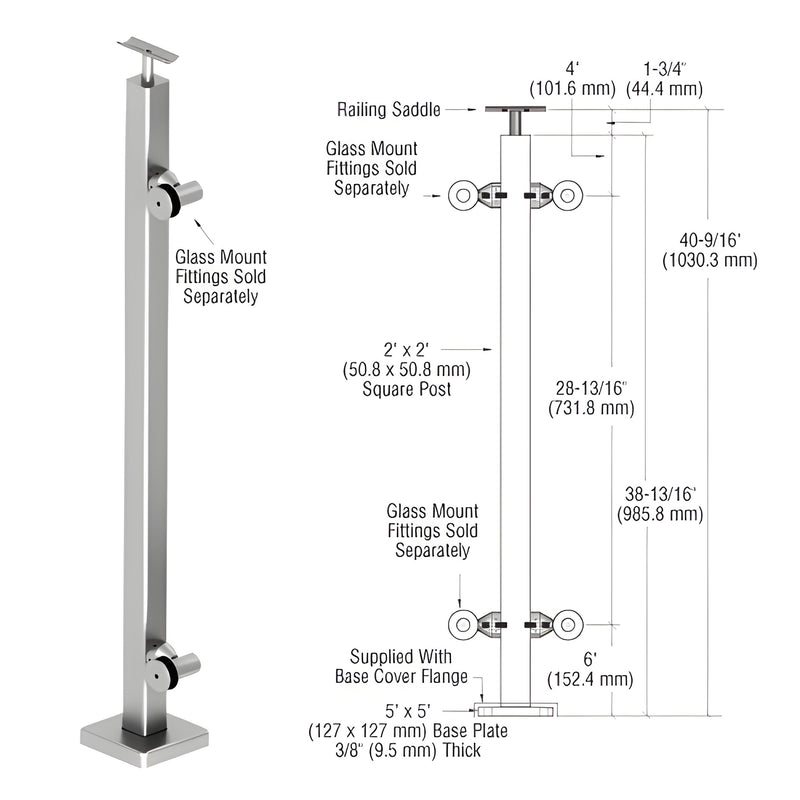

CRL P1 Post Railing Kits (SKU: P142EPS) are surface-mounted post railing kits engineered for commercial and residential guardrail and handrail applications. Constructed from 2" (51 mm) square 316 alloy stainless steel tubing with a 3/16" (4.8 mm) wall, these kits include a 5" x 5" (127 x 127 mm) base plate, base flange cover, and welded top saddle—offering a durable, code-compliant stainless steel railing solution for glass panel installations. For attaching the top rail to the saddle, specify Cat. No. PRS1032 (10-32" x 5/8" stainless screws, 50 per pack).
Product Warning:
All P-Series post kits are sold without glass attachment fittings; glass fittings must be purchased separately.
Stainless Steel Advisory:
Stainless steel is corrosion-resistant but not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Why choose P142EPS? Durable 316 stainless construction, surface-mounted installation for easy retrofit, and compatibility with 1/2"–1" glass panels make this kit ideal for code-compliant glass railing projects. Order P142EPS or contact CRL for custom heights and finishes.
