CRL 316 Brushed Stainless Steel Edge Clamp for 1/4" Glass
CRL 316 Brushed Stainless Steel Edge Clamp for 1/4" Glass
Regular price
$44.22 CAD
Regular price
Sale price
$44.22 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# EG14BS
Shipping Weight: 5.44 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 5.44 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov

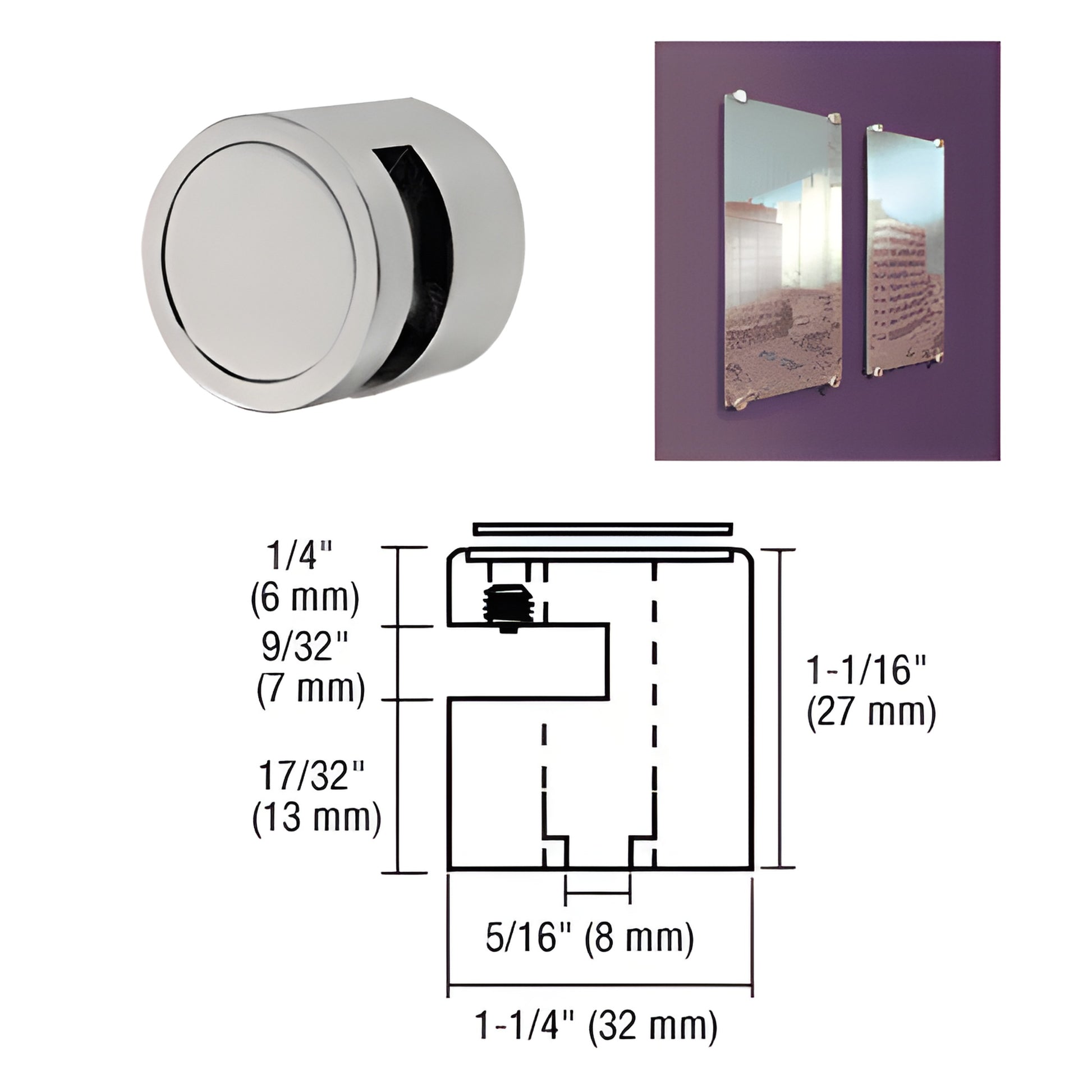

Description
Diameter
1-1/4 in. (31.8 mm)
Finish/Color
Brushed Stainless Steel
Glazing Thickness
1/4 in. (6 mm)
Height
1-1/16 in. (27 mm)
Material
316 Stainless Steel
Overview
- For 1/4" (6.3 mm) material thickness
- No drilling required in glass or panel materials
- Can be used on corners and edges of panels
- Supplied with an EGCS socket head cap screw
CRL Edge Grips (SKU: EG14BS) provide a no-drill fastening solution for attaching decorative panels, glass, or signage to walls and substrates. The EG14BS holds 1/4" (6.3 mm) material securely without penetrating the panel face, enabling quick installation, easy adjustment, and damage-free mounting. The 1-1/4" (32 mm) diameter grips are available in brass, chrome, satin chrome, 316 brushed stainless, and gun metal finishes and are compatible with CRL standoffs—ideal for interior signage, display panels, and glass cladding where a clean, modern look is required. For heavier panels, use Edge Grips at the top, bottom, and sides for maximum support.
Product Warning:
We recommend CRL Edge Grips be used at the top, bottom, and sides of heavier panels for maximum support.
Stainless Steel Advisory:
Although stainless steel is corrosion resistant, it is not rust- or stain-proof. CRL recommends periodic maintenance to help preserve the factory finish. For details, see the Stainless Steel Disclaimer in the Technical References section.
Order EG14BS Edge Grips today to mount glass panels and signage without drilling—contact CRL Customer Service for finish availability and installation guidance.
