CRL 316 Brushed Stainless Steel 1-7/8" Cap Rail 19'-8" Handrail
CRL 316 Brushed Stainless Steel 1-7/8" Cap Rail 19'-8" Handrail
Regular price
$736.35 CAD
Regular price
Sale price
$736.35 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# GRRF20BS
Shipping Weight: 33.6 Pounds
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 33.6 Pounds
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Depth
1/2 in. (13 mm)
Diameter
1-7/8 in. (48 mm)
Finish/Color
Brushed Stainless Steel
Glazing Thickness
1/2 in. To 27/32 in. (12 mm To 21 mm)
Length
236 in. (5994 mm)
Material
316 Stainless Steel
Thickness
.05 in. (1.27 mm)
Overview
- Fits 1/2" to 27/32" (12 to 21.52 mm) tempered glass
- Available in two architectural finishes
- Cut-to-size and custom fabricated lengths available
- Connects to fabricated corners and end caps
- High-grade 316 stainless steel alloy standard
- Custom finishes available on special order

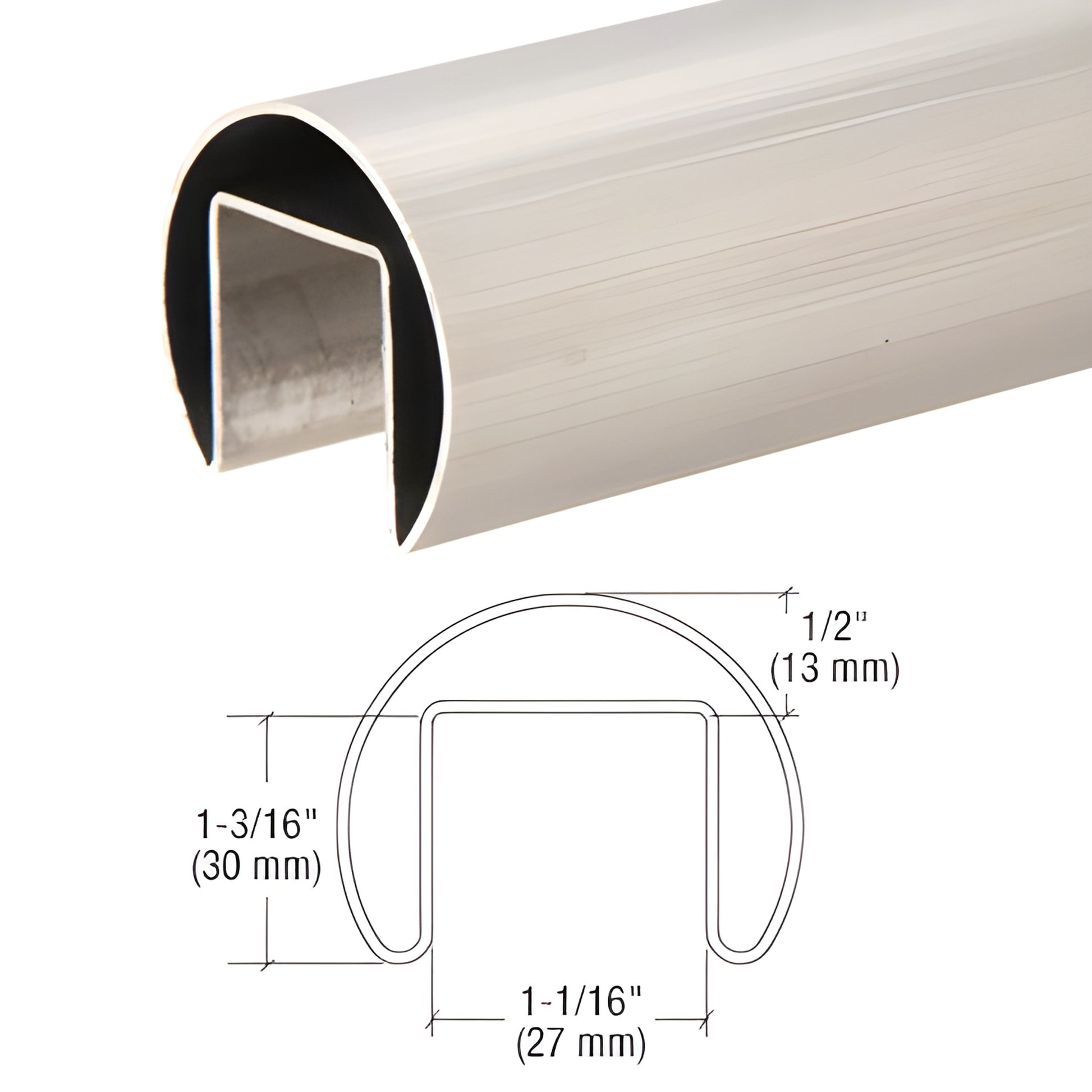

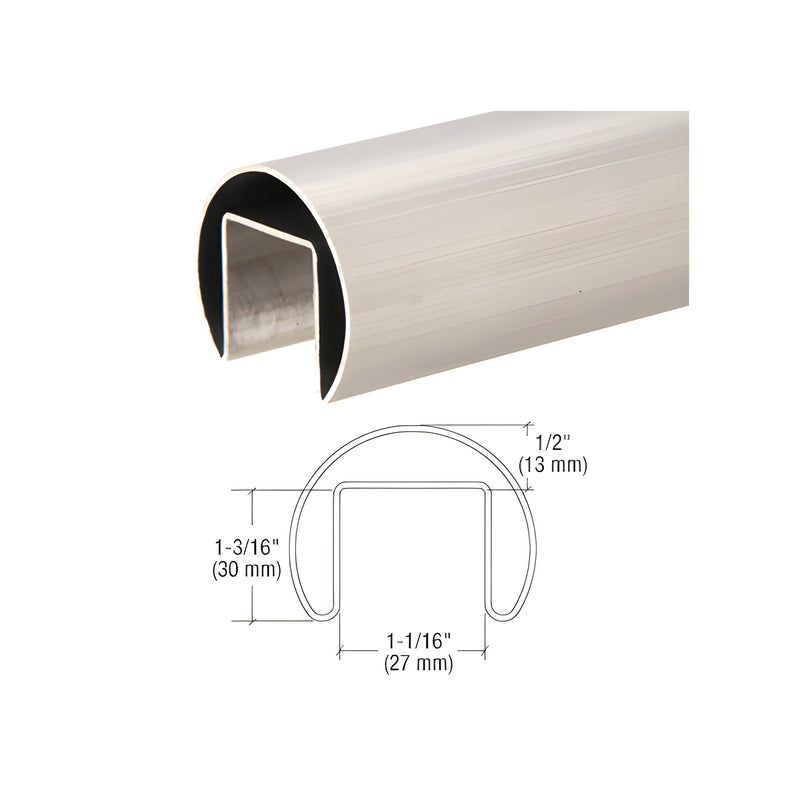

CRL Roll Formed Cap Rails (SKU: GRRF20BS) offer a cost-effective alternative to Premium Cap Rails while preserving the clean look and performance required for glass railing systems. These 1-7/8" (48.3 mm) diameter cap rails are compatible with 1/2" (12 mm) and 5/8" (16 mm) tempered monolithic glass and with 13.52 mm, 17.52 mm, and 21.52 mm tempered laminated glass. Roll formed corners, connector sleeves, and end caps are available for complete glass railing assemblies.
Product Warning:
For use with Roll Formed Cap Rails, components, and accessories only.
Stainless Steel Advisory:
Stainless steel is corrosion-resistant but not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References section for details.
Order GRRF20BS Roll Formed Cap Rails for durable, economical glass railing solutions — contact CRL Customer Service to request custom lengths or finishes.
