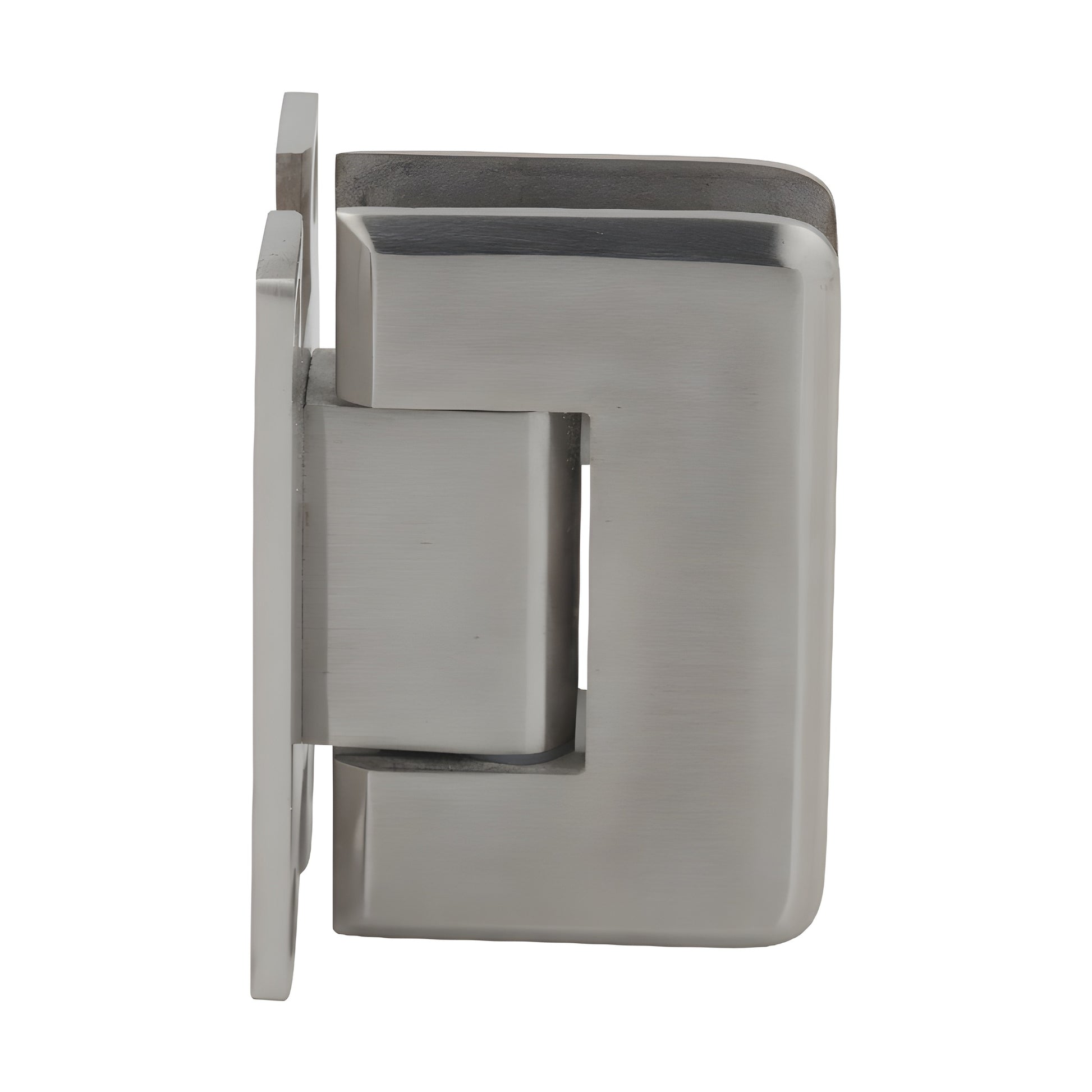

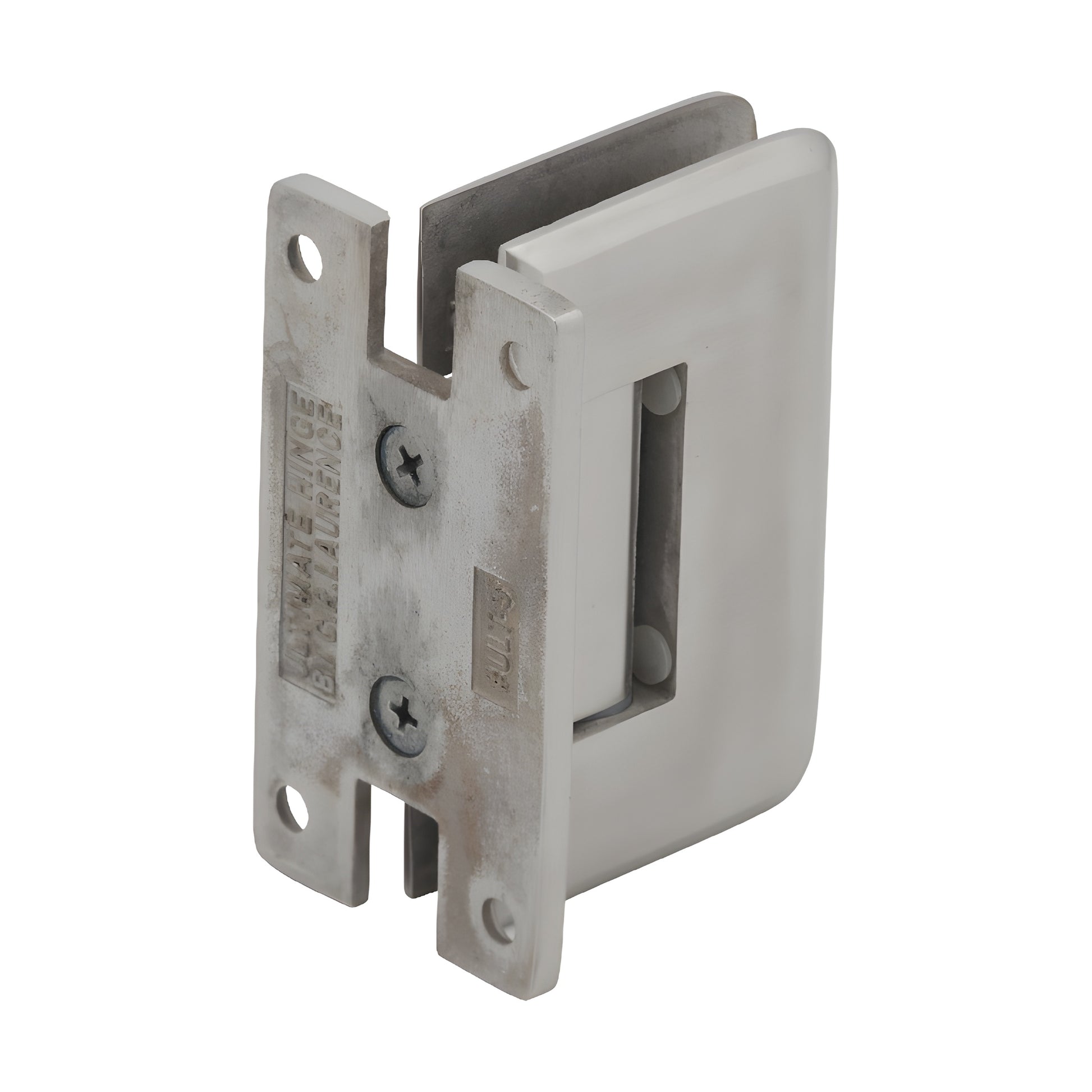

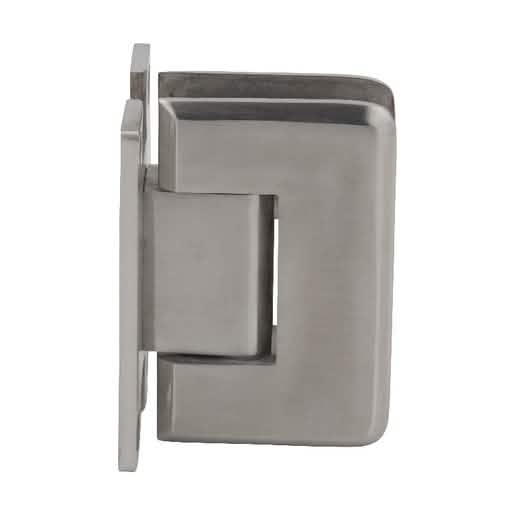

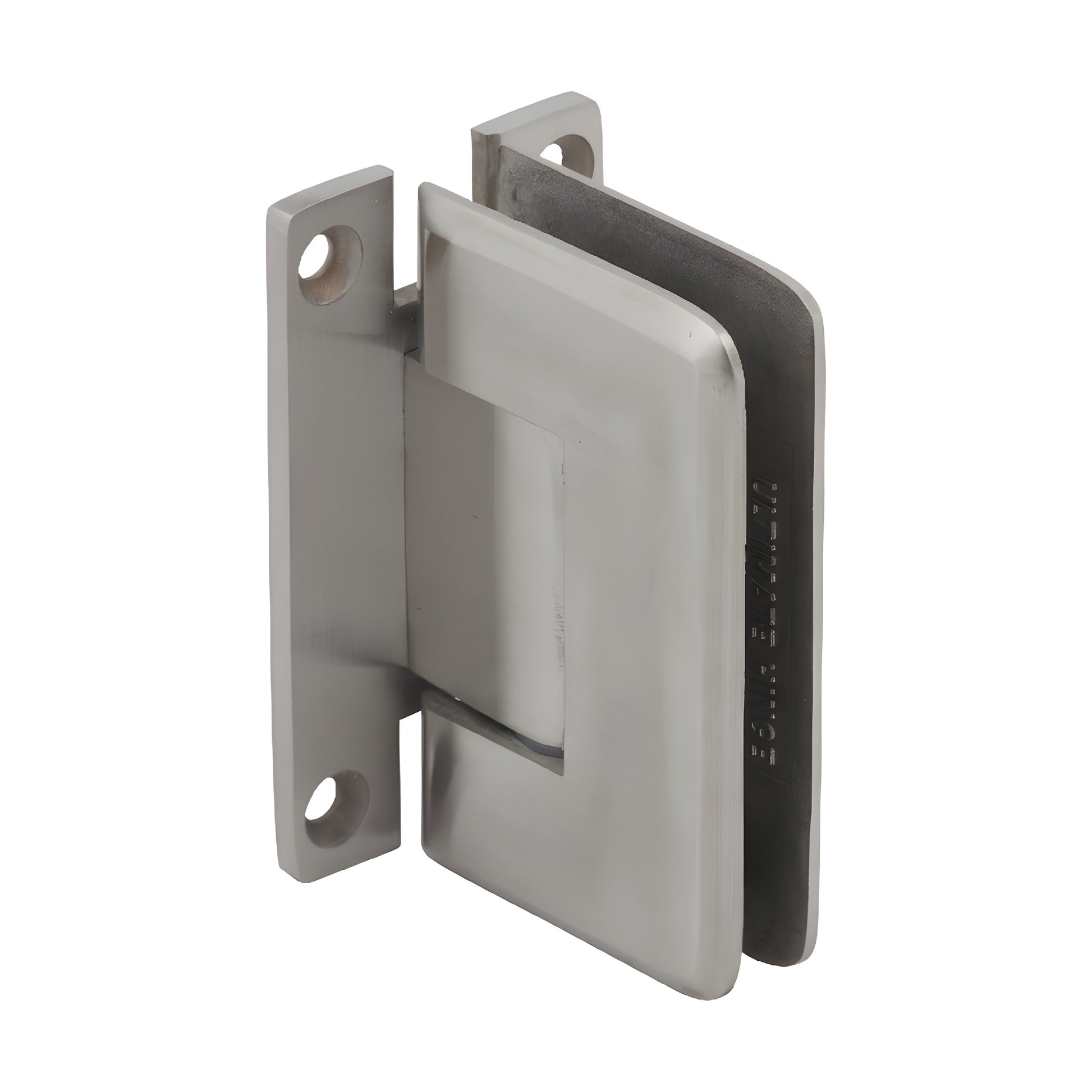

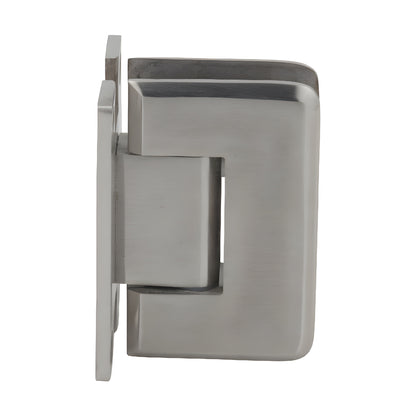

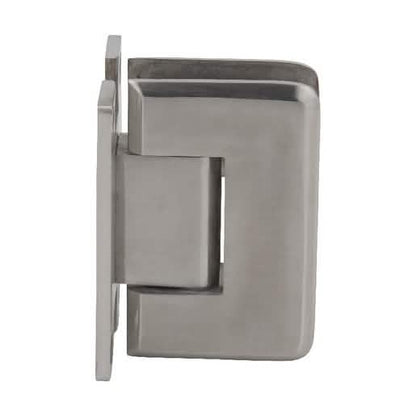

CRL 316 Brushed Stainless Wall-Mount H Back-Plate Hinge 037

• Self-centering with reversible 5° pivot pin
• Available in two finishes
• 3 year warranty
• Wall mount
• For monolithic tempered safety glass

The CRL Ultimate Series Hinge (SKU: ULT037SS) combines refined aesthetics with long service life. Machined entirely from 316 stainless steel, this shower door hinge offers superior corrosion resistance for seaside and high-salt environments. It features stainless steel plunger tips, pins, and springs for reliable door closure and longevity. The Ultimate Series uses the same reversible 5° pivot pin found in CRL’s Geneva, Cathedral, Pinnacle, Roman, and Elite series; a custom pivot pin is available for off-angle installations.

Standard Reversible Pivot Pin: Each hinge includes a reversible pivot pin with one side preset at 90° and the opposite side at 85° (5° tighter closure into the shower interior). Pins can be rotated to change the closure angle.

Custom Pivot Pin: Custom pivot pins can be specified for off-angle walls (up to 45°) when the standard 5° offset does not achieve the desired door position.

Load Capacities:
Using two hinges with 5/16"–1/2" (8–12 mm) glass: holds up to 90 lbs (41 kg), max door width 30" (762 mm).
Using three hinges with 5/16"–1/2" (8–12 mm) glass: holds up to 130 lbs (59 kg), max door width 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
Special Feature: 316 stainless steel construction for enhanced durability in accelerated corrosion environments (seaside, high atmospheric salt)
Construction: 316 Stainless Steel
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required
Includes: Gaskets, screws, and glass fabrication dimensions

Custom finishes are available on request. For finish options or technical assistance, contact CRL Shower Door Technical Sales.

Product Warning:
CRL shower door hinges are designed for residential or hotel shower use only. For other uses, obtain approval from CRL Shower Door Technical Sales. Use only the included template—cut-out dimensions for CRL hinges may differ from other brands.
