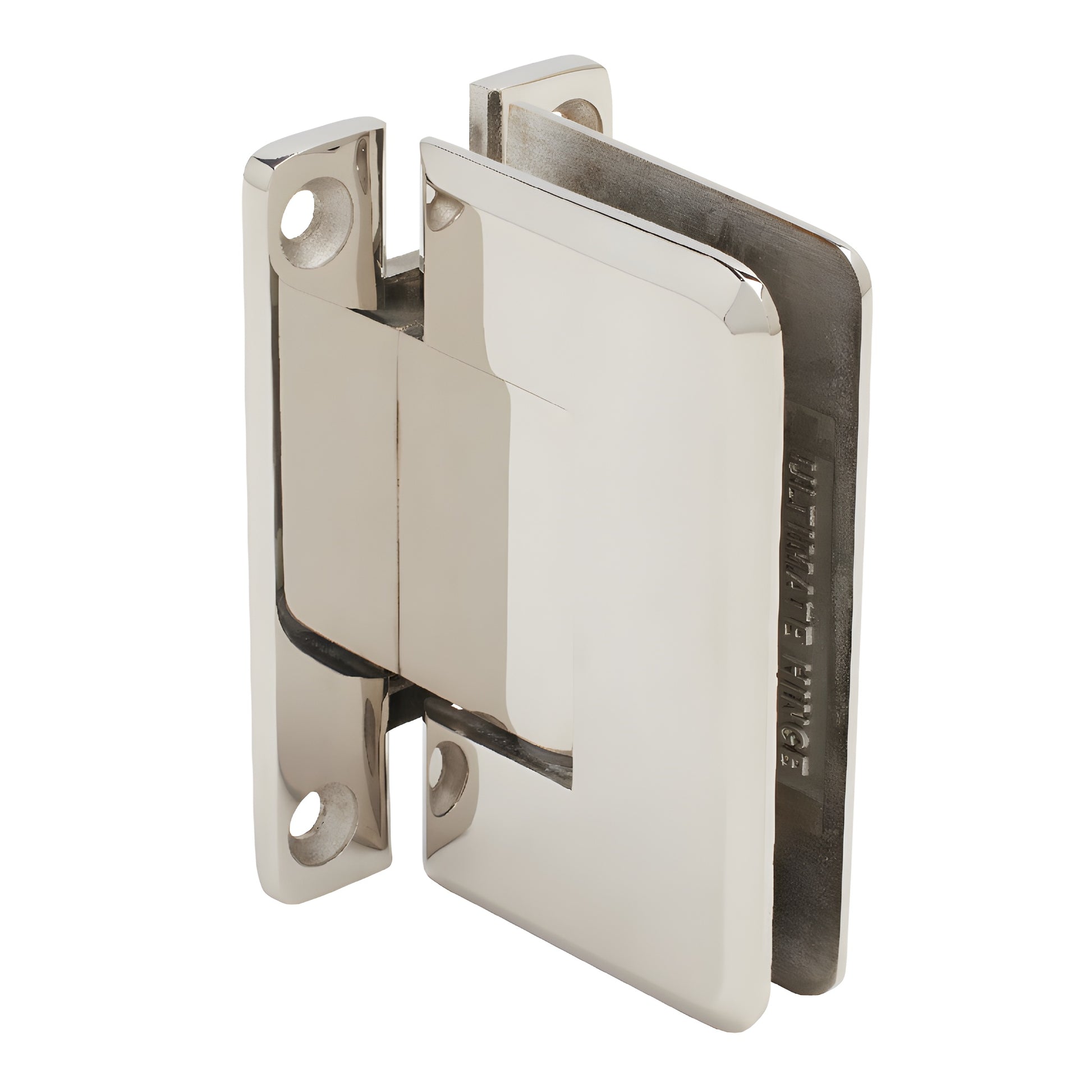

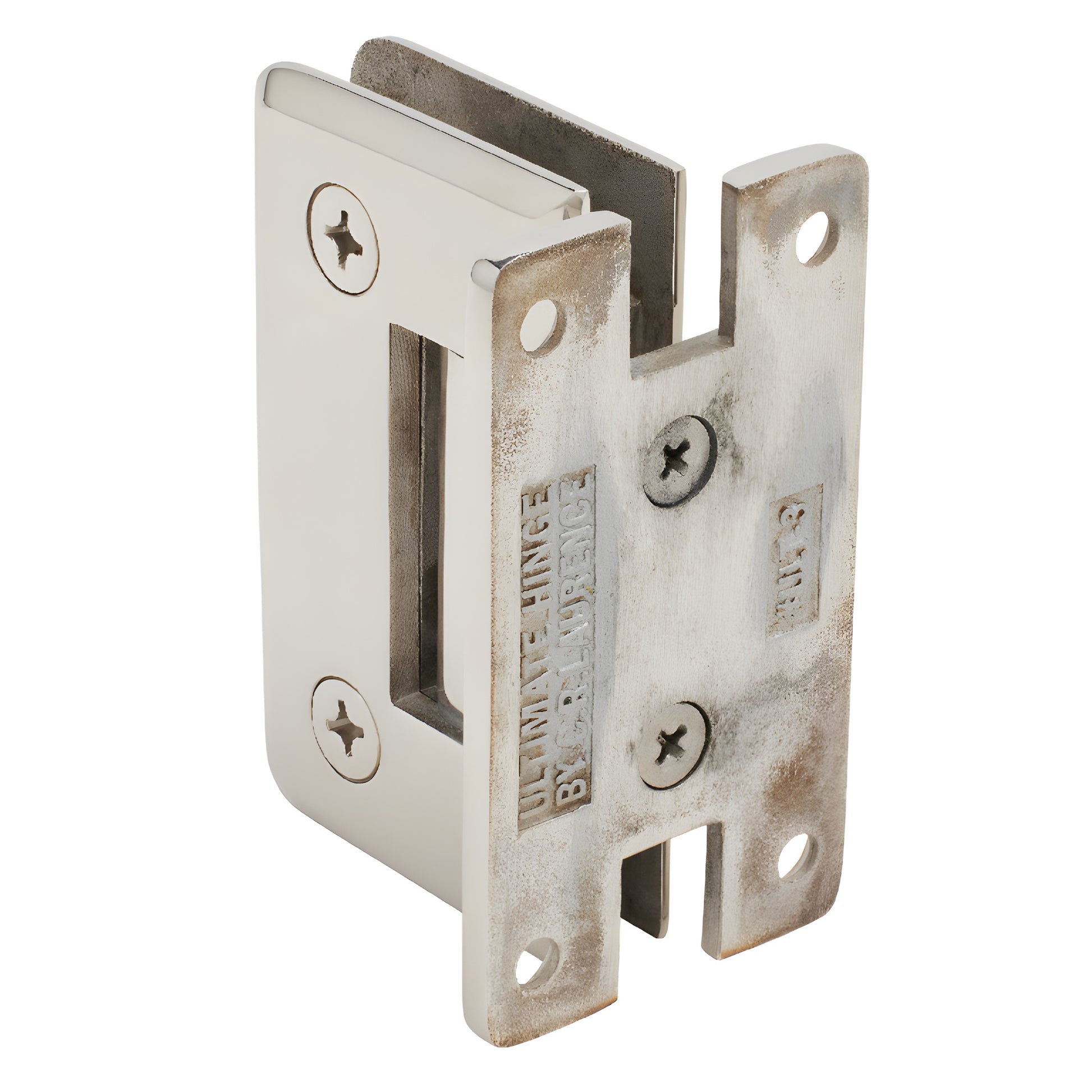

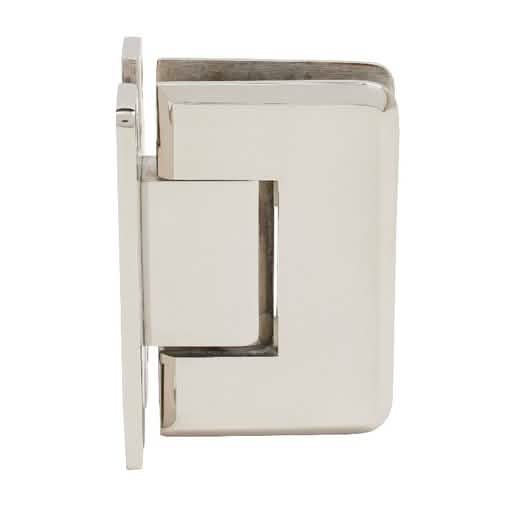

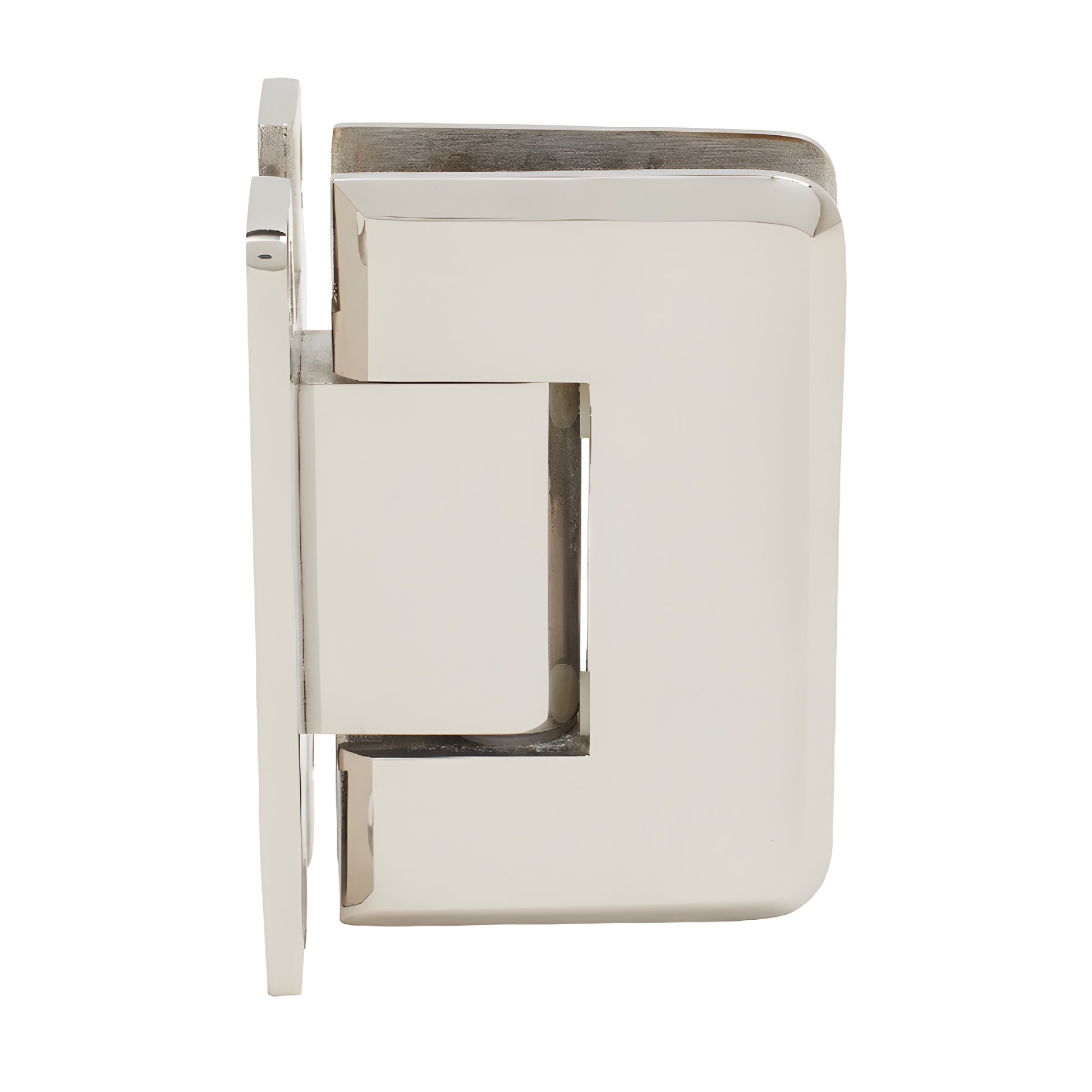

CRL 316 Polished Stainless Steel Ultimate 037 Series Wall Mount 'H' Back Plate Hinge

• Self-Centering with Reversible 5 Degree Pivot Pin
• Available in Two Beautiful Finishes
• Wall Mount
• Use Monolithic Tempered Glass

The

CRL Ultimate Series Hinge

is named primarily for its combination of design elegance and service life. Featuring the same beautiful rounded corners and beveled edges of the Pinnacle Hinge, the Ultimate Hinge is constructed entirely of 316 stainless steel. This all-stainless construction gives the Ultimate Hinge a durability not usually found in brass hinges. The Ultimate has superior survivability in conditions of accelerated corrosion, such as seaside communities with high atmospheric salt levels. The Ultimate Hinge has stainless steel plunger tips, pins, and springs to ensure long service life and reliable door closure. It also has the same Reversible 5 degree Pivot Pin featured in our Geneva, Cathedral, Pinnacle, Roman, and Elite Series Hinges. A Custom Pivot Pin is available for "off-angle" installations.

Each Roman Hinge contains a Reversible Pivot Pin. One side of the Pin is marked at 90 degree. The opposite side of the Pin is marked 85 degree. Standard Roman Hinges come with the 90 degree side activated. Pre-Set Models come with the Pin pre-set for 85 degree (5 degree tighter closure into shower interior). The Pin can be rotated (not flipped upside down) to activate the other side.

Custom Pivot Pins are available to accommodate "off-angle" installations. As an example, you may encounter a wall that will not meet your door at 90 degree. If the standard 5 degree Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45 degree).

Using two hinges

with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 90 lbs. (41 kg) with a maximum door width of 30" (762 mm).

Using three hinges

with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 130 lbs. (59 kg) with a maximum door width of 32" (813 mm).

5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass

316 Stainless steel construction provides greater durability in conditions subject to accelerated corrosion, such as seaside communities with high atmospheric salt levels.

316 Stainless Steel

90 degree in and 90 degree Out

Self-Centering when within 15 degree of closed position.

Cut-Out Required

Gaskets, Screws, and Glass Fabrication Dimensions

Custom finishes are available on request. For more information contact CRL Shower Door Technical Sales Department.

CRL Shower Door Hinges

are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.

Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
