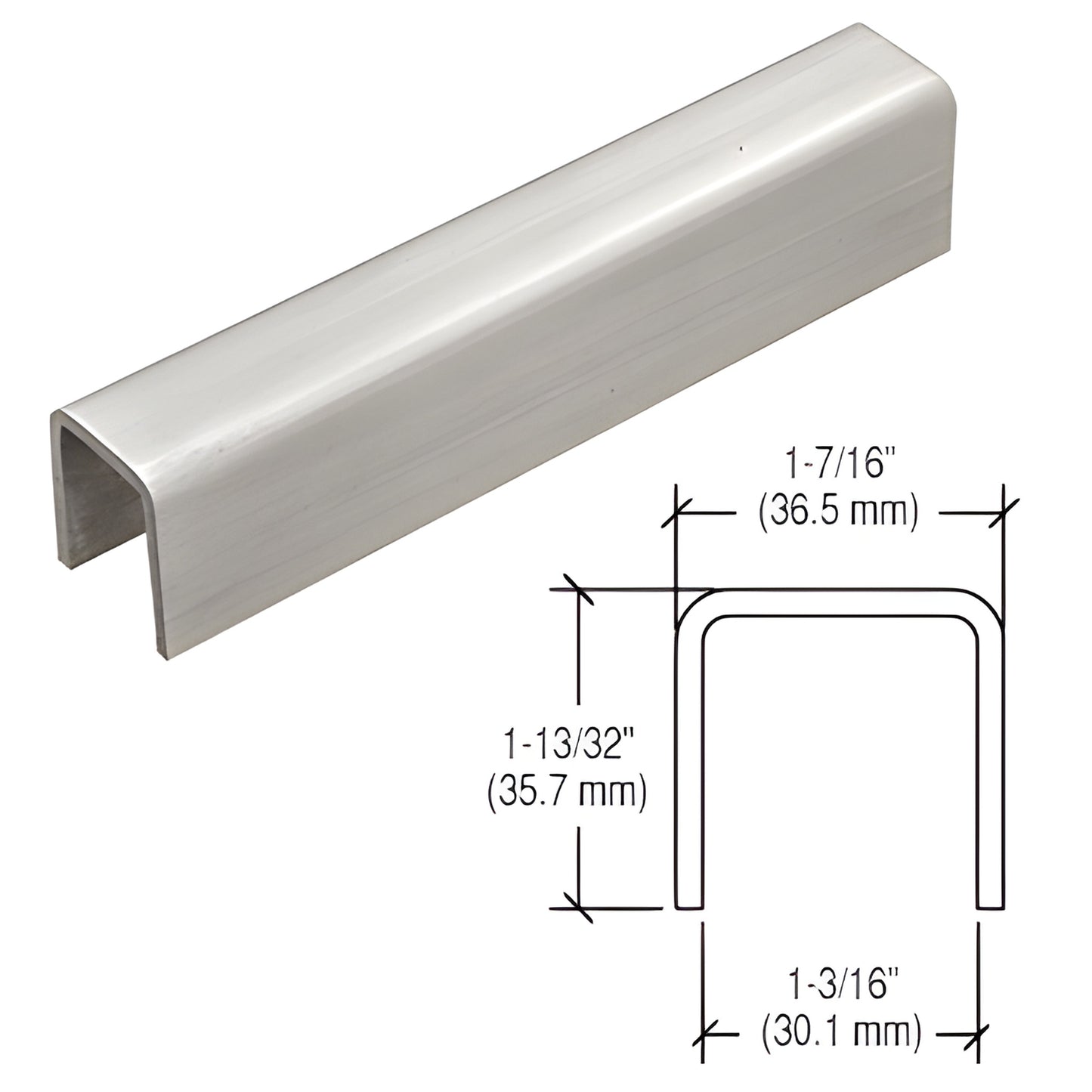

CRL 316 Brushed Stainless Steel U-Channel Cap for 21.52mm Glass, 3m

• Low profile U-channel cap railing that meets guard rail load requirements
• For 27/32" (21.52 mm) laminated tempered glass (10 × 1.52 × 10 mm glass make-up)
• Connects to fabricated corners and end caps
• Cut-to-size or custom fabricated lengths available
• 316 stainless alloy (316 stainless steel)
• Use with laminated tempered glass and LR21PV cap railing rubber insert plus 95CBL silicone for a secure bond

CRL Low Profile U-Channel Cap Railing (SKU: L10BS) is engineered for guard rail applications and supplied in two architectural finishes. The low-profile U-channel offers a virtually unobstructed view while protecting and securing the edge of laminated tempered glass panels. Use LR21PV rubber insert and 95CBL silicone to achieve a permanent, secure installation.


SPECIFICATIONS:
Material: 316 stainless steel
Thickness: 11 gauge
Stock Length: 118-1/8" (3 m)
Typical Uses: Edge protection and panel retention for 21.52 mm laminated tempered glass in cap railing and balustrade systems


Product Warning:

SS channel or bar must ship via common carrier only (NO UPS). Cannot be cut-to-size for shipment via carrier listed above—confirm cutting and shipping options with CRL Customer Service before ordering.

Stainless Steel Advisory:

Need pricing, cut-to-size options, or CAD drawings? Contact CRL Customer Service to get started.
