CRL Laguna 316 Polished Stainless Double-Roller Wall Sliding Door Kit

• Intended for wall mounting single sliding glass doors
• Improved anti-lift double roller design for secure operation
• Alloy 316 stainless steel construction for coastal and corrosive environments
• Includes all hardware to install with 3/8" or 1/2" (10 or 12 mm) tempered glass

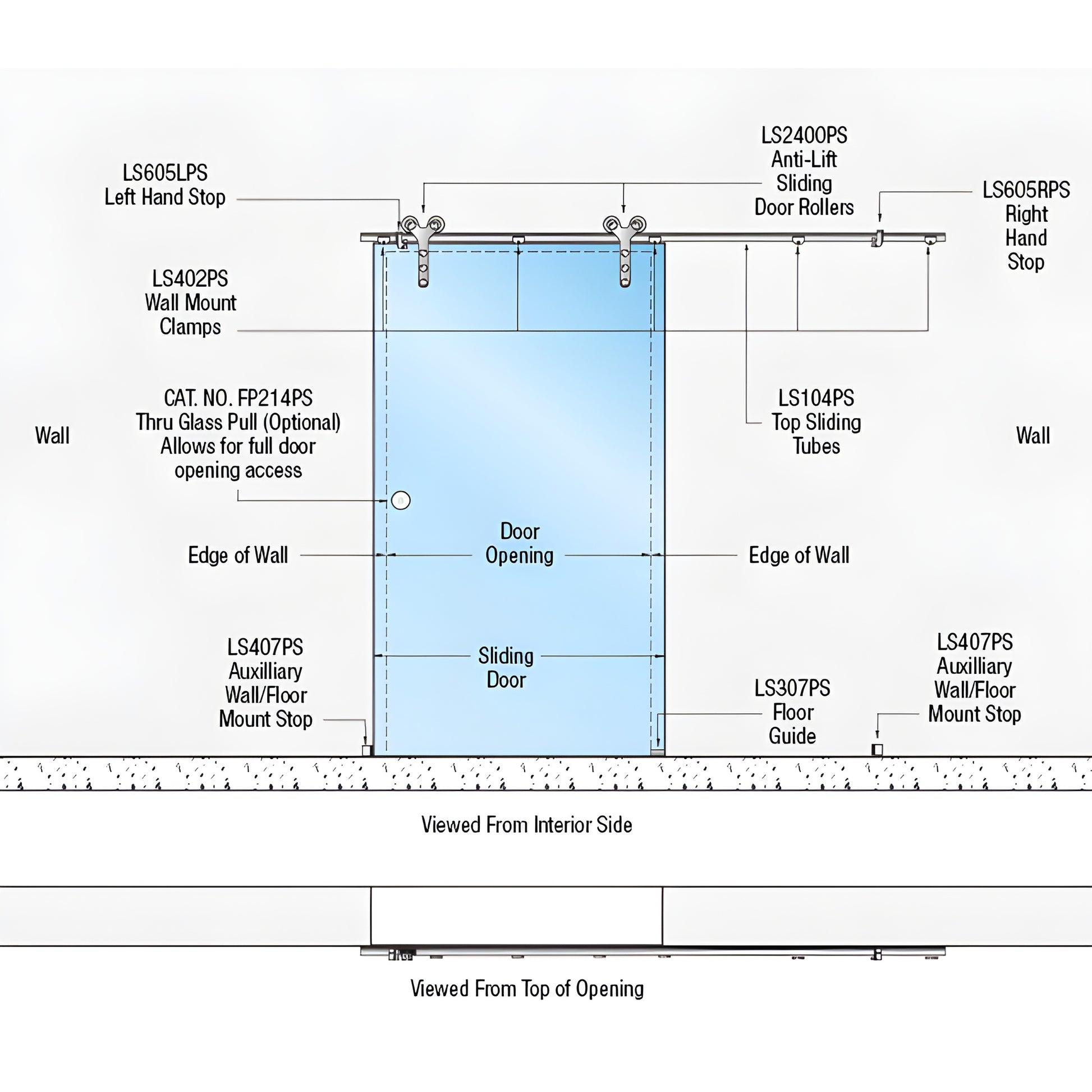

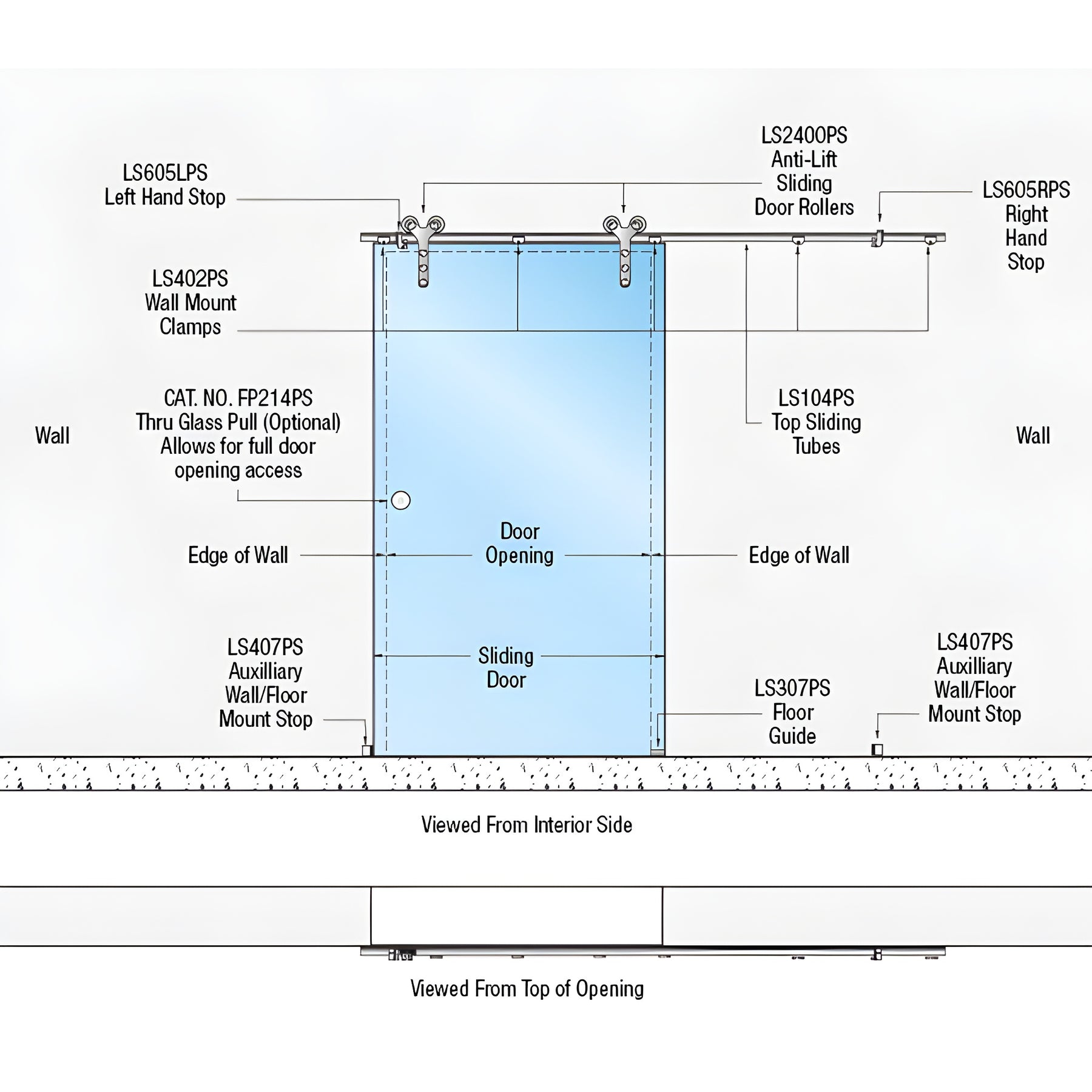

The CRL Double Roller Laguna Series Wall Mount Single Slider Kit (SKU: LSWM25PS) provides a complete wall-mount sliding glass door hardware solution (glass not included). Designed for reinforced interior walls, this single-slider kit features anti-lift top rollers with both surface-mount and flush-mount fittings included for versatile tempered glass attachment.

The rollers offer 1/8" (3 mm) vertical adjustment for precise door alignment. Use only with 3/8" or 1/2" (10 or 12 mm) tempered glass—laminated glass is not compatible.

Door system limitations:
Maximum door weight: 220 lbs (100 kg)
Minimum door width: 37-13/16" (960 mm)
Maximum door width: 53-9/16" (1.36 m)
Maximum door height: 98-7/16" (2.50 m)
Maximum track length: 104" (2.64 m)

Product warning:

STRUCTURAL DISCLAIMER — Customers must consult a structural engineer to confirm product suitability for site conditions. Installers must be qualified and ensure compliance with local, state, and federal regulations, and select appropriate fixings and procedures.

Stainless Steel Advisory:

Optimize your install with the LSWM25PS wall-mount single slider kit—order now or contact CRL for technical assistance.
