CRL Laguna 316 Brushed Stainless Double Roller Shower Wall-Mount Kit

• This kit is intended for wall mounting
• Improved anti-lift double roller design for secure operation
• Alloy 316 stainless steel construction for corrosion resistance
• Assembly contains all necessary hardware to install with 3/8" or 1/2" (10 or 12 mm) tempered glass

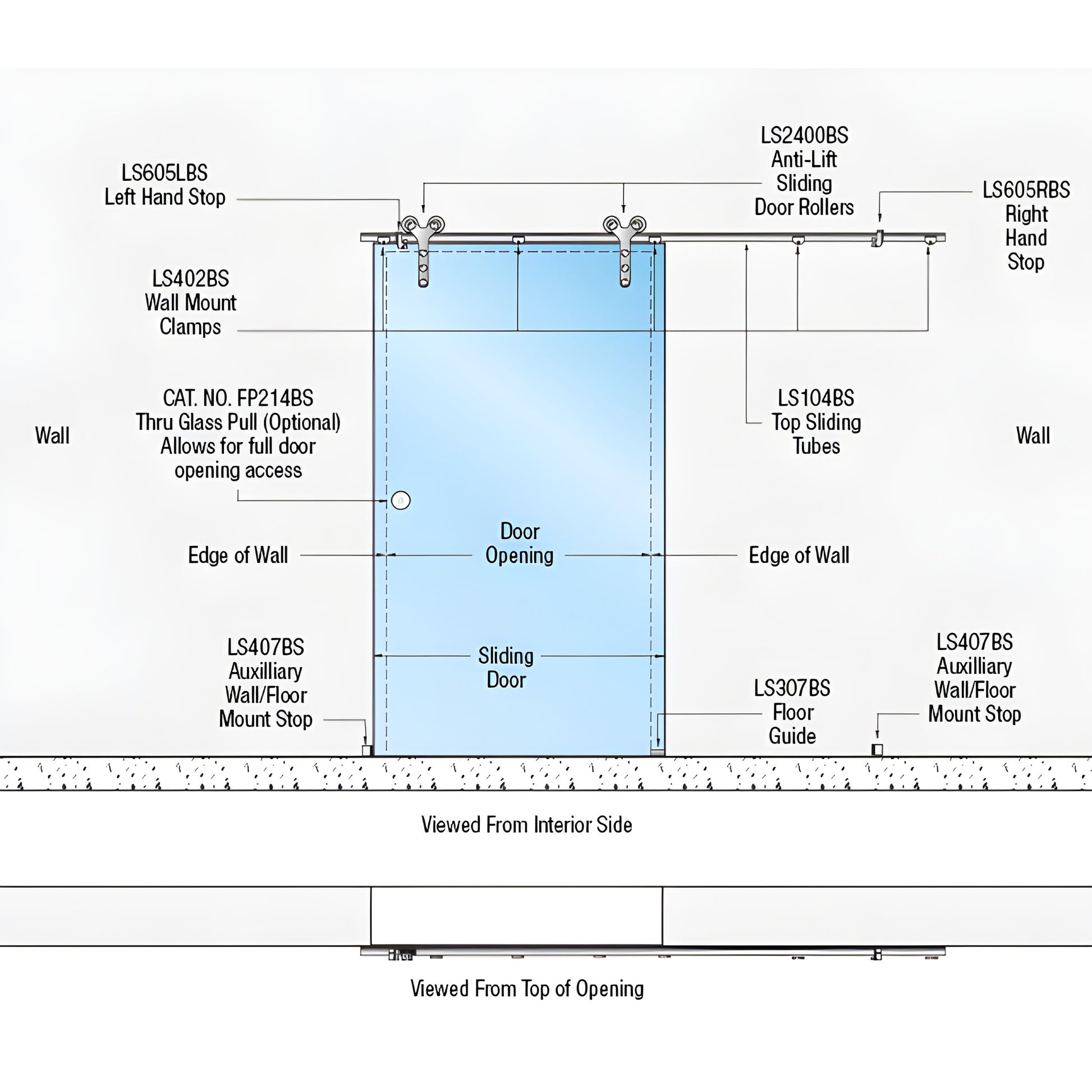

The CRL Double Roller Laguna Series Wall Mount Single Slider Kit (SKU: LSWM25BS) is a complete wall-mount sliding glass door kit that includes top rollers, track hardware, and both surface and flush mount fittings. Designed for interior installations where a single sliding door mounts to the reinforced wall face, this wall mount sliding glass door kit features anti-lift double rollers and 1/8" (3 mm) vertical adjustment to simplify door alignment. Use only with 3/8" or 1/2" tempered glass; laminated glass is not permitted.

Key features:

• Anti-lift double roller mechanism for enhanced security and smooth sliding
• Includes surface and flush mount fittings for flexible glass attachment
• 1/8" (3 mm) vertical adjustment for precise door alignment
• 316 stainless steel hardware suitable for humid or coastal environments

DOOR SYSTEM LIMITATIONS:
Maximum Door Weight: 220 Lbs. (100 kg)
Minimum Door Width: 37-13/16" (960 mm)
Maximum Door Width: 53-9/16" (1.36 m)
Maximum Door Height: 98-7/16" (2.50 m)
Maximum Track Length: 104" (2.64 m)

Product Warning:

STRUCTURAL DISCLAIMER - Customers must consult a structural engineer to confirm suitability of this wall mount sliding door kit for the intended use and site conditions. Installers must be qualified and familiar with local codes, safety factors, and correct selection of fasteners and installation procedures.

Stainless Steel Advisory:

Order the CRL Double Roller Laguna Wall Mount Single Slider Kit (LSWM
