CRL Laguna 316 Polished Stainless Wall-Mount Single Slider Door Kit

CRL Laguna 316 Polished Stainless Wall-Mount Single Slider Door Kit

$1,756.72 CAD
$1,756.72 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# LSWM5PS
Shipping Weight: 21.5 Pounds
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Polished Stainless Steel
Glazing Thickness
3/8 in. To 1/2 in. (10 mm To 12 mm)
Glazing Type
Tempered Monolithic
Material
316 Stainless Steel
Maximum Door Height
98-7/16 in. (2500 mm)
Maximum Panel Weight
220 lbs. (99.8 kg)
Maximum Panel Width
53-9/16 in. (1360 mm)
Minimum Door Width
37-13/16 in. (960 mm)
Track Length
104 in. (2642 mm)

Overview

  • Improved Anti-Lift Design for enhanced security and smooth operation
  • Assembly includes all necessary hardware to install with 3/8" or 1/2" (10 or 12 mm) tempered glass
  • Alloy 316 stainless steel construction for corrosion resistance

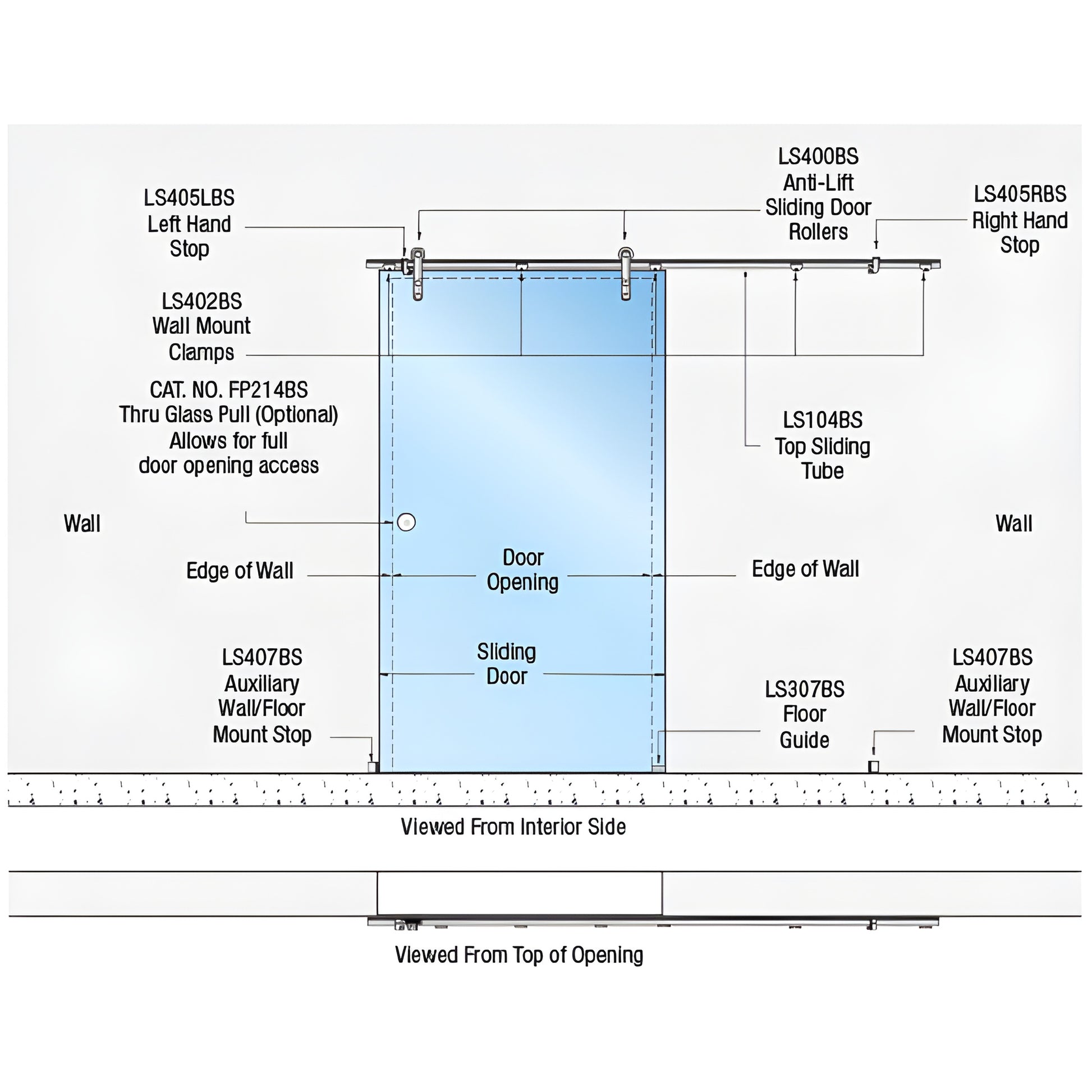

The CRL Laguna Series Wall Mount Single Slider Kit (SKU LSWM5PS) contains all components required—except tempered glass—to install a single sliding door mounted to the inside face of a reinforced wall. This wall mount single slider kit is ideal for frameless glass door installations requiring durable, marine-grade hardware.


The anti-lift sliding door top rollers attach to the glass with either Surface Mount or Flush Mount fittings (both supplied). Rollers provide 1/8" (3 mm) vertical adjustment for precise door alignment. Use only 3/8" or 1/2" (10 or 12 mm) tempered glass; laminated glass is not permitted.

DOOR SYSTEM LIMITATIONS
Maximum Door Weight: 220 Lbs. (100 kg)
Minimum Door Width: 37-13/16" (960 mm)
Maximum Door Width: 53-9/16" (1.36 m)
Maximum Door Height: 98-7/16" (2.50 m)
Maximum Track Length: 104" (2.64 m)

Product Warning:

STRUCTURAL DISCLAIMER - Customers must consult a structural engineer to confirm product suitability for site conditions. Installers must be qualified and knowledgeable of local, state, and federal codes, safety factors, and appropriate fixing materials and procedures.

Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, contact CRL Customer Service before ordering. Product images are actual or close representations; colors may vary by monitor.

Stainless Steel Advisory:
While 316 stainless steel offers excellent corrosion resistance, it is not entirely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.


Key features: Laguna Series wall mount single slider kit, anti-lift rollers, 316 stainless steel hardware, fits 3/8" or 1/2" tempered glass (SKU LSWM5PS). Order now or contact CRL for technical assistance and availability.
