CRL Laguna Series Matte Black Wall-Mount Single Sliding Door Kit

• Improved Anti-Lift Design for secure sliding doors
• Includes all hardware to install with 3/8" or 1/2" (10 or 12 mm) tempered glass
• Alloy 316 stainless steel construction for corrosion resistance

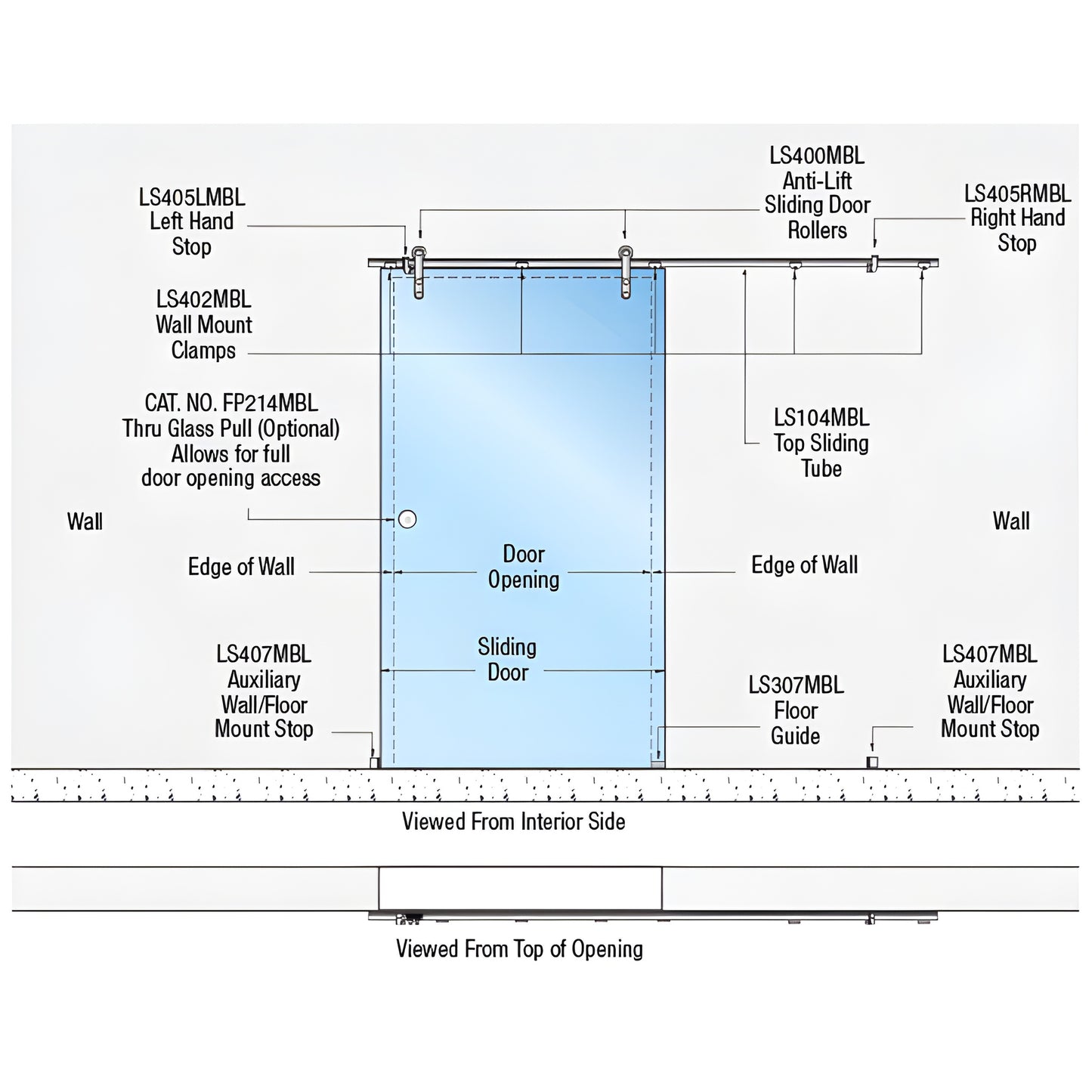

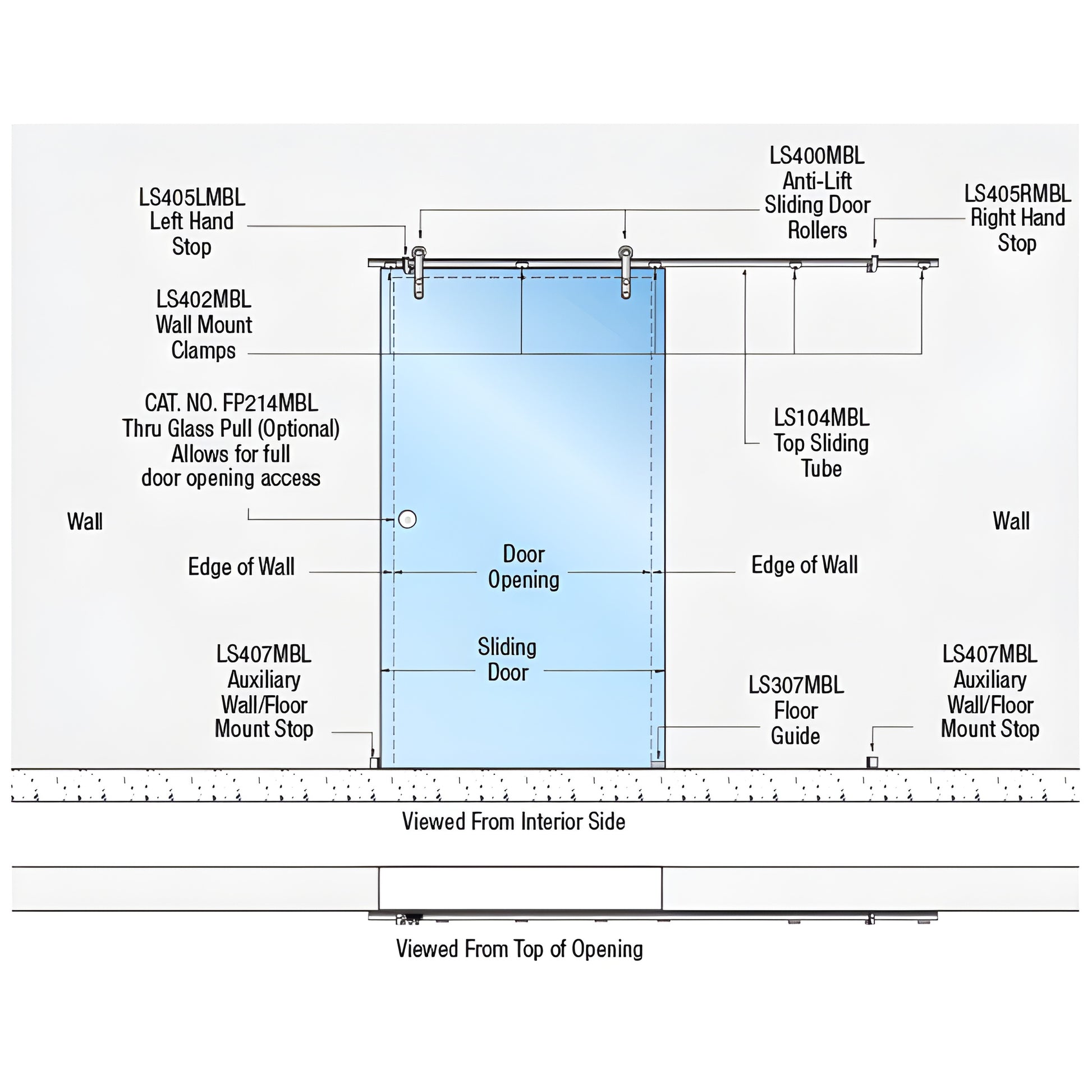

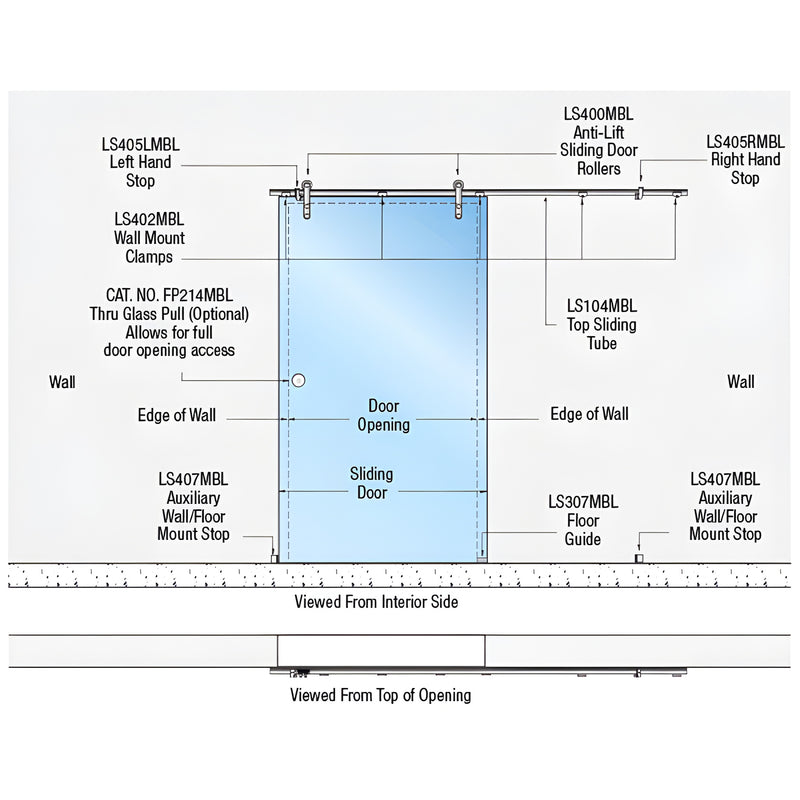

The CRL Laguna Series Wall Mount Single Slider Kit (SKU: LSWM5MBL) contains all components required—except tempered glass—to install a single sliding door mounted to the inside face of a reinforced wall. Ideal for frameless glass partitions and commercial sliding door projects requiring durable, marine-grade hardware.

The anti-lift sliding door top rollers attach to the glass using the supplied Surface Mount or Flush Mount fittings. Rollers provide 1/8" (3 mm) vertical adjustment for precise door alignment. Use only with 3/8" or 1/2" (10 or 12 mm) tempered glass; laminated glass is not permitted.

DOOR SYSTEM LIMITATIONS
Maximum Door Weight: 220 Lbs. (100 kg)
Minimum Door Width: 37-13/16" (960 mm)
Maximum Door Width: 53-9/16" (1.36 m)
Maximum Door Height: 98-7/16" (2.50 m)
Maximum Track Length: 104" (2.64 m)

Product Warning:

STRUCTURAL DISCLAIMER - Customers must consult a structural engineer to confirm product suitability for the intended use and site conditions. All installers must be qualified and knowledgeable about local codes, safety factors, and proper fixing materials and procedures.


For help selecting the right Laguna Series wall mount single slider kit or to request technical data, contact CRL Customer Service today.
