Product Details
- For Use with 3/8" to 9/16" (10 to 13.52 mm) Tempered Glass
- Designed for the 'All-Glass' Look
- One Fitting for Either Flush or Surface Mount Installations
- Rigid or Swivel Countersunk or Cap Glass Attachments Available
- Made of 316 Alloy Stainless Steel in Two Attractive Finishes: Brushed and Polished
- Replacement Gasket Set is Cat. No. RSF10RW

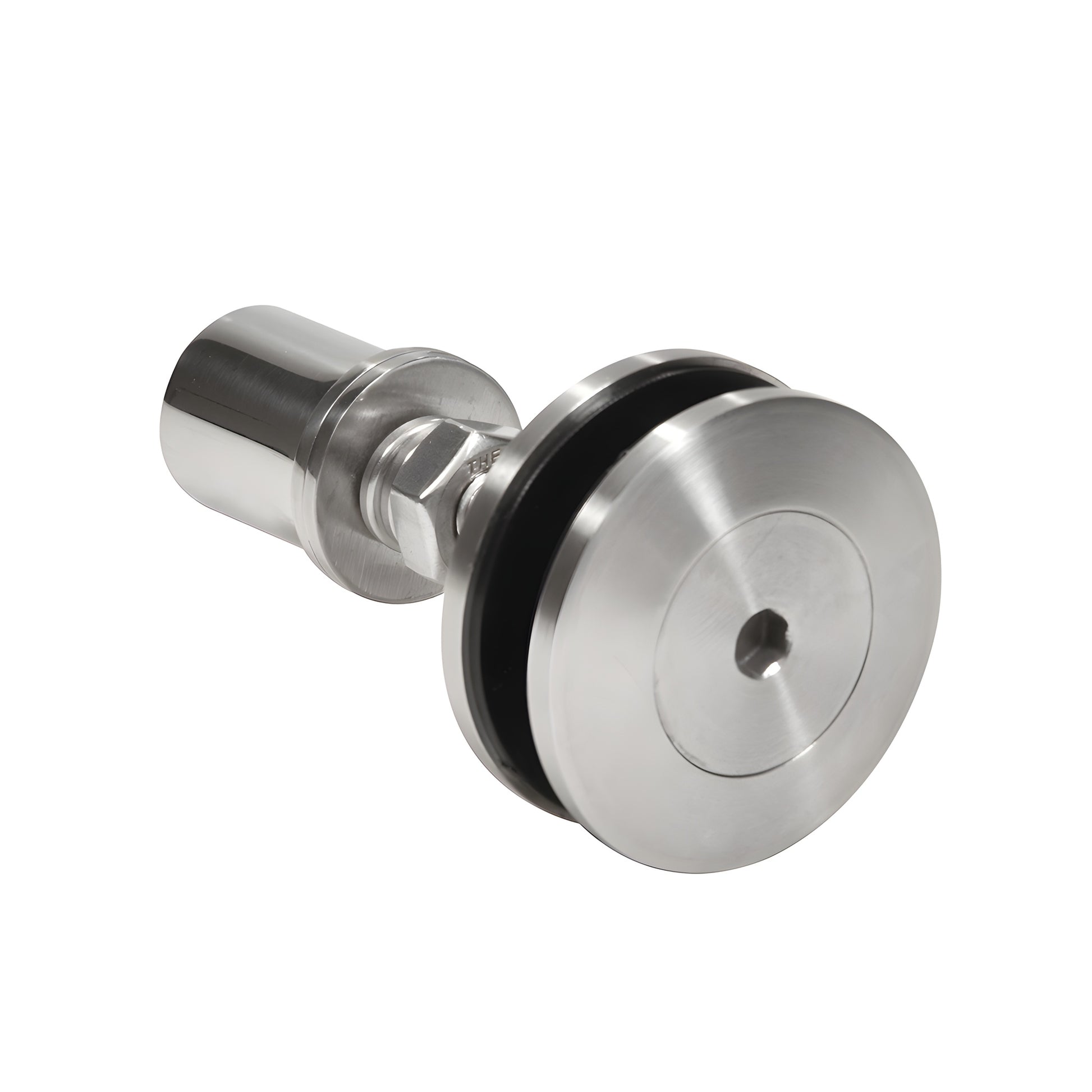

The head of the CRL Swivel Glass Attachment can tilt up to six degrees in any direction on its ball and socket joint. This allows for any stress applied to the glass to be more evenly distributed across the entire panel of glass rather than concentrating at the hole. These are typically used in conditions where the glass will be subject to live loads.

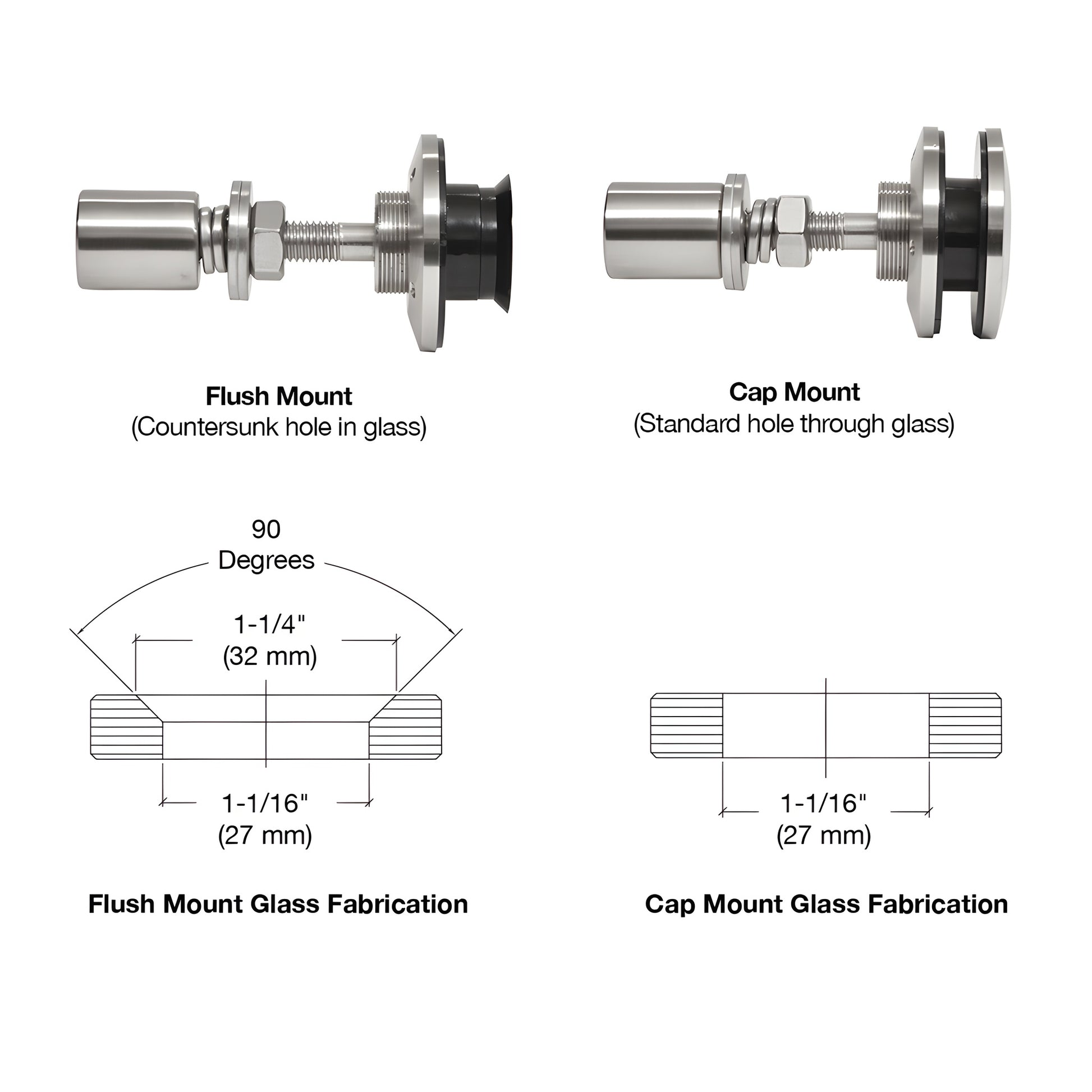

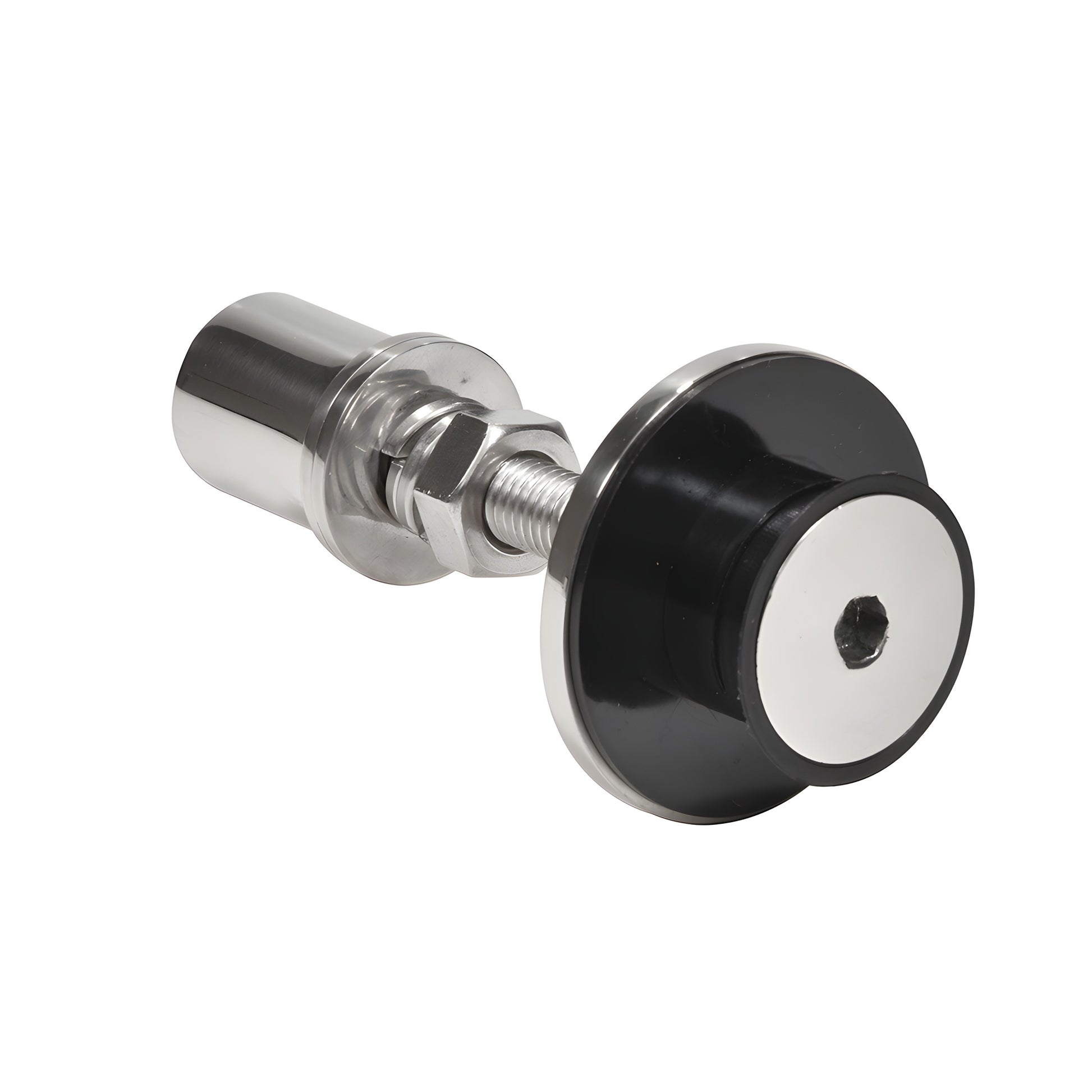

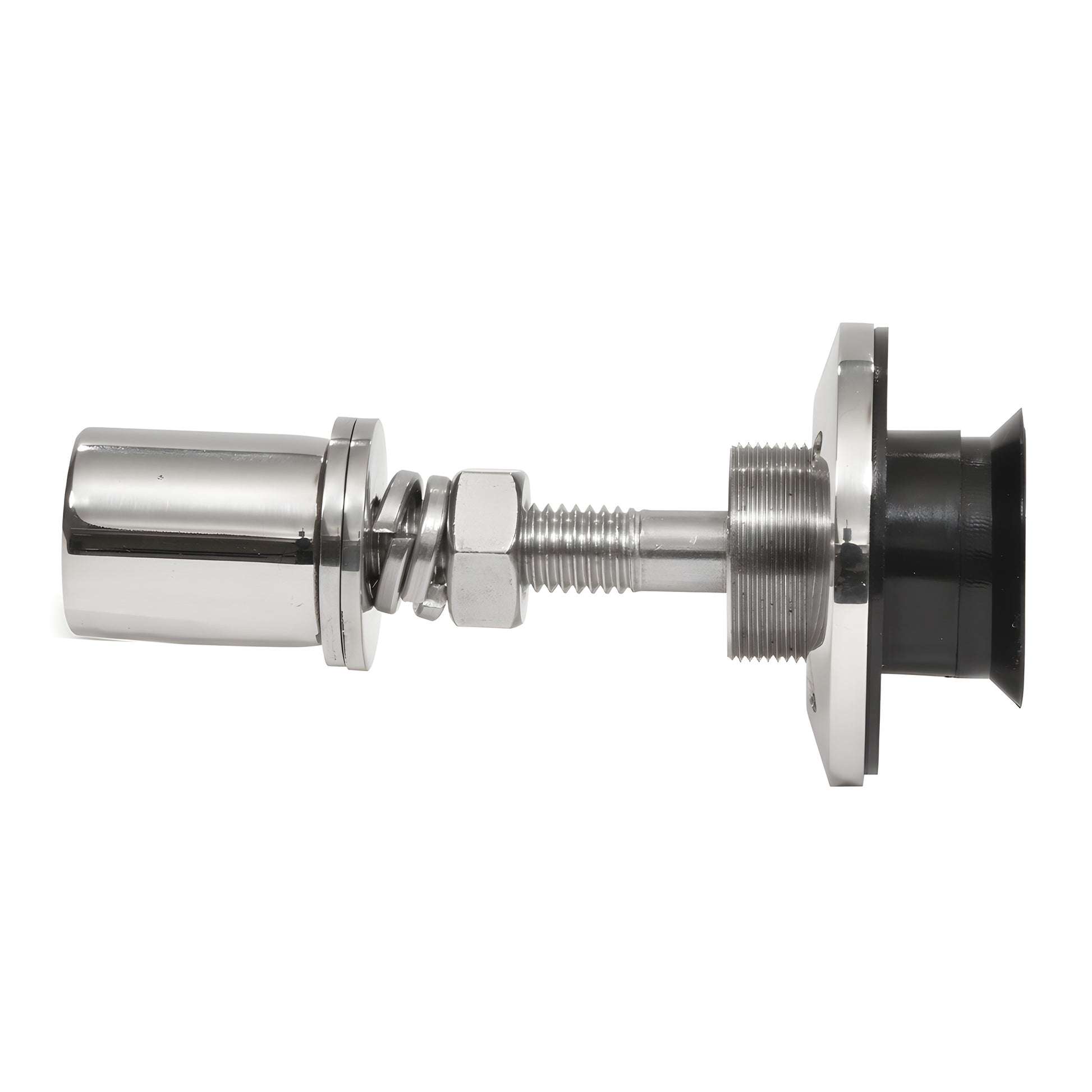

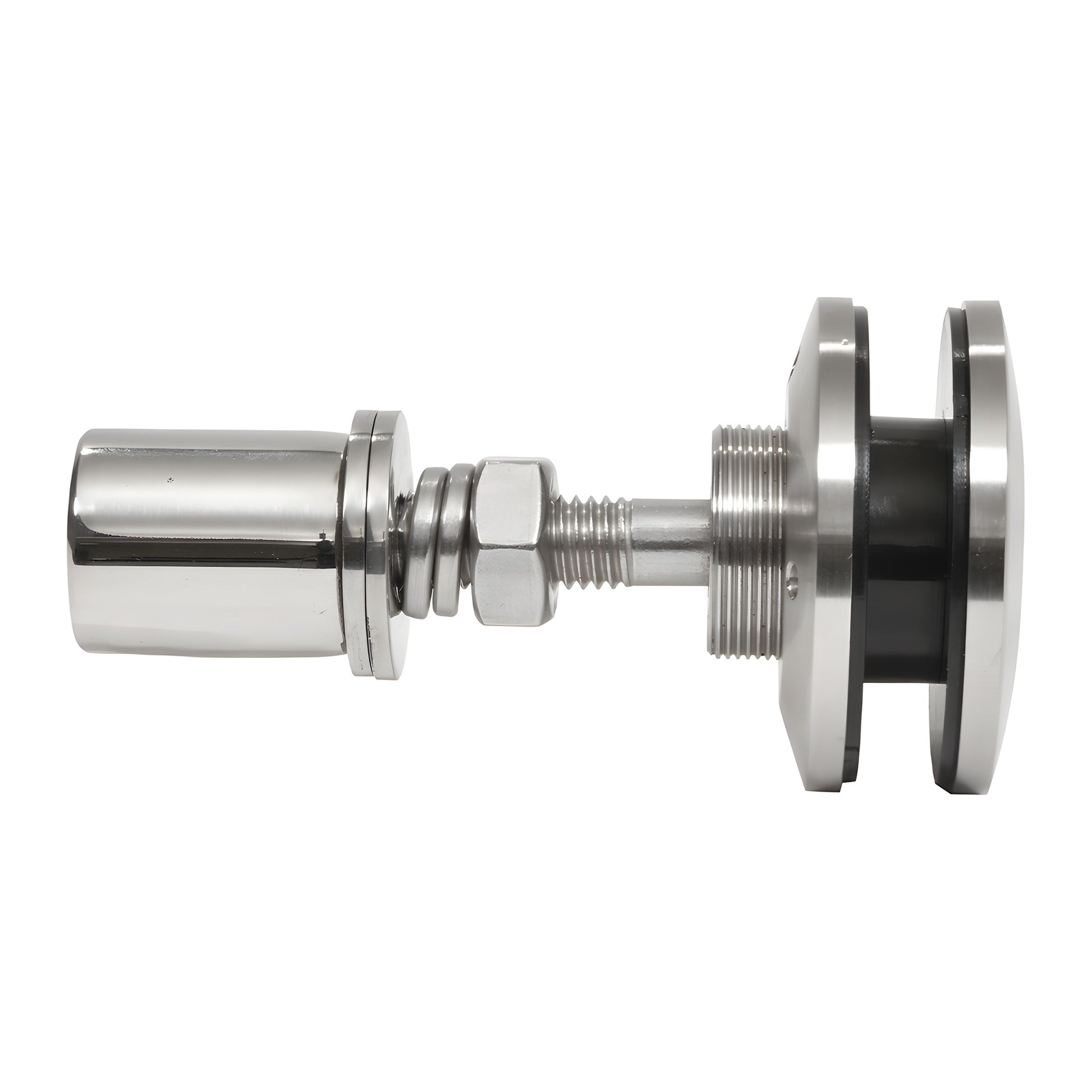

The Swivel Head Fitting also employs our special Combination Glass Attachment design so it can be used for 'flush' mounting for a smooth exterior surface when the glass is fabricated with a countersunk hole. This same Fitting can be used for the 'cap' type of mounting when using the supplied adaptor washer. This requires just a standard hole in the glass.
NOTE: Either the Rigid Head or Swivel Head Combination Glass Attachments can be used with all Regular Duty or Mini Spider Fittings.
NOTE: We suggest when using the flush mount method that you give your glass fabricator a sample Flush Mount Glass Attachment to ensure a proper flush fit.
Product Warning:
Do Not Use with Annealed or Raw Glass.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
