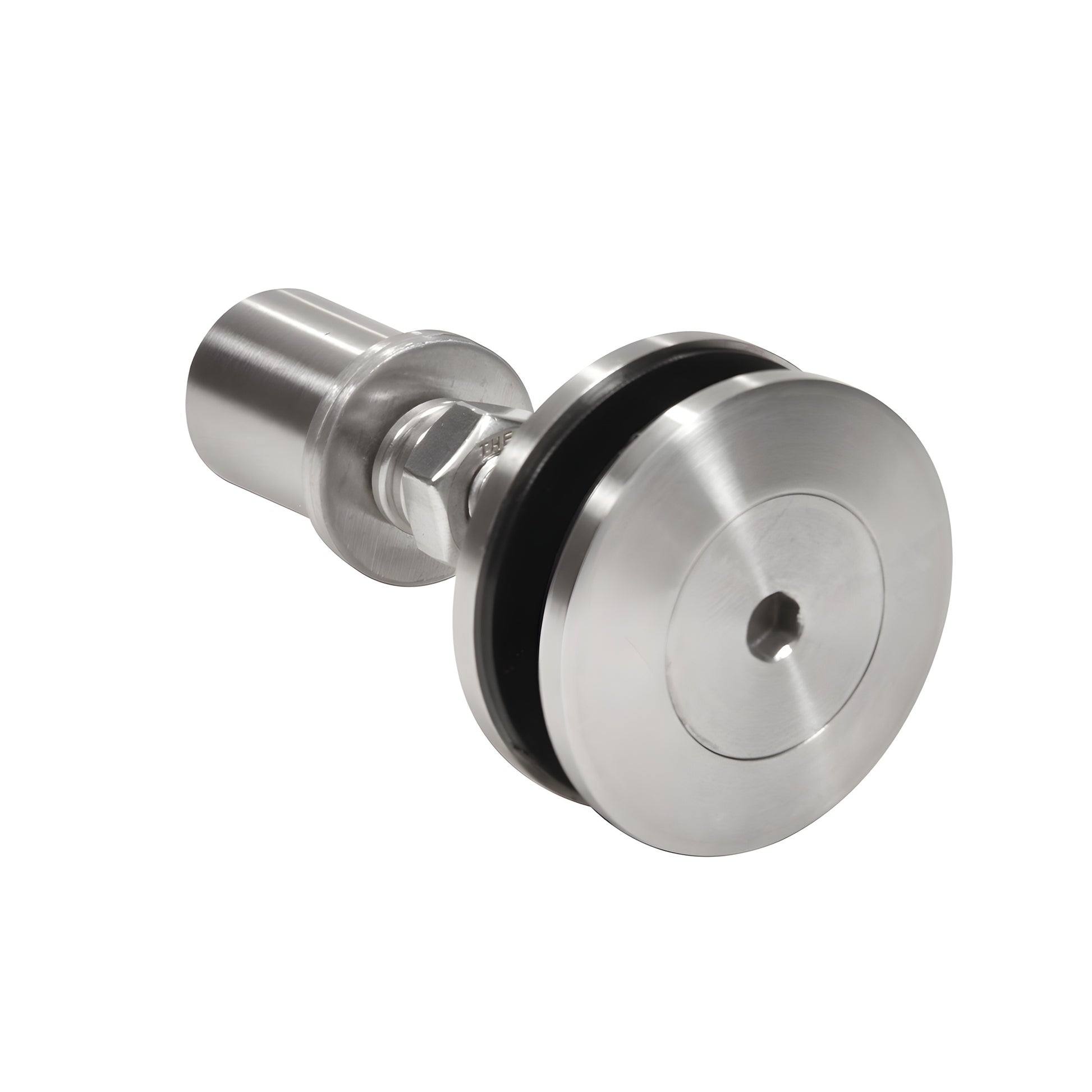

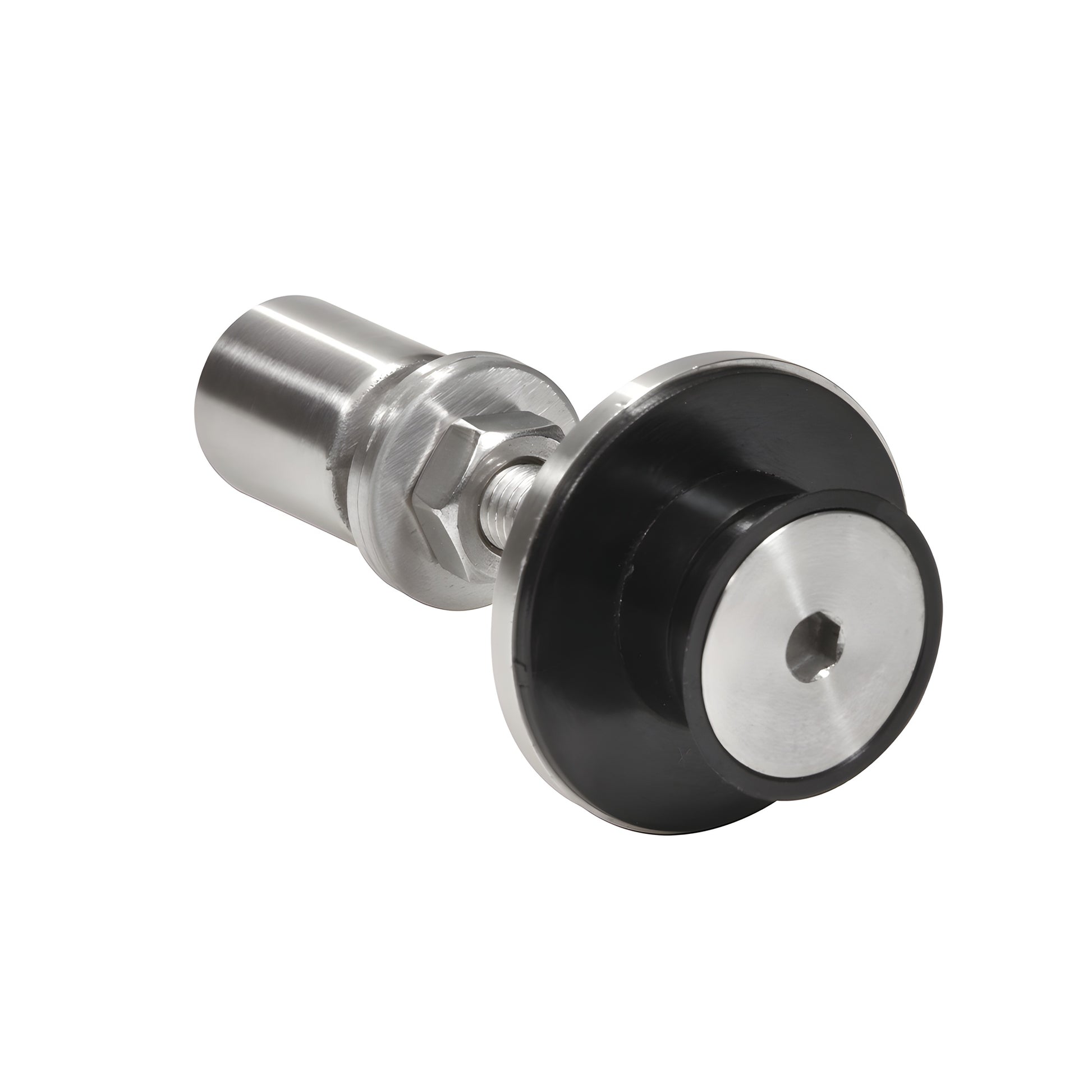

CRL 316 Stainless Swivel Glass Clamp for 3/8"-9/16" Tempered Glass

• For use with 3/8" to 9/16" (10 to 13.52 mm) tempered glass
• Designed for the "all-glass" look — low-profile architectural glass hardware
• One fitting supports either flush or surface-mount installations
• Rigid or swivel countersunk or cap glass attachments available
• Made of 316 alloy stainless steel in two finishes: Brushed and Polished
• Replacement gasket set: Cat. No. RSF10RW

The head of the CRL Swivel Glass Attachment (SKU: RSF10BS) tilts up to six degrees on its ball-and-socket joint, helping distribute live loads across the glass panel instead of concentrating stress at the hole. Ideal as a swivel glass attachment for tempered glass in commercial and residential glass railing, balustrade, and frameless glass systems.

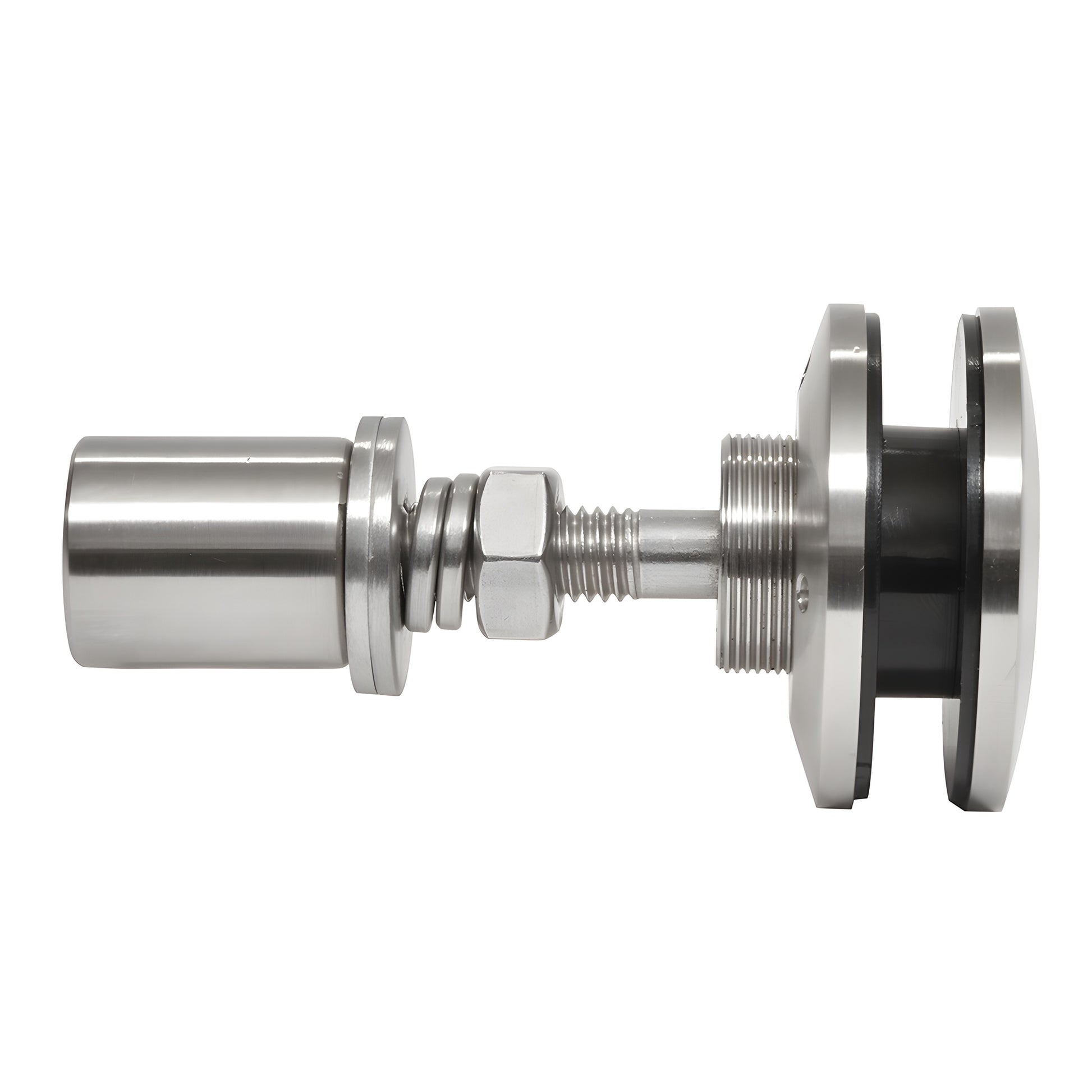

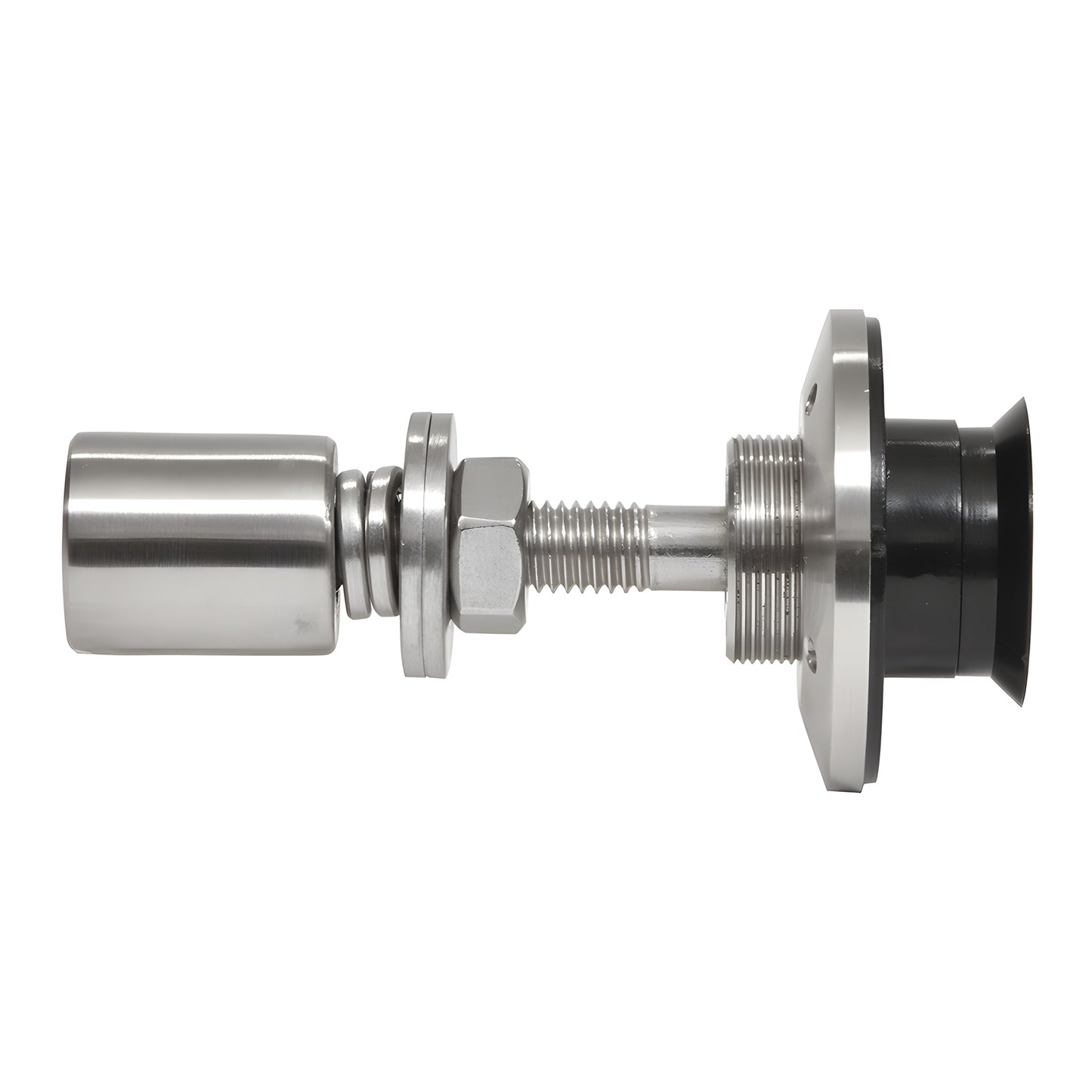

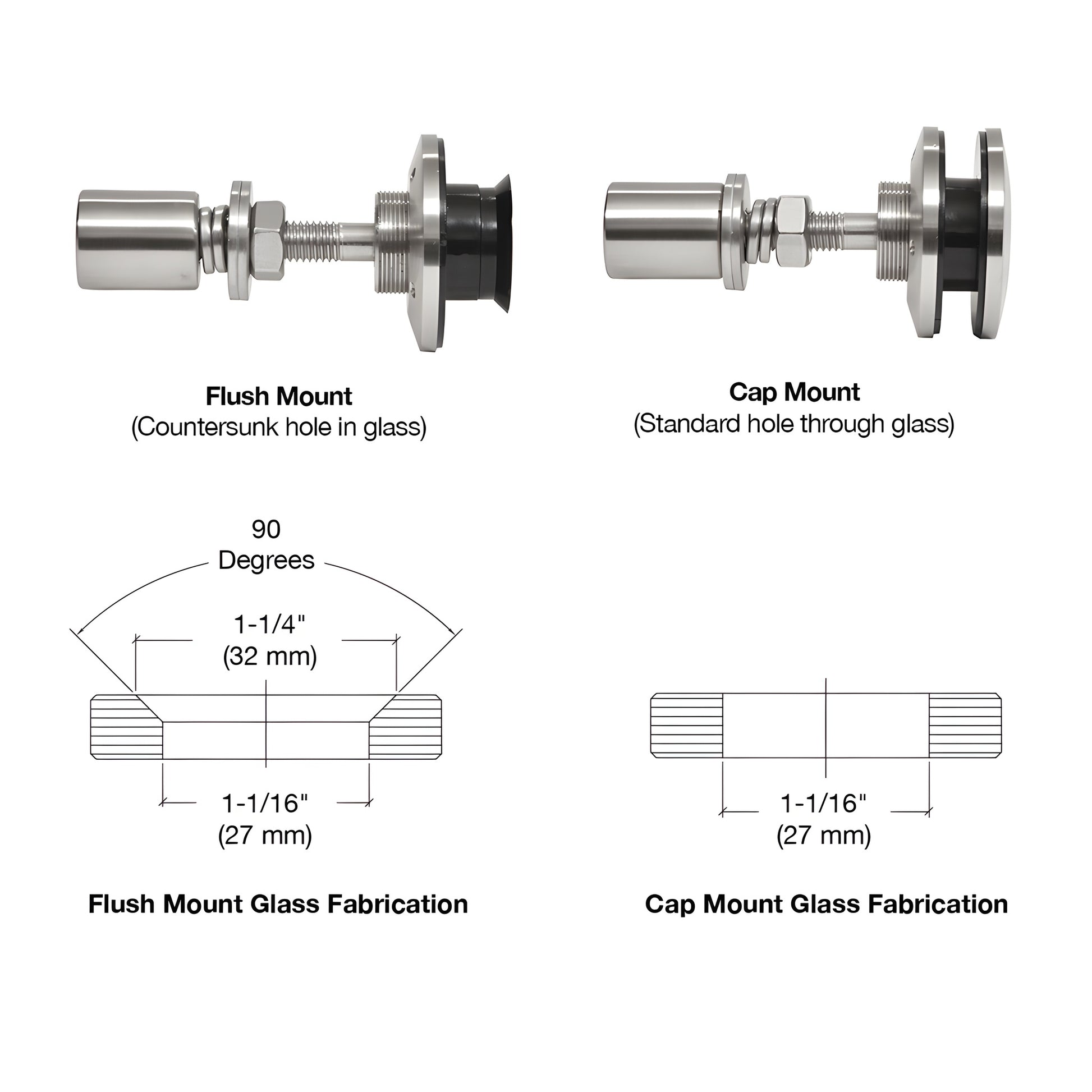

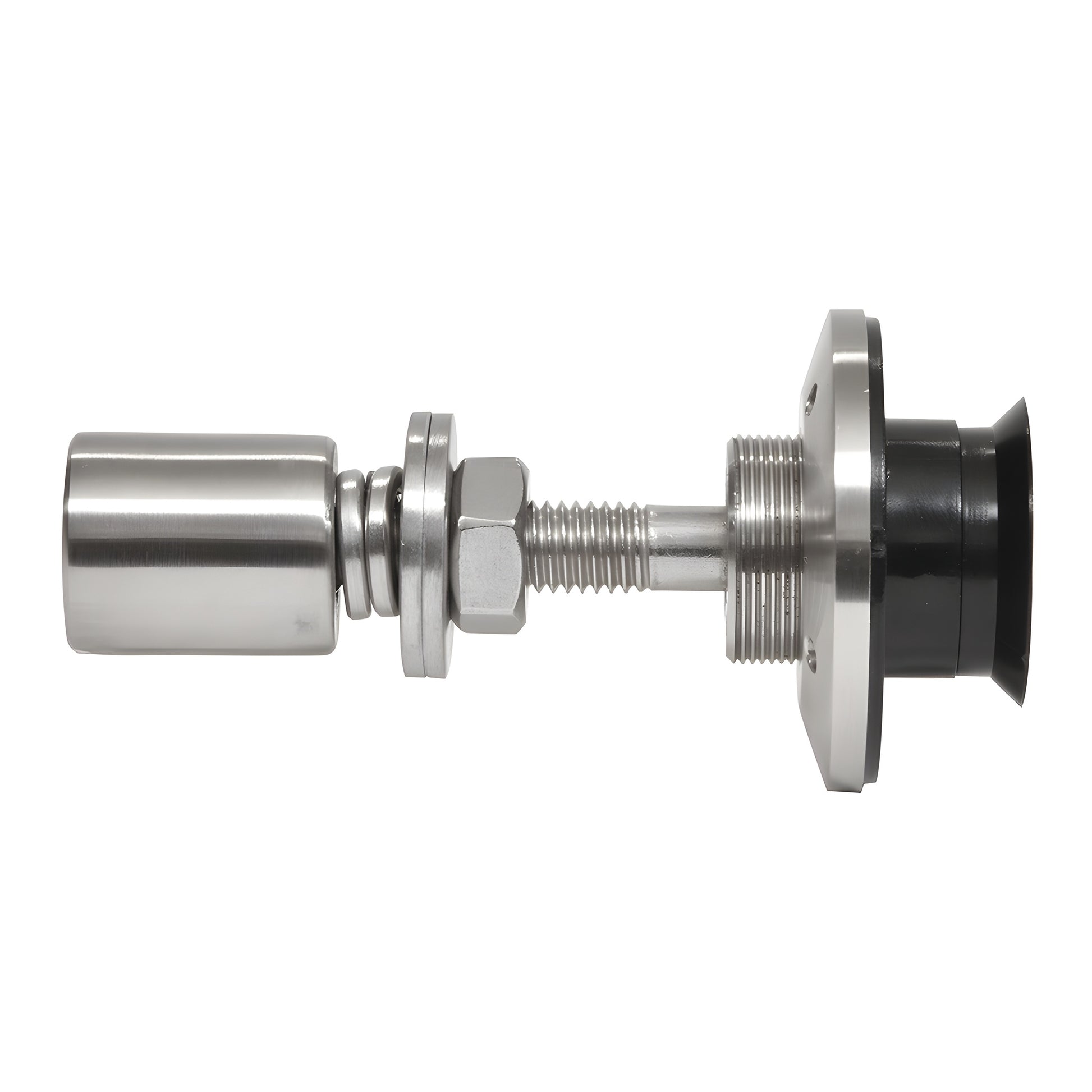

The swivel head fitting uses CRL's Combination Glass Attachment design for dual-purpose mounting: flush mounting for a smooth exterior when the glass has a countersunk hole, or cap-style mounting using the supplied adaptor washer with a standard hole. This one fitting provides versatile glass hardware options for flush or surface mount glass installations.

NOTE: Either the rigid head or swivel head Combination Glass Attachments can be used with all Regular Duty or Mini Spider Fittings.

NOTE: For flush mount installations, provide your glass fabricator with a sample Flush Mount Glass Attachment to ensure a proper fit.

Product Warning:

Do not use with annealed or raw glass.

Stainless Steel Advisory:

SKU: RSF10BS — Purchase this swivel glass attachment in 316 stainless steel for durable, attractive glass hardware. Order now or contact CRL for help selecting the right fit.
