CRL 36" Automatic Door Bottom Seal - Commercial Heavy-Duty
CRL 36" Automatic Door Bottom Seal - Commercial Heavy-Duty
Regular price
$278.50 CAD
Regular price
Sale price
$278.50 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 76NGA36
Shipping Weight: 1.4 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.4 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Automatic Door Bottom
Yes
Finish/Color
Aluminum

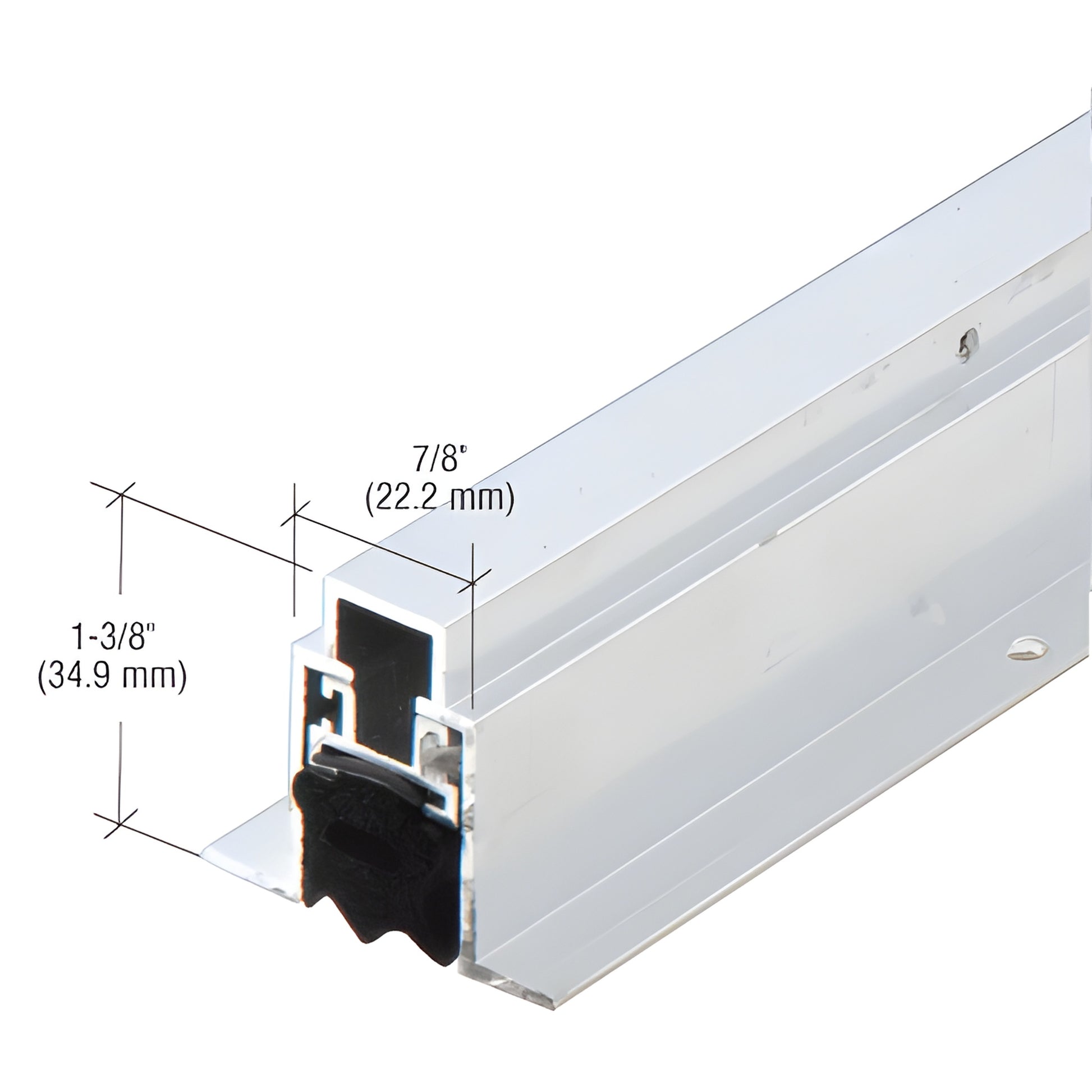

Full Height
1-3/8
Width
7/8
Overview
- For Mortise Applications
- Length Can Be Cut Down in Length Up to 2" (51 mm)
This CRL Commercial Heavy-Duty Automatic Door Bottom (SKU: 76NGA36) is a mechanically actuated, mortised automatic door bottom designed to create a reliable threshold seal. An internal carrier bar with a vinyl insert drops from a concealed cavity to form a tight seal between the door base and threshold—ideal as an automatic threshold seal for carpeted interiors where the door bottom must retract upward when opened. Supplied with a frame "actuator" protector plate, the unit is field reversible for either door hand.
Note: Actuation of the inner drop-down bar functions properly only when the door bottom is installed. Manual testing before installation will only drop the back of the bar; proper operation occurs when the back edge (near the hinge side) contacts the sill and the front edge then drops to create the seal. Fine-tune seal compression using the threaded hex plunger—back out the plunger to increase pressure against the sill. This adjustable drop seal provides dependable performance and easy on-site tuning for optimal weatherproofing.
