CRL 48" Matte Black Upward-Locking Ladder Pull Door Handle
CRL 48" Matte Black Upward-Locking Ladder Pull Door Handle
Regular price
$2,255.87 CAD
Regular price
Sale price
$2,255.87 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# LLPUA48MBL
Shipping Weight: 12.125 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 12.125 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Adaptor For 1 3/4 Inch Thick Doors
LLPA134ADT
Diameter
1-1/4 in. (32 mm)
Finish/Color
Matte Black
Glazing Thickness
3/4 in. (19 mm)
Mounting Points
2
Mounting Type
Back-to-Back
Overall Length
48 in. (1219 mm)
Overview
- Locks Into the Ceiling Only
- A.D.A. Compatible Thumbturn
- Adaptor Kits Available for Use on 1-3/4" (45 mm) Thick Doors - LLPA134ADT
- Lock Operates at a Comfortable 42" (1.07 m) Above the Floor
- 1-1/4" (32 mm) Diameter Alloy Available in 316 Brushed or Polished Stainless Steel Tubing
- A.D.A. Compliant Models Available - Ask for a Quote Here

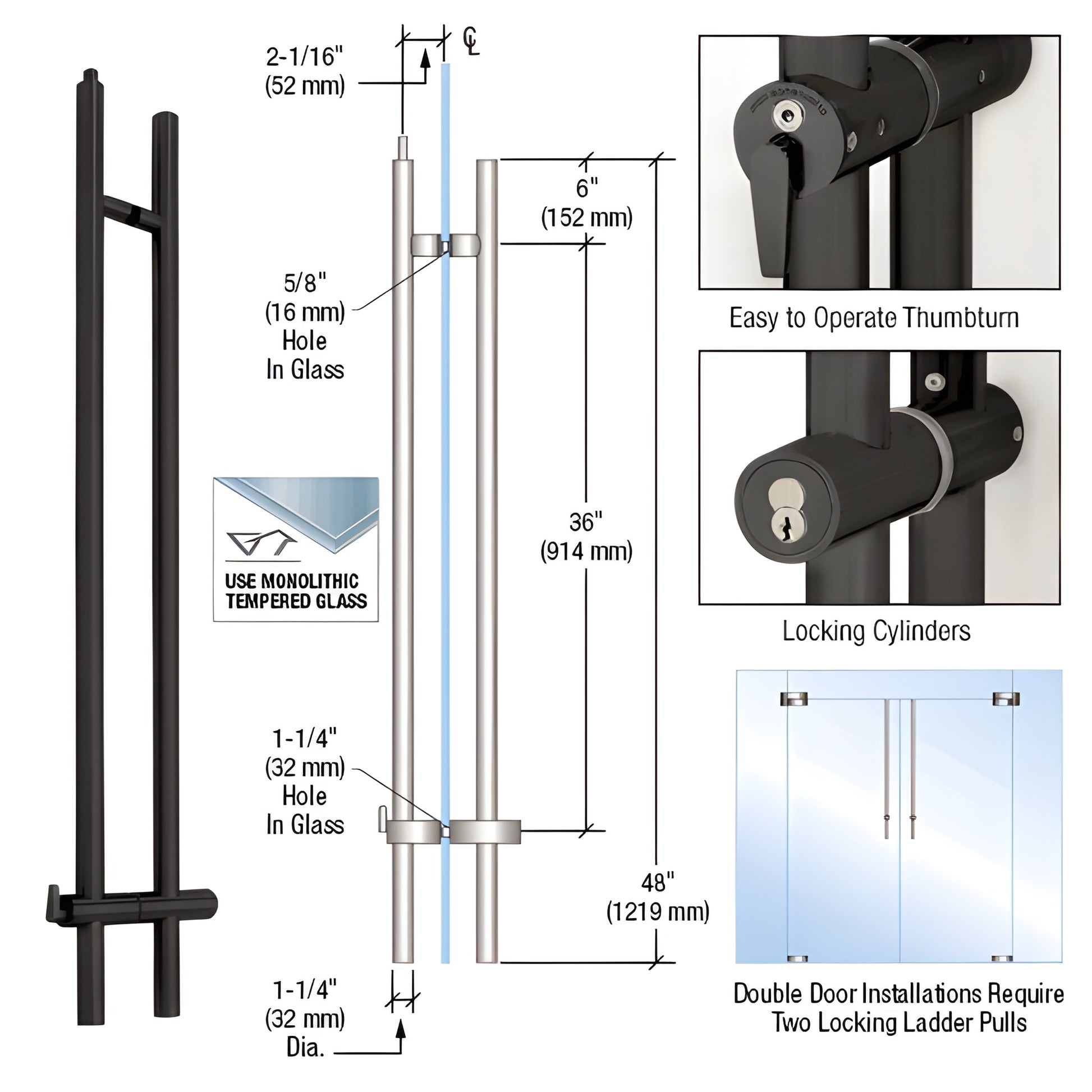

Our CRL LLPUA Series Upward Locking Ladder Pulls (SKU: LLPUA48MBL) feature a fully concealed deadbolt that locks into the ceiling—no floor strike required. Designed for 1/2" to 3/4" (12 to 19 mm) tempered glass doors, the upward locking ladder pull provides comfortable operation at about 42" (1.07 m) above the finished floor and includes an A.D.A. compatible thumbturn for accessible use. Available in brushed or polished 316 stainless steel tubing, the pull is a durable choice for commercial glass doors and storefronts seeking a clean, vandal-resistant upward locking solution.
This Upward Locking Ladder Pull ships with a standard 7-pin Rim Cylinder with Interchangeable Core (easy to remove, re-key, or replace). If a different cylinder is required, remove the supplied Rim Cylinder and install the appropriate rim type—this ladder pull accepts most standard manufactured rim cylinders. A selection of 7-pin cores is available; proprietary 6-pin cylinders can be substituted as needed.
NOTE: Glass fabrication is required. Push/pull indicators in complementary finishes and dustproof keepers are sold separately.
Specifications
CAD Drawings - dwg
