CRL 316 Stainless 48-inch Upward Locking Marine Ladder Pull
CRL 316 Stainless 48-inch Upward Locking Marine Ladder Pull
Regular price
$2,105.32 CAD
Regular price
Sale price
$2,105.32 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# LLPUA48PS
Shipping Weight: 12.125 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 12.125 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Adaptor For 1 3/4 Inch Thick Doors
LLPA134ADT
Diameter
1-1/4 in. (32 mm)
Finish/Color
Polished Stainless Steel
Glazing Thickness
3/4 in. (19 mm)
Material
316 Stainless Steel
Mounting Points
2
Mounting Type
Back-to-Back
Overall Length
48 in. (1219 mm)
Overview
- Locks into the ceiling only — no floor receiver required
- A.D.A. compatible thumbturn mounted at comfortable 42" (1.07 m) above finished floor
- Adaptor kit available for 1-3/4" (45 mm) thick doors: LLPA134ADT
- Designed for 1/2" to 3/4" (12–19 mm) tempered glass doors
- 1-1/4" (32 mm) diameter alloy tubing — available in 316 brushed or polished stainless steel
- Custom sizes ship within one to two weeks
- A.D.A. compliant models available — request a quote

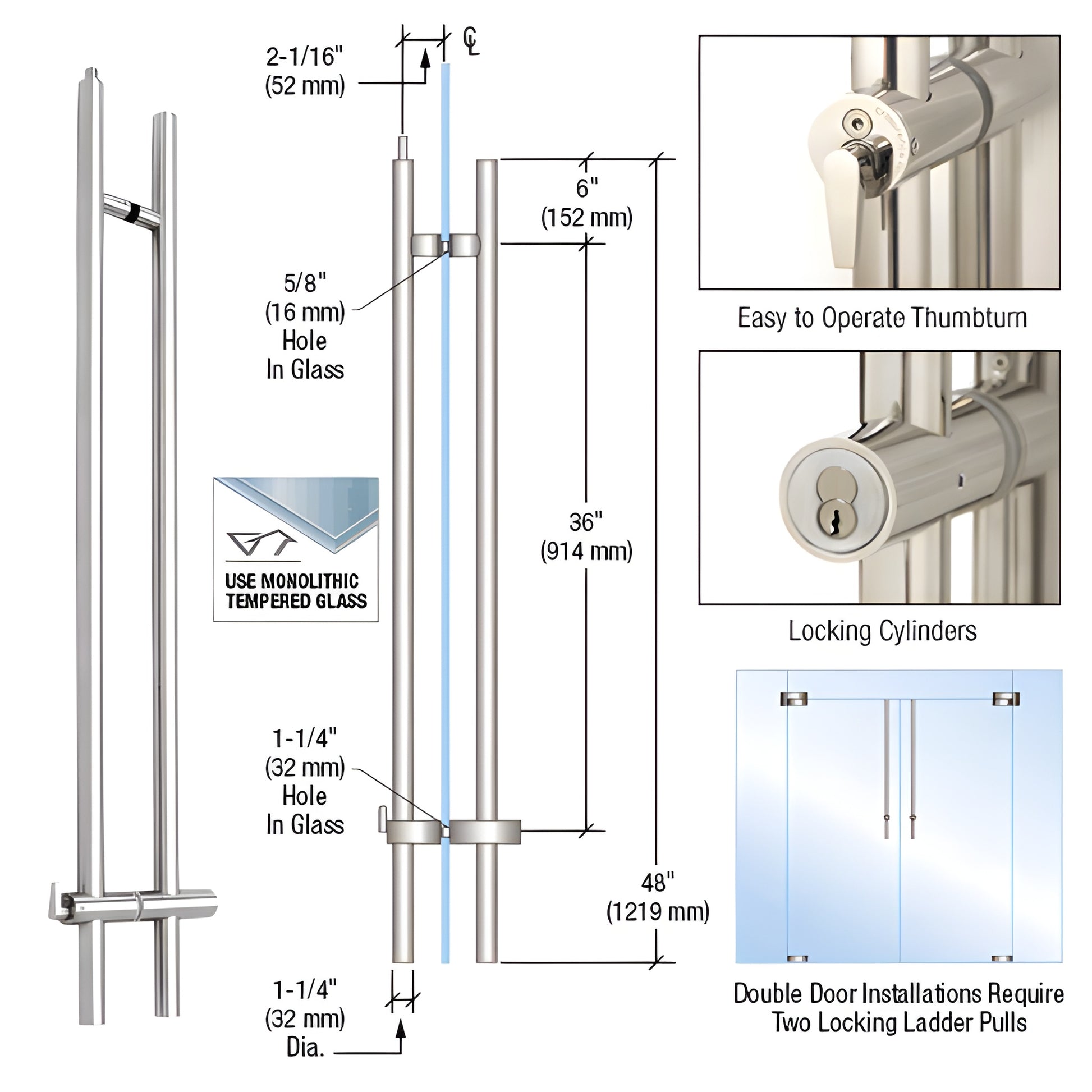

Our CRL LLPUA Series Upward Locking Ladder Pulls (SKU: LLPUA48PS) feature a fully concealed deadbolt that locks into the ceiling for clean aesthetics and easier operation. Ideal for glass doors, this upward locking ladder pull eliminates bending or reaching — simply use the key or ADA-compatible thumbturn at a comfortable height. Available in brushed or polished 316 stainless steel finishes for corrosion resistance and a premium appearance.
This ladder pull is supplied with a standard 7-pin rim cylinder with interchangeable core (IC) for easy rekeying or temporary use. The unit accepts most standard rim-type cylinders; remove and replace the supplied rim cylinder to fit proprietary 6-pin options if required. A selection of 7-pin cores is available.
NOTE: Glass fabrication is required. Push/pull indicators and dustproof keepers sold separately.
Stainless Steel Advisory:
Stainless steel resists corrosion but is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
For pricing, lead times, or to order the LLPUA48PS upward locking ladder pull for glass doors, contact CRL or request a quote today.
Specifications
CAD Drawings - dwg
