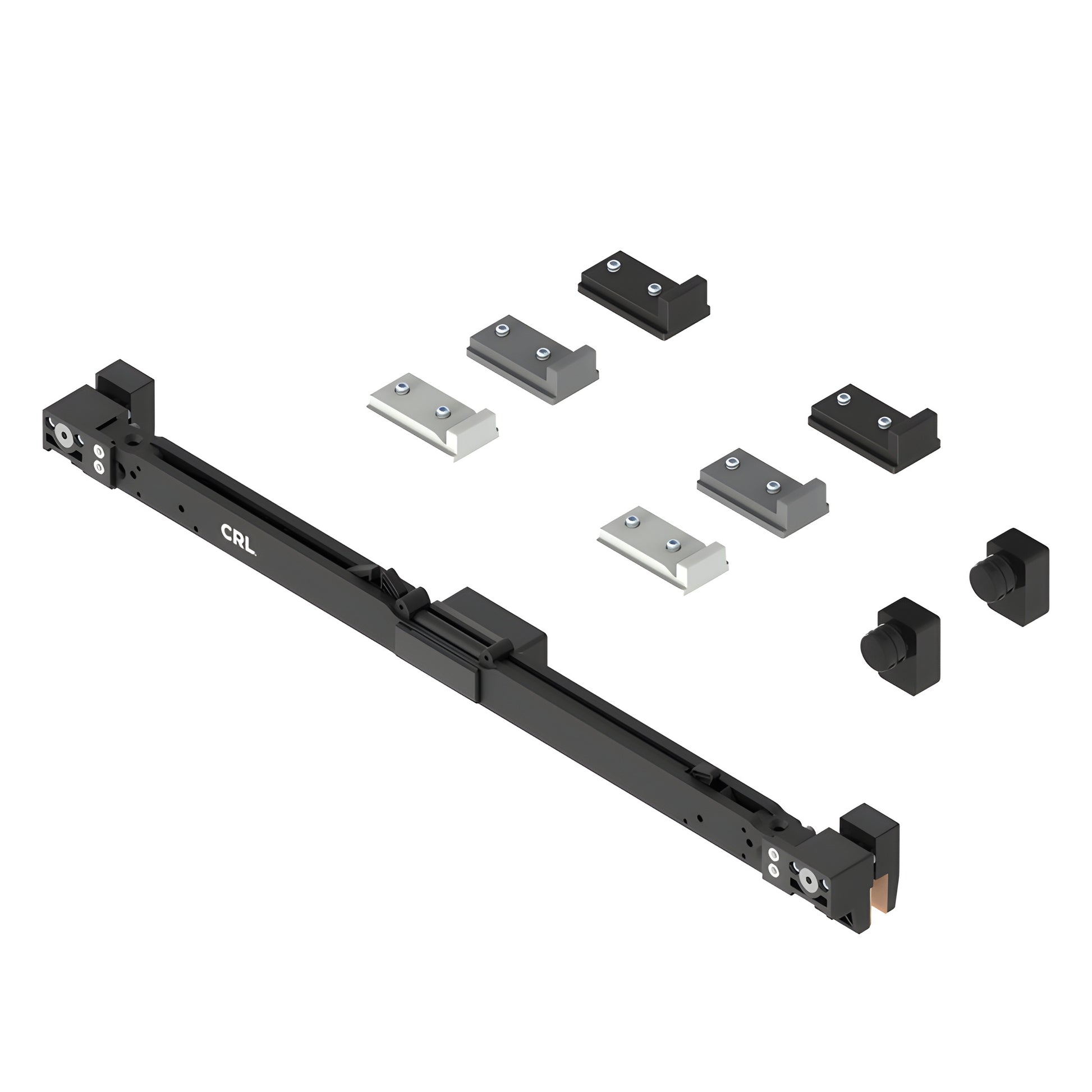

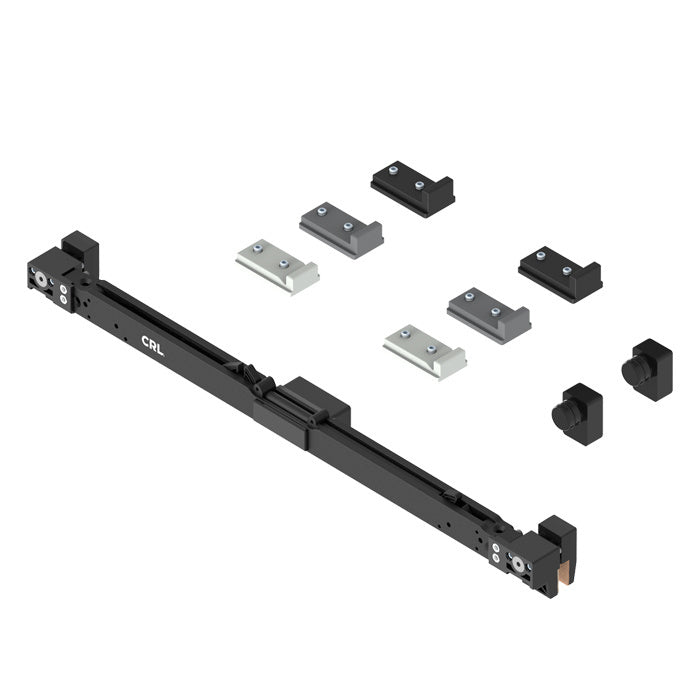

CRL 690 / 695 Series Double Sided Softbrake System
Item# CRL695SBK
Shipping Weight: 0.63
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 0.63
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
- Can Accommodate Properly Installed Doors Weighing Up to 330 Pounds (150 kg)
- Minimum door panel width 34-1/4" (870 mm)
CRL 690 / 695 Series Double Sided Softbrake System come standard with all CRL695 Series kits and can be retrofit to qualified CRL690 Series kits. One softbrake can control the last 4" (102 mm) of travel of a sliding door panel in either one or in both directions.
Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Installation Instructions
Specifications
CAD Drawings - dwg
