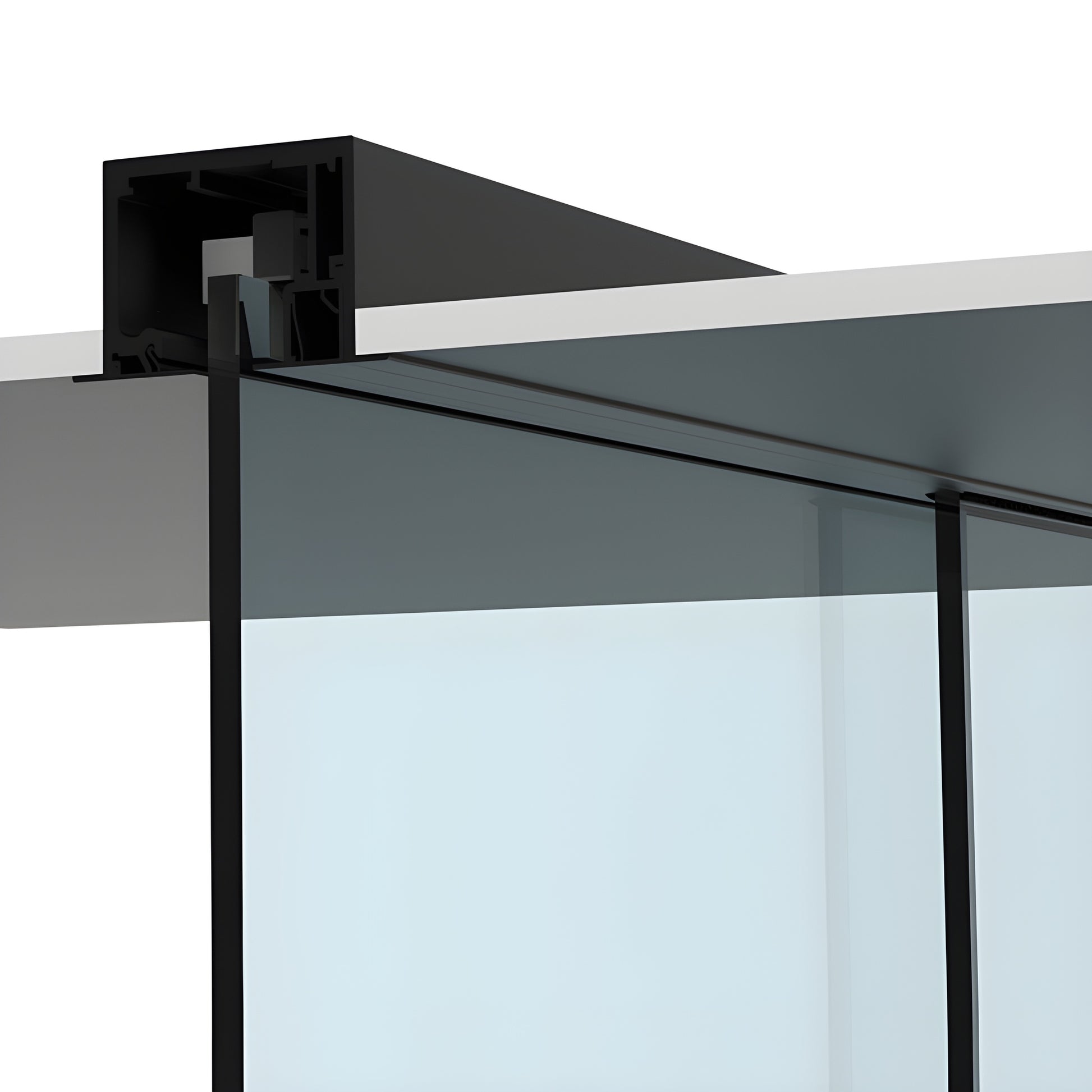

• Matte black CRL6901DMBL heavy-duty 118 in sliding glass door track and hangers for 3/8-1/2 in tempered glass
  • Matte black CRL6901DMBL heavy-duty 118 in sliding glass door track and hangers for 3/8-1/2 in tempered glass
  • Matte black CRL6901DMBL heavy-duty 118 in sliding glass door track and hangers for 3/8-1/2 in tempered glass
1 3

CRL

CRL 690 Matte Black Top-Hung Sliding Glass Door Kit with Fixed Panel

CRL 690 Matte Black Top-Hung Sliding Glass Door Kit with Fixed Panel

$2,067.78 CAD
$2,067.78 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# CRL6901DMBL
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Matte Black
Glazing Thickness
3/8 in. To 1/2 in. (10 mm To 12 mm)
Track Length
118 in. (3000 mm)

Overview

  • Kits intended for 3/8" to 1/2" (10 to 12 mm) monolithic tempered glass
  • Supports properly installed sliding doors weighing up to 330 pounds (150 kg)
  • Rollers provide up to 1/4" (6 mm) vertical adjustment for post‑installation door alignment
  • Track length: 118" (3 m)
  • Designed for commercial tempered glass sliding door installations and residential heavy‑duty applications

CRL 690 Series Sliding Door Kits (SKU: CRL6901DMBL) are available in wall mount, ceiling mount, and drop ceiling mount models, with or without a sidelite and with or without the optional "Softbrake" braking system. Kits include all hardware except the tempered glass and pull hardware. Available finishes: satin anodized, brushed stainless anodized, and matte black, with special‑order options to clad or powder coat in many architectural finishes. Contact CRL Technical Sales for commercial kit selection or installation assistance.

Minimum sliding panel width: 23-5/8" (600 mm). Existing CRL690 Series installations can be upgraded to the CRL695 Series by ordering CRL695SBK Softbrake kits (minimum door panel width 34-1/4" / 870 mm).

Kit Contains:
  • 118" (3 m) CRL4930EXT Track kit
  • 1 set CRL6939 Top Hangers
  • 1 set CRL6942 Roller Stops
  • 1 set CRL4937 End Caps
  • 1 set CRL2945 Door Edge Guards
  • 1 set CRL290TF Top Track Insert Fasteners
  • 1 each CRL Bottom Guide

Most shipping weights are approximate and have not been verified. If exact weight is needed to determine shipping costs, request this prior to submitting your order by contacting CRL Customer Service. Product images are of the actual product or a close representation; colors may vary by monitor.


Key differentiators: heavy‑duty 330 lb capacity, adjustable rollers for precise alignment, optional Softbrake upgrade, and multiple architectural finish options. Order SKU CRL6901DMBL or contact us for a quote and installation support.
