CRL 690 Series Matte Black Wall/Ceiling Mount Sliding Door with Fixed Panel Kit
Item# CRL6901MBL
Shipping Weight: 0.01
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 0.01
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
- Finish/Color:Matte Black
- Glazing Thickness3/8 in. To 1/2 in. (10 mm To 12 mm)
- Track Length118 in. (3000 mm)
- Kits Intended for 3/8" To 1/2" (10 To 12 mm) Tempered Glass
- Can Accommodate Properly Installed Doors Weighing Up to 330 Pounds (150 kg)
- Rollers Have Up to 1/4" (6 mm) of Vertical Adjustment to Aid in Door Alignment After Installation
- Track Length is 118" (3 m)
- Use Monolithic Tempered Glass
CRL 690 Series Sliding Door Kits are available in wall mount, ceiling mount, and drop ceiling mount models, with or without a sidelite and with or without the "Softbrake" braking system. All come with everything you need except the tempered glass and pull hardware. Kits are available in satin anodized, brushed stainless anodized, and matte black finishes with a special order option to clad or powder paint in many architectural finishes. Contact CRL Technical Sales for Commercial Products for kit selection or installation assistance.
Minimum sliding panel width of 23-5/8" (600 mm). Existing CRL690 Series installations can be easily upgraded to CRL695 Series by ordering CRL695SBK Softbrake kits, minimum door panel width 34-1/4" (870 mm).
Kit Contains:
Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Installation Instructions
Specifications

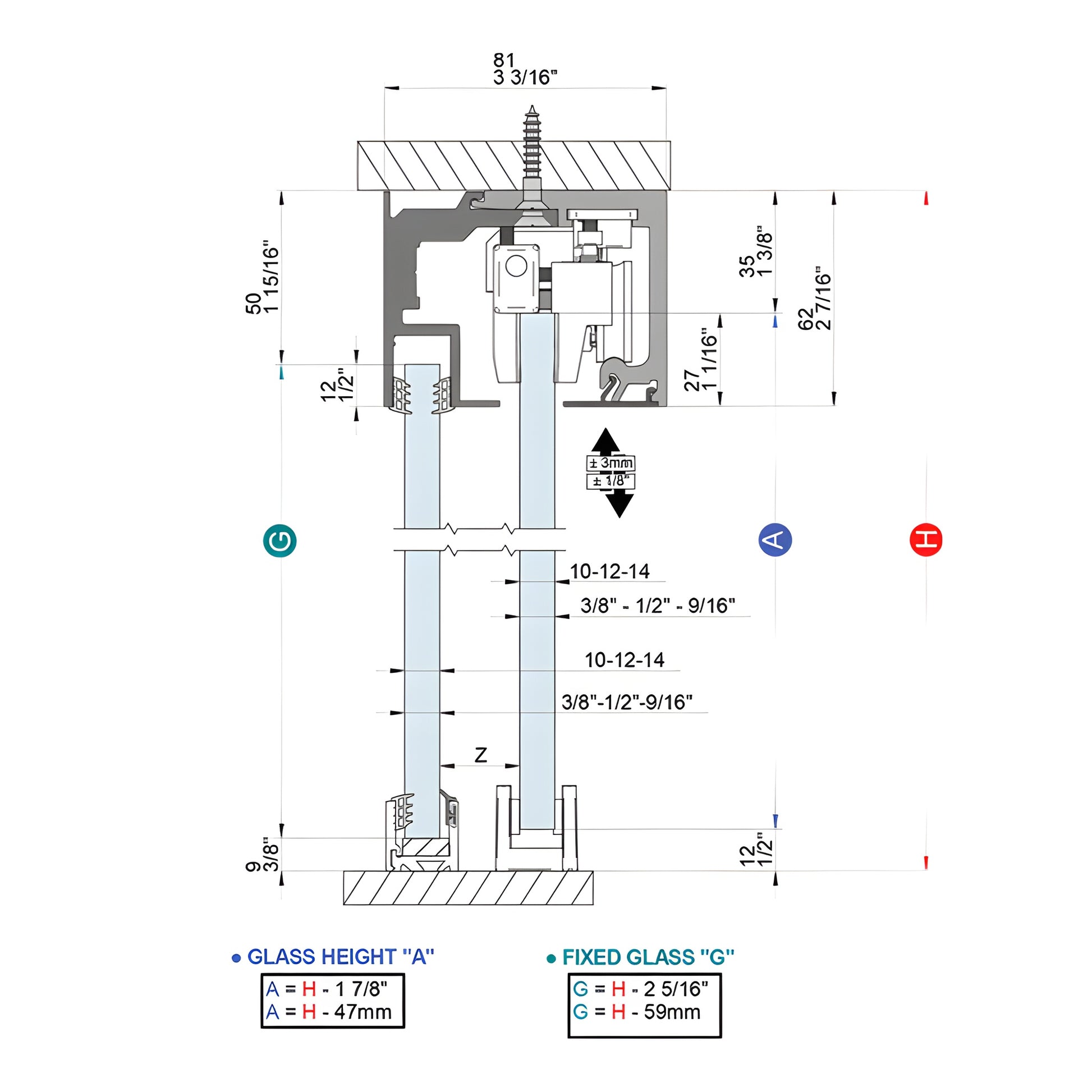

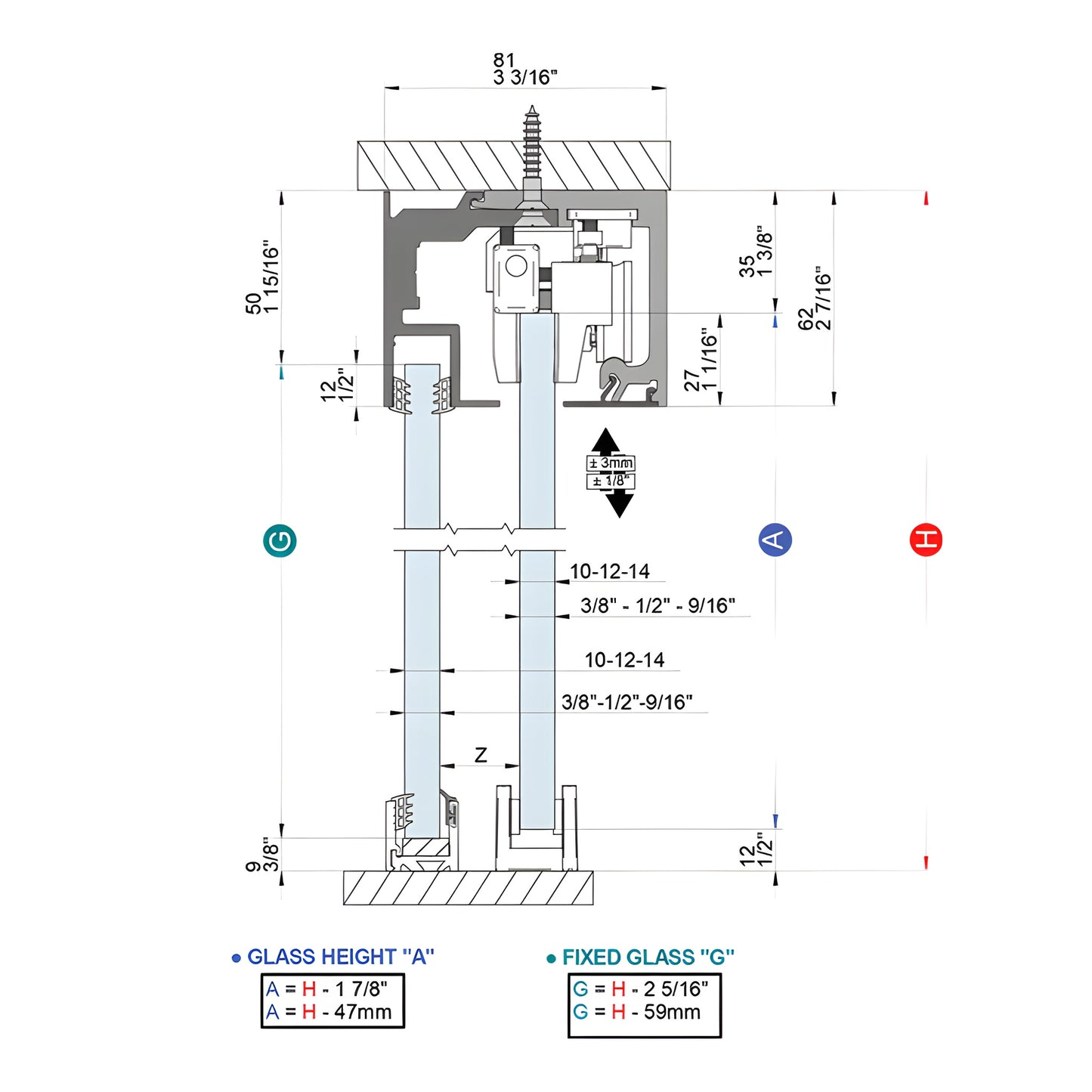

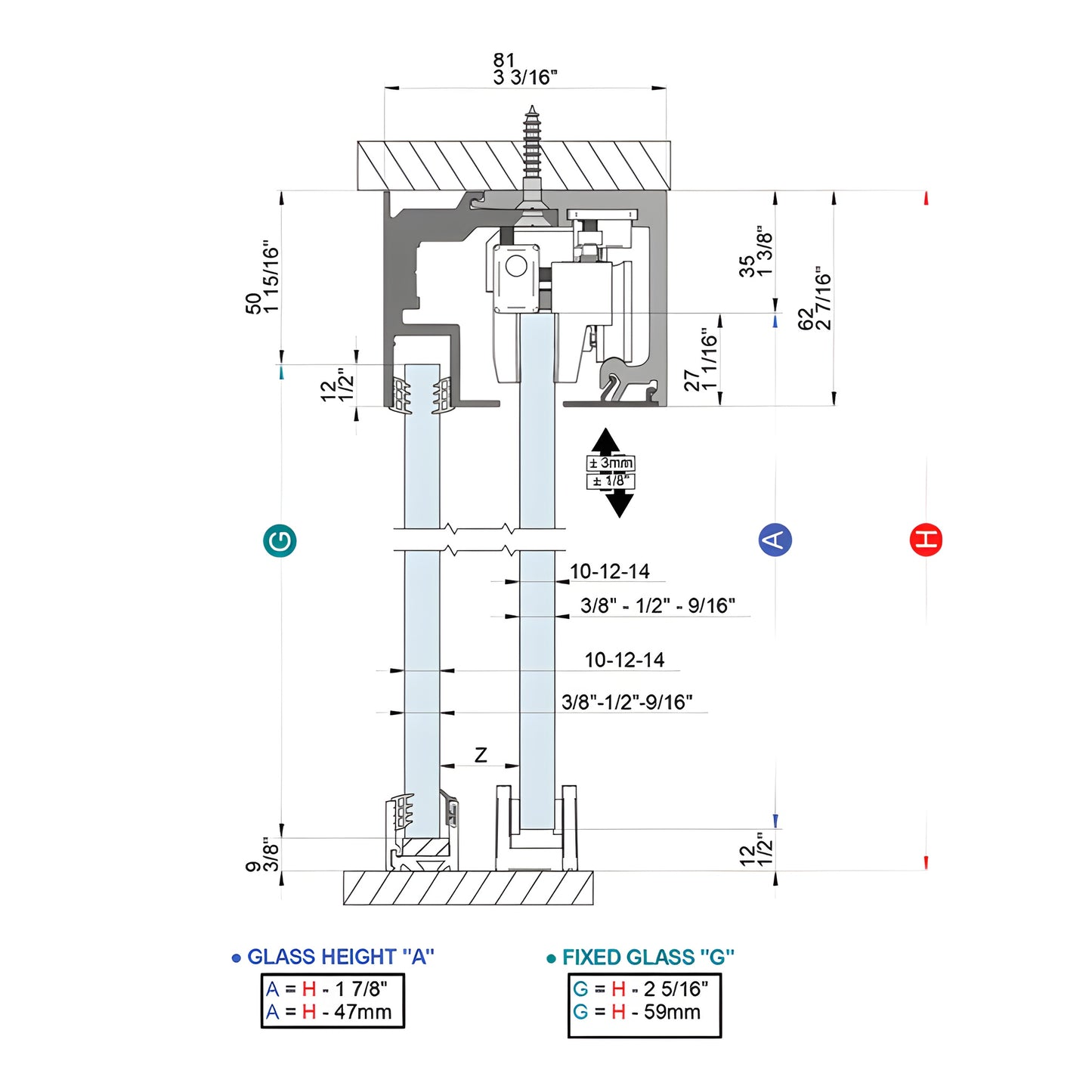

CAD Drawings - dwg
