CRL 690 Series Matte Black Wall/Ceiling Sliding Door Hardware Kit
CRL 690 Series Matte Black Wall/Ceiling Sliding Door Hardware Kit
Regular price
$1,586.38 CAD
Regular price
Sale price
$1,586.38 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CRL690MBL
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Matte Black
Glazing Thickness
3/8 in. To 1/2 in. (10 mm To 12 mm)
Length
118 in. (2997 mm)
Track Length
118 in. (3000 mm)
Overview
- Kits intended for 3/8" to 1/2" (10 to 12 mm) monolithic tempered glass
- Supports properly installed sliding glass doors up to 330 pounds (150 kg)
- Rollers provide up to 1/4" (6 mm) vertical adjustment for post-install door alignment
- 118" (3 m) heavy-duty track length for commercial sliding glass doors
- Designed for monolithic tempered glass applications

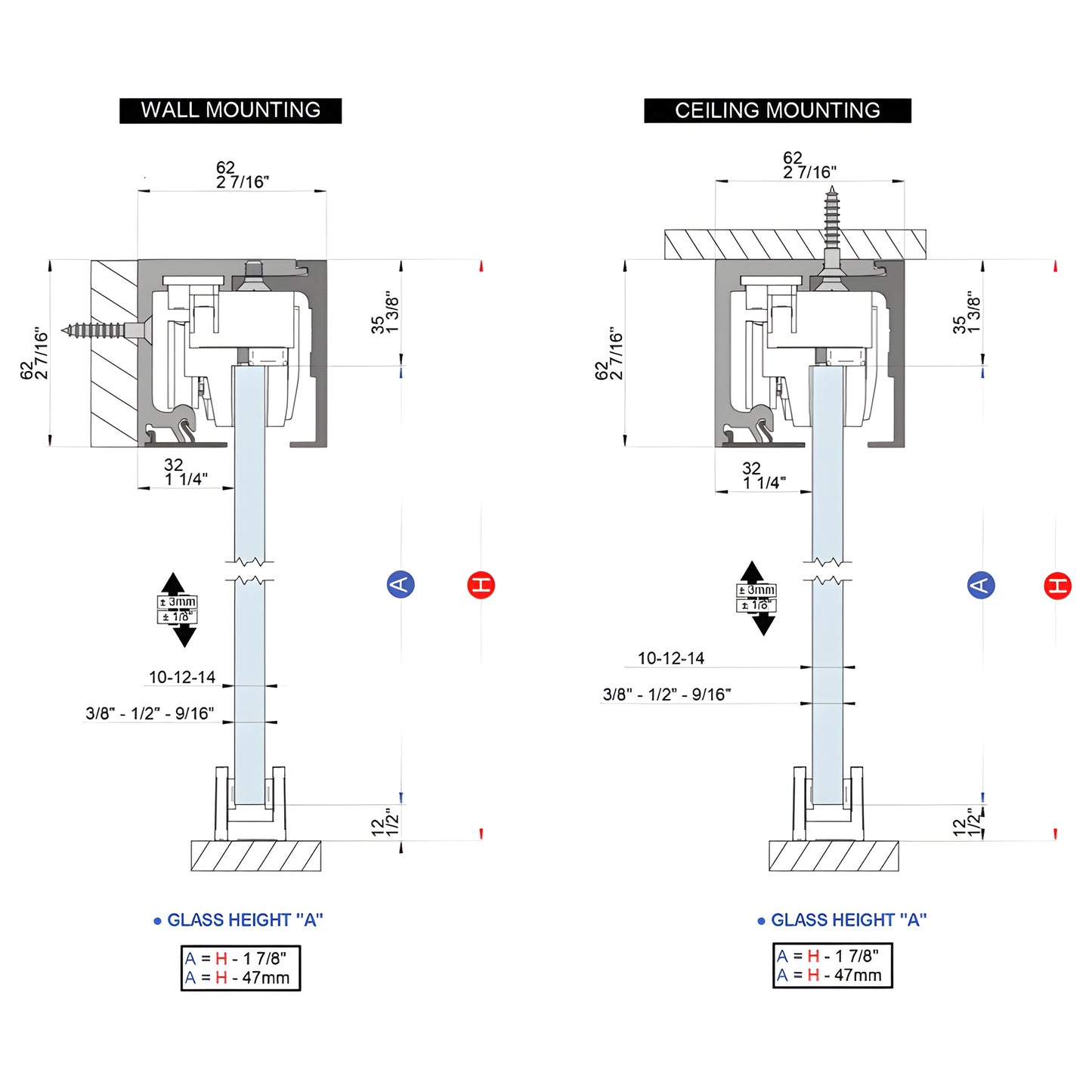

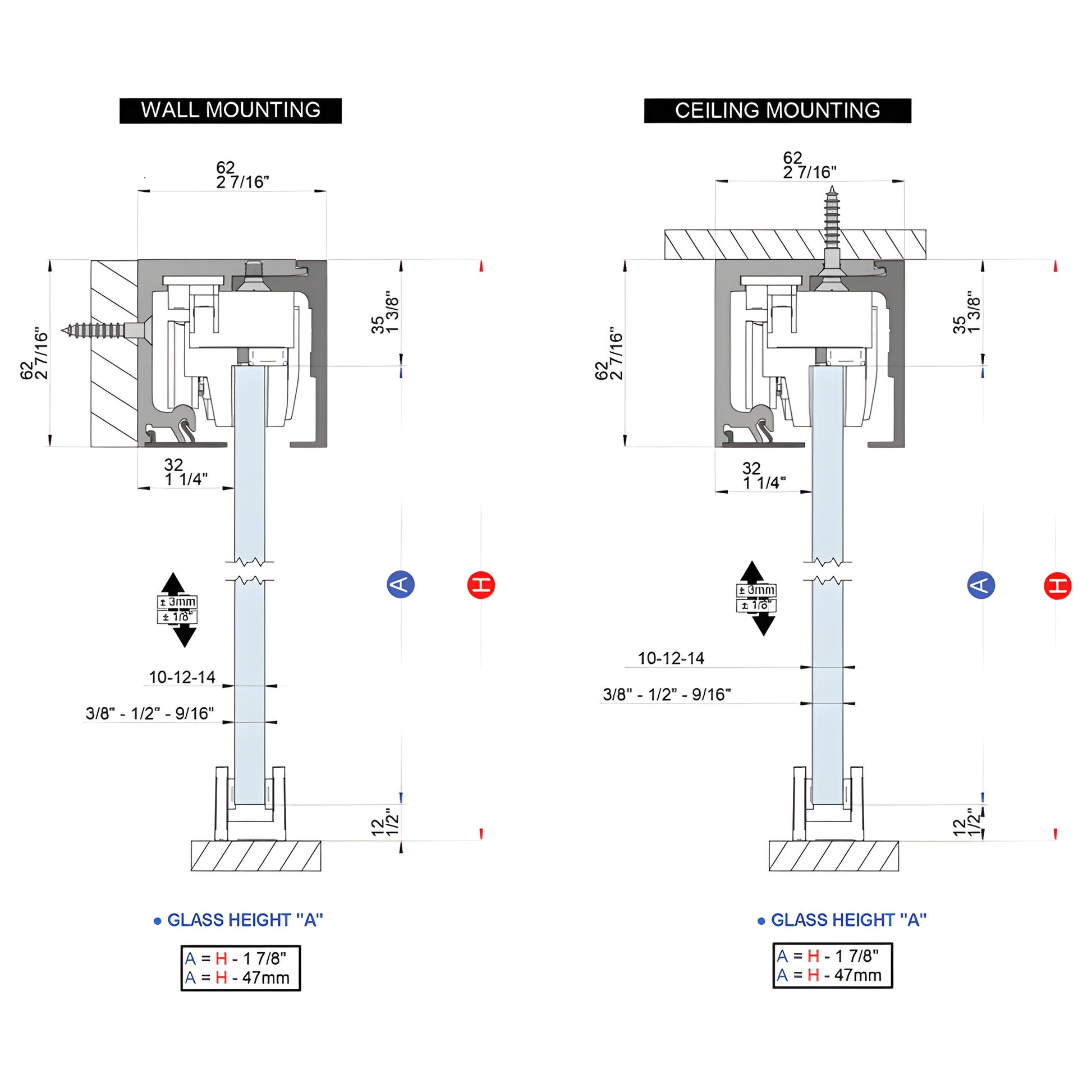

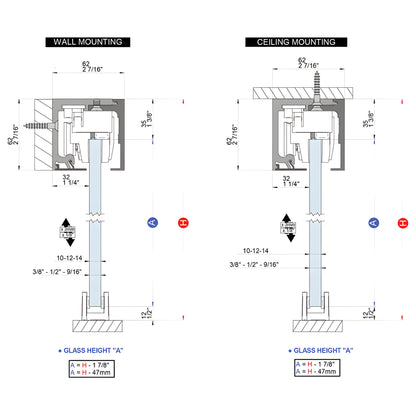

CRL 690 Series Sliding Door Kits (SKU: CRL690MBL) are commercial-grade sliding glass door kits available in wall-mount, ceiling-mount, and drop-ceiling mount configurations. Options include models with or without a sidelite and with or without the CRL695SBK "Softbrake" braking upgrade. Kits ship complete except for tempered glass and pull hardware. Available finishes: satin anodized, brushed stainless anodized, and matte black, with special-order cladding or powder-coat color options. Contact CRL Technical Sales for commercial kit selection and installation support.
Minimum sliding panel width: 23-5/8" (600 mm). Existing CRL690 Series installations can be upgraded to the CRL695 Series Softbrake using CRL695SBK kits (minimum door panel width 34-1/4" / 870 mm).
Kit Contains:
- 118" (3 m) CRL4930EXT track kit
- 1 set CRL6939 top hangers
- 1 set CRL6942 roller stops
- 1 set CRL4937 end caps
- 1 set CRL2945 door edge guards
- 1 set CRL290TF top track insert fasteners
- 1 each CRL bottom guide
Durable, adjustable hardware engineered for commercial sliding glass doors—order CRL690MBL today for a reliable tempered glass sliding door solution.
