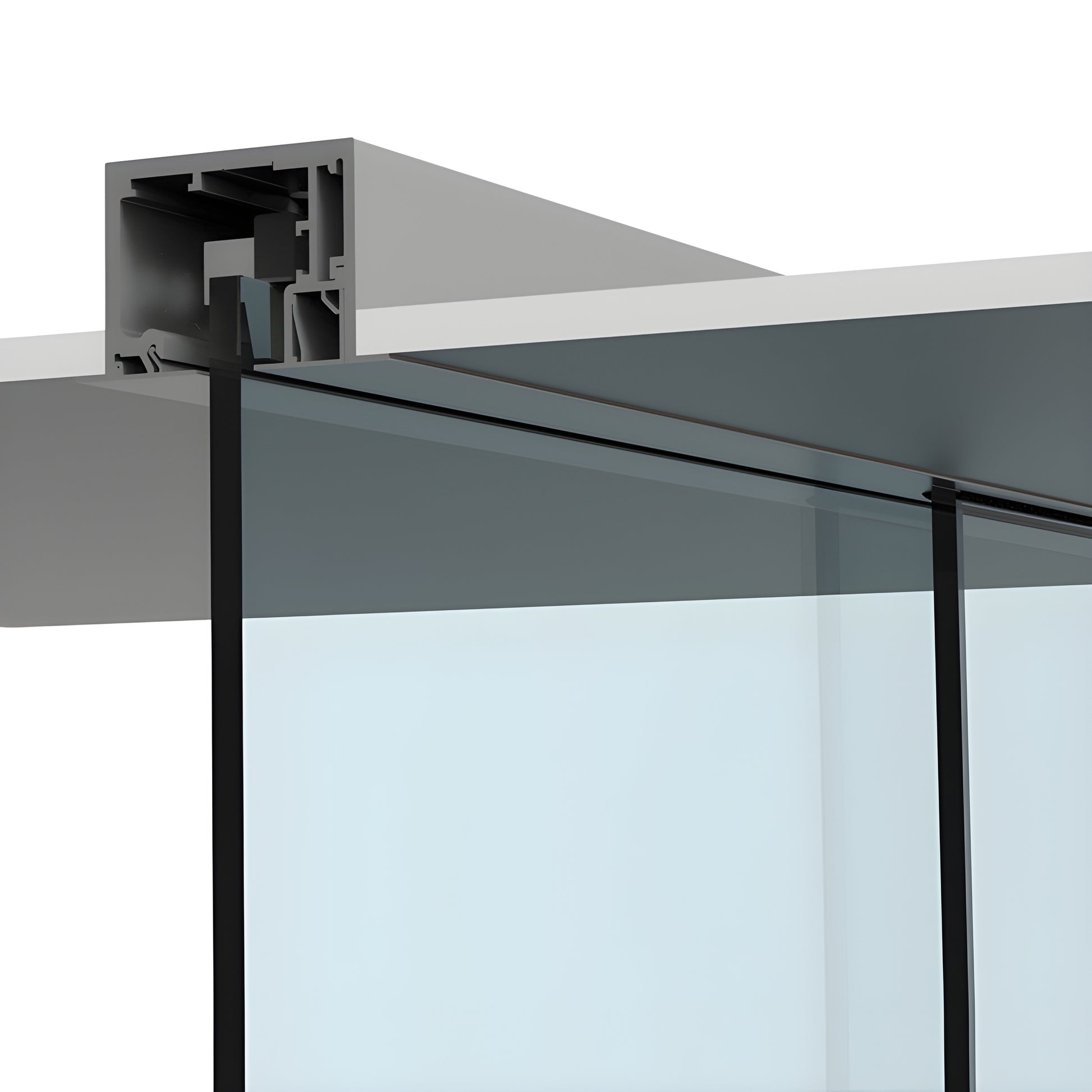

• CRL6901D satin anodized top-mounted 118" sliding glass door track with tempered glass panel and black hardware
  • CRL6901D satin anodized top-mounted 118" sliding glass door track with tempered glass panel and black hardware
  • CRL6901D satin anodized top-mounted 118" sliding glass door track with tempered glass panel and black hardware
1 3

CRL

CRL 690 Satin Anodized Drop-Ceiling Sliding Door Kit with Fixed Panel

CRL 690 Satin Anodized Drop-Ceiling Sliding Door Kit with Fixed Panel

$2,165.54 CAD
$2,165.54 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# CRL6901D
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Satin Anodized
Glazing Thickness
3/8 in. To 1/2 in. (10 mm To 12 mm)
Track Length
118 in. (2997 mm)

Overview

  • Kits intended for 3/8" to 1/2" (10 to 12 mm) monolithic tempered glass
  • Supports properly installed door weight up to 330 lb (150 kg)
  • Rollers provide up to 1/4" (6 mm) vertical adjustment for post-install alignment
  • Track length: 118" (3 m)
  • Use monolithic tempered glass

CRL 690 Series Sliding Door Kits (SKU: CRL6901D) are commercial-grade sliding glass door kits available in wall-mount, ceiling-mount, and drop-ceiling-mount configurations. Choose models with or without a sidelite and with or without the CRL695SBK "Softbrake" soft-close braking upgrade. Kits include all hardware except tempered glass and pull hardware. Available finishes: satin anodized, brushed stainless anodized, and matte black; special-order cladding or powder-coat finishes available. Contact CRL Technical Sales for commercial kit selection or installation assistance.


Minimum sliding panel width: 23-5/8" (600 mm). Existing CRL690 Series installations can be upgraded to CRL695 Series Softbrake with CRL695SBK kits (minimum door panel width 34-1/4" / 870 mm).


Kit contains:
  • 118" (3 m) CRL4930EXT track kit
  • 1 set CRL6939 top hangers
  • 1 set CRL6942 roller stops
  • 1 set CRL4937 end caps
  • 1 set CRL2945 door edge guards
  • 1 set CRL290TF top track insert fasteners
  • 1 each CRL bottom guide

Most shipping weights are approximate and have not been verified. If you need exact shipping weight to determine costs, request this prior to ordering by contacting CRL Customer Service. Product images are of the actual product or a close representation; colors may vary by monitor.

Order the CRL 690 Series sliding door kit (CRL6901D) for a heavy-duty, adjustable commercial sliding glass door solution — contact sales to configure your finish and Softbrake option.
