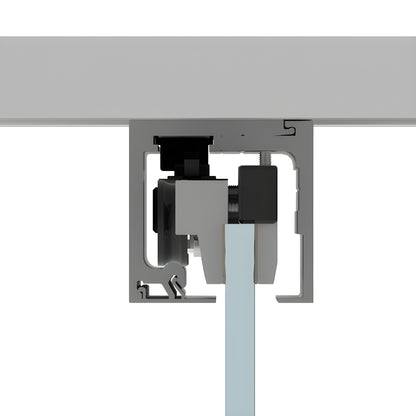

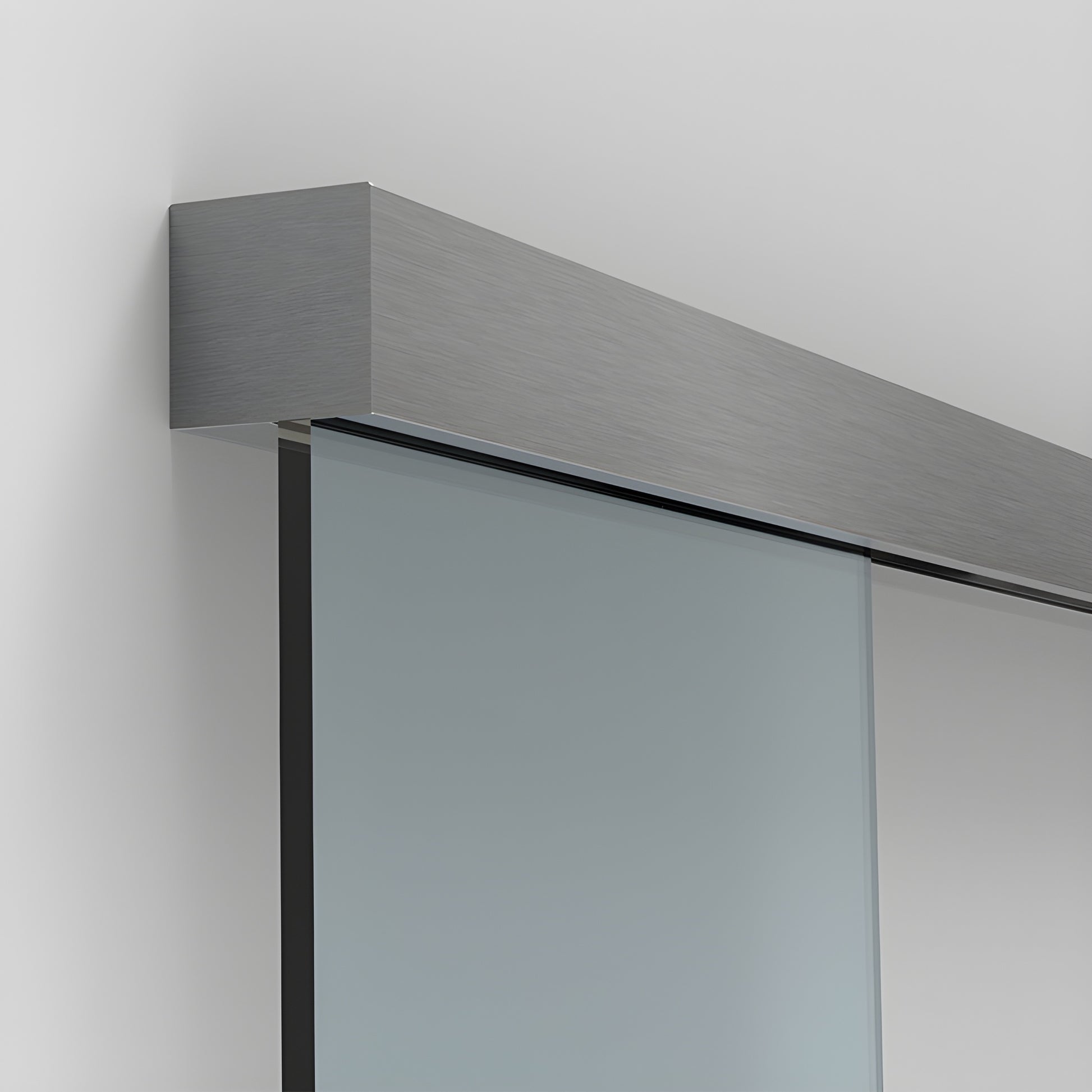

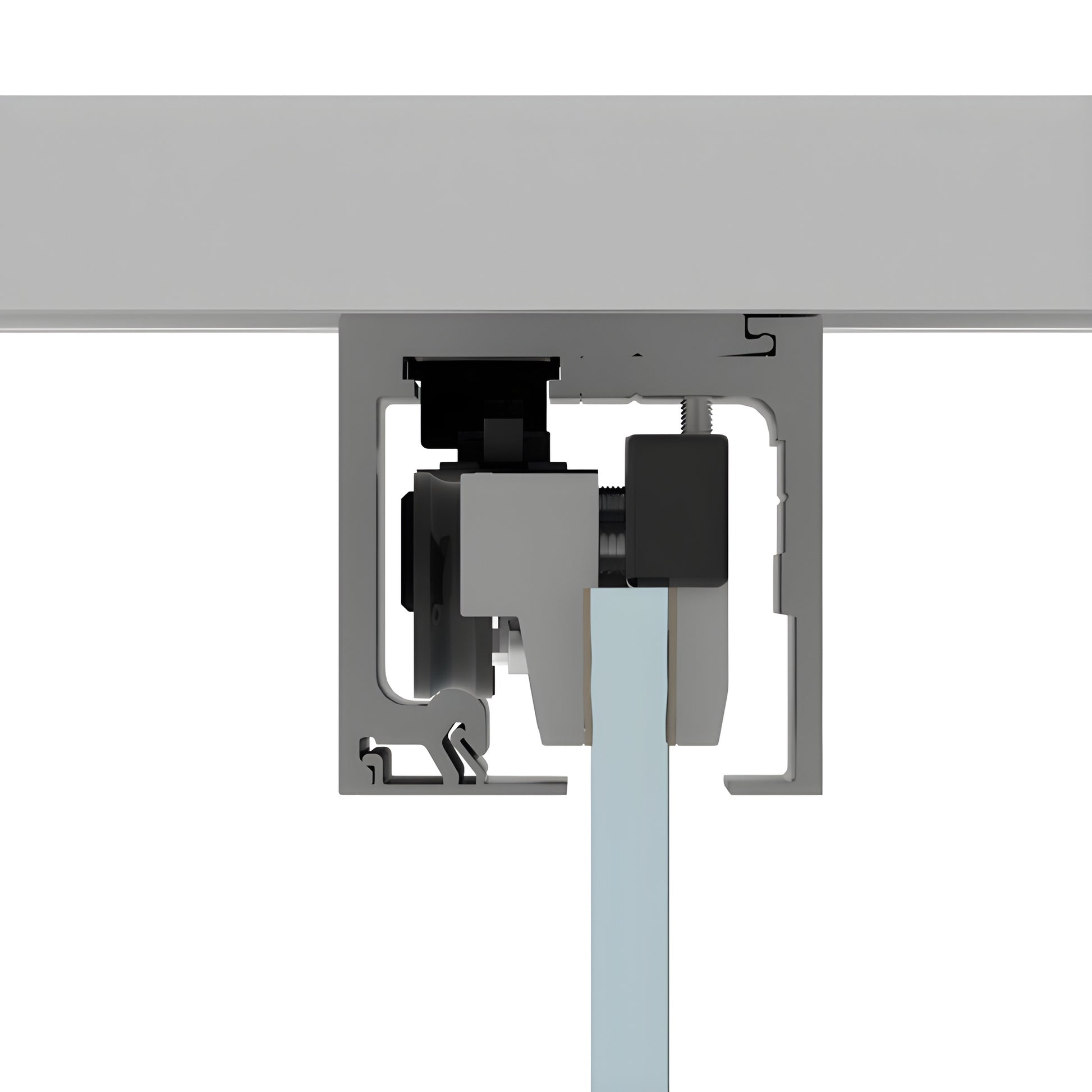

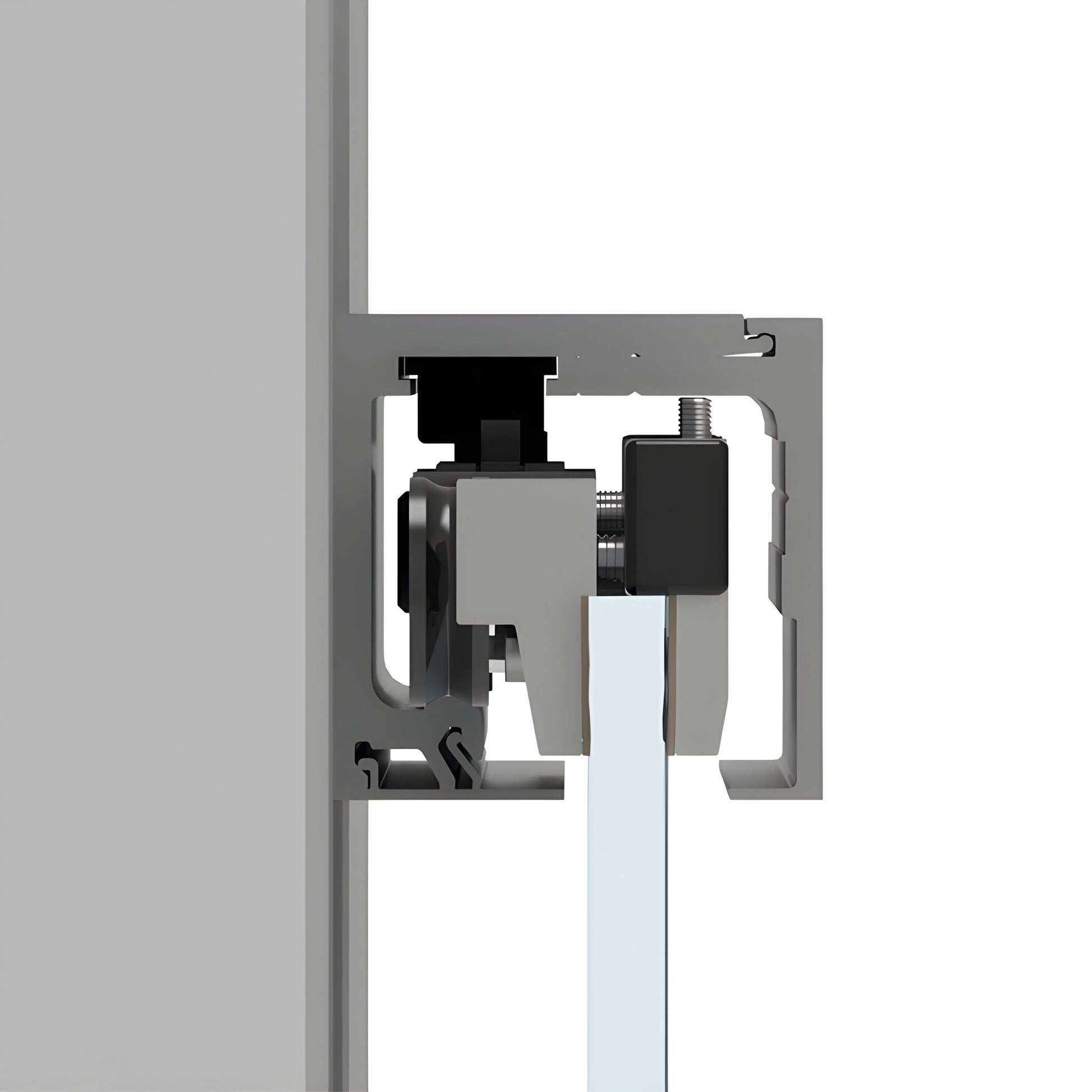

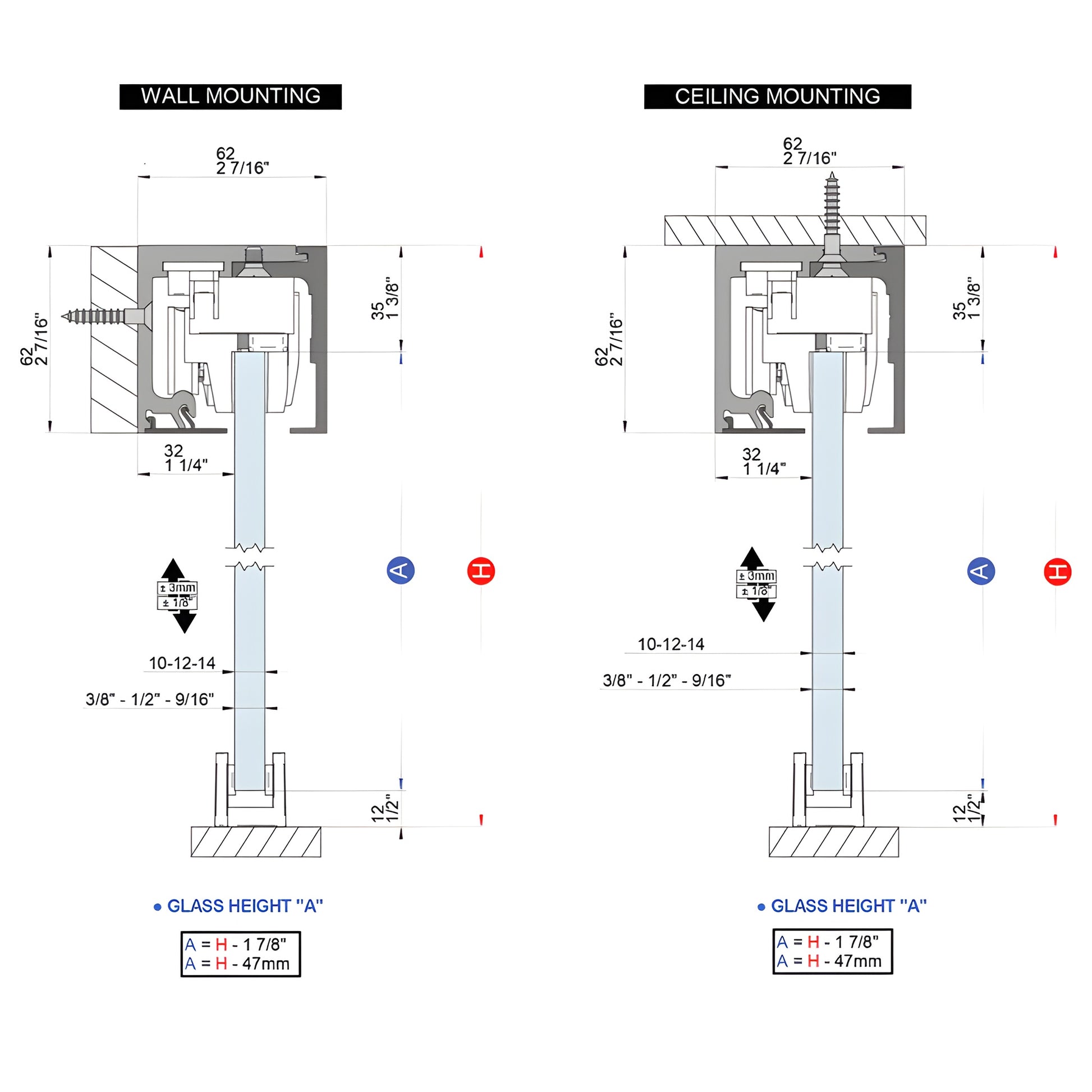

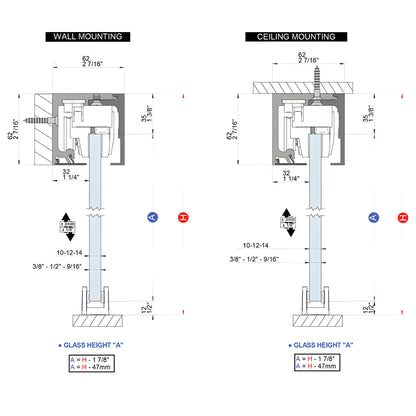

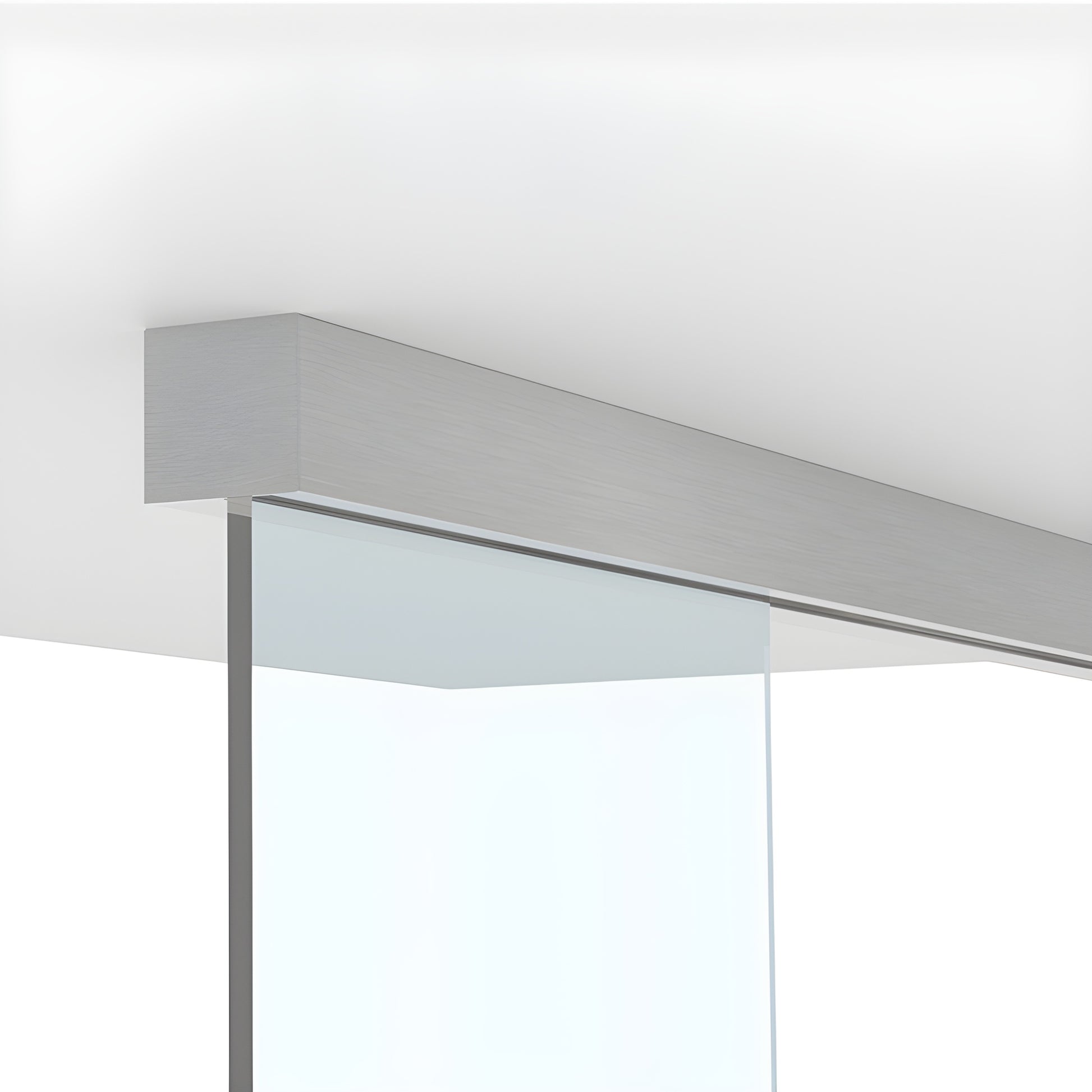

CRL 695 Brushed Stainless Wall/Ceiling Sliding Door Kit w/ Softbrake

• Kits intended for 3/8" to 1/2" (10 to 12 mm) tempered glass
• Accommodates properly installed doors up to 330 lb (150 kg)
• Rollers provide up to 1/4" (6 mm) vertical adjustment for post-install door alignment
• Track length: 118" (3 m)
• For use with monolithic tempered glass

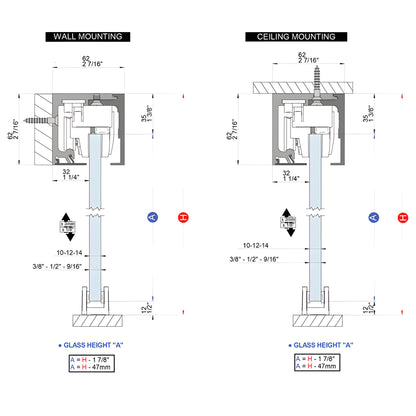

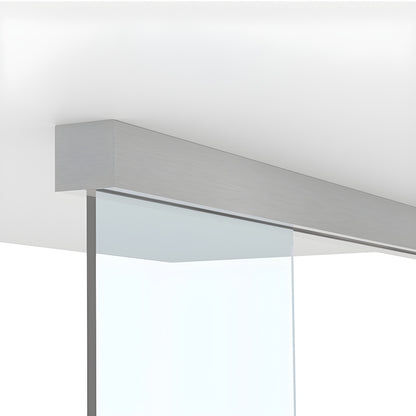

CRL 690 Series Sliding Door Kits (SKU: CRL695BSA) — commercial tempered glass sliding door kits available in wall-mount, ceiling-mount, and dropped-ceiling-mount models. Choose options with or without a sidelite and with or without the Softbrake braking system. Kits include all mounting hardware except tempered glass and pull hardware. Finishes: satin anodized, brushed stainless anodized, and matte black; special-order cladding or powder-coat finishes available. Contact CRL Technical Sales for commercial kit selection or installation assistance.

Minimum sliding panel width: 34-1/4" (800 mm) for controlled single- or bi-directional operation.

Kit Contains:

• 118" (3 m) CRL4933EXT track kit
• 118" (3 m) CRL6979A bottom channel
• Glazing vinyl for 3/8" to 1/2" (10 to 12 mm) glass
• 1 set CRL6939 top hangers
• 1 set CRL6942 roller stops
• 1 each CRL2940 bottom guide
• 1 set CRL2945 door edge guards
• 1 set CRL2929 dropped ceiling adapter bracket

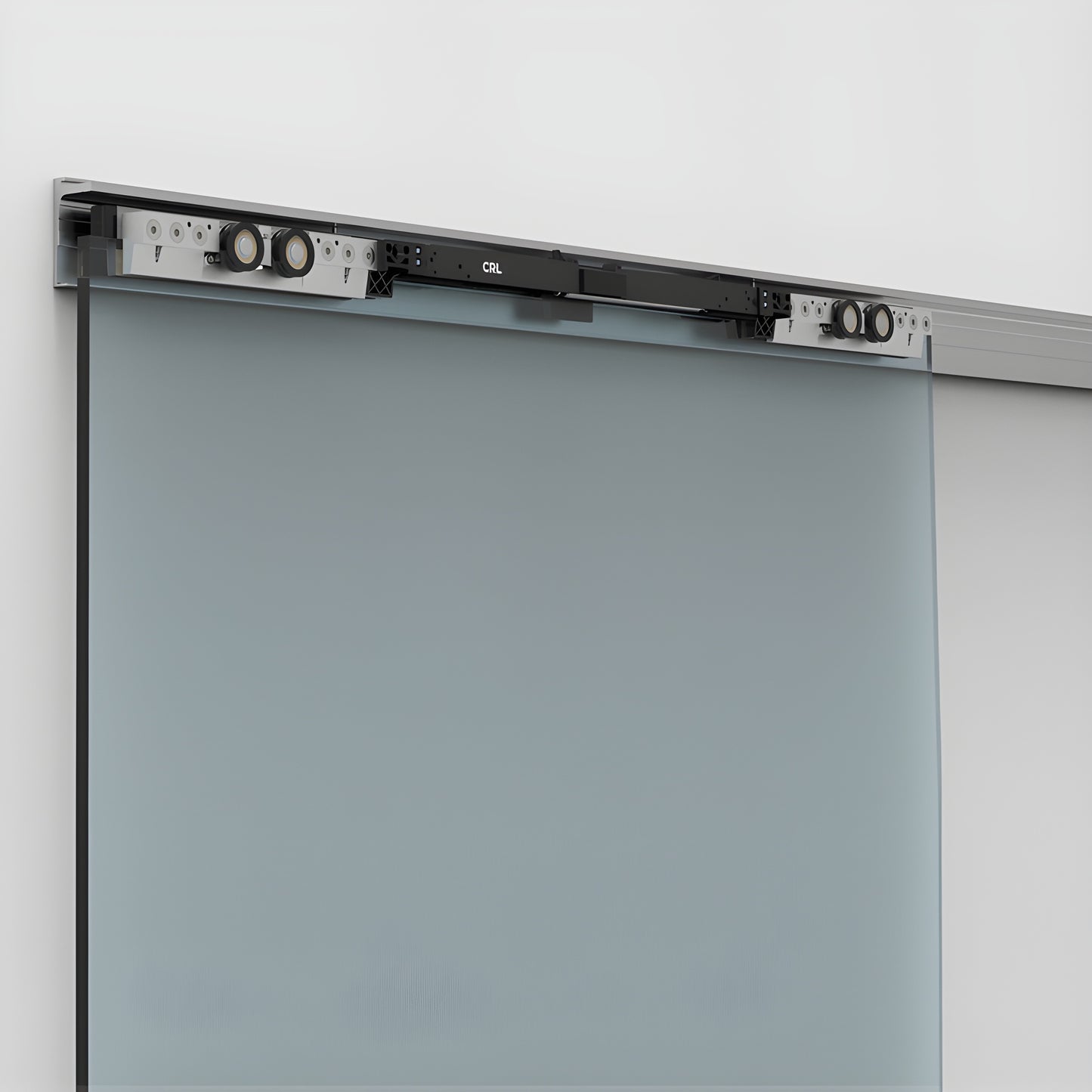

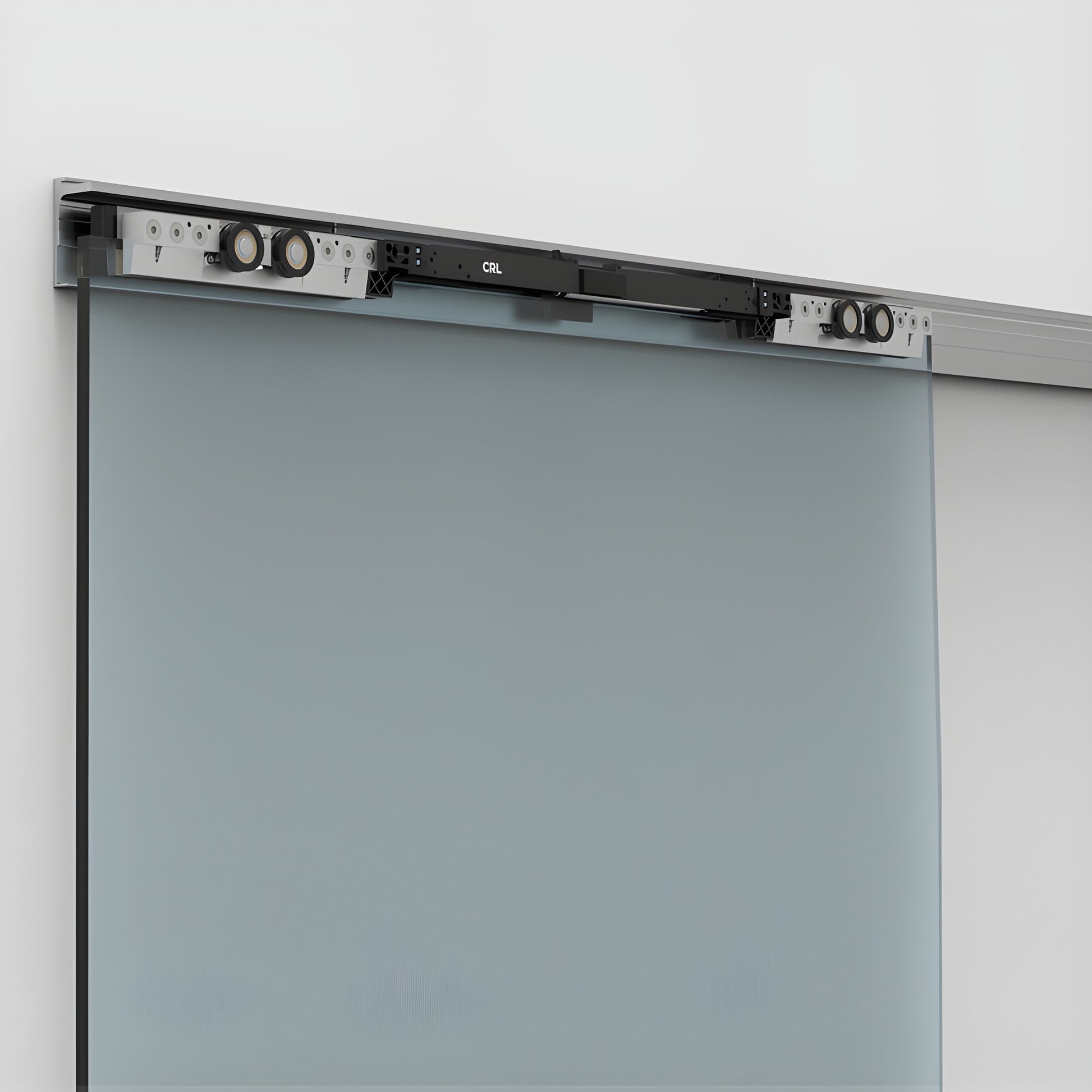

• 1 each CRL695SBK Softbrake kit

Order the CRL 690 Series sliding door kit (CRL695BSA) for a durable, adjustable commercial tempered glass sliding door solution — contact sales to configure your finish and Softbrake options.
